Product description The VIDMK-66 digital audio package from DPA Microphones includes a d:vice 2-channel mobile audio interface and a black d:fine FIO66 omnidirectional headset microphone with three DUA0060 foam windscreens. It is well suited for recording the voice of a single speaker/journalist directly into a smartphone or tablet, for live broadcast applications, video segment production, social media outlets such as Facebook Live, and more. - d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows

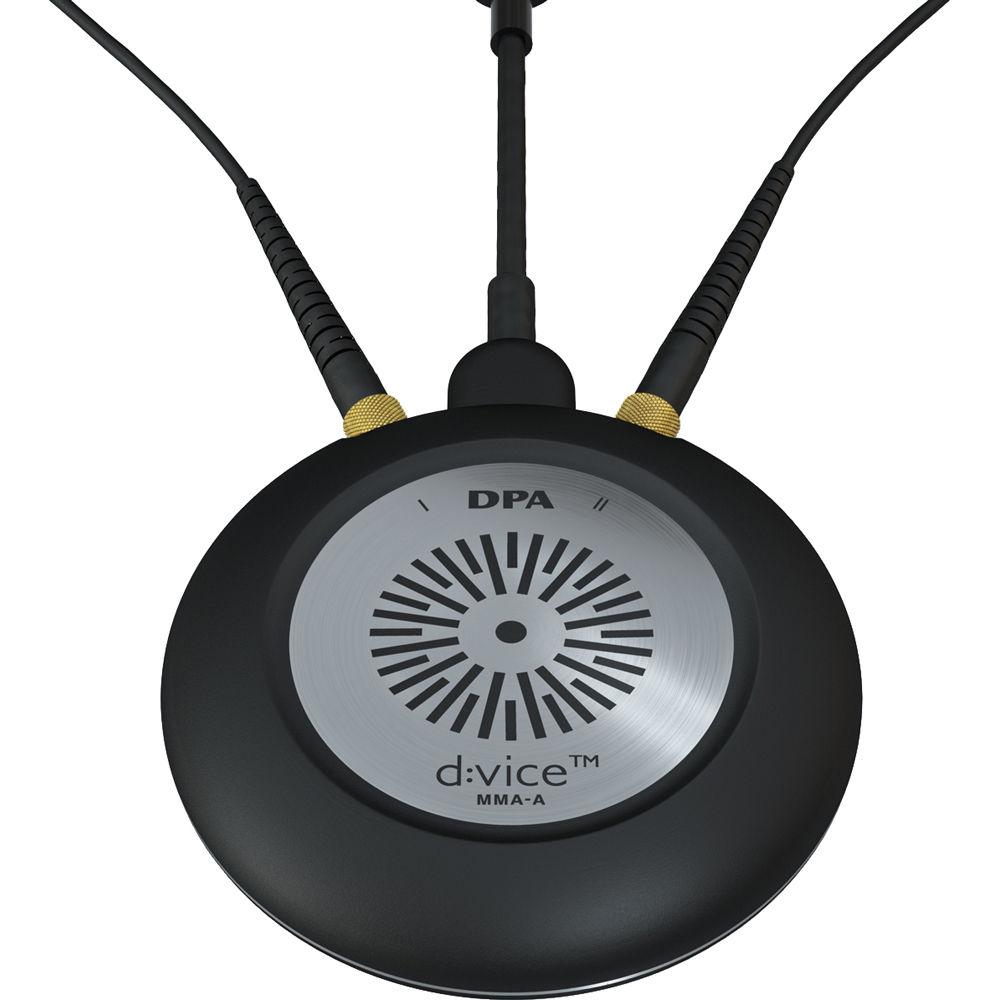

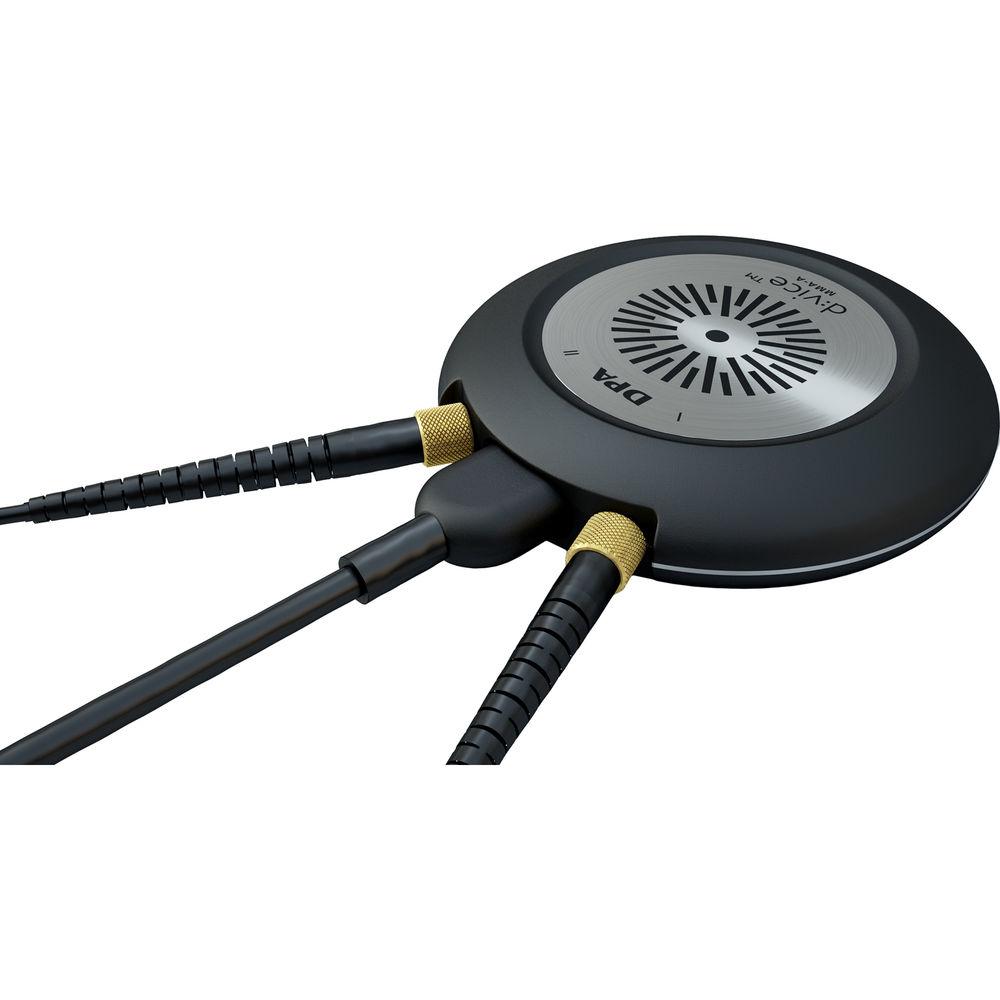

- Introducing the d:vice MMA-A Digital Audio Interface
The d:vice from DPA Microphones is a mobile A/D audio interface developed for content makers who need to capture high-fidelity audio with their smartphones or tablets, when on the go. The thin, portable design lets you discreetly wear the unit in your pocket, ideal when recording interviews, music or ambience for video, live broadcast, social media, and more.The d:vice features two high-quality microphone preamps with MicroDot connectors, which both provide phantom power to the company's lavaliers, shotguns and modular mic capsules, as well as to third-party mics equipped with MicroDot cables.The free DPA App allows you to set parameters before using the d:vice with a third-party app such as Skype, Facebook Live, and others. Choose between mono, dual-mono or stereo output modes, and independently control the level of each mic. The App also lets you store four presets, allowing for quick setup to suit specific tasks.The unit connects to all iOS devices using the Lightning connector or to Windows and Mac computers via the included USB Micro-B to USB Type-A cable. - Compact audio interface for content makers who need to capture high-fidelity audio on their smartphones or tablets
- Ideal for video, live broadcast, social media, on-location music recording, and more
- 2-channel microphone preamplifier, with MicroDot inputs and phantom power – connect lavalier mic, shotgun mic, modular mic capsule or any third-party mic with MicroDot connector
- Choose between three output modes: Mono for one mic on one person, dual-mono for two people with both mic signals mixed down to mono, stereo for music or ambience recording
- Thin, portable design – discretely fits in pockets
- Works with third-party Apps supporting Core Audio – Facebook Live, Skype, LiveU, AviWest, and more
- Free DPA App lets you set parameters before using d:vice with third-party App – four presets can be saved by user, allowing quick setup for specific tasks
- Connects to all iOS devices using Lightning connector or to Windows and Mac devices via included USB Micro-B to USB Type-A cable
- d:fine 66 1-Ear Omnidirectional Headset Microphone and 110mm Boom with MicroDot Connector (Black) The black d:fine 66 1-Ear Omnidirectional Headset Microphone and 110mm Boom with MicroDot Connector by DPA Microphones is designed for capturing professional audio. It is used in various environments for applications such as singers, public speakers, actors, musicians, and broadcast professionals. It features the DPA 4066 capsule, which is omnidirectional with a frequency range of 20 Hz to 20 kHz. This microphone offers accurate and natural voice intelligibility, and has high SPL capabilities. The d:fine 66 headset microphone is built with a 110mm boom and is featured with a 1-ear mount, designed to fit any head and ear size. Just by rotating the boom and the earhook, the microphone can be moved from left to right ear. This headset includes a 4.1' cable and terminates in a MicroDot connector. A carry box, cable clip, soft boost grid, and 3 additional windscreens are included.
- Users can adjust the d:fine headset for left or right ear placement
- Service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths/colors/connectors
- Allows you to both speak and sing into the microphone with no hint of distortion
- Ear mount is designed to fit any head and ear size
- Omnidirectional 1-ear headset microphone offers natural voice intelligibility and very high SPL handling
In the Box Bundle Items d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows - USB Micro-B to USB Type-A Cable
d:fine 66 1-Ear Omnidirectional Headset Microphone and 110mm Boom with MicroDot Connector (Black) - 5 x Color-Coded Identification Rings
Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones VIDMK-66 d:vice Audio Interface Kit with d:fine FIO66 Headset Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows
| Input Connector | 2 x MicroDot | | Phantom Power | 5 V to 50 V | | | | Box Dimensions (LxWxH) | 5.7 x 4.8 x 2.5" | - d:fine 66 1-Ear Omnidirectional Headset Microphone and 110mm Boom with MicroDot Connector (Black)
| Polar Pattern | Omnidirectional | | Principle of Operation | Pressure | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | 20 Hz to 20 kHz
Soft-Boost Grid: 20 Hz to 20 kHz ±2 dB, 3 dB soft boost at 8 to 20 kHz
Optional High-Boost Grid: 20 Hz to 20 kHz ±2 dB, 10 dB boost at 12 kHz | | Sensitivity | 6 mV/Pa, -44 dB re. 1 V/Pa (nominal, ±3 dB at 1 kHz) | | Equivalent Noise Level | A-Weighted:
Typical: 26 dBA re. 20 µPa
Maximum: 28 dBA
ITU-R BS.468-4:
Typical: 38 dB
Maximum: 40 dB | | S/N Ratio | 68 dBA, 1 kHz at 1 Pa (94 dB SPL): | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typical 97 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 144 dB | | Output Impedance | 30 to 40 ohms | | Cable Drive Capability | Up to 984' (300 m) | | Connector | MicroDot | | Temperature Range | 14 to 113°F (-10 to 45°C) | | Relative Humidity | Up to 90% | | Cable Length | 4.1' (1.25 m)
Cable Diameter: 0.06" (1.6 mm) | | Microphone Diameters | 0.20" (5 mm)
Length: 0.39" (10 mm) | | Weight | Single Ear Microphone Boom: 0.035 oz (1 g)
Earhook: 0.035 oz (1 g)
Cable: 0.28 oz (8 g)
Total: 0.35 oz (10 g) | | | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
