Product description The VIDMK-66-IE1 digital audio package from DPA Microphones includes a d:vice 2-channel mobile audio interface and a black d:fine FIO66-B in-ear omnidirectional headset microphone with three DUA0060 foam windscreens. The integrated in-ear monitor lets producers or camera operators discretely communicate with the on-camera talent. This package is well suited for recording the voice of a single speaker/journalist directly into a smartphone or tablet, for live broadcast applications, video segment production, social media outlets such as Facebook Live, and more. - d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows

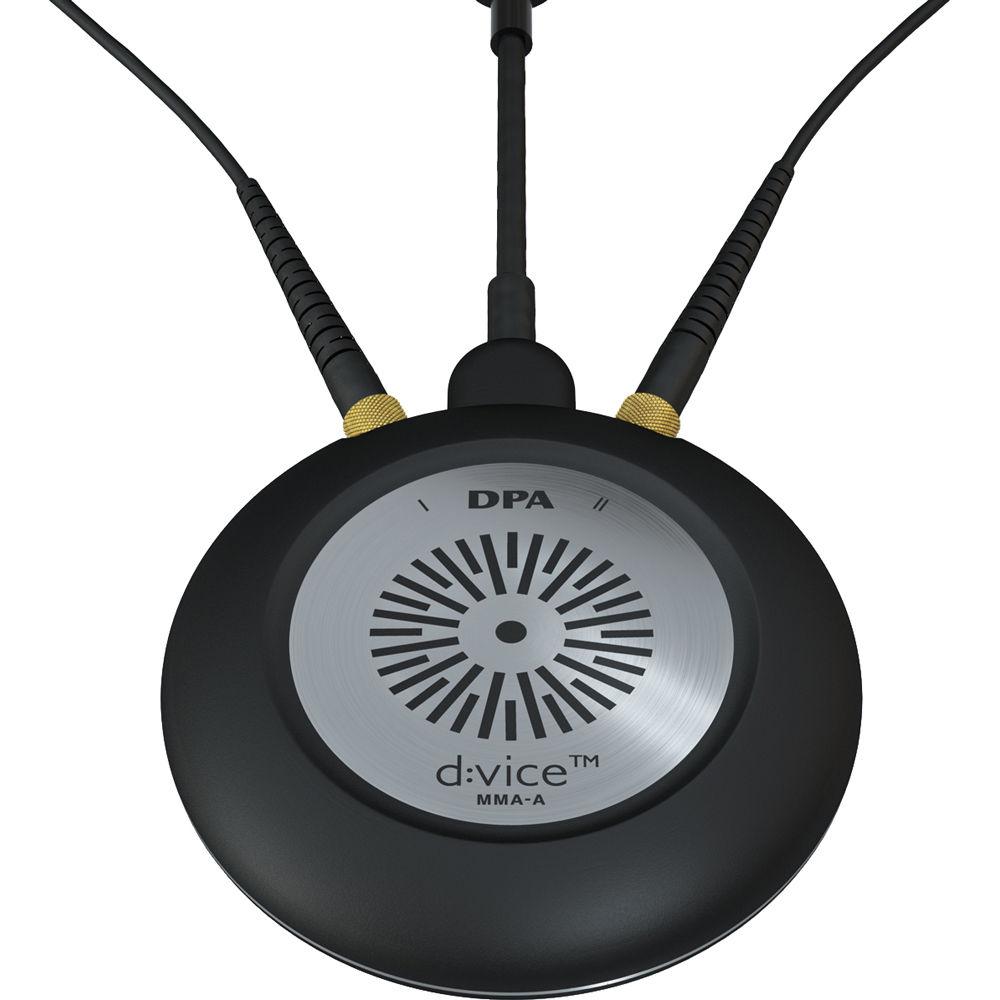

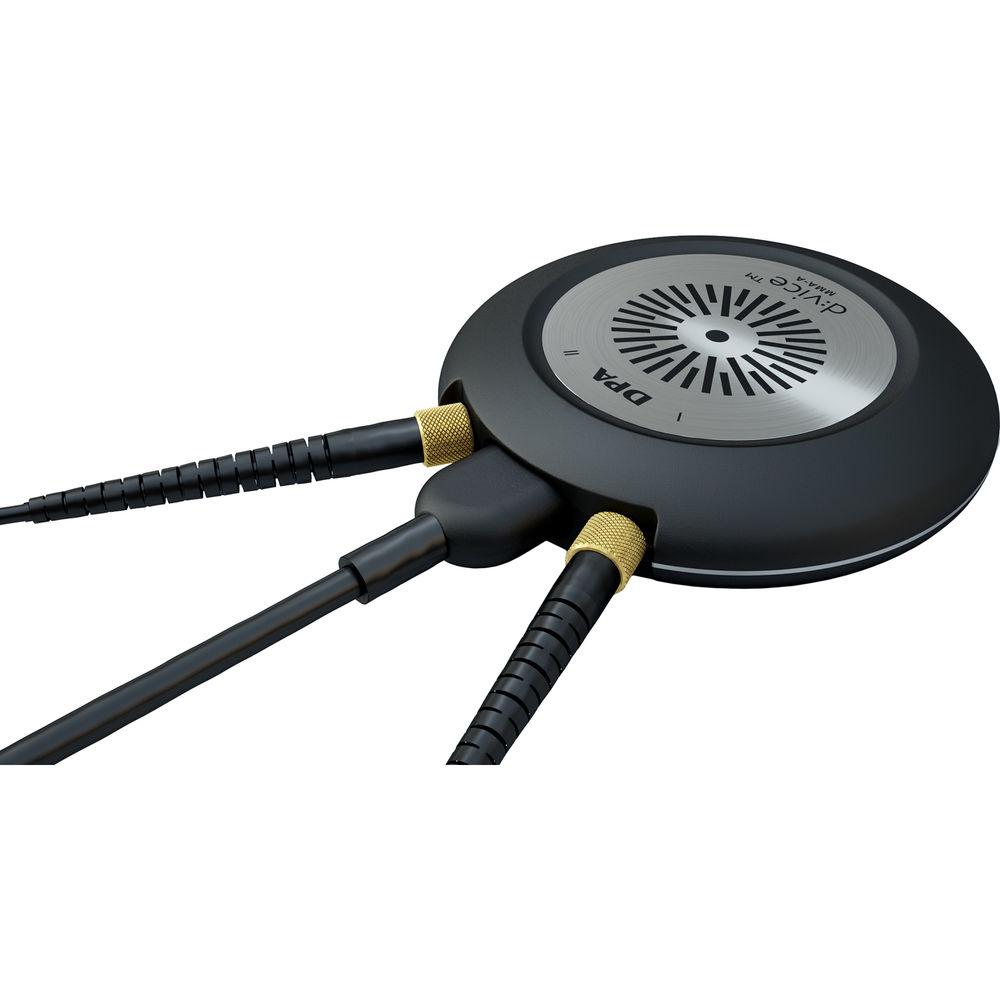

- Introducing the d:vice MMA-A Digital Audio Interface
The d:vice from DPA Microphones is a mobile A/D audio interface developed for content makers who need to capture high-fidelity audio with their smartphones or tablets, when on the go. The thin, portable design lets you discreetly wear the unit in your pocket, ideal when recording interviews, music or ambience for video, live broadcast, social media, and more.The d:vice features two high-quality microphone preamps with MicroDot connectors, which both provide phantom power to the company's lavaliers, shotguns and modular mic capsules, as well as to third-party mics equipped with MicroDot cables.The free DPA App allows you to set parameters before using the d:vice with a third-party app such as Skype, Facebook Live, and others. Choose between mono, dual-mono or stereo output modes, and independently control the level of each mic. The App also lets you store four presets, allowing for quick setup to suit specific tasks.The unit connects to all iOS devices using the Lightning connector or to Windows and Mac computers via the included USB Micro-B to USB Type-A cable. - Compact audio interface for content makers who need to capture high-fidelity audio on their smartphones or tablets
- Ideal for video, live broadcast, social media, on-location music recording, and more
- 2-channel microphone preamplifier, with MicroDot inputs and phantom power – connect lavalier mic, shotgun mic, modular mic capsule or any third-party mic with MicroDot connector
- Choose between three output modes: Mono for one mic on one person, dual-mono for two people with both mic signals mixed down to mono, stereo for music or ambience recording
- Thin, portable design – discretely fits in pockets
- Works with third-party Apps supporting Core Audio – Facebook Live, Skype, LiveU, AviWest, and more
- Free DPA App lets you set parameters before using d:vice with third-party App – four presets can be saved by user, allowing quick setup for specific tasks
- Connects to all iOS devices using Lightning connector or to Windows and Mac devices via included USB Micro-B to USB Type-A cable
- d:fine 66 Single-Ear Omni In-Ear Broadcast Headset with 110mm Boom Mic and MicroDot Hardwired Connector (Black) The black d:fine 66 Single-Ear Omni In-Ear Broadcast Headset with 110mm Boom Mic and MicroDot Hardwired Connector by DPA Microphones is designed for capturing professional audio and convenient in-ear communication. It can be used by singers, public speakers, actors, musicians, and broadcast professionals. It features the DPA 4066 omnidirectional capsule, which has a frequency range of 20 Hz to 20 kHz. This microphone offers accurate and natural voice intelligibility with high SPL capabilities. The headset is built with a single in-ear dynamic earplug for monitoring which terminates with a single 1/8" stereo mini-jack connector. Conceived for broadcast professionals who need clear voice reproduction, the d:fine 66 headset microphone is built with a 110mm boom, a single-ear mount, and is designed to fit any head and ear size. The mic and in-ear monitor are integrated as one solution. This headset includes a 4.3' cable and terminates in a MicroDot connector. In addition, two sizes of ear pads are also included.
- Service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths/colors/connectors
- Allows you to both speak and sing into the microphone with no hint of distortion
- Mic and in-ear monitor are integrated as one solution
- Easy to mount with minimum cable clutter
- Ear mount is designed to fit any head and ear size
- Omnidirectional single-ear headset microphone offers natural voice intelligibility and very high SPL handling
In the Box Bundle Items d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows zaucqdzayr - USB Micro-B to USB Type-A Cable
d:fine 66 Single-Ear Omni In-Ear Broadcast Headset with 110mm Boom Mic and MicroDot Hardwired Connector (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones VIDMK-66-IE1 d:vice Audio Interface Kit with d:fine FIO66-B In-Ear Headset Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows
Input Connector | 2 x MicroDot | Phantom Power | 5 V to 50 V | | Box Dimensions (LxWxH) | 5.7 x 4.8 x 2.5" | - d:fine 66 Single-Ear Omni In-Ear Broadcast Headset with 110mm Boom Mic and MicroDot Hardwired Connector (Black)
Polar Pattern | Omnidirectional | Principle of Operation | Pressure | Frequency Range | ±2 dB: 20 Hz to 20 kHz with 3 dB soft boost at 8 to 20 kHz | Sensitivity | 6 mV/Pa, -44 dB re. 1 V/Pa (nominal, ±3 dB at 1 kHz) | Equivalent Noise Level | A-Weighted: Typical: 26 dBA re. 20 µPa Maximum: 28 dBA | Total Harmonic Distortion (THD) | <1% up to 123 dB SPL peak <1% up to 120 dB SPL RMS sine | Dynamic Range | Typical 97 dB | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 144 dB | Power Supply | Min. 5 V - max. 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with DAD6001-BC XLR adapter (available separately) | Current Consumption | Typical 1.5 mA (microphone) 3.5 mA with DAD6001-BC XLR adapter | Connector | MicroDot | Cable Length | 4.3' (1.3 m) | Microphone Head Size | 0.37 z 0.21 z 0.11" (9.5 x 5.3 x 2.9 mm) | Weight | Not specified by manufacturer | | Type | Dynamic earplug | Connector | 1/8" (3.5 mm) stereo mini-jack | In-Ear Type | Single: Signal at mini-jack tip | Sensitivity | 107 dB/V | Nominal Impedance | 18 Ohms |
