User Manual for DPA Microphones VIDMK-HYB1 d:vice Audio Interface Kit with d:screet 4060 Lav Mic and d:dicate MMC4018 Mic Capsule Click to enlarge the picture
Contents of the user manual for the DPA Microphones VIDMK-HYB1 d:vice Audio Interface
- Product category: Audio Interfaces & Systems DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Audio Interfaces & Systems
|
User manual for the DPA Microphones VIDMK-HYB1 d:vice Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The VIDMK-HYB1 digital audio package from DPA Microphones includes a d:vice 2-channel mobile audio interface, a black d:screet 4060 miniature omnidirectional lavalier microphone, plus a d:dicate MMC4018 supercardioid microphone capsule with its modular side cable and GSM4000 gooseneck shock mount. It also come with an SCM0004 miniature microphone clip, a d:vote 4099 clamp mount, and three DUA0060 foam windscreens. The combination of lavalier mic and supercardioid capsule offers a variety of options for miking a person/small group at a distance or close-miking a single speaker/journalist, allowing you to capture audio directly into a smartphone or tablet, for live broadcast applications, video segment production, social media outlets such as Facebook Live, and more. - d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows

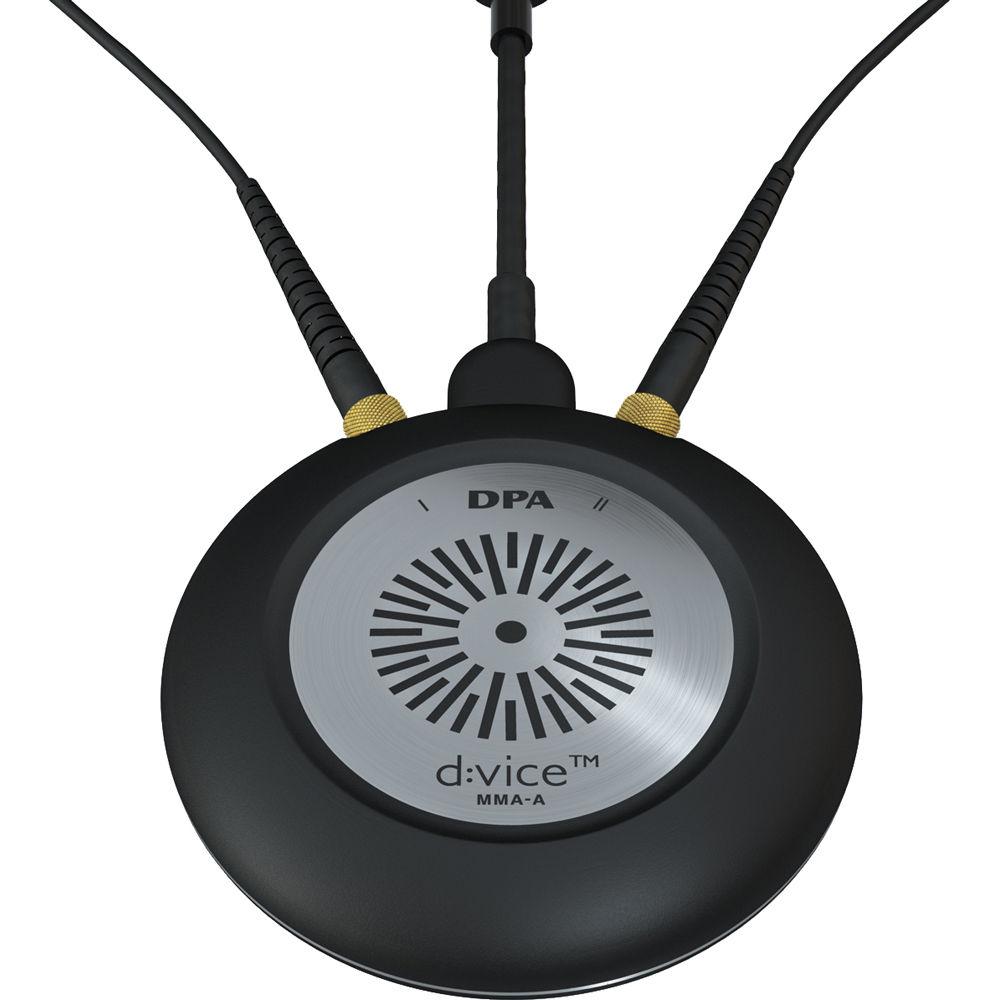

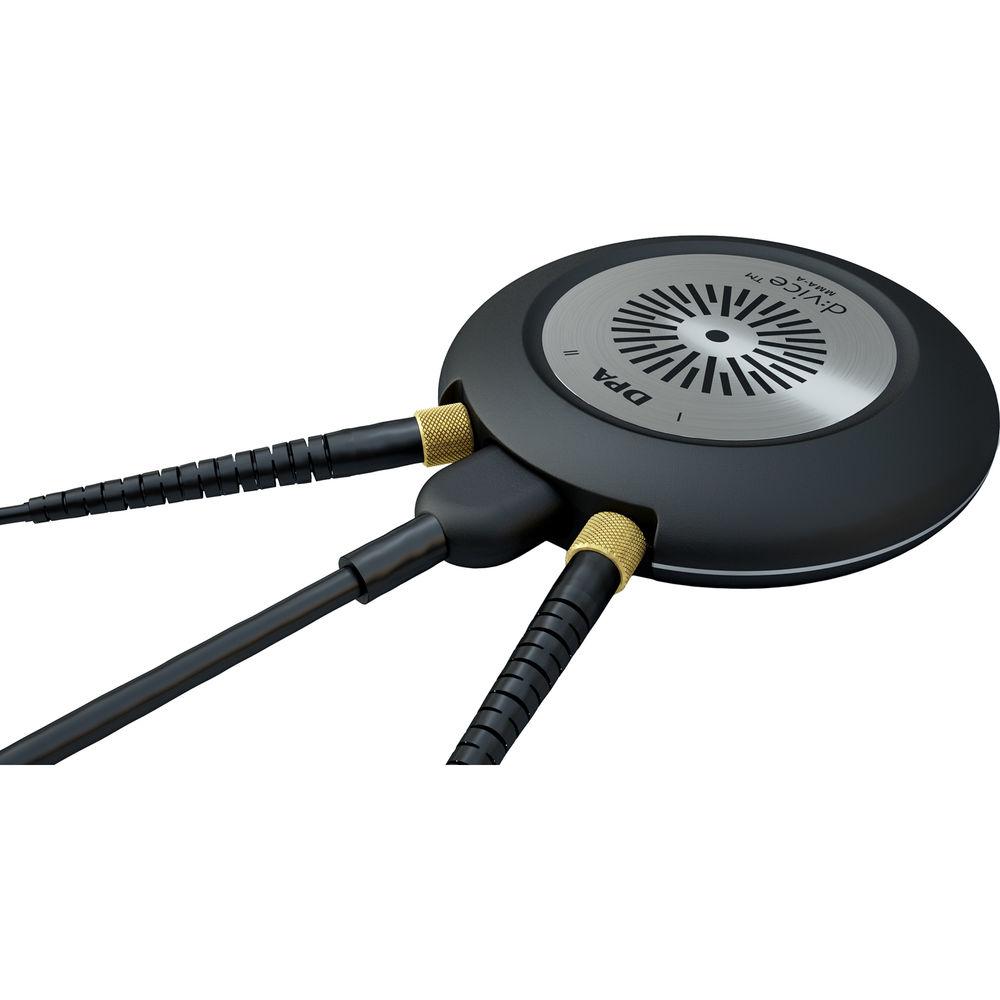

- Introducing the d:vice MMA-A Digital Audio Interface
The d:vice from DPA Microphones is a mobile A/D audio interface developed for content makers who need to capture high-fidelity audio with their smartphones or tablets, when on the go. The thin, portable design lets you discreetly wear the unit in your pocket, ideal when recording interviews, music or ambience for video, live broadcast, social media, and more.The d:vice features two high-quality microphone preamps with MicroDot connectors, which both provide phantom power to the company's lavaliers, shotguns and modular mic capsules, as well as to third-party mics equipped with MicroDot cables.The free DPA App allows you to set parameters before using the d:vice with a third-party app such as Skype, Facebook Live, and others. Choose between mono, dual-mono or stereo output modes, and independently control the level of each mic. The App also lets you store four presets, allowing for quick setup to suit specific tasks.The unit connects to all iOS devices using the Lightning connector or to Windows and Mac computers via the included USB Micro-B to USB Type-A cable. - Compact audio interface for content makers who need to capture high-fidelity audio on their smartphones or tablets
- Ideal for video, live broadcast, social media, on-location music recording, and more
- 2-channel microphone preamplifier, with MicroDot inputs and phantom power – connect lavalier mic, shotgun mic, modular mic capsule or any third-party mic with MicroDot connector
- Choose between three output modes: Mono for one mic on one person, dual-mono for two people with both mic signals mixed down to mono, stereo for music or ambience recording
- Thin, portable design – discretely fits in pockets
- Works with third-party Apps supporting Core Audio – Facebook Live, Skype, LiveU, AviWest, and more
- Free DPA App lets you set parameters before using d:vice with third-party App – four presets can be saved by user, allowing quick setup for specific tasks
- Connects to all iOS devices using Lightning connector or to Windows and Mac devices via included USB Micro-B to USB Type-A cable
- d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector (Black) The black d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector from DPA is a miniature lavalier microphone designed for use in performance and theatrical applications. The 4060 lavalier features a condenser element with a frequency and sensitivity response that will accurately reproduce audio signals from the human voice and instruments. The capsule is designed with a double vent protection system and moisture resistant materials inside the capsule, which ensure maximum protection from humidity and moisture caused by perspiration, makeup, etc.The 4060 includes interchangeable capsule protection grids that alter the signal character of the microphone. A High-Boost Grid creates a peak at 12 kHz, creating an airy texture to audio signals. The Soft-Boost Grid creates a subtle boost between 8-20 kHz, enhancing signal presence. With a SPL rating of 134 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The 4060 features a MicroDot output connector, compatible with various wireless microphone transmitters or power supplies with standard XLR outputs.
- Moisture Resistant
- The 4060 features a double vent protection grid and moisture resistant materials, which prevent damage from humidity, perspiration and makeup.
- Frequency Altering Grids
- The microphone includes "High Boost" and "Soft Boost" protection grids that alter the frequency response and accentuate high-frequency signals.
- Sensitive Condenser
- The condenser element provides a wide frequency response while boasting an SPL rating of 134 dB.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern effectively captures audio at the direct and off-axis sections of the capsule.

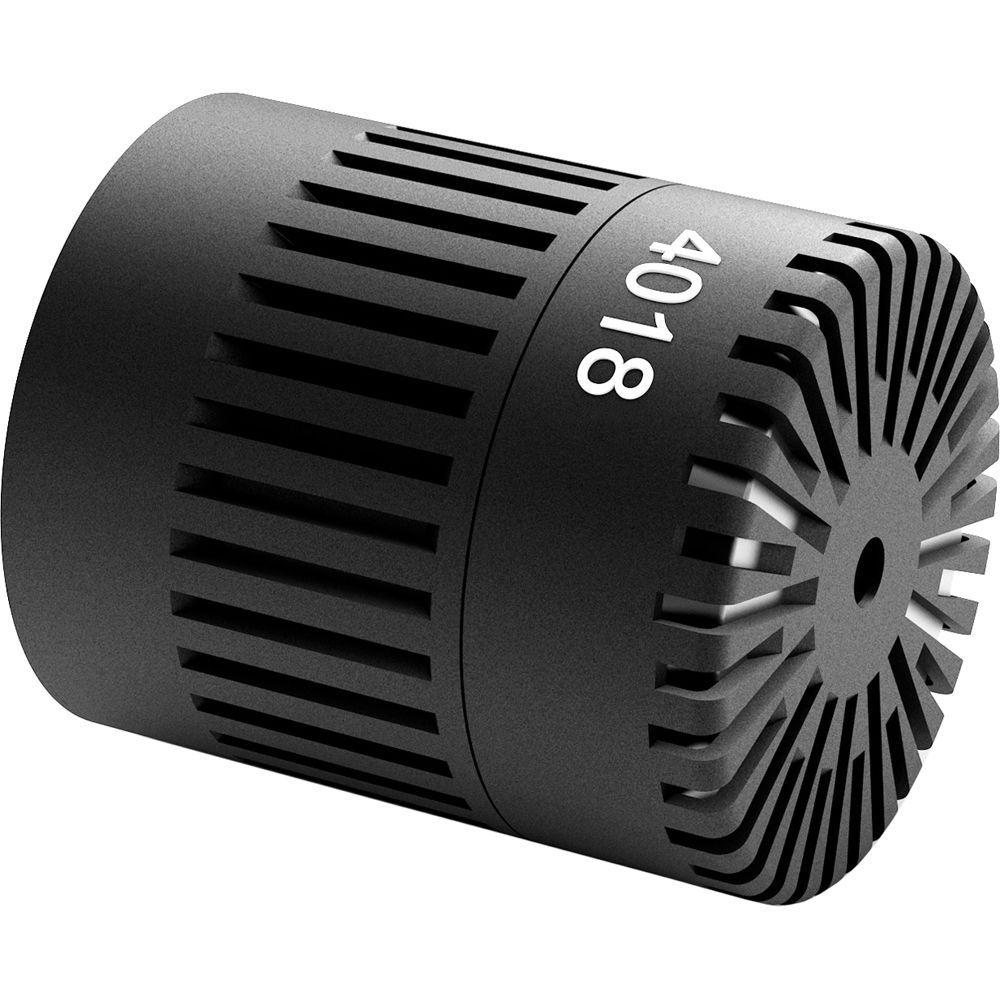

- d:dicate MMC4018 Supercardioid Microphone Capsule The MMC-4018 from DPA is a modular microphone capsule that has a highly directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. It can be used in a broad range of broadcast/ENG/film long-distance miking applications for booming, dialogue, podiums, interviews, and more. In addition, it can be used as a spot or hanging mic for orchestra recordings too. The capsule's supercardioid shape is frequency-independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on the 4018 capsule, which makes it much more isolated without the sudden frequency-dependent peaks and dips. Combine the MMC4018 with any of the pre-amps in the d:dicate modular series to fit your needs (sold separately).

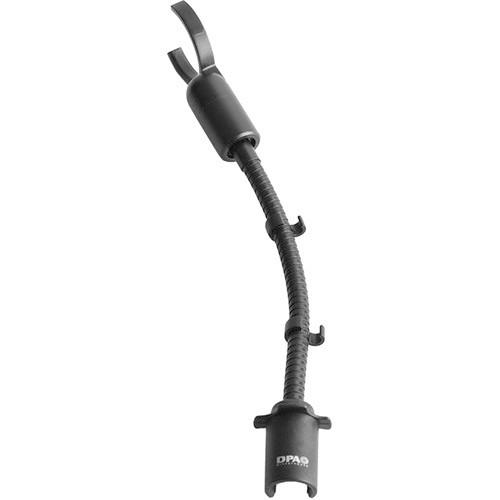

- Gooseneck Shock Mount for d:dicate The DPA Microphones Gooseneck Shock Mount for d:dictate can be used to mount a microphone on an instrument. It is a combination of an 4.5" long gooseneck and shock mount. You can use it together with your choice of instrument clip and easily attach the mount to your specific instrument.The Gooseneck Shock Mount is intended for use with any d:dicate Recording Microphone that fits into the holder. The gooseneck provides stable and repeatable positioning. The mount has an integrated shock mount solution ensuring the sound is not affected by handling noise. This mount can be used for close-miking instruments in the studio or for live performances.

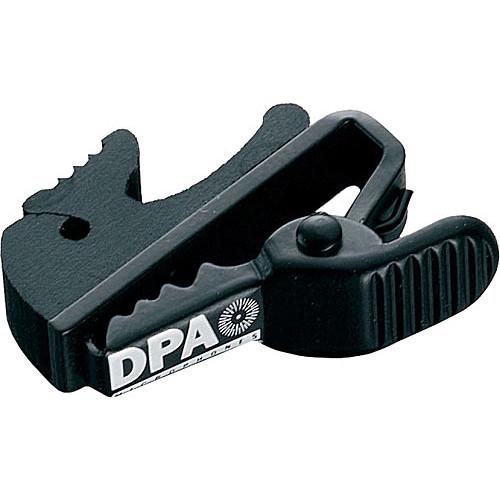

- SCM0004 Miniature Microphone Clip, Small (Black) The black SCM0004 from DPA is a miniature microphone clip especially designed for quick and easy mounting of a DPA miniature microphone on the chest of a speaker or performer. It can be used for situations where an inconspicuous mount is required, or when fast changes on the fly are necessary.
- CM4099 - Clamp Mount for d:vote 4099 Instrument Microphone The DPA CM4099 clamp mount lets you easily clip your d:vote 4099 microphone on saxophones, brass instruments, and a variety of other instruments. The clamp's flexible design supports a wide array of mounting and positioning options, and it allows for quickly moving the mic between instruments with just one hand, without scratching the finish.
-
- For d:vote 4099 instrument microphone
- For saxophones, brass instruments
- Fits many types of instruments
- Wide variety of mounting and positioning options
- Flexible design, easy one-hand mounting
- Quickly move mic between instruments
- Does not scratch instrument finish

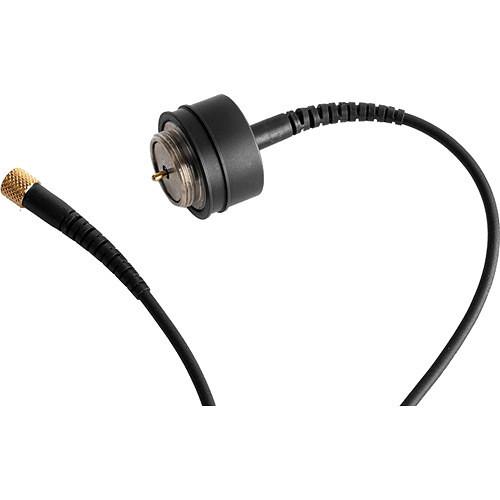

- D:Dicate Modular Active Side Cable with MicroDot Connector
In the Box Bundle Items d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows bdqztutzdawbrtadxrevtvc - USB Micro-B to USB Type-A Cable
d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector (Black) - High-Boost Protection Grid
- Soft-Boost Protection Grid
d:dicate MMC4018 Supercardioid Microphone Capsule D:Dicate Modular Active Side Cable with MicroDot Connector Gooseneck Shock Mount for d:dicate SCM0004 Miniature Microphone Clip, Small (Black) CM4099 - Clamp Mount for d:vote 4099 Instrument Microphone
Also Includes - 3 x DUA0060 Foam Windscreen
Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones VIDMK-HYB1 d:vice Audio Interface Kit with d:screet 4060 Lav Mic and d:dicate MMC4018 Mic Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows
Input Connector | 2 x MicroDot | Phantom Power | 5 V to 50 V | | Box Dimensions (LxWxH) | 5.7 x 4.8 x 2.5" | - d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector (Black)
| Sound Field | Mono | Operating Principle | Pressure Operated | Transducer | Condenser | Polar Pattern | Omnidirectional | Frequency Range | 20 Hz to 20 kHz | Signal to Noise Ratio | 71 dB A-Weighted | Equivalent Noise Level | 26 dB A-Weighted | Maximum SPL | 134 dB SPL Peak | THD | < 1% | Impedance | 40 Ohms | Sensitivity | 20 mV/Pa at 1 kHz | Dynamic Range | 100 dB A-Weighted | | Output Connector | Microdot | Cable Length | 5.9' / 1.80 m | Operating Voltage | 5 to 50 V | Operating Humidity | 0 to 90% (Recommended) | Length | 0.5" / 1.27 cm | Diameter | 0.21" / 5.33 mm | Weight | 0.26 oz / 7 g | | Box Dimensions (LxWxH) | 4.3 x 2.75 x 1.0" | - d:dicate MMC4018 Supercardioid Microphone Capsule
Directional Pattern | Supercardioid | Principle of Operation | Pressure gradient | Cartridge Type | Pre-polarized condenser | Frequency Range | 20 Hz to 20 kHz ± 2 dB at 30 cm: 40 Hz to 18 kHz | Sensitivity | Nominal ± 2 dB at 1 kHz: 12 m V/Pa; -38.4 dB re. 1 V/Pa | Equivalent Noise Level | A-weighted: Typ. 16 dB (A) re. 20 µPa max. 19 dB | Signal to Noise Ratio | (A-weighted), re. 1 kHz at 1 Pa 94 dB SPL: Typ. 78 dB (A) | Max SPL Level | 157 db peak before clipping | Temperature Range | -40 to 113° F (-40 to 45° C) | Relative Humidity | Up to 90% | Capsule Size | 0.75" (19 mm) | Dimensions (L x Diam) | 0.9 x 0.8" (23 x 19 mm) | Weight | 0.6 oz (18 g) | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" | - Gooseneck Shock Mount for d:dicate
Length | Gooseneck: 4.5" / 11.5 cm | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" | - SCM0004 Miniature Microphone Clip, Small (Black)
Dimensions | Not specified by manufacturer | Weight | Not specified by manufacturer | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 1.0" | - CM4099 - Clamp Mount for d:vote 4099 Instrument Microphone
| Box Dimensions (LxWxH) | 4.3 x 2.7 x 1.0" | - D:Dicate Modular Active Side Cable with MicroDot Connector
