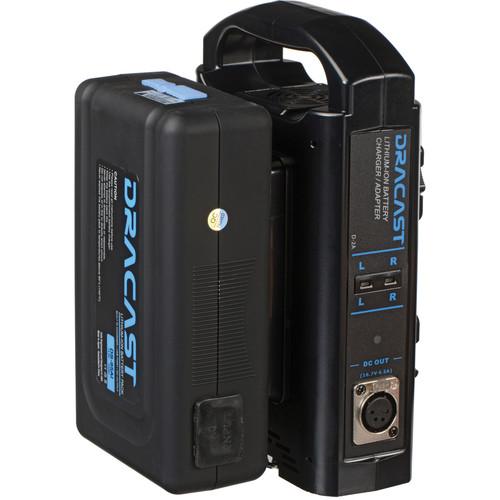

User Manual for Dracast 90Wh 14.8V Lithium-Ion Gold Mount Battery & Dual Battery Charger Bundle Click to enlarge the picture
Contents of the user manual for the Dracast 90Wh 14.8V Lithium-Ion Gold Mount
- Product category: On Camera Batteries Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast On Camera Batteries
|
User manual for the Dracast 90Wh 14.8V Lithium-Ion Gold Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|
Product description This bundle of a 90Wh Battery and a Dual charger from Dracast provides an expandable battery/charger solution for professional applications. Both the charger and battery feature a Gold Mount and can be used virtually anywhere in order to power your camera. The battery features a 5-LED status indicator, and a D-Tap power outlet that provides power to accessories.
The Dual battery charger can accept two batteries at the same time and features pull-out metal feet to help prevent tip-over situations. The charger incorporates a 4-pin XLR connector, which enables it to function as a 12 VDC power supply. It includes a US 3-prong power cord; however, you will need to source an XLR cable separately. - 90Wh 14.8V Li-Ion Gold Mount Battery The Dracast 90Wh 14.8V Li-Ion Gold Mount Battery is a memory-effect-free battery for professional camera systems. It features built-in electronics to protect the battery during charging and use, charger is not included with the battery. The 5-LED battery system provides an indicator that shows you how much capacity the battery has left before it needs to be charged. It incorporates a D-tap power outlet, so you can power accessories directly, instead of through your camera's electronics. With an operating temperature range of -4 to 122° F, the battery will keep working even in deep cold and extreme heat.
- 90Wh Li-ion professional mount battery pack does not suffer from memory effect, common to NiCd batteries.
- Fits camera and lighting units with Gold Mount battery bracket.
- The built-in LED battery gauge provides you with a clear visual confirmation of the battery's capacity.
- The built-in D-tap connector allows you to power accessories directly from the battery, protecting your camera's electronics from potential damage due to power hungry accessories.
- The battery incorporates electronic protection from over-charging, over-discharging, over-current-draw, external short-circuits, and non-equilibrium between its power cells.
- The battery will operate in temperature extremes that are uncomfortable for most people. Please note that as a general rule, battery capacity decreases as the temperature gets colder. Check your owner's manual for instructions on charging cold or hot batteries.
- An attached rubber cover protects the D-tap connector when not in use.
- DR-CH2A Dual Gold Mount Battery Charger The portable DR-CH2A Dual Gold Mount Battery Charger from Dracast allows you to simultaneously charge two Gold Mount batteries (or a single battery) from 90 to 240 VAC sources. It features a top handle for easy transport and built-in capacity management system to ensure fast charging. The charger will automatically shutdown once the batteries reach their full charge. Additionally, the charger can function as a portable AC to DC power adapter, taking the AC power input and outputting 15 VDC at 4A via a 4-pin XLR connector. The output is only active when no batteries are attached. UPC: 610708234258
In the Box Bundle Items 90Wh 14.8V Li-Ion Gold Mount Battery tswurcwyybeu DR-CH2A Dual Gold Mount Battery Charger Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast 90Wh 14.8V Lithium-Ion Gold Mount Battery & Dual Battery Charger Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 90Wh 14.8V Li-Ion Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 90 Wh | | Output Voltage | 14.8 VDC | | Accessory Port | 1 x D-Tap | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (W x H x D) | 6.7 x 3.9 x 1.9" / 170.0 x 100.0 x 47.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 5.5 x 4.05 x 2.6" | - DR-CH2A Dual Gold Mount Battery Charger
| Power Input | Input: 90 to 240 VAC, 47 to 63 Hz | | Power Output | 4-pin XLR, 15 VDC, 4 A | | Power Consumption | 50 W | | Dimensions | 4.6 x 8.9 x 5.5" (11.7 x 22.6 x 14 cm) | | Weight | 2.2 lb (1 kg) | | | | Box Dimensions (LxWxH) | 10.7 x 9.4 x 5.3" |
