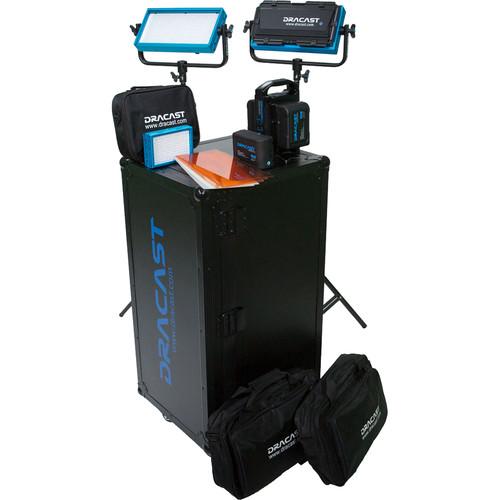

Dracast Bi-Color 3-Light Interview Kit with

User Manual for Dracast Bi-Color 3-Light Interview Kit with V-Mount Battery Plates

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

• LED500 Pro Bi-Color LED Light with V-Mount Battery Plate
  • Dracast Interview Kit
  At just 4.0 lb the LED500 Pro Bi-Color LED Light from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 30W means a timely return on your investment. The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter in the studio, or by V-Mount batteries in the field. Four-way barndoors for contouring and control of the LED500's 45-degree beam angle are available separately. For protection during transport and storage, a carry case is included.
  Photometrics
  • 2,700 lux/ 251 fc @ 3.0' (0.9m) and 3220K
    750 lux/ 70 fc @ 6.0' (1.8m) and 3220K
    350 lux/ 33 fc @ 9.0' (2.7m) and 3220K
    200 lux/ 19 fc @ 12' (3.6m) and 3220K

    4,400 lux/ 409 fc @ 3.0' (0.9m) and 4400K
    1250 lux/ 116 fc @ 6.0' (1.8m) and 4400K
    600 lux/ 56 fc @ 9.0' (2.7m) and 4400K
    350 lux/ 33 fc @ 12' (3.6m) and 4400K

    1950 lux/ 181 fc @ 3.0' (0.9m) and 5600K
    530 lux/ 49 fc @ 6.0' (1.8m) and 5600K
    265 lux/ 25 fc @ 9.0' (2.7m) and 5600K
    150 lux/ 14 fc @ 12' (3.6m) and 5600K
  UPC: 720189882920
• LED160 3200-5600K Variable Color On-Camera Light with Battery and Charger (Aluminum, Blue) This is a 3200-5600K variable-color Dracast LED160 On-Camera Light, housed in an aluminum, blue case and measures a compact 6 x 4". It features a high, 160W equivalent light output with a 45° flood beam angle. It'll give you approximately 20 ft effective distance.
  Key Features
  • • 3200-5600K variable-color LED light
    • 160W equivalent light output
    • 45° flood beam angle
    • Approximately 20 ft effective distance
    • >95 CRI
    • Brightness dimmer dial on the rear
    • Integrated L-series battery plate
    • 4-LED indicator on the rear
    • NP-F990 L Series battery (runs approximately 5-6 hours) and charger included
• Battery and Dual Charger Kit (V-Mount) This Battery and Dual Charger Kit from Dracast is comprised of two V-mount lithium-ion batteries and a portable dual V-mount battery charger for refreshing up to two batteries simultaneously. Each of the 14.8V batteries have an 89Wh capacity, built-in power tap, and an integrated five LED status indicator for quickly gauging the power level. The included charger is fitted with dual V-mount plates for charging one or two batteries at a time. The unit incorporates a 4-pin XLR DC input as well as a capacity management system to ensure fast charging speeds.
• Filter Frame for LED500 Light The Dracast Filter Frame for LED500 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture's accessory channel. It has a frame lock to prevent filter slippage. UPC: 720189881152

• Carry Case

• AC Power Adapter for LED500 Light

• Limited 1-Year Warranty

• Nylon Soft Case

• Shoulder Strap

• Hot-Shoe Mount

• P-Tap to DC Connector Cable

• Power Supply 2-Prong U.S.

• NP-F990 L Series Battery

• Charger

• Limited 1-Year Warranty

2 x
• 89W/h Lithium-ion Battery - V-Mount

• Dual Battery Charger (V-Mount)

• Limited 1-Year Warranty

Also Includes

• 2 x Diffusion Filters
• Sony NP-F Battery with Charger
• 2 x Barndoors
• 2 x 8.7' Light Stands
• Hard Carrying Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED500 Pro Bi-Color LED Light with V-Mount Battery Plate

  Beam Angle	45°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	12.0 x 6.0 x 2.0" / 305.0 x 152.0 x 51.0 mm
  Fixture Weight	4 lb / 1.8 kg

  Battery Plate	1 x V-Mount

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	30 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	18.189 x 11.811 x 8.11"

• LED160 3200-5600K Variable Color On-Camera Light with Battery and Charger (Aluminum, Blue)

  Beam Angle	45°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Expected Lamp Life	50000 Hours
  Number of LEDs	160
  Effective Distance	20.0' / 6.0 m

  Battery Plate	1 x Sony L-Series (NP-F)
  DC Input Power	7.2 to 8.4 VDC
  Max Power Consumption	9.5 W

  Mount Type	1/4"-20 Female Thread
  Dimensions	6 x 4 x 2" / 15 x 10 x 5 cm
  Weight	0.5 lb / 227 g

  Box Dimensions (LxWxH)	12.1 x 7.5 x 3.3"

• Battery and Dual Charger Kit (V-Mount)

  Box Dimensions (LxWxH)	10.7 x 9.5 x 5.9"

• Filter Frame for LED500 Light

  Material	Aluminum
  Dimensions	Approximately: 12 x 6.0" (30.5 x 15.2 cm)

  Box Dimensions (LxWxH)	11.8 x 6.85 x 1.6"
