Dracast Boltray 400 Plus Daylight LED

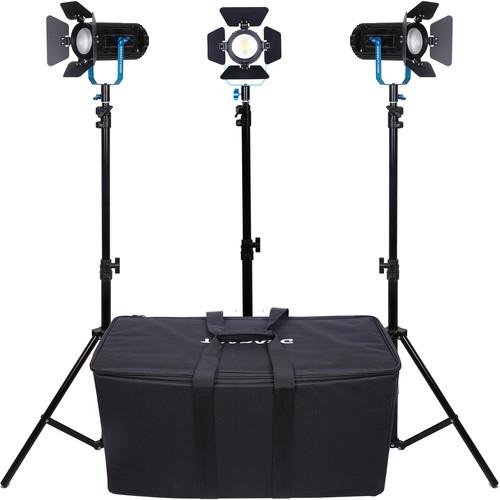

User Manual for Dracast Boltray 400 Plus Daylight LED 3-Light Kit with Soft Case

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

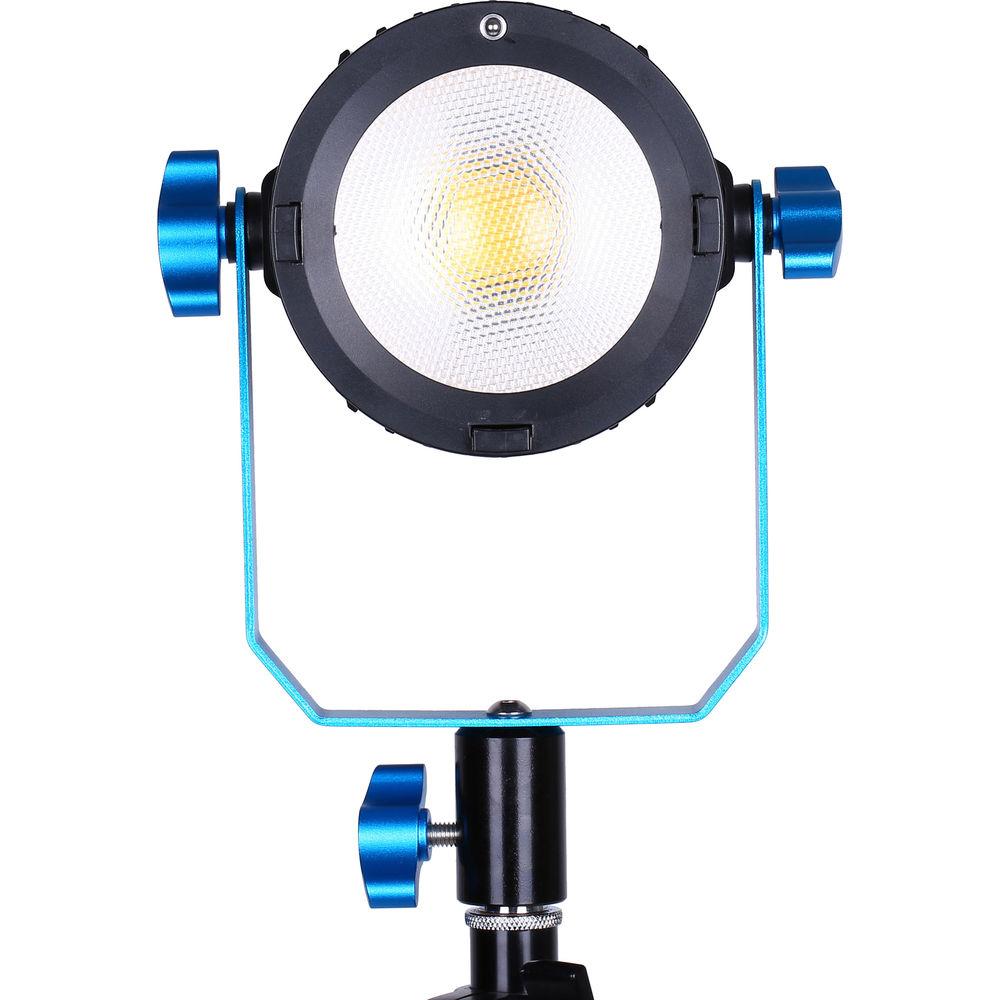

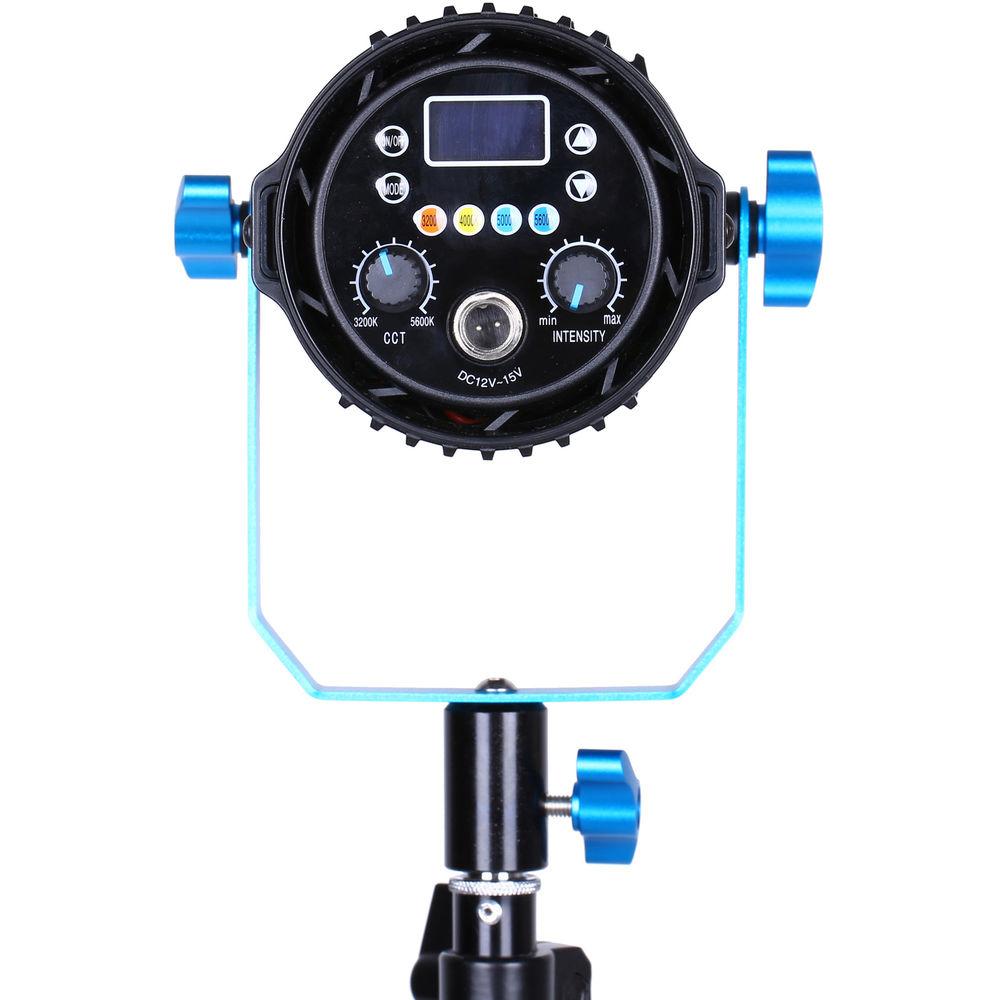

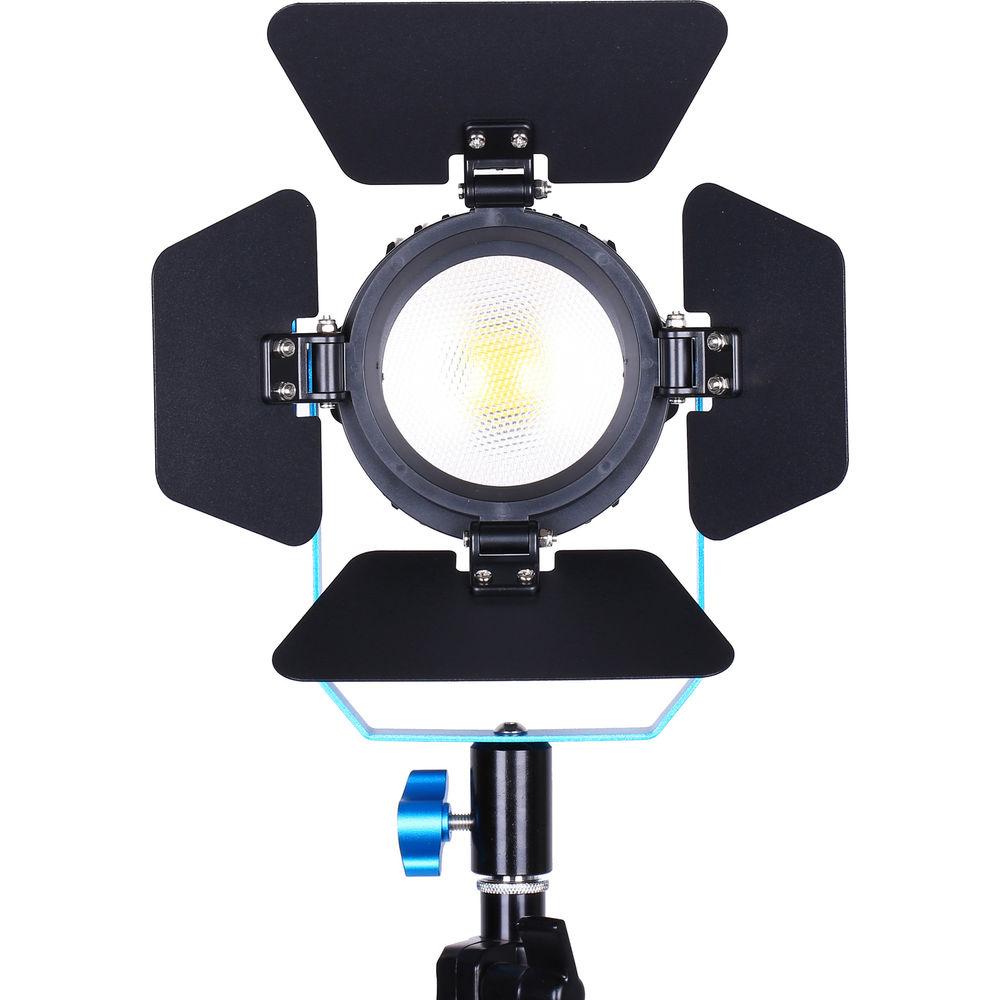

• Boltray LED400 Plus Daylight LED Light The Boltray LED400 Plus Daylight LED Light from Dracast is a versatile fixture with AC and battery options. Its included 4-way barndoors help you to further shape the beam, lighting areas that you want to and keeping light from areas that you don't. With its 5600K color balance, the light is an easy choice for shooting outdoors or for integrating seamlessly with other daylight fixtures such as HMIs. The light metal and plastic construction backed with a U-shaped yoke make it easy to mount in difficult places. The Boltray LED400 dims from 0-100%. Dracast uses PWM (pulse-width modulation) coupled with a single Chip-on-Board (COB) LED to make possible this wide dimming range with high color fidelity (CRI 96) without flicker. The light features high output with low 40W power draw and runs barely warm to the touch thanks to a virtually silent fan. Besides the barndoors and yoke, the light comes with a diffusion filter, soft nylon carrying case and a multi-voltage AC power adapter that allows you to use it anywhere in the world. It will also run on optional batteries when mains power is unavailable, thanks to its dual NP-F battery plates. UPC: 612520463557
• Compact Collapsible Light Stand for Silver Series LED Panels This Dracast Compact Collapsible Light Stand is designed to hold the Silver Series LED light panels. UPC: 722589274268

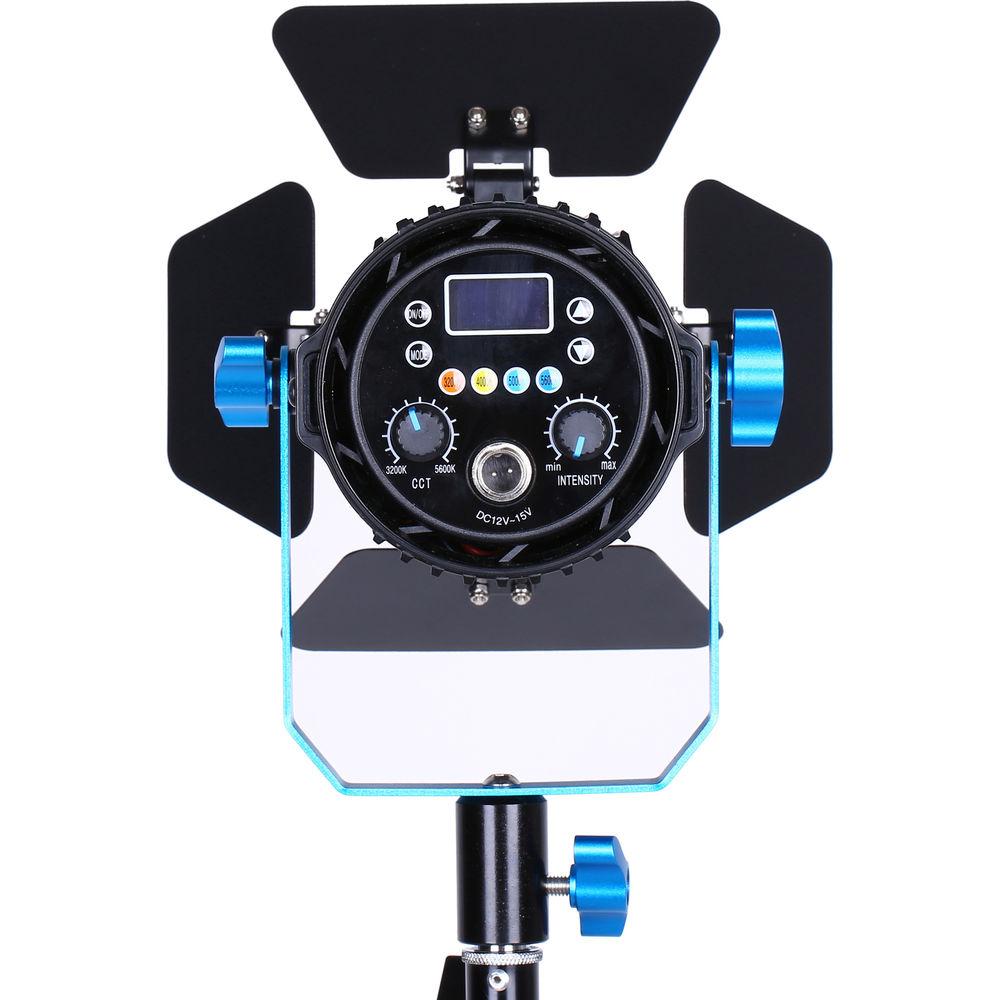

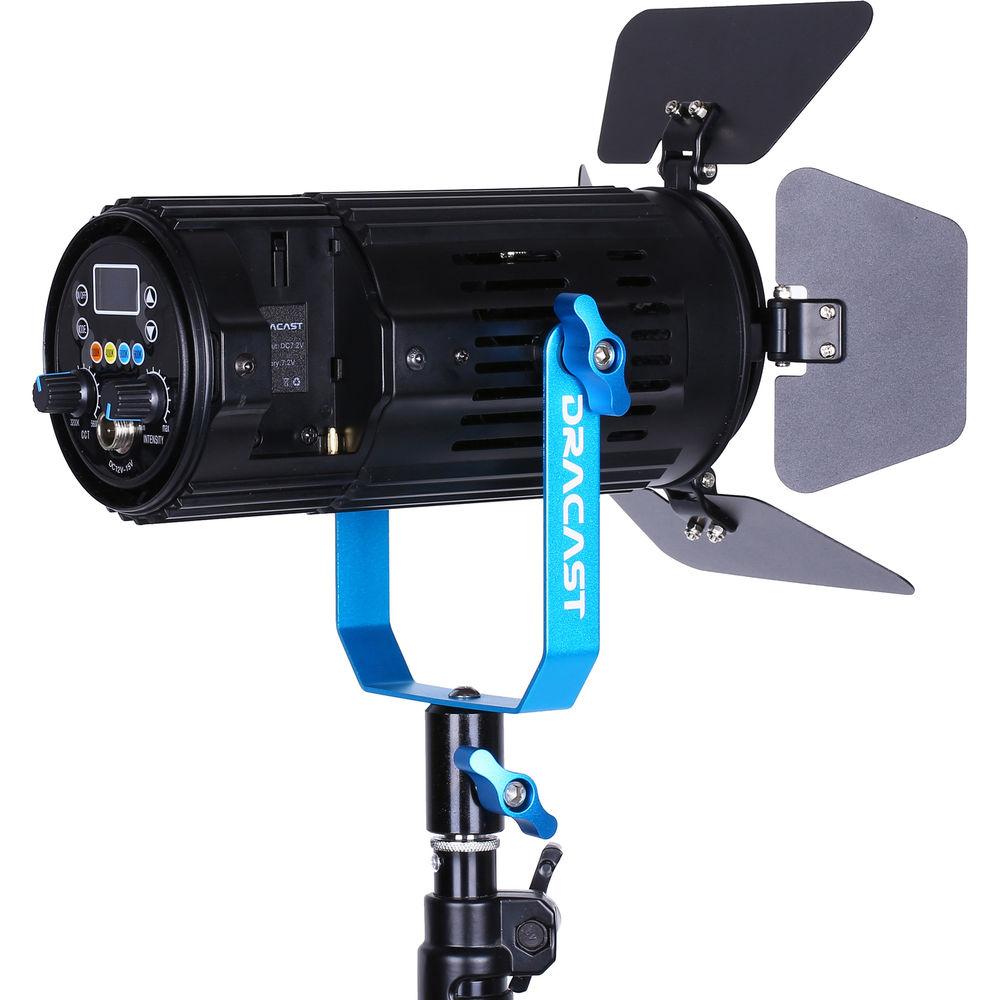

• 4-Way Barndoors

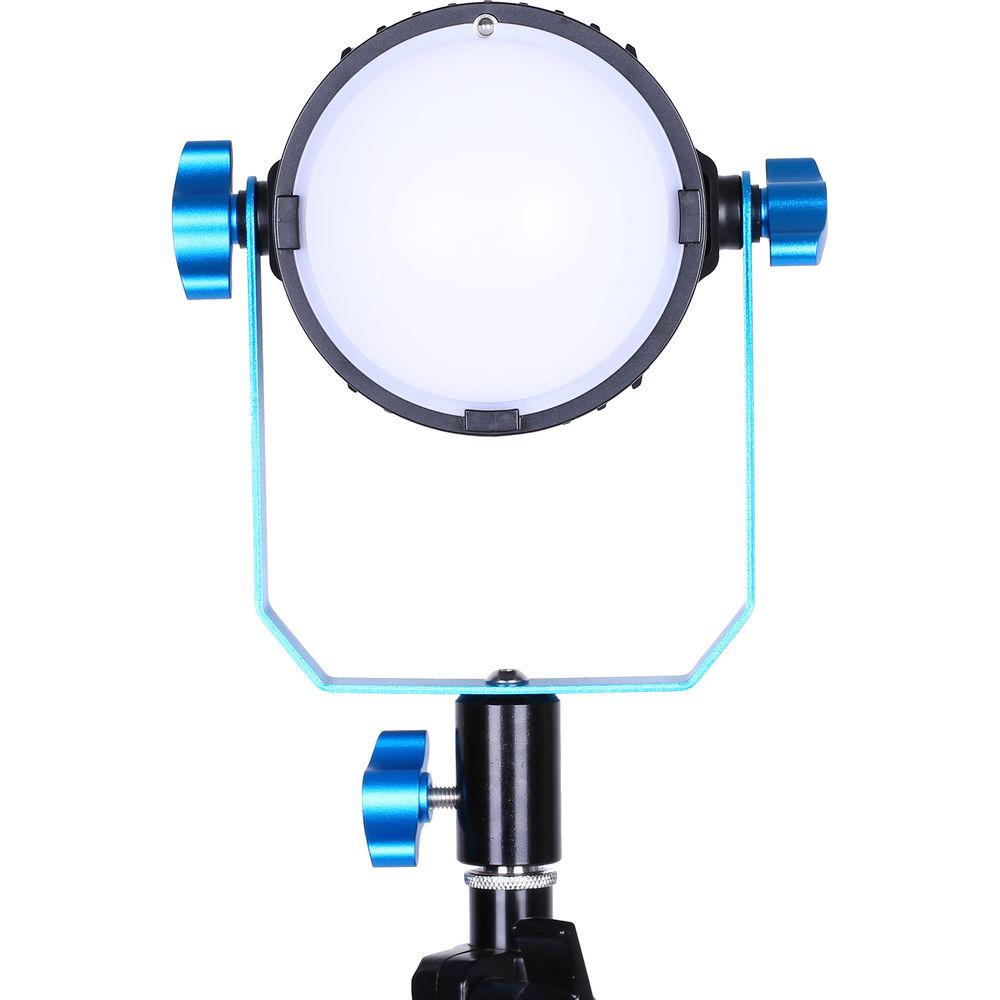

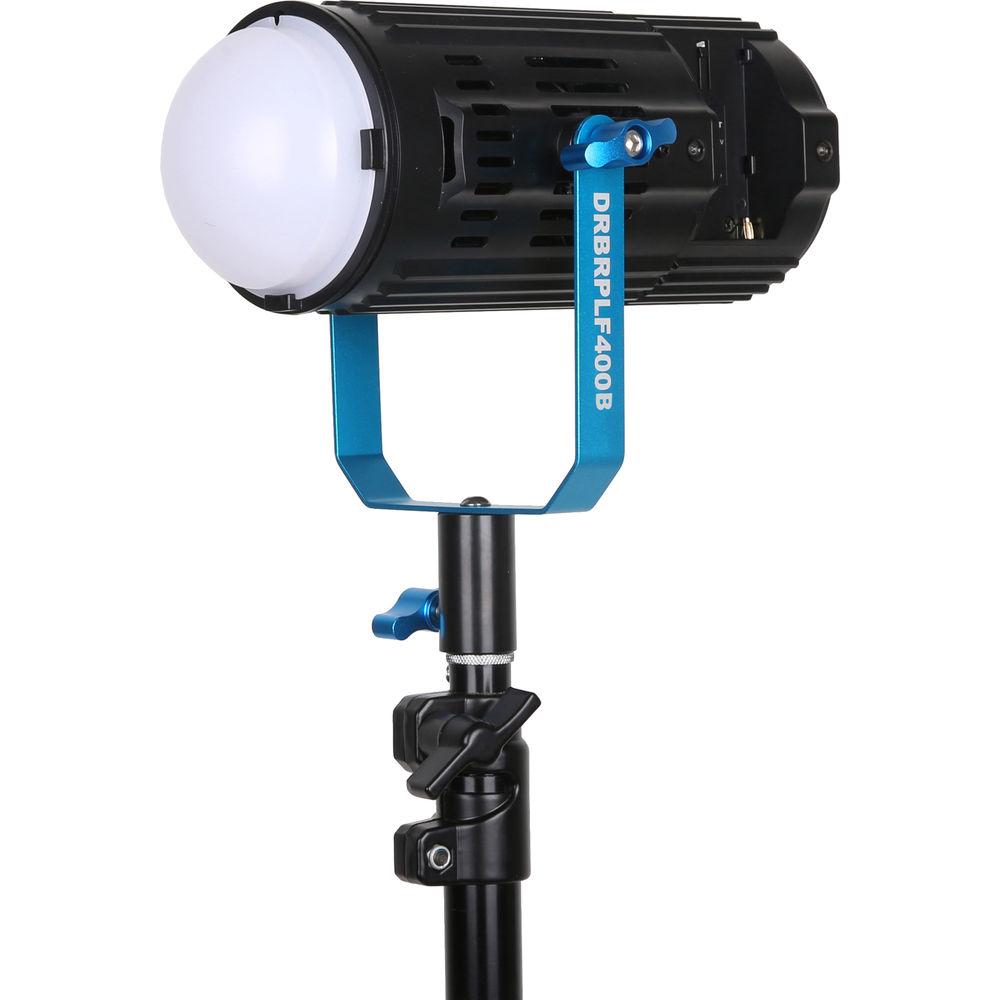

• Removable Diffusion Filter

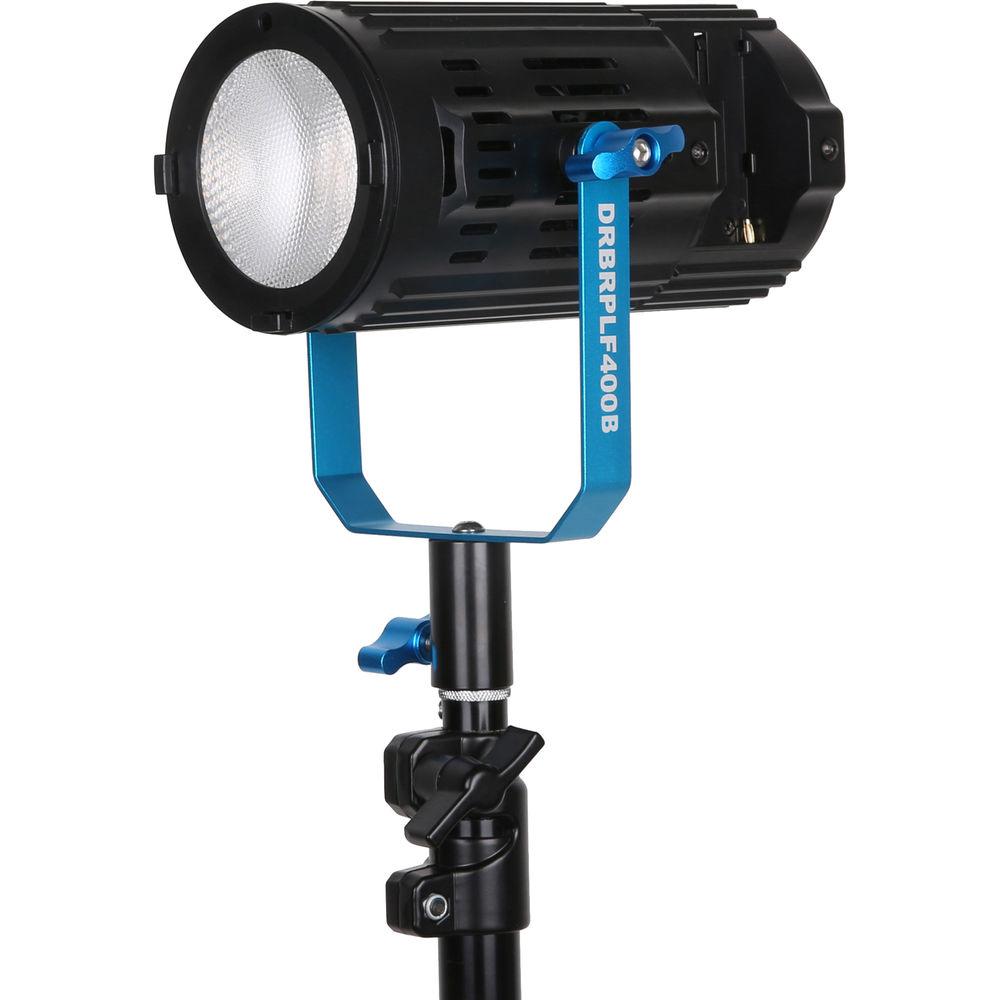

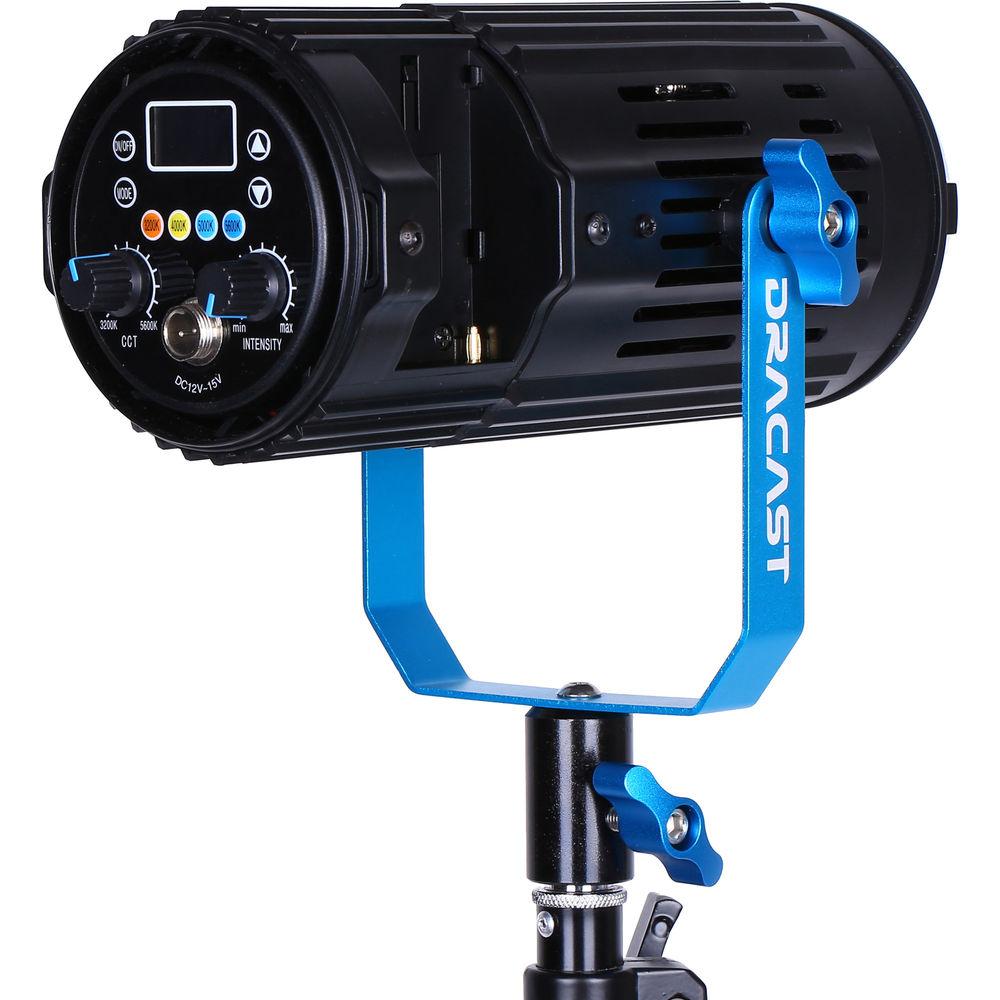

• U-Shaped Mounting Yoke

• Multi-Voltage AC Power Adapter with Power Cord

• Soft Nylon Carrying Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Soft Padded Kit Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Boltray LED400 Plus Daylight LED Light

  Light Source	COB LED
  Color Range	5600K (+/-50K)
  Dimming	0-100%
  Operating Voltage	100-240 VAC, 50/60 Hz 15 VDC
  Power Consumption	40 W
  Mount	Yoke with 5/8" (16 mm) receiver
  Photometrics	4267 lux @ 3.0' (0.9 m) 1014 lux @ 6.0' (1.8 m) 434 lux @ 9.0' (2.7 m)
  Material of Construction	Lightweight metal and plastic
  Dimensions	7.0 x 6.0 x 9.0" (18.5 x 16 x 22 cm)
  Weight	1.6 lb (0.72 kg)

  Box Dimensions (LxWxH)	13.9 x 12.6 x 8.0"

• Compact Collapsible Light Stand for Silver Series LED Panels

  Box Dimensions (LxWxH)	20.2 x 4.6 x 4.3"
