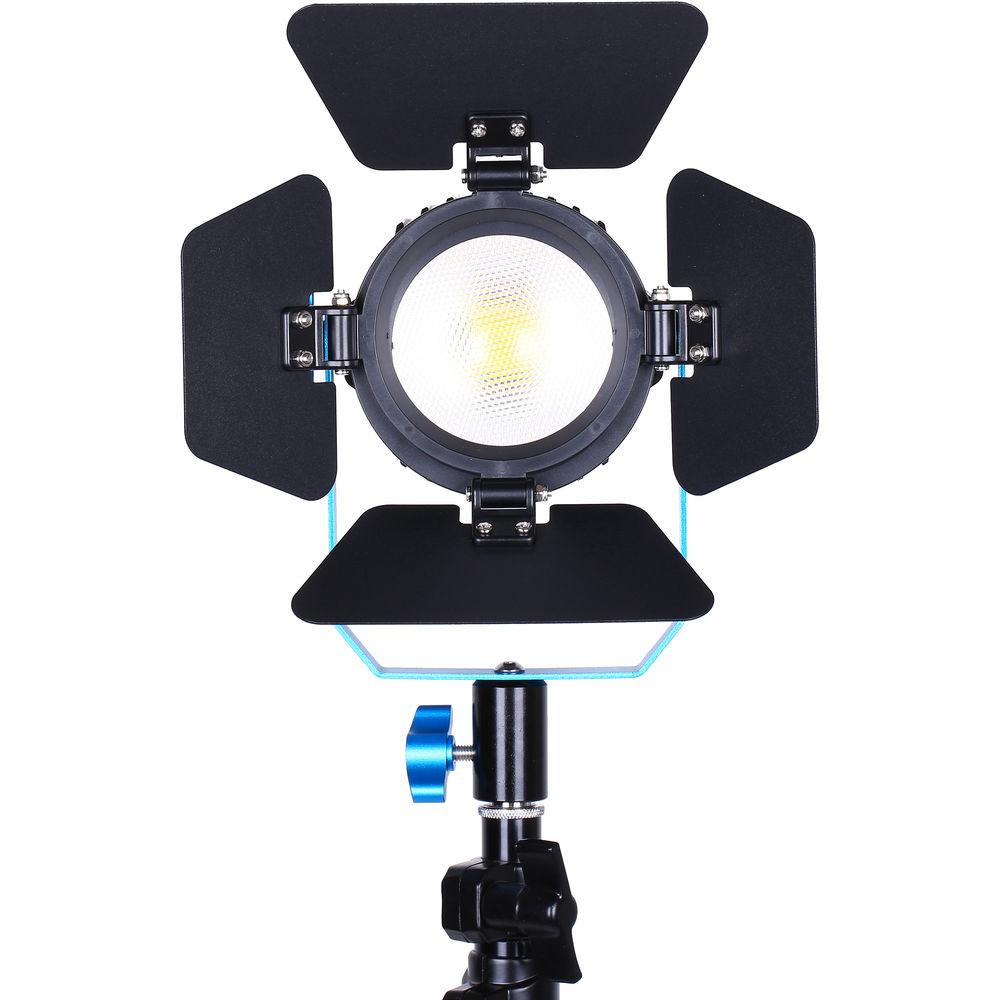

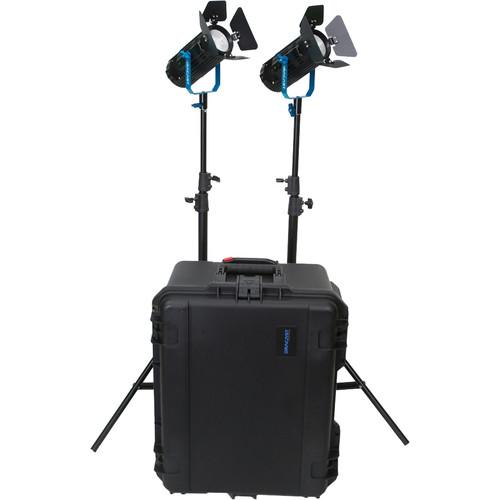

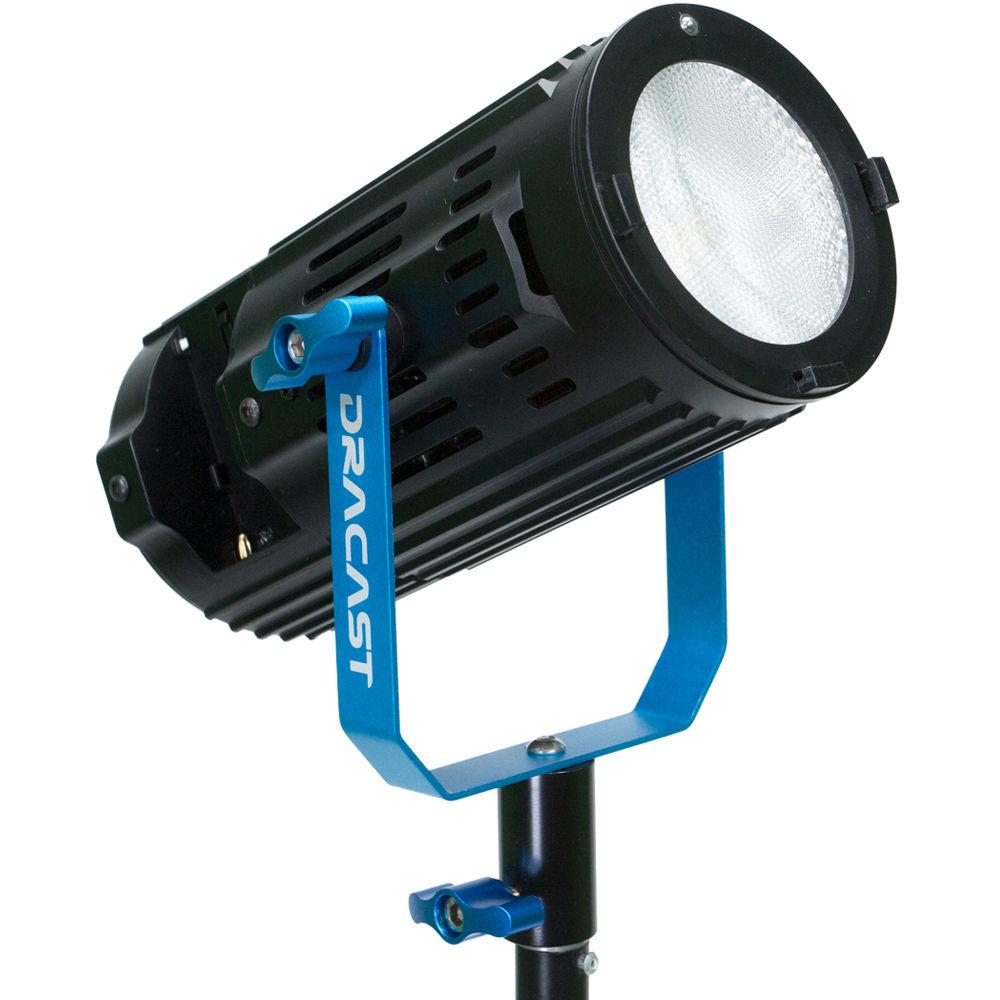

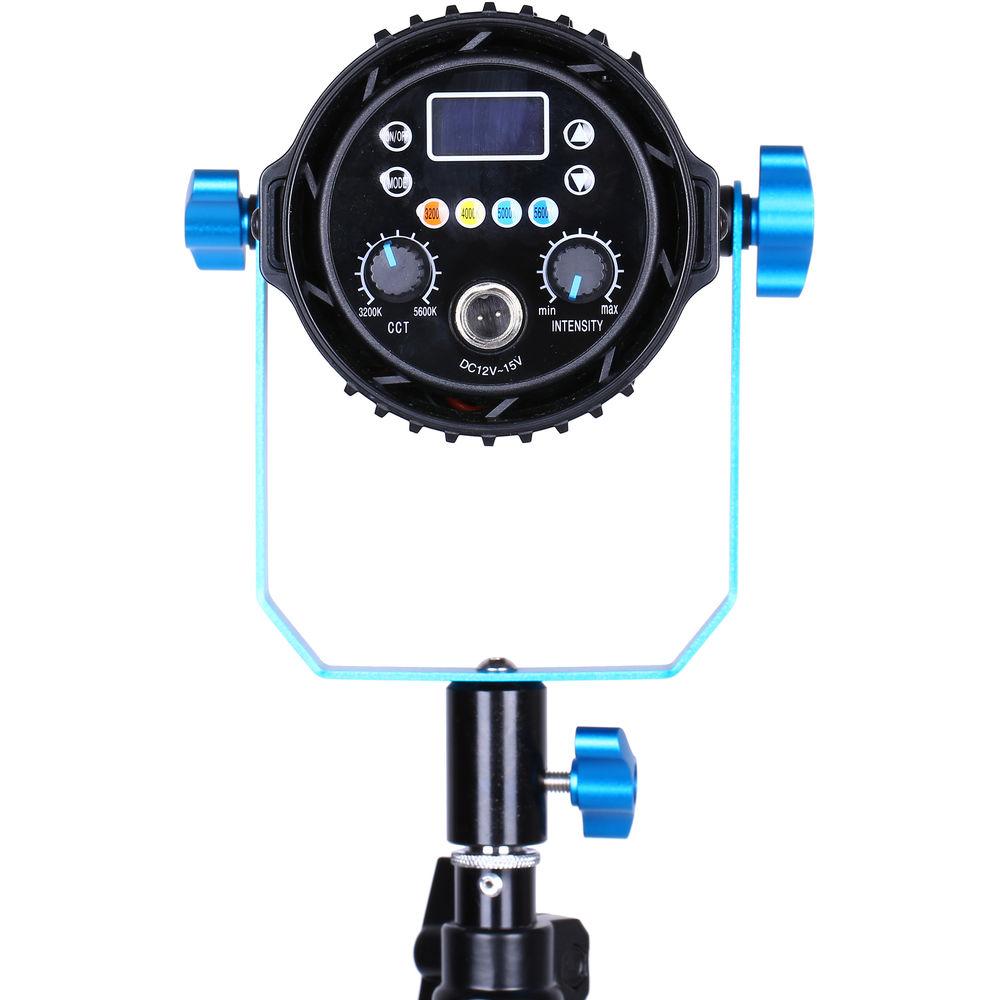

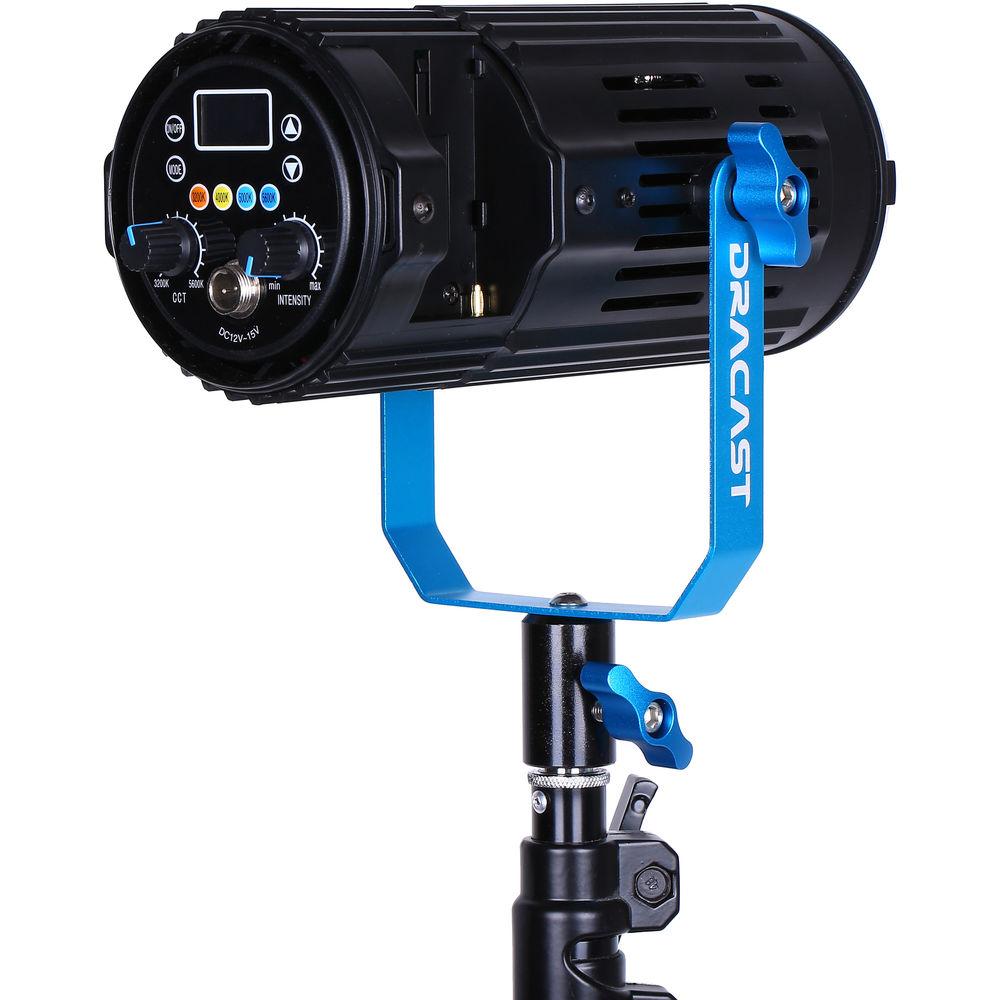

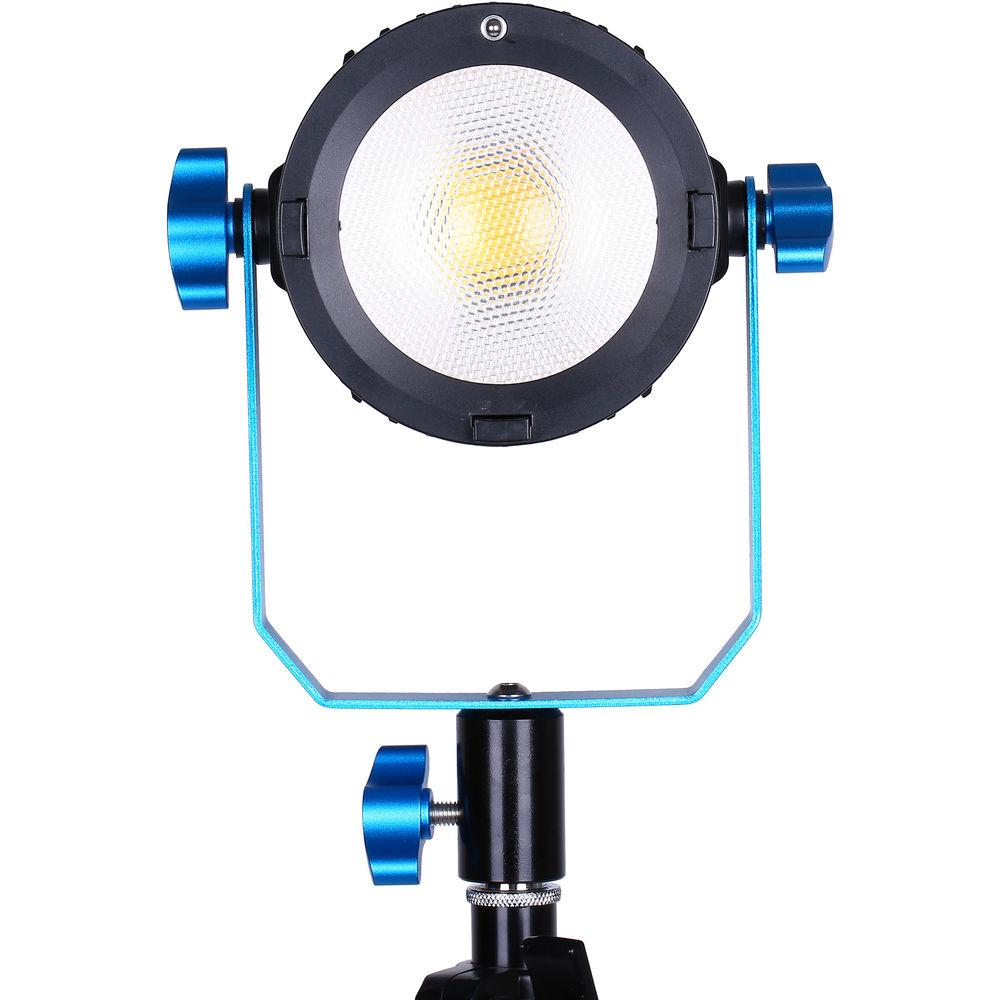

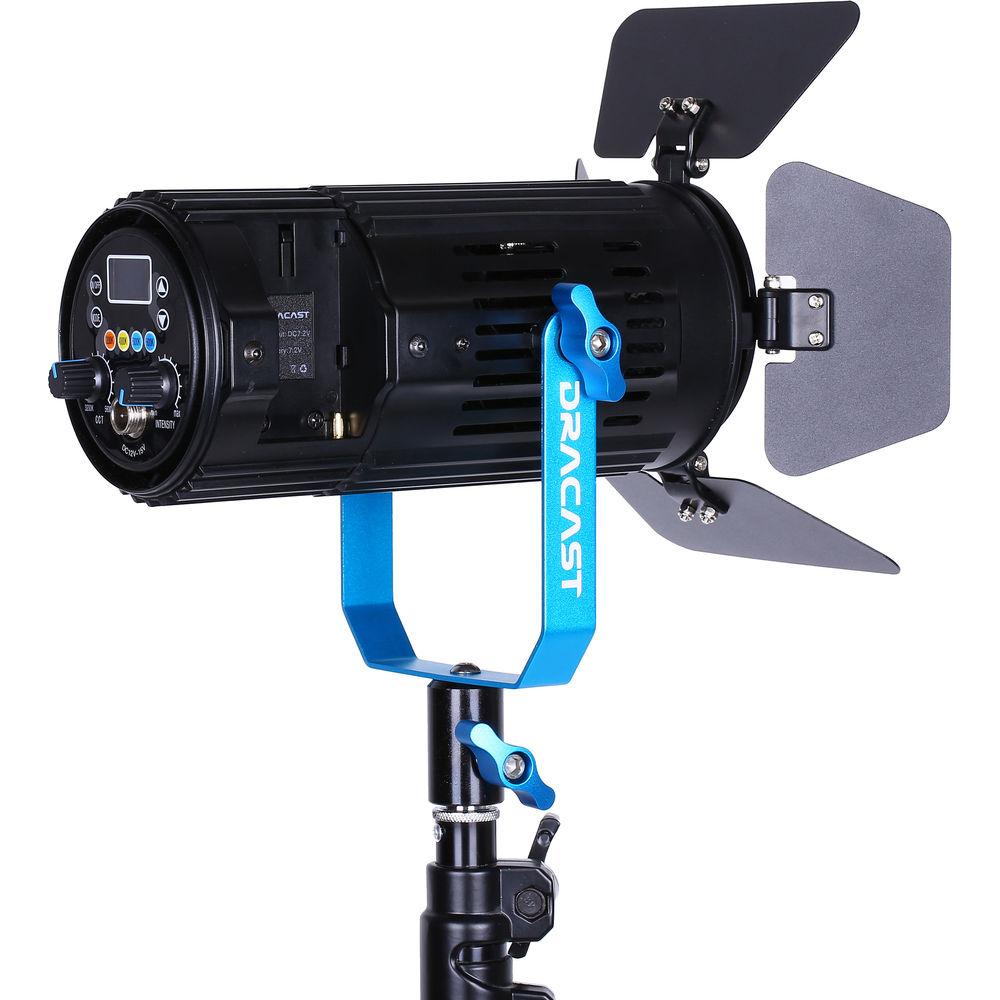

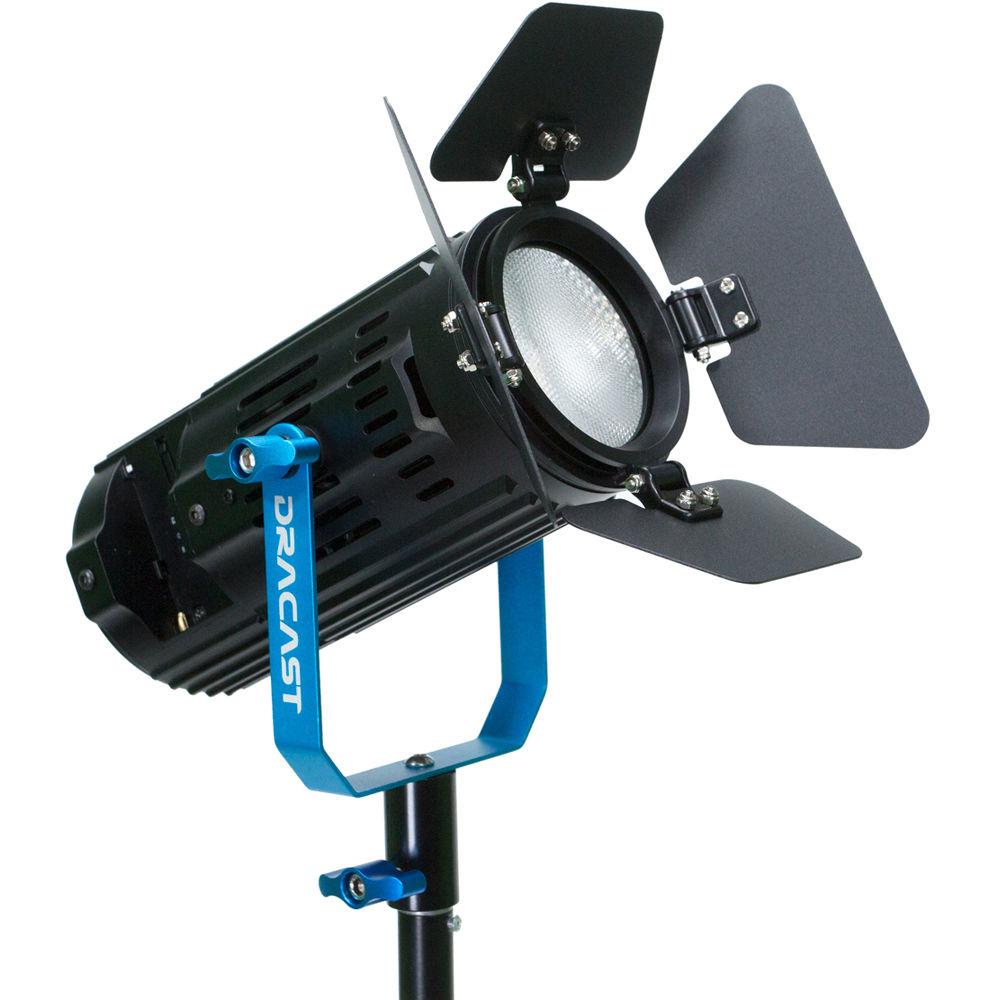

Product description The Boltray 400 Plus LED Bi-Color 2-Light Kit was put together by Dracast for image makers who require lightweight, flexible features, and outstanding performance. The kit comes with two Boltray 400 variable color lights, each complete with 4-way barndoors, a diffusion filter, yoke, a light stand, and a multi-voltage AC adapter. The lights have a dual NP-F battery plate for situations in which mains power is unavailable. A Hard Travel Case is included to store and transport it all. - BoltRay LED400 Plus Bi-Color LED Light The BoltRay LED400 Plus Bi-Color Light from Dracast is a versatile fixture with color that's variable from 3200 to 5600K while maintaining a high CRI of 96, indicating an accurate and faithful rendition of color. Light intensity is also variable from 0-100% without flicker thanks to Dracast's use of PWM (Pulse-Width Modulation) technology coupled with a single Chip-on-Board (COB) LED. The LED400 Plus has a 45-degree beam spread which can be further shaped with the included 4-way barndoors, allowing you to light areas that you want to and keep light from areas that you don't. The light metal and plastic construction backed with a U-shaped yoke makes it easy to mount in difficult places.The light features high output with low 40W power draw and runs barely warm to the touch thanks to a virtually silent fan. Besides the barndoors and yoke, the light comes with a diffusion filter, soft nylon carrying case and a multi-voltage AC power adapter that allows you to use it anywhere in the world. It will also run on optional batteries when mains power is unavailable, thanks to its dual NP-F battery plates. UPC: 612520463540

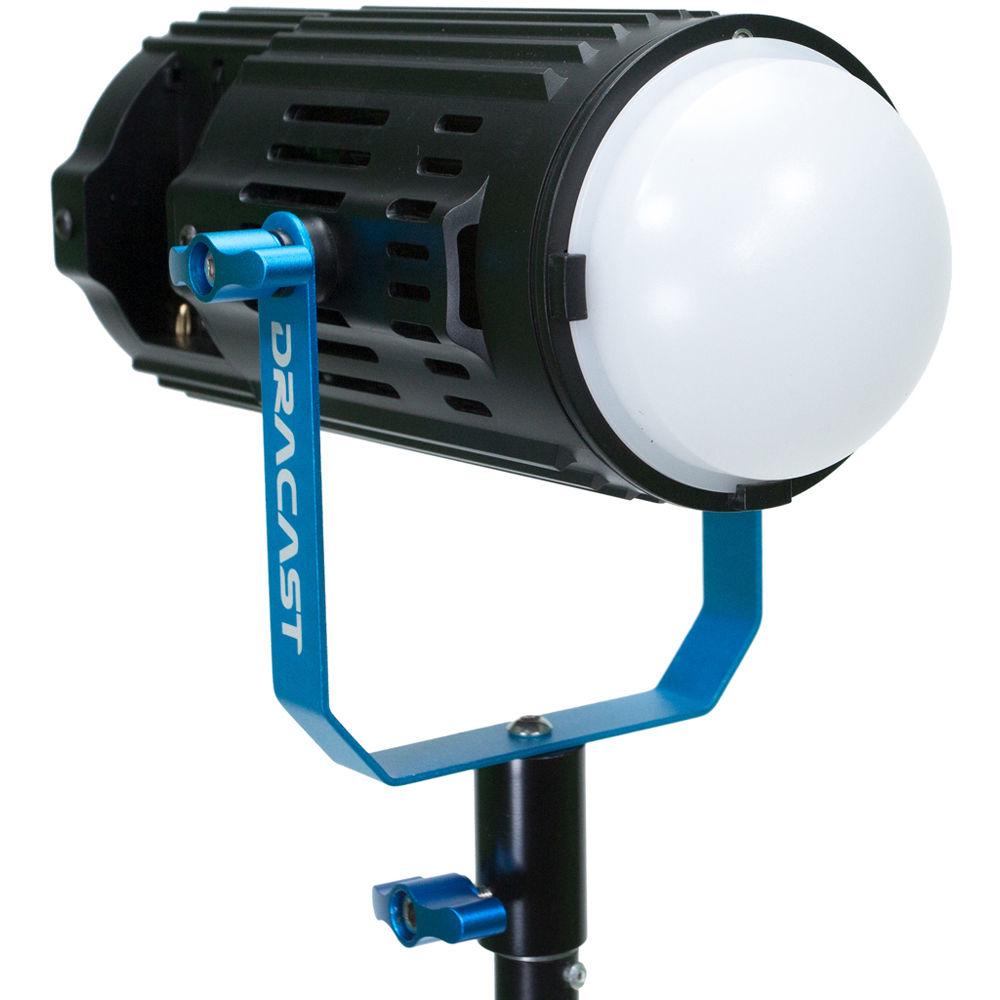

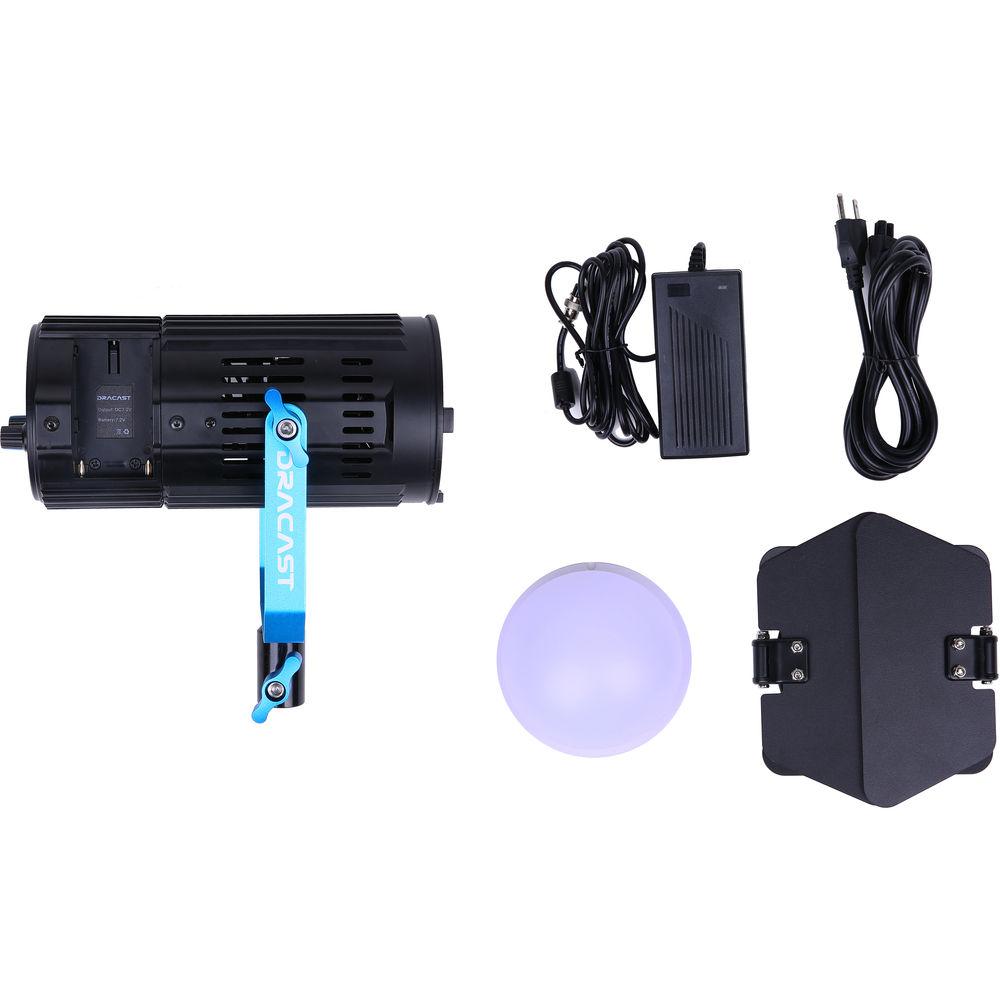

In the Box Bundle Items 2 x BoltRay LED400 Plus Bi-Color LED Light xayyzqtrswsqszdeefxqbezxsw - Removable Diffusion Filter
- Multi-Voltage AC Power Adapter with Power Cord
Also Includes - 2 x Light Stands (7')
- Hard Travel Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Boltray 400 Plus LED Bi-Color 2-Light Kit with Hard Travel Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BoltRay LED400 Plus Bi-Color LED Light
| Light Source | COB LED | | Color Range | Continuous 3200-5600K adjustment
4 Color temperature presets | | Dimming | 0-100% | | Operating Voltage | 100-240 VAC, 50/60 Hz 15 VDC | | Battery Plate | Dual NP-F battery plates | | Power Consumption | 40 W | | Mount | Yoke with 5/8" (16 mm) receiver | | Photometrics | At 3200K
2532 lux @ 3.0' / 0.9 m
632 lux @ 6.0' /1.8 m
294 lux @ 9.0' /2.7 m
At 5600K
3114 lux @ 3.0' / 0.9 m
760 lux @ 6.0' / 1.8 m
339 lux @ 9.0' / 2.7 m | | Material of Construction | Lightweight metal and plastic | | Dimensions | 7.0 x 6.0 x 9.0" / 18.5 x 16 x 22 cm | | Weight | 1.6 lb / 0.72 kg | | | | Box Dimensions (LxWxH) | 14.3 x 13.7 x 6.0" |
