User Manual for Dracast Boltray 600 Plus Daylight LED 3-Light Kit with Soft Case Click to enlarge the picture
Contents of the user manual for the Dracast Boltray 600 Plus Daylight LED
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast Boltray 600 Plus Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

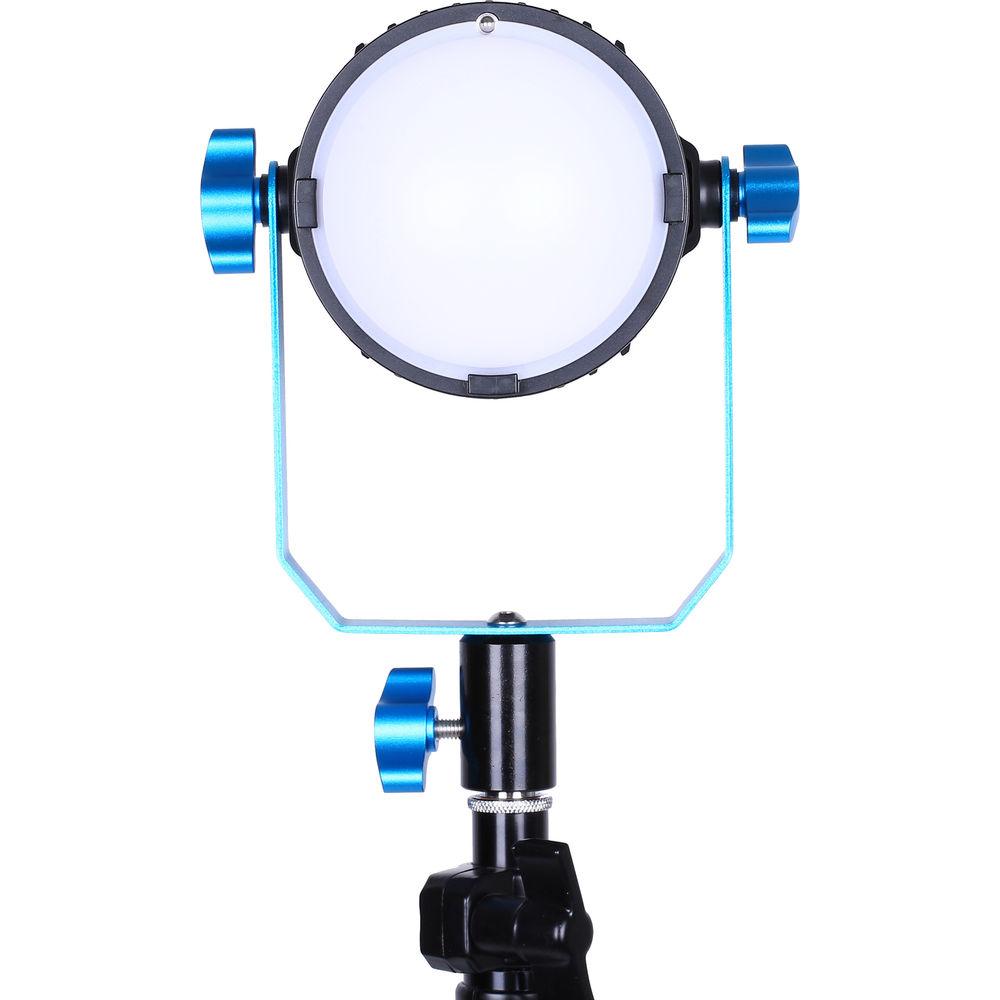

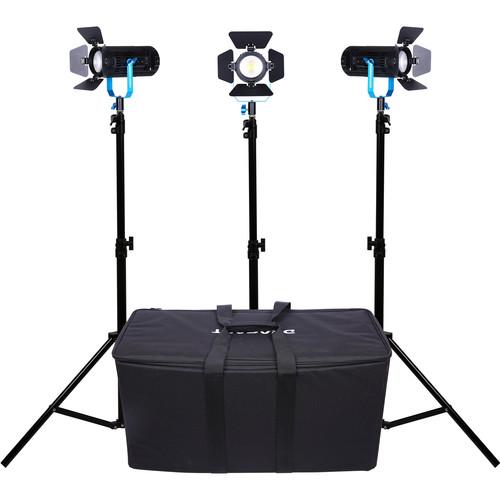

Product description With their compact 7 x 6 x 9" form factor and multi-voltage AC or battery power options, the fixtures in the Dracast Boltray 600 Daylight LED 3-Light Kit with Soft Case are a wise choice for shooting in the studio or on the road. The kit includes three Boltray 600 Daylight fixtures, each with dual NP-F battery plates, yoke with 5/8" receiver, multi-voltage AC adapter, stand, 4-way barndoors, removable diffusion filter, and a soft nylon carrying case. A soft, padded case is also provided for storage and transport. - Boltray LED600 Plus Daylight LED Light
- Syncing Your Dracast Lights Together

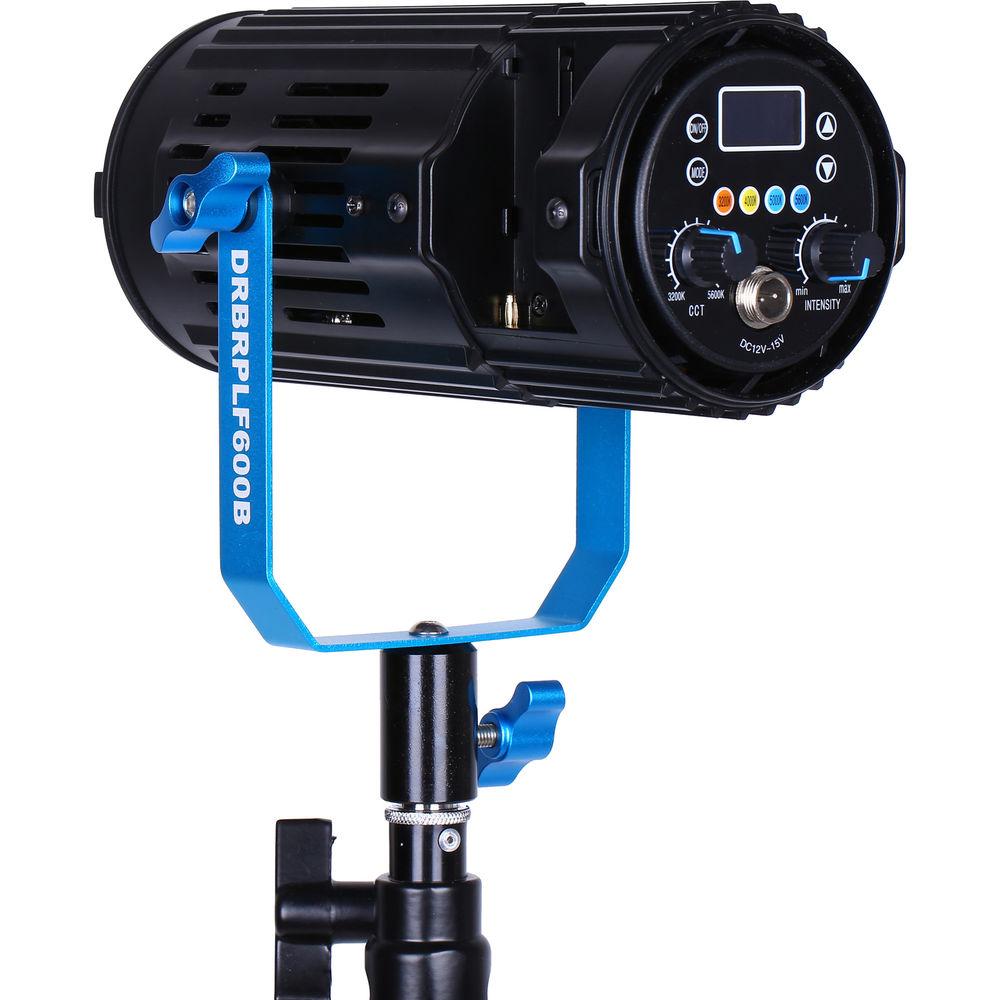

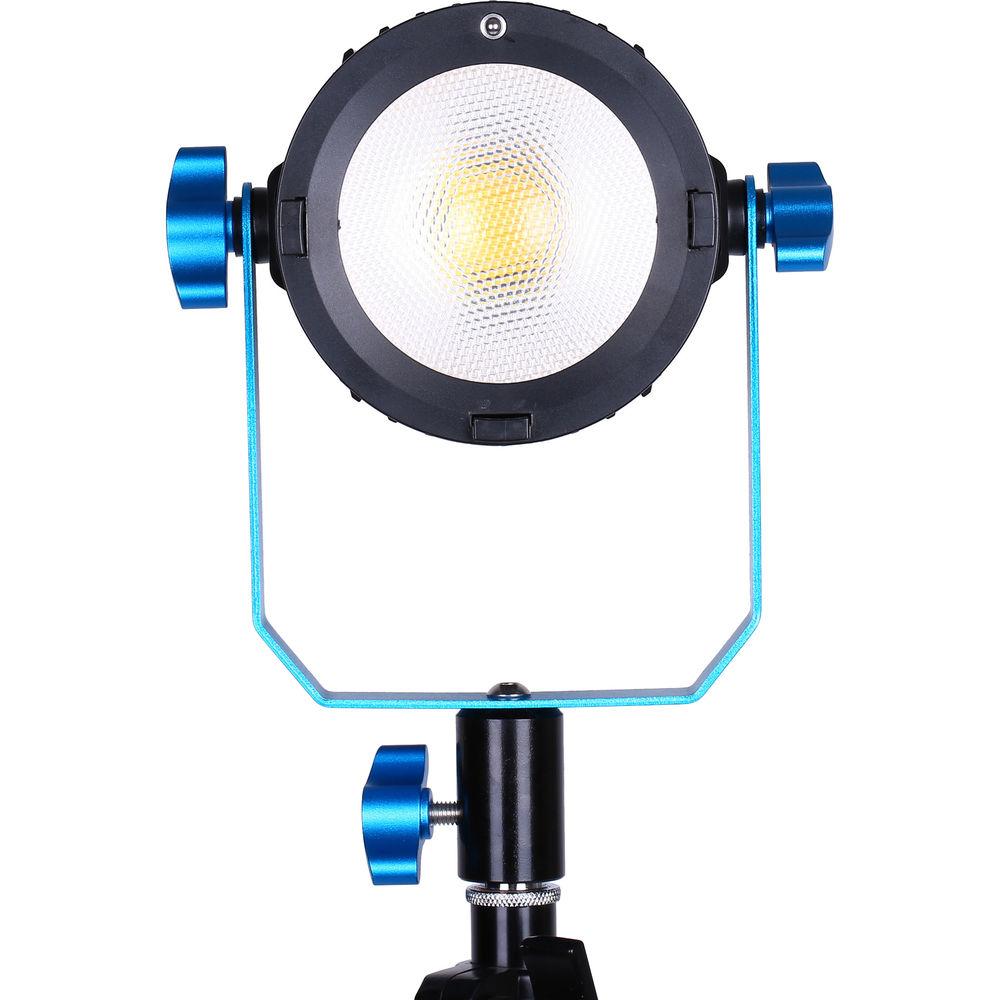

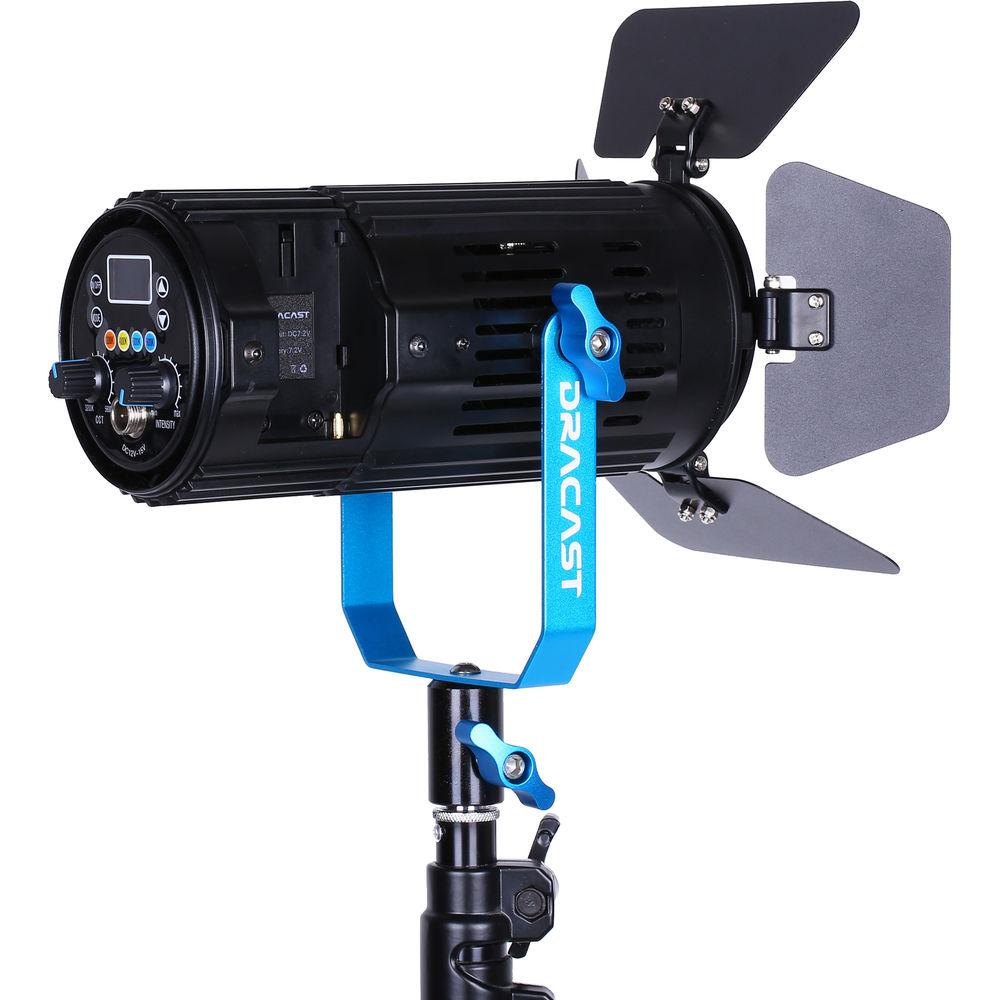

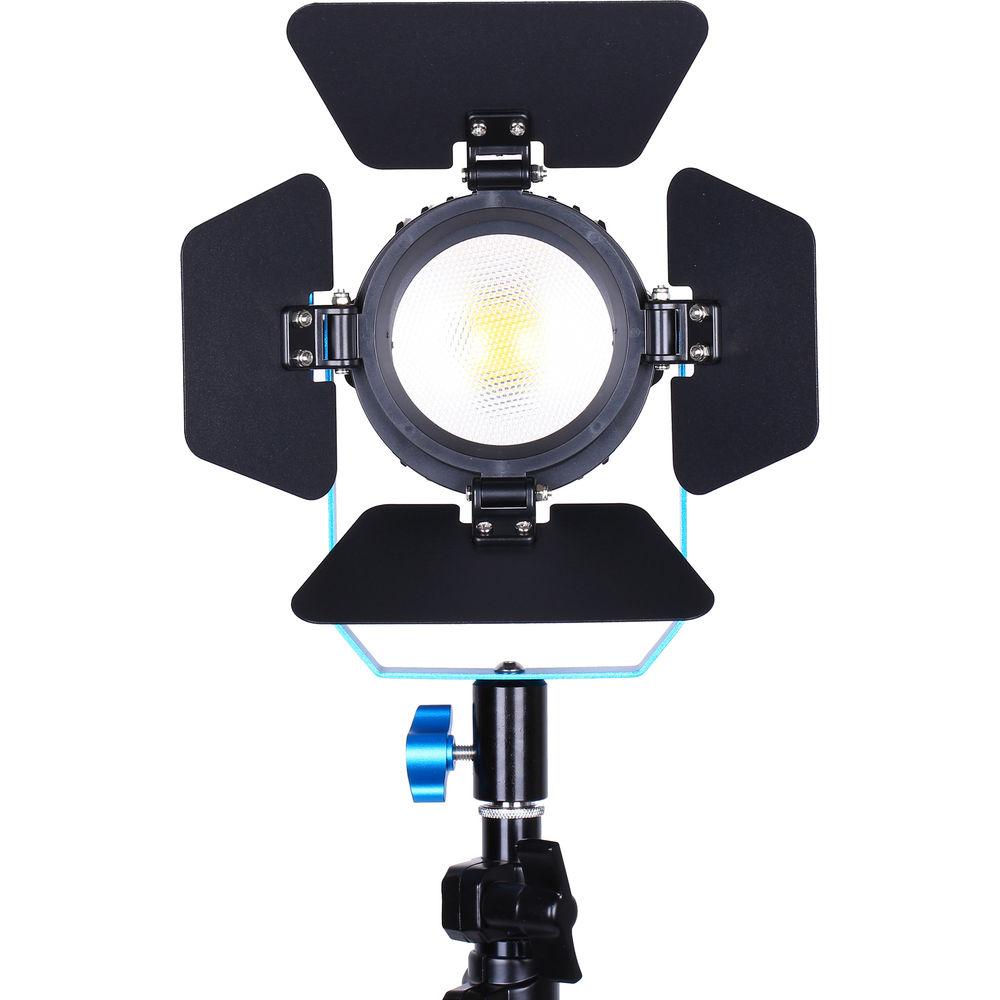

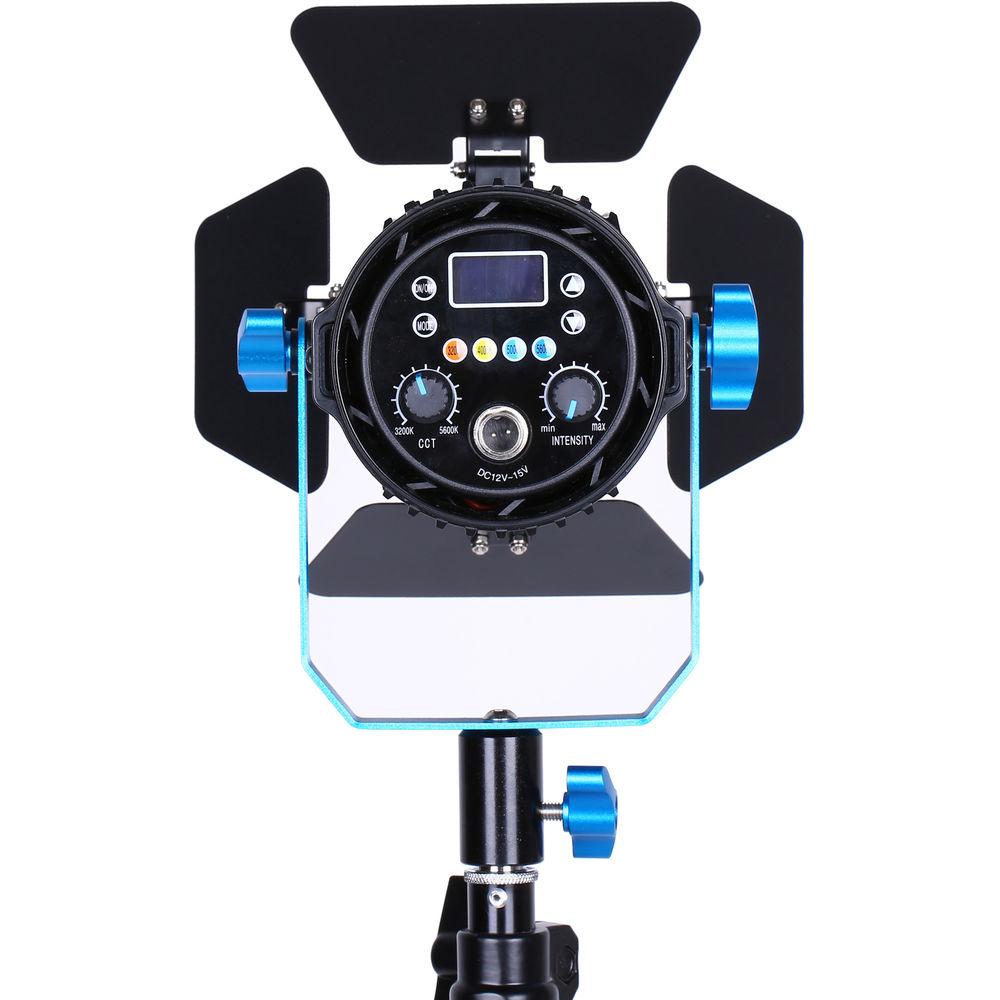

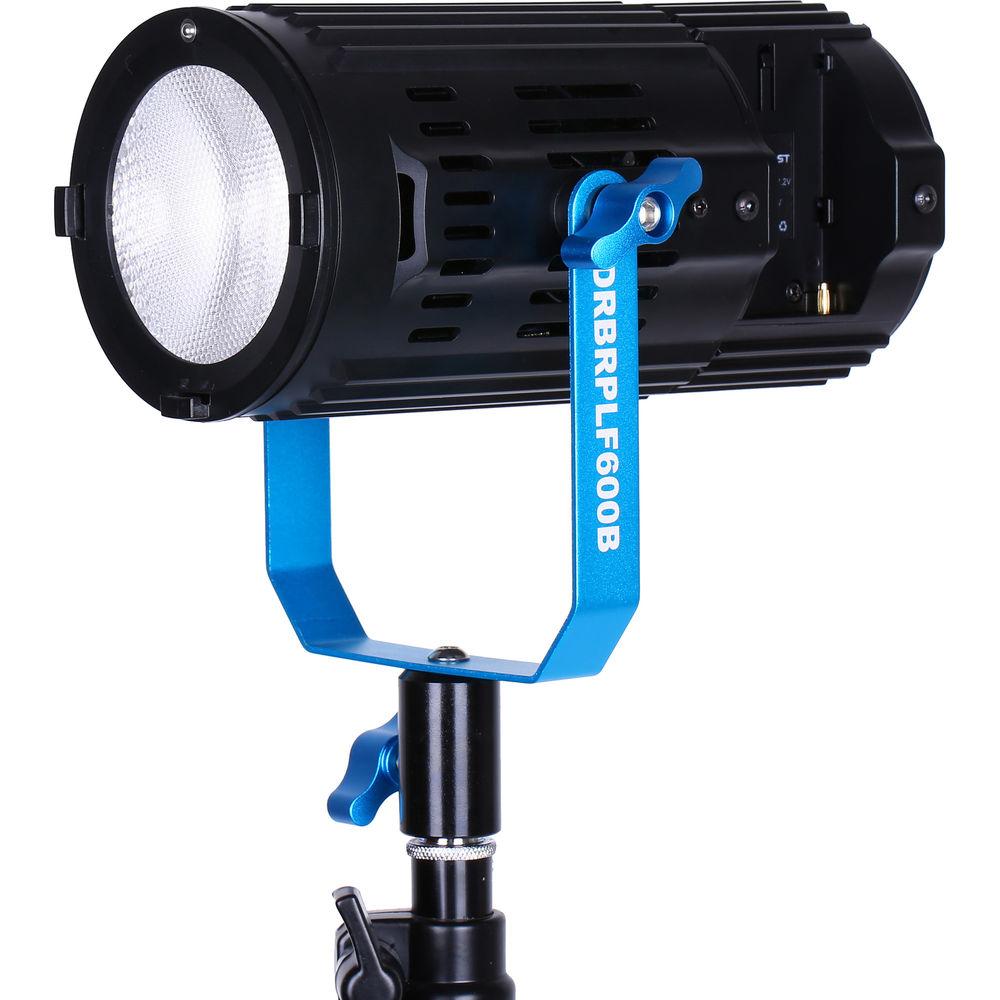

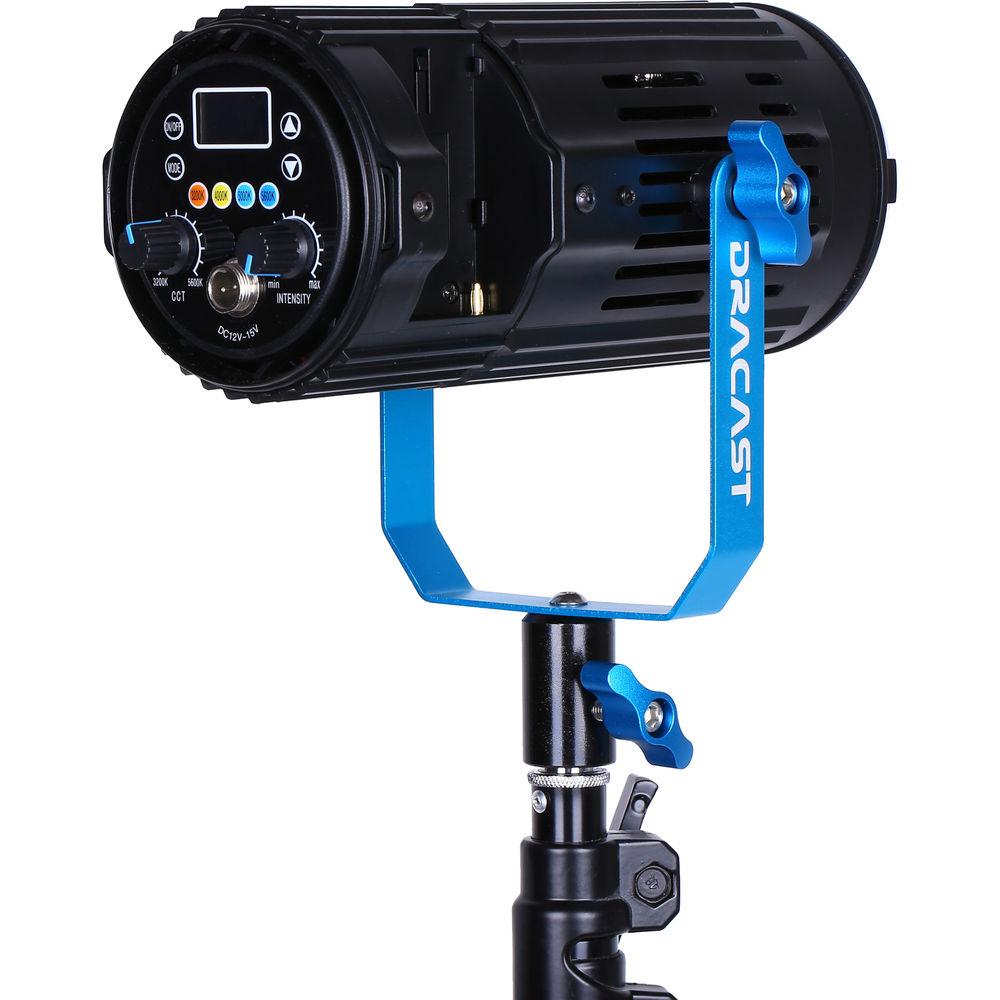

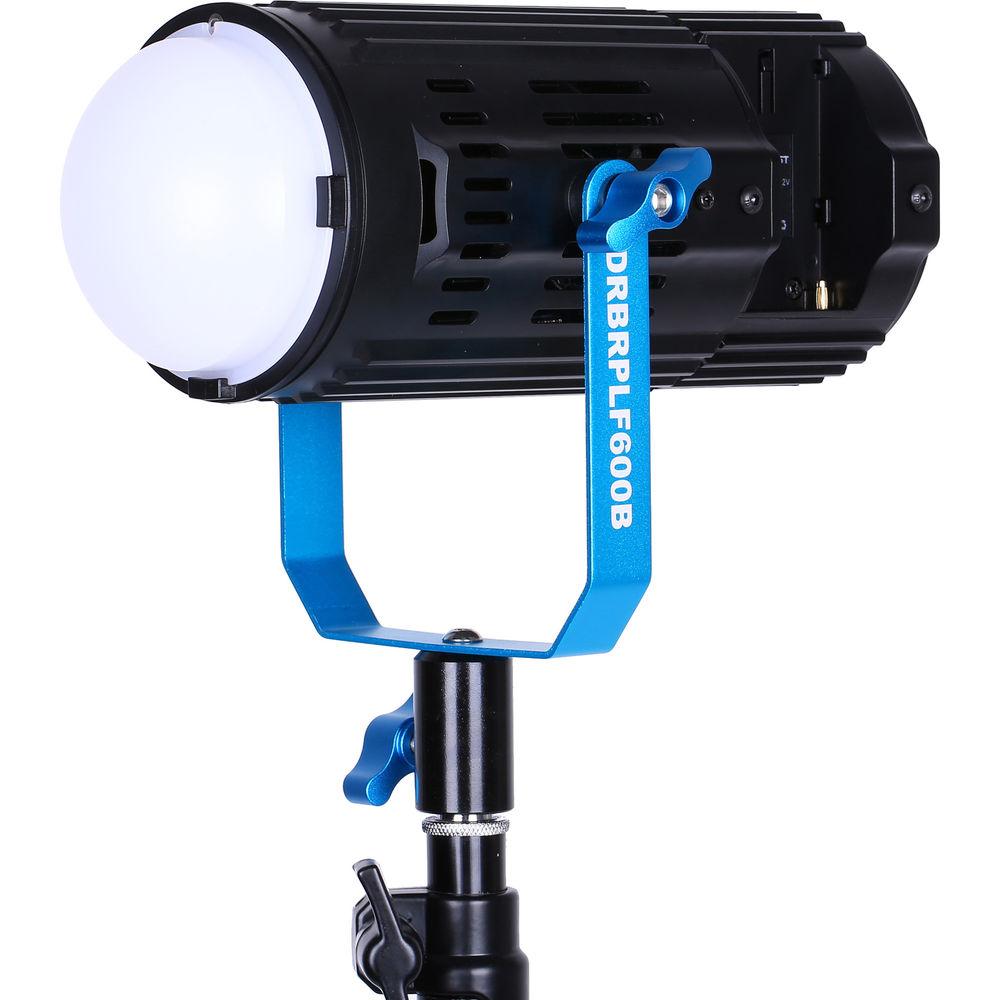

The Boltray LED600 Plus Daylight LED Light from Dracast is a versatile fixture with AC and battery options. Its included 4-way barndoors help you to further shape the beam, lighting areas that you want to and keeping light from areas that you don't. With its 5600K color balance, the light is an easy choice for shooting outdoors or for integrating seamlessly with other daylight fixtures such as HMIs. The light metal and plastic construction backed with a U-shaped yoke make it easy to mount in difficult places. The Boltray LED600 dims from 0-100%. Dracast uses PWM (pulse-width modulation) coupled with a single Chip-on-Board (COB) LED to make possible this wide dimming range with high color fidelity (CRI 96) without flicker. The light features high output with low 60W power draw and runs barely warm to the touch thanks to a virtually silent fan. Besides the barndoors and yoke, the light comes with a diffusion filter, soft nylon carrying case and a multi-voltage AC power adapter that allows you to use it anywhere in the world. It will also run on optional batteries when mains power is unavailable, thanks to its dual NP-F battery plates. UPC: 612520463533 In the Box Bundle Items 3 x Boltray LED600 Plus Daylight LED Light - Removable Diffusion Filter
- Multi-Voltage AC Power Adapter with Power Cord
Also Includes - 3 x Light Stands (6')
- Soft Padded Kit Case
User Manual PDF 3.1mbyuswwxxubzzwadtywartdsdrawdzvwysyafbra Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Boltray 600 Plus Daylight LED 3-Light Kit with Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Boltray LED600 Plus Daylight LED Light
| Light Source | COB LED | | Color Range | 5600K (+/-50K) | | Dimming | 0-100% | | Operating Voltage | 100-240 VAC, 50/60 Hz 15 VDC | | Power Consumption | 60 W | | Mount | Yoke with 5/8" (16 mm) receiver | | Photometrics | 7362 lux @ 3.0' (0.9 m)
1685 lux @ 6.0' (1.8 m)
721 lux @ 9.0' (2.7 m) | | Material of Construction | Lightweight metal and plastic | | Dimensions | 7.0 x 6.0 x 9.0" (18.5 x 16 x 22 cm) | | Weight | 1.6 lb (0.72 kg) | | | | Box Dimensions (LxWxH) | 12.6 x 12.3 x 7.6" |
