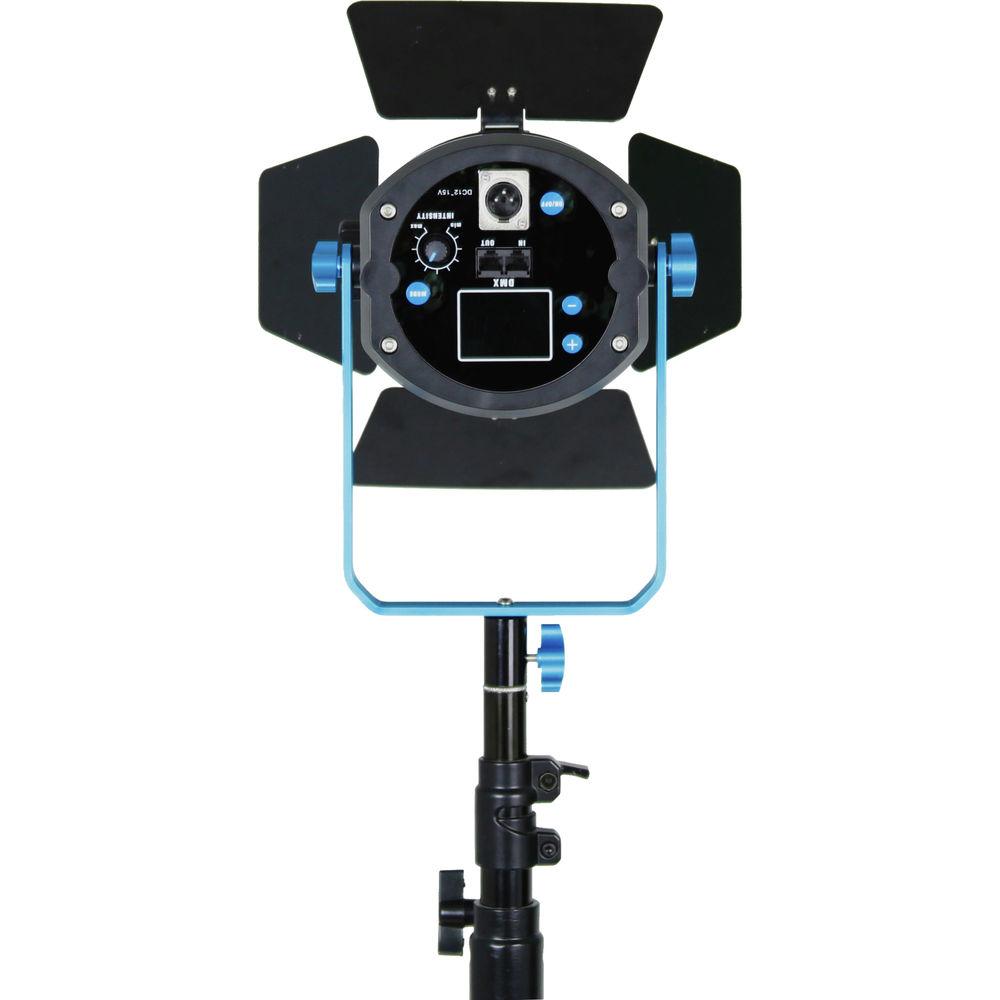

User Manual for Dracast BoltRay LED1000 Plus Daylight Fixture Click to enlarge the picture
Contents of the user manual for the Dracast BoltRay LED1000 Plus Daylight Fixture
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast BoltRay LED1000 Plus Daylight Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

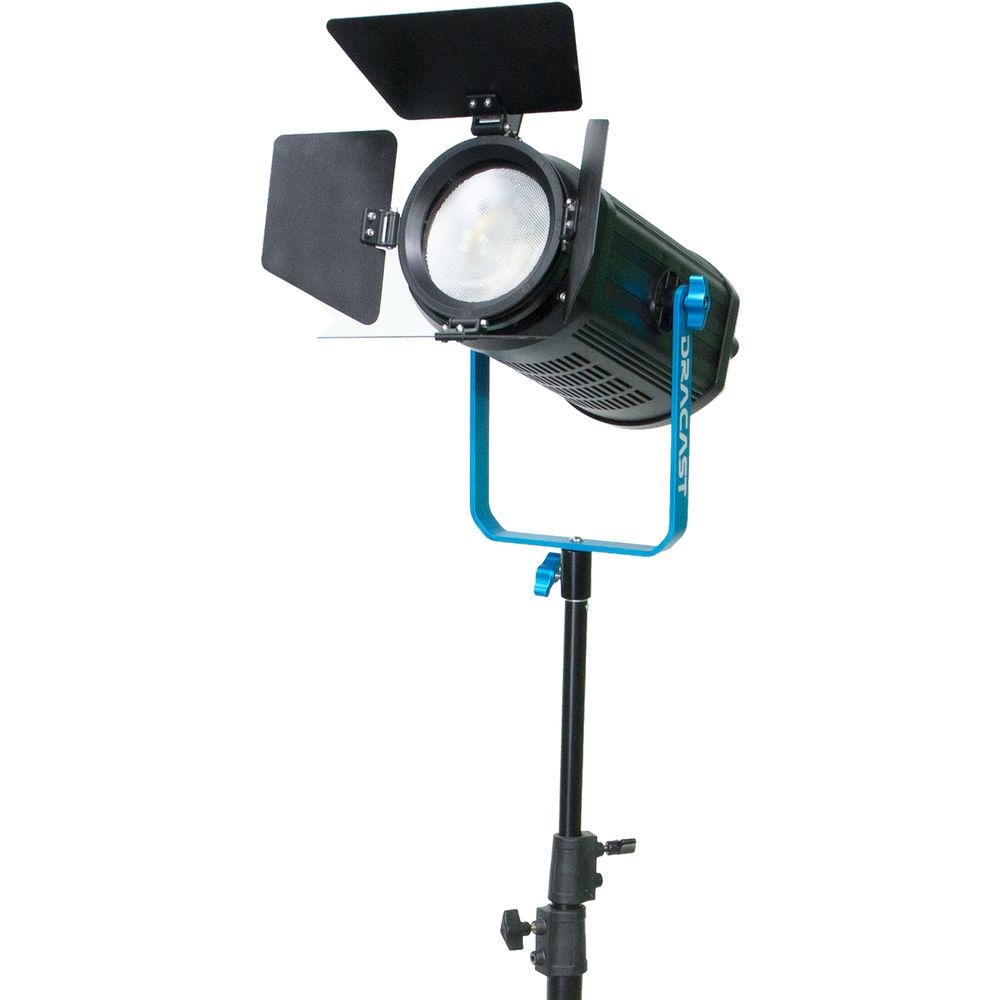

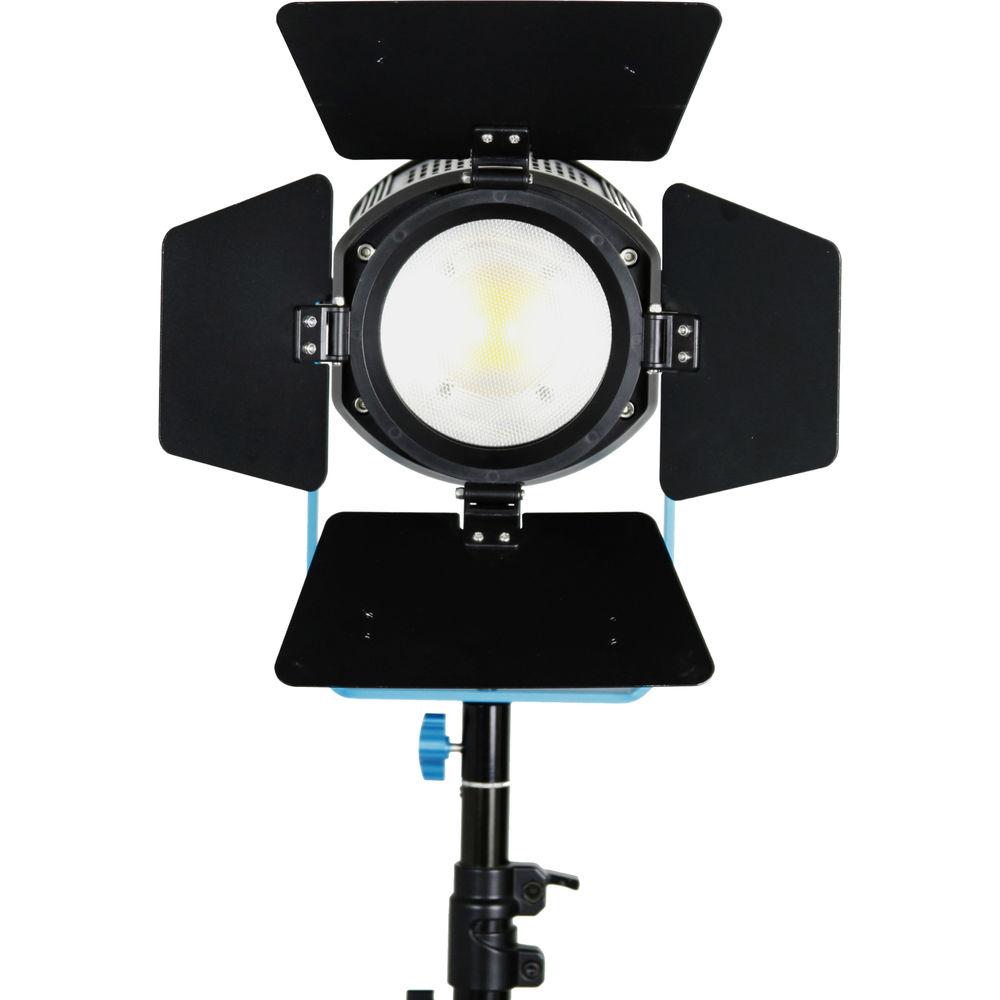

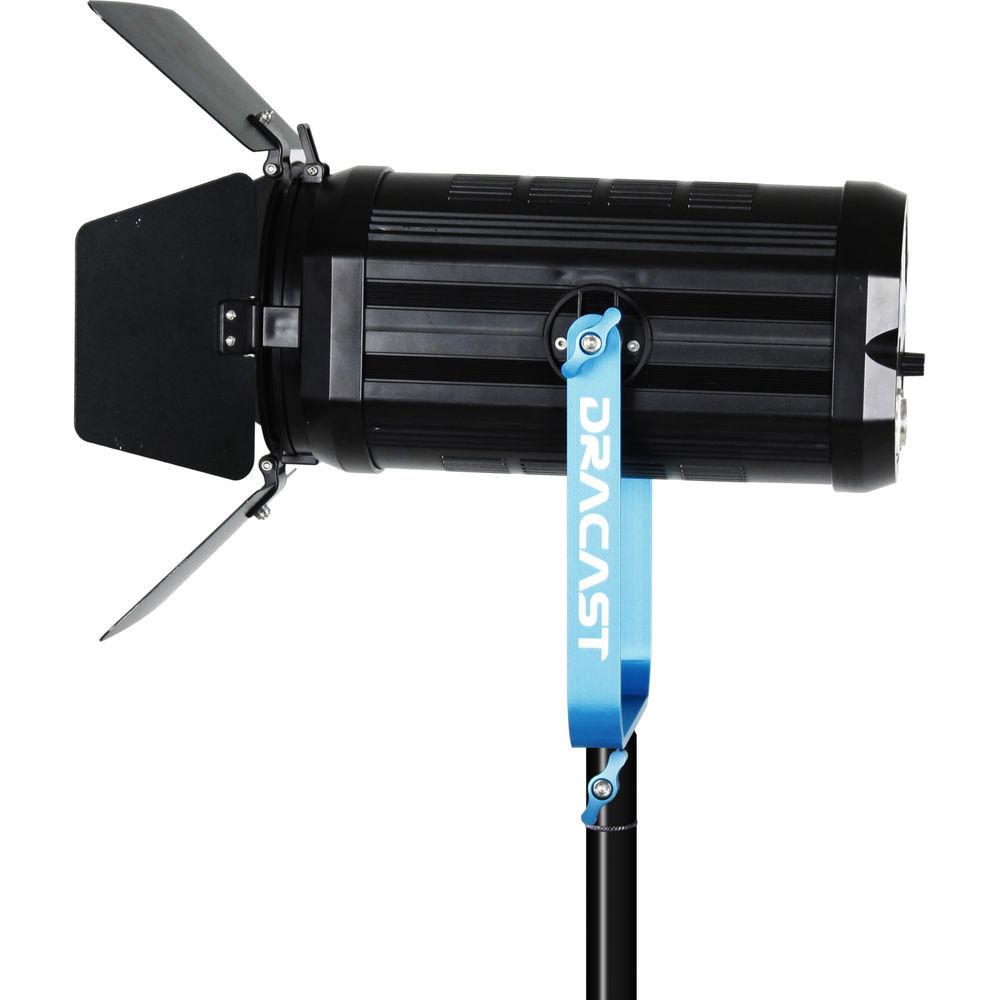

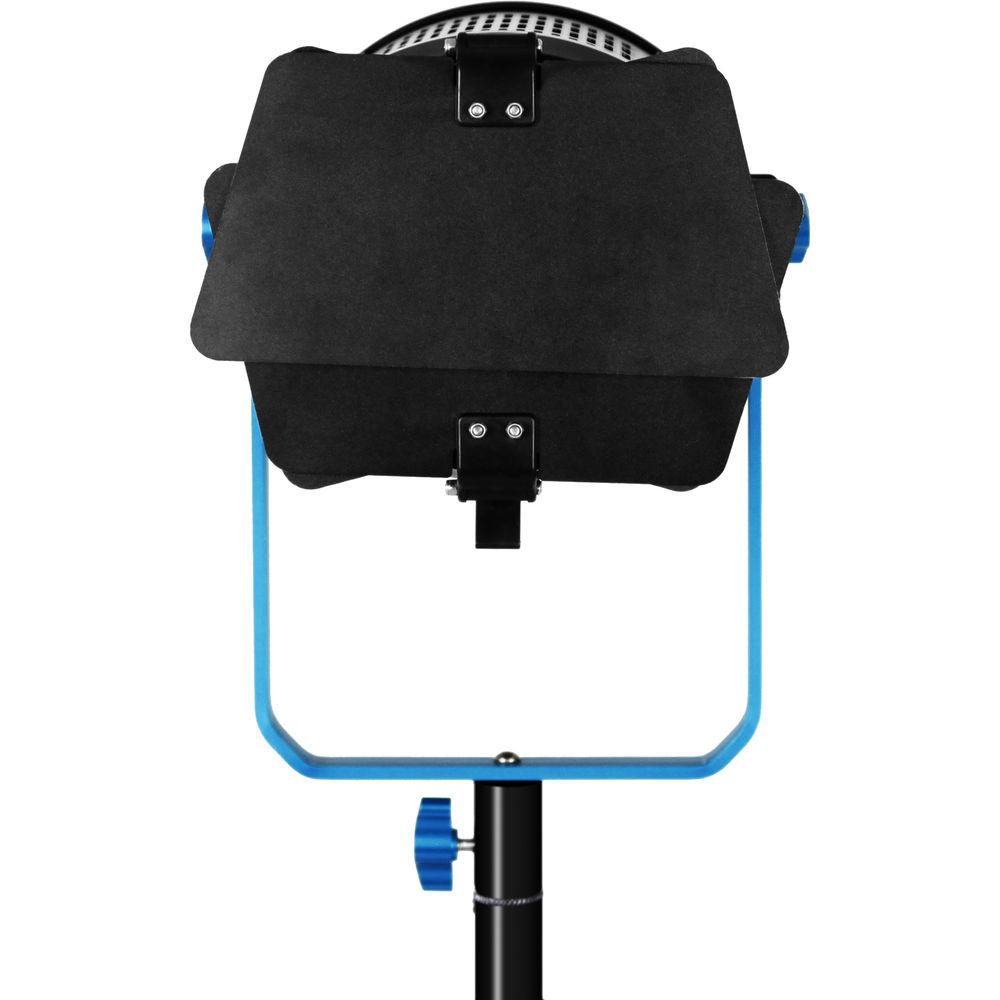

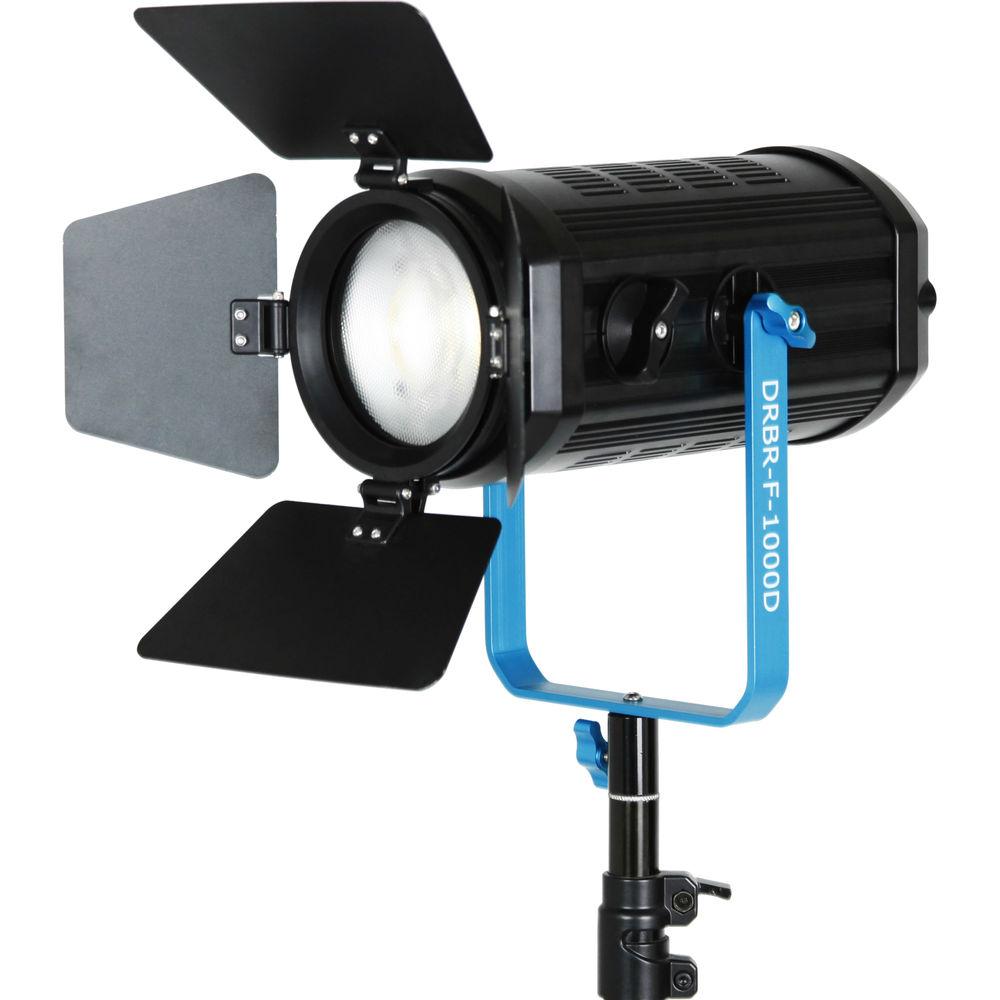

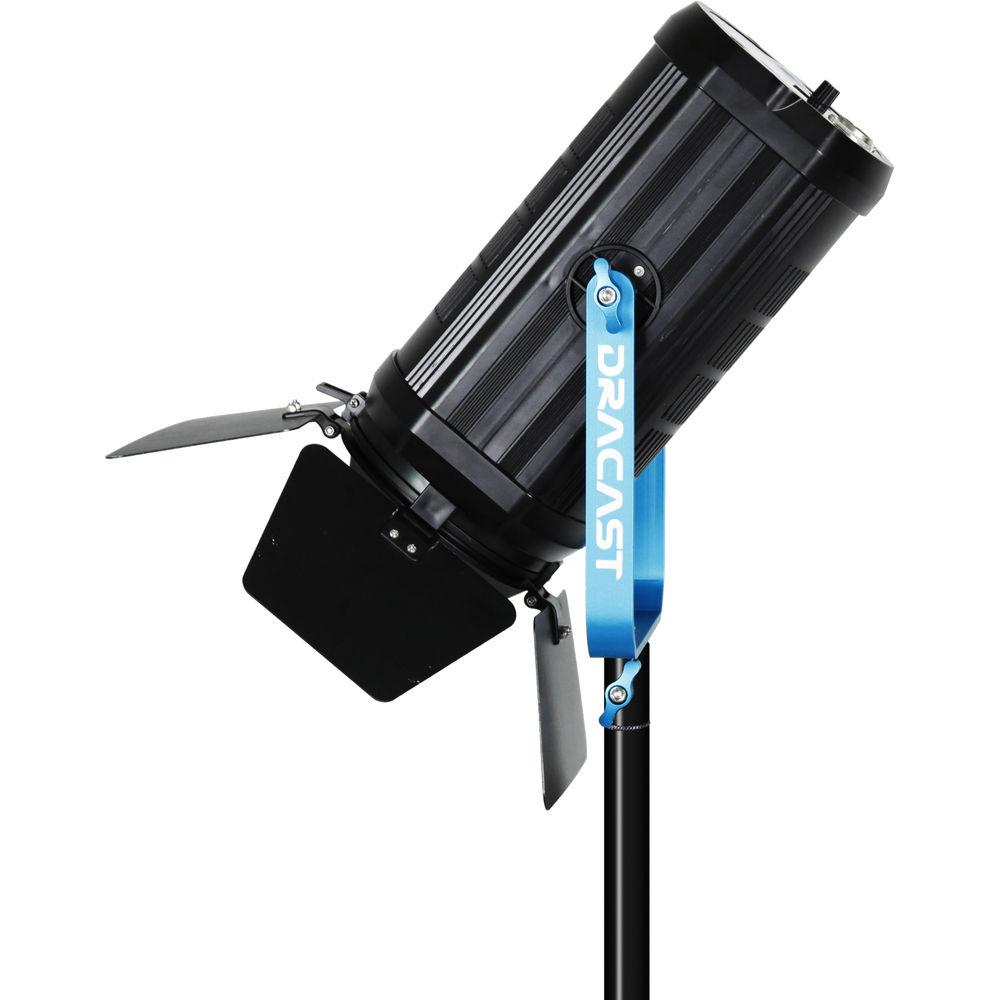

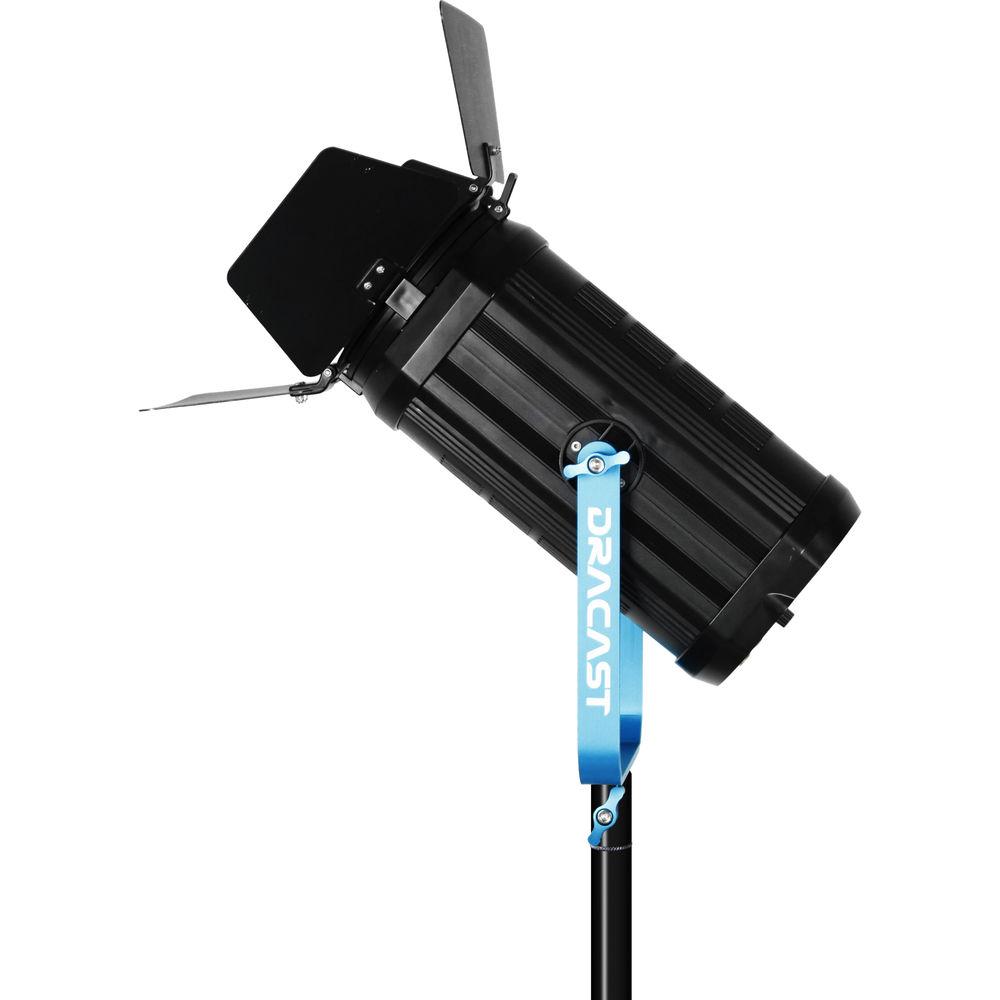

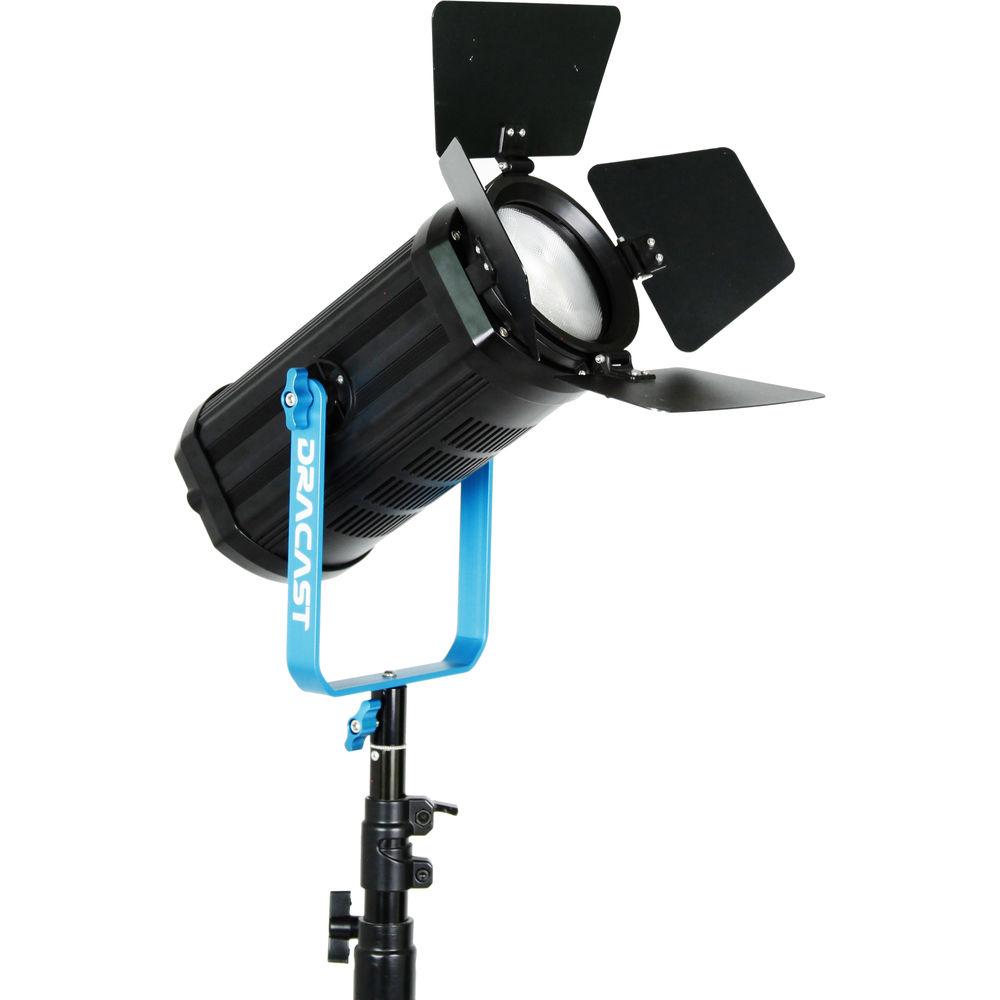

Product description The 5600K BoltRay LED1000 Plus Daylight Fixture from Dracast is a versatile fixture with spot-to-flood beam capability. Its included 4-way barndoors help you to further shape the beam, lighting areas that you want to and keeping light from areas that you don't. The light metal and plastic construction backed with a U-shaped yoke make it easy to mount in difficult places. This version of the light features IRR remote capability. Multiple BoltRay Plus series lights can be set up to be controlled by a single light without DMX or extra cables. The LED1000 dims from 0-100%. Dracast uses PWM (pulse-width modulation) to make possible this wide dimming range with high color fidelity (CRI 96) without flicker. The light features high output with low 100W power draw and runs barely warm to the touch thanks to a virtually silent fan. Besides the barndoors, and yoke, the LED1000 comes with a soft nylon carrying case and multi-voltage AC power adapter and cord that allow you to use it anywhere in the world. UPC: 612520463519 In the Box Dracast BoltRay LED1000 Plus Daylight Fixture 4-Way Barndoors Diffusion Filter U-Shaped Mounting Yoke AC Power Adapter with Power Cord Soft Nylon Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast BoltRay LED1000 Plus Daylight Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED1000 Plus Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 96 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 13.8 x 8.7 x 12.2" / 350.0 x 220.0 x 309.9 mm | | Fixture Weight | 3.0 lb / 1.36 kg | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 2.0 A | | DC Input Power | 32 VDC | | Power Source | AC Adapter | | | | Package Weight | 10.93 lb | | Box Dimensions (LxWxH) | 17.7 x 16.6 x 11.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
