User Manual for Dracast BoltRay LED600 Plus Bi-Color LED Light Click to enlarge the picture
Contents of the user manual for the Dracast BoltRay LED600 Plus Bi-Color LED
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast BoltRay LED600 Plus Bi-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

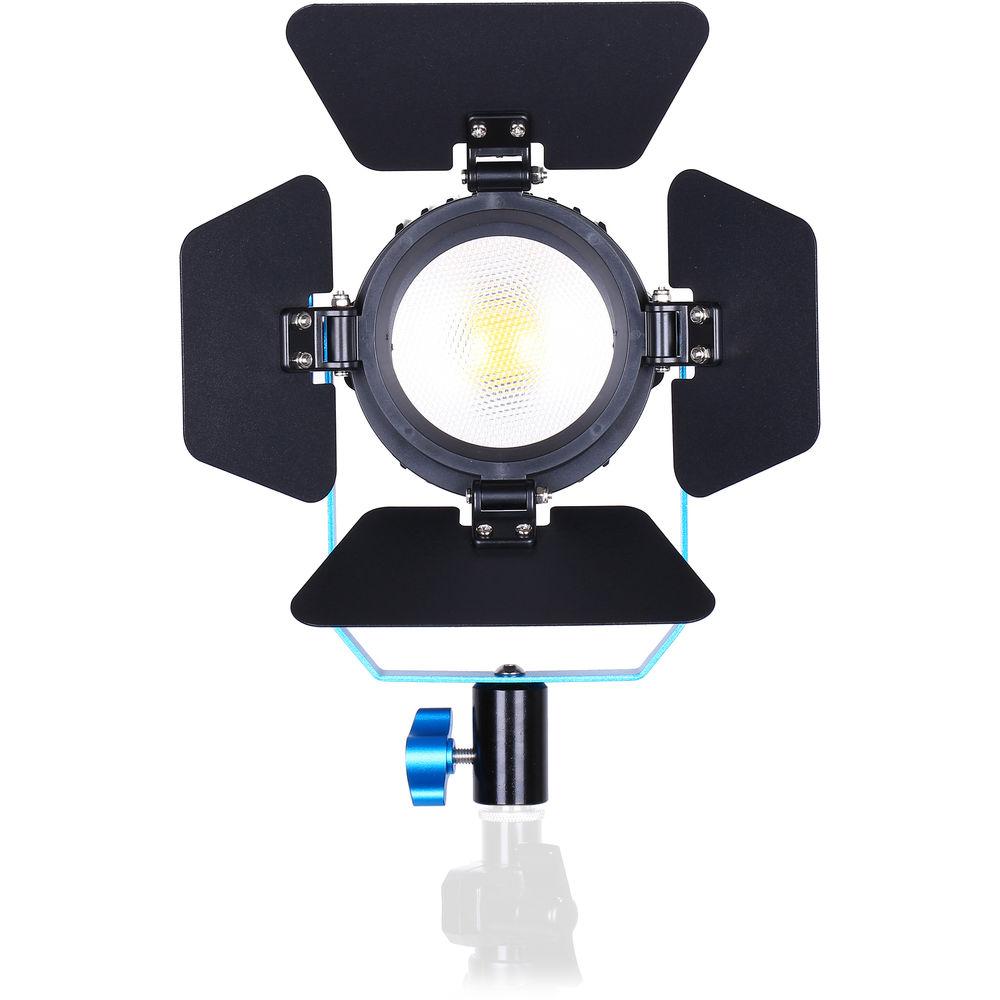

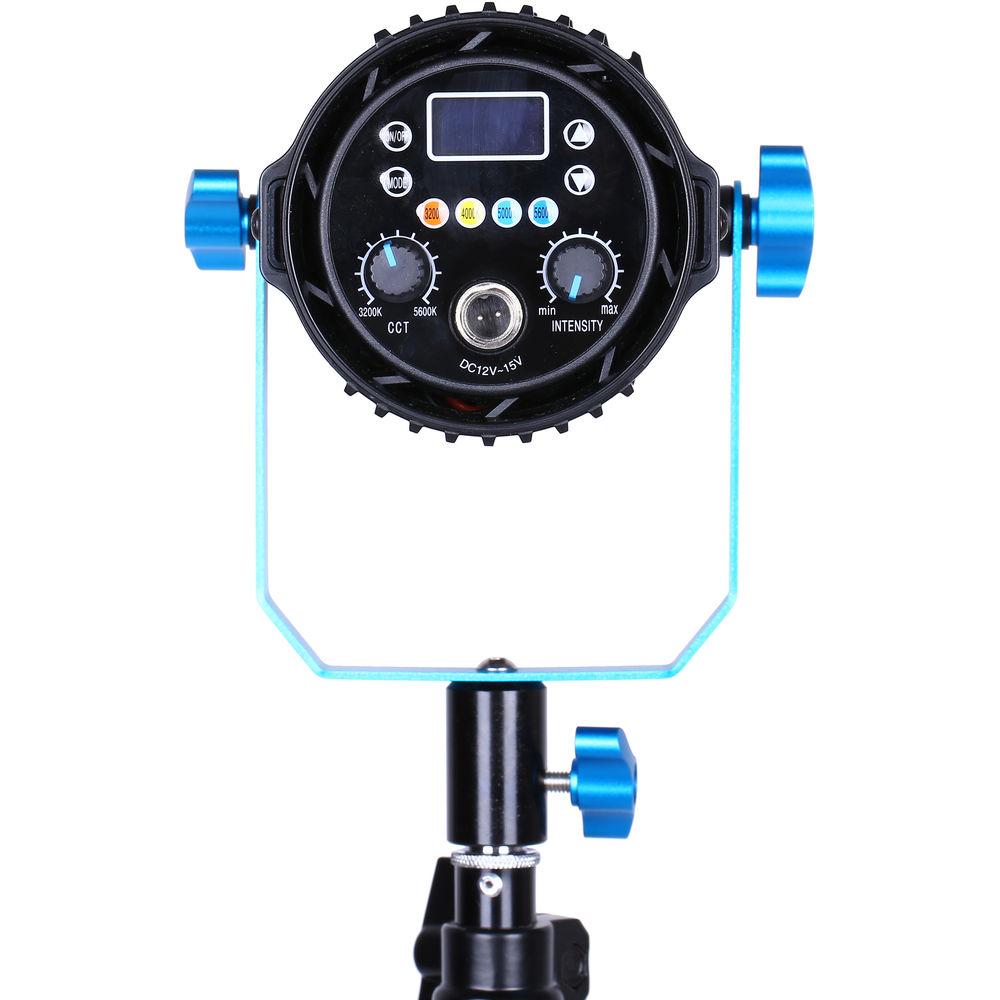

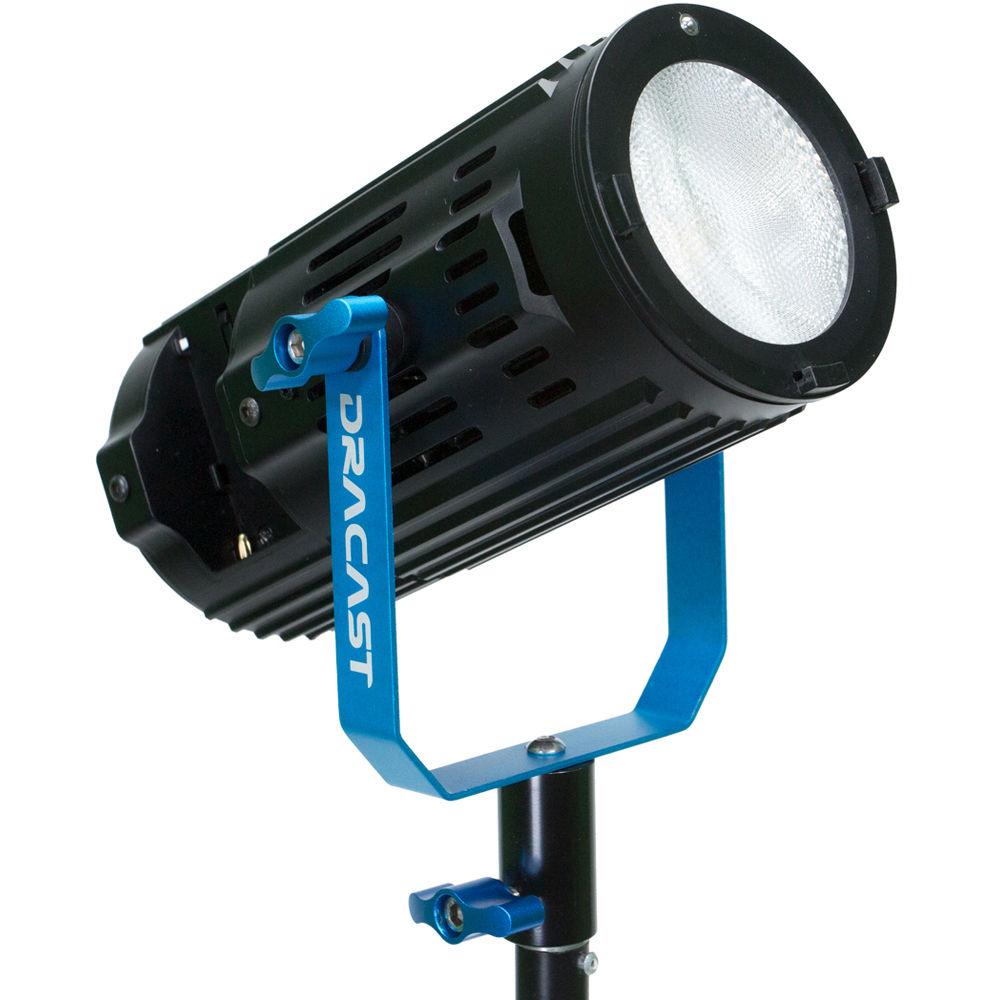

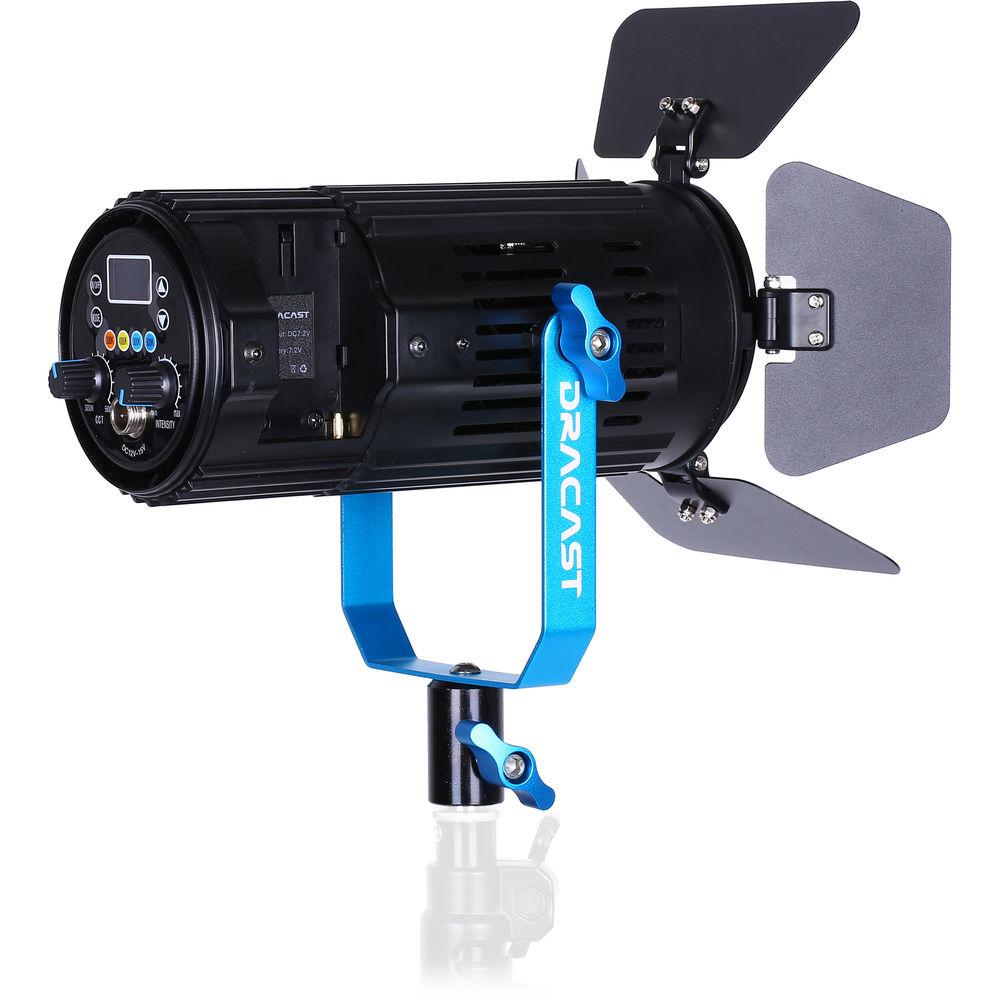

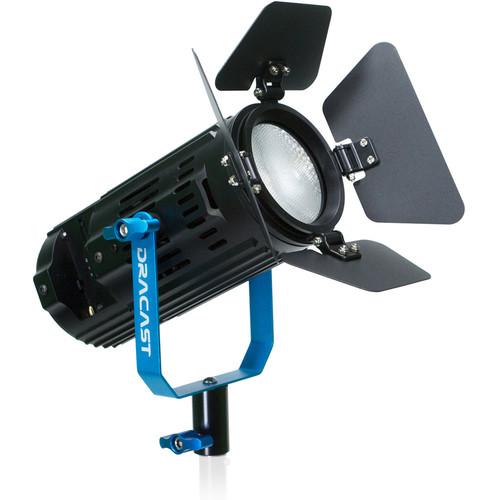

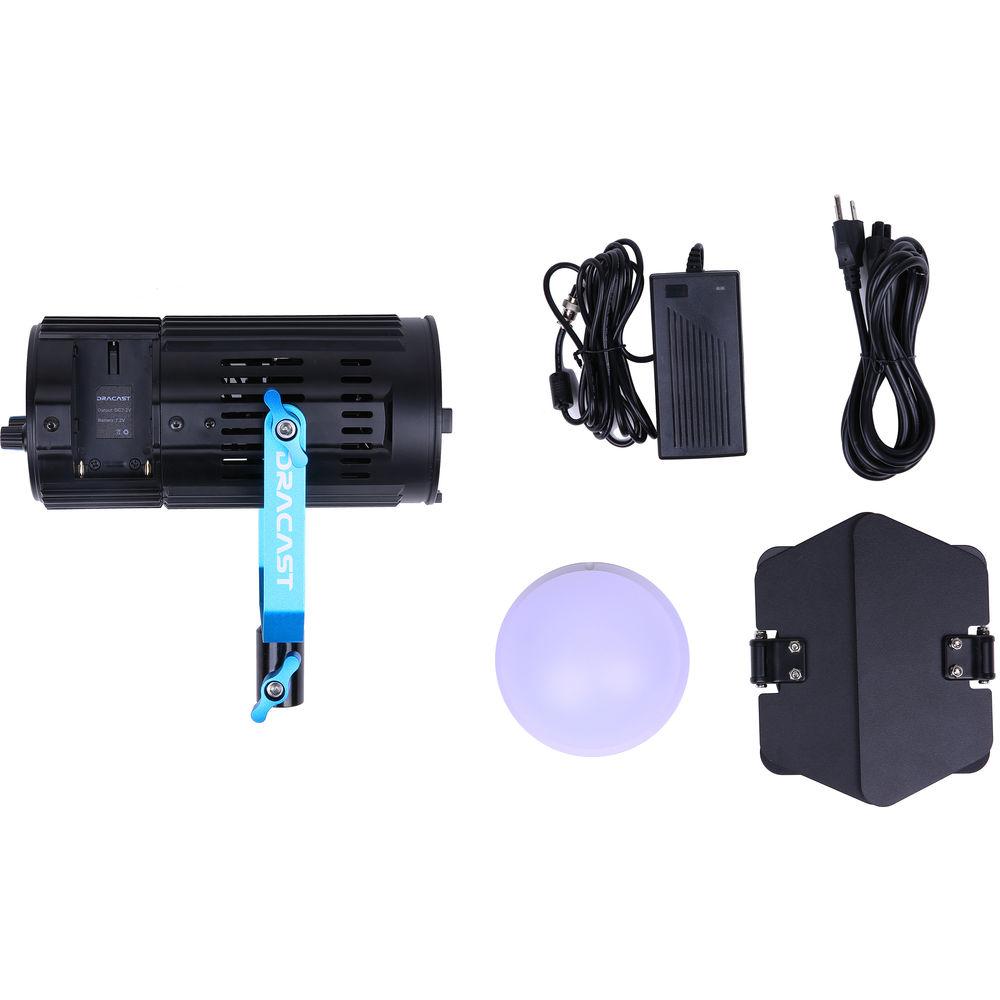

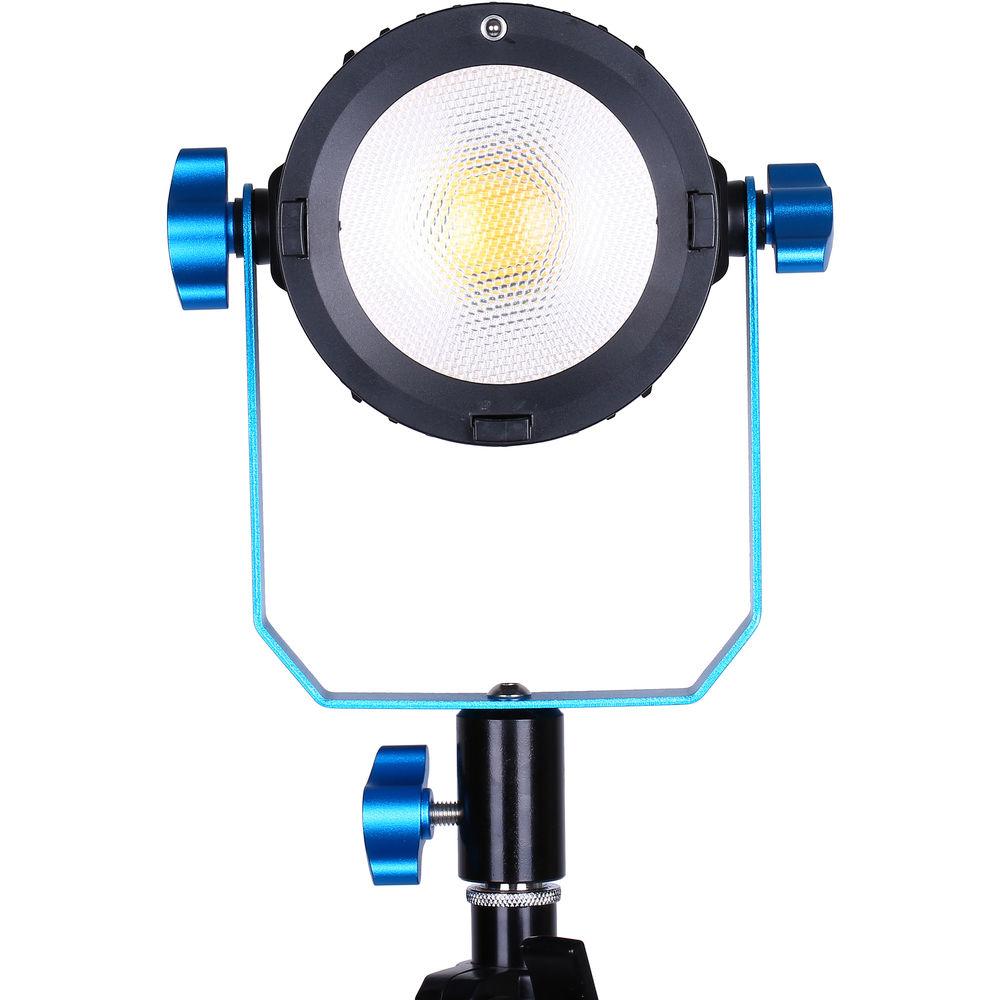

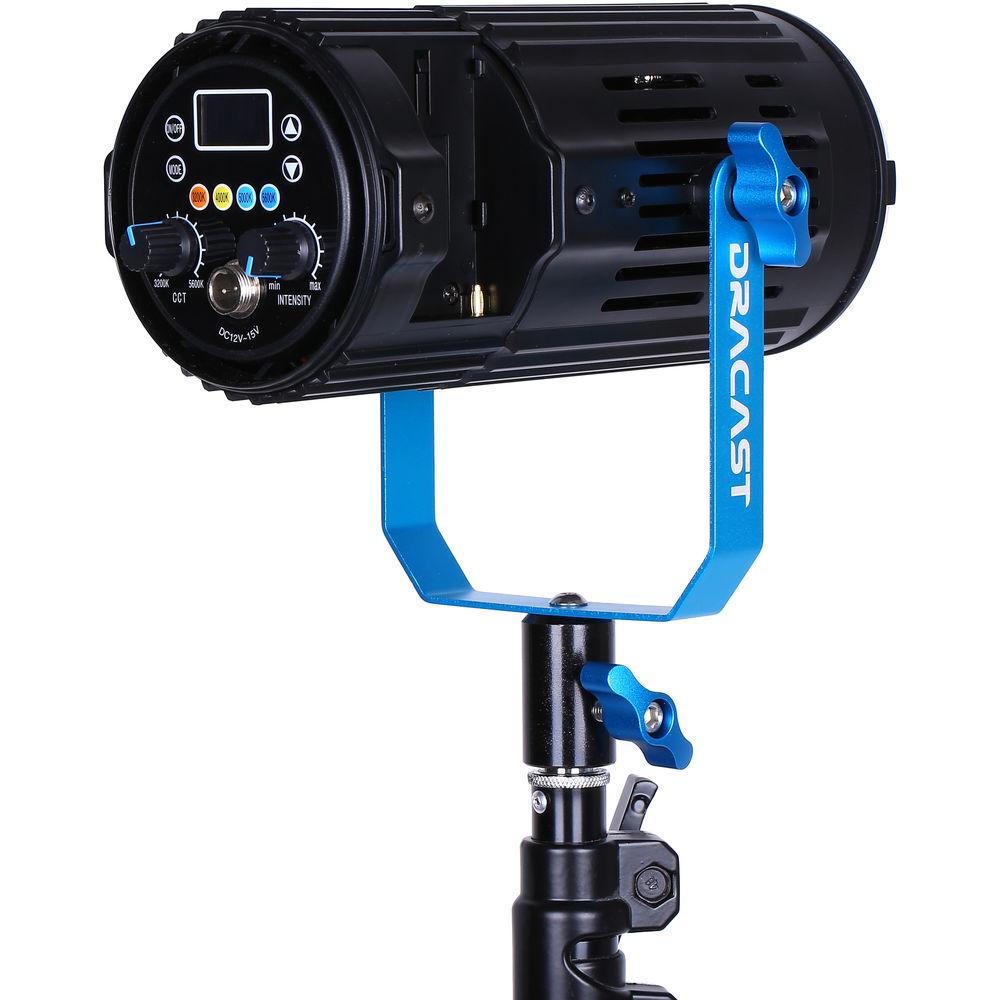

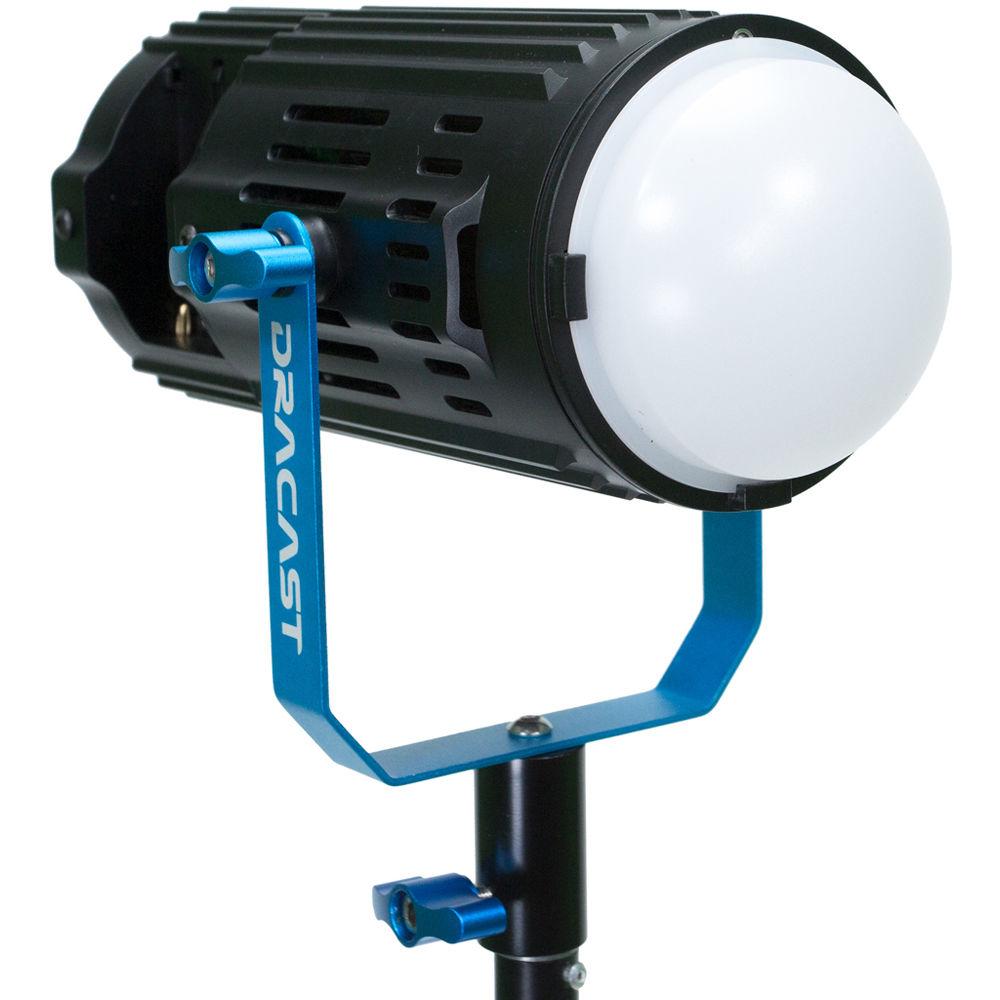

Product description The BoltRay LED600 Plus Bi-Color Light from Dracast is a versatile fixture with color that's variable from 3200 to 5600K while maintaining a high CRI of 96, indicating an accurate and faithful rendition of color. Light intensity is also variable from 0-100% without flicker thanks to Dracast's use of PWM (Pulse-Width Modulation) technology coupled with a single Chip-on-Board (COB) LED. The LED600 Plus has a 45-degree beam spread which can be further shaped with the included 4-way barndoors, allowing you to light areas that you want to and keep light from areas that you don't. The light metal and plastic construction backed with a U-shaped yoke makes it easy to mount in difficult places.The light features high output with low 60W power draw and runs barely warm to the touch thanks to a virtually silent fan. Besides the barndoors and yoke, the light comes with a diffusion filter, soft nylon carrying case and a multi-voltage AC power adapter that allows you to use it anywhere in the world. It will also run on optional batteries when mains power is unavailable, thanks to its dual NP-F battery plates. UPC: 612520463526 In the Box Dracast BoltRay LED600 Plus Bi-Color LED Light 4-Way Barndoors Removable Diffusion Filter U-Shaped Mounting Yoke Multi-Voltage AC Power Adapter with Power Cord Soft Nylon Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast BoltRay LED600 Plus Bi-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED600 Plus Specs | Light Source | COB LED | | Color Range | Continuous 3200-5600K adjustment
4 Color temperature presets | | Dimming | 0-100% | | Operating Voltage | 100-240 VAC, 50/60 Hz 15 VDC | | Battery Plate | Dual NP-F battery plates | | Power Consumption | 60 W | | Mount | Yoke with 5/8" (16 mm) receiver | | Photometrics | At 3200K
5001 lux @ 3.0' / 0.9 m
1259 lux @ 6.0' / 1.8
534 lux @ 9.0' / 2.7 m
At 5600K
5009 lux @ 3.0' / 0.9 m
1356 lux @ 6.0' / 1.8 m
568 lux @ 9.0' / 2.7 m | | Material of Construction | Lightweight metal and plastic | | Dimensions | 7.0 x 6.0 x 9.0" / 18.5 x 16 x 22 cm | | Weight | 1.6 lb / 0.72 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 13.7 x 13.5 x 6.1" |
