User Manual for Dracast CamLux SMD Pro On-Camera Light with Battery and Charger Click to enlarge the picture
Contents of the user manual for the Dracast CamLux SMD Pro On-Camera Light
- Product category: On Camera Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast On Camera Lights
 |
User manual for the Dracast CamLux SMD Pro On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

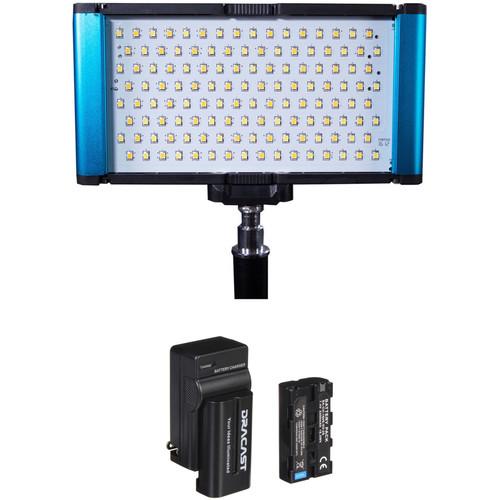

Product description The Dracast CamLux SMD Pro On-Camera Light is a 3200K to 5600K Bi-Color fixture that is fully enclosed in an anodized aluminum blue case. It features 120 surface LED's on the light board (half daylight/half tungsten) with a 45° flood beam angle. - Dracast CamLux SMD Pro On-Camera Light (Bi-Color) The Dracast CamLux SMD Pro On-Camera Light is a 3200K to 5600K Bi-Color fixture that is fully enclosed in an anodized aluminum blue case. It features 120 surface LED's on the light board (half daylight/half tungsten) with a 45° flood beam angle.
- Battery-powered via dual L-type batteries for combined 14.4V output

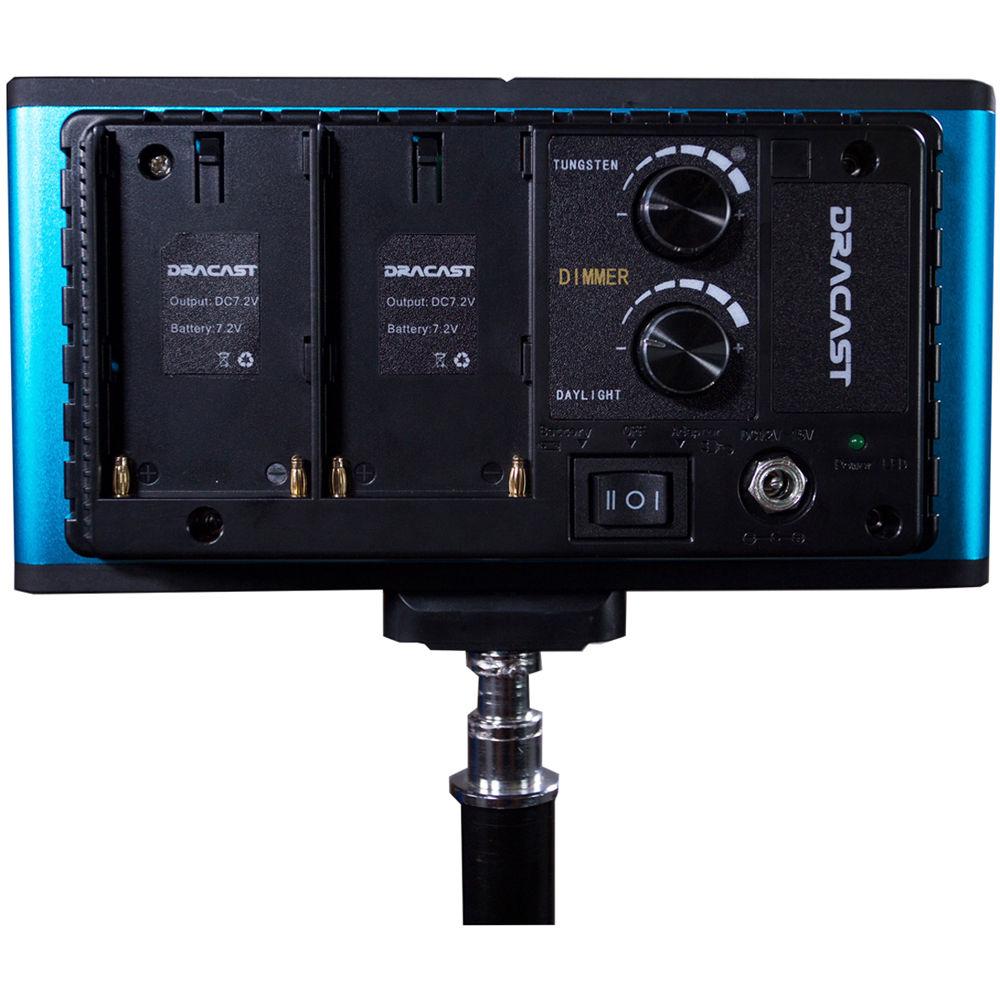

- Flicker-free dimmer and temperature control
- Anodized aluminum housing
- Please note that the light fixture does not come with either batteries or an AC power supply

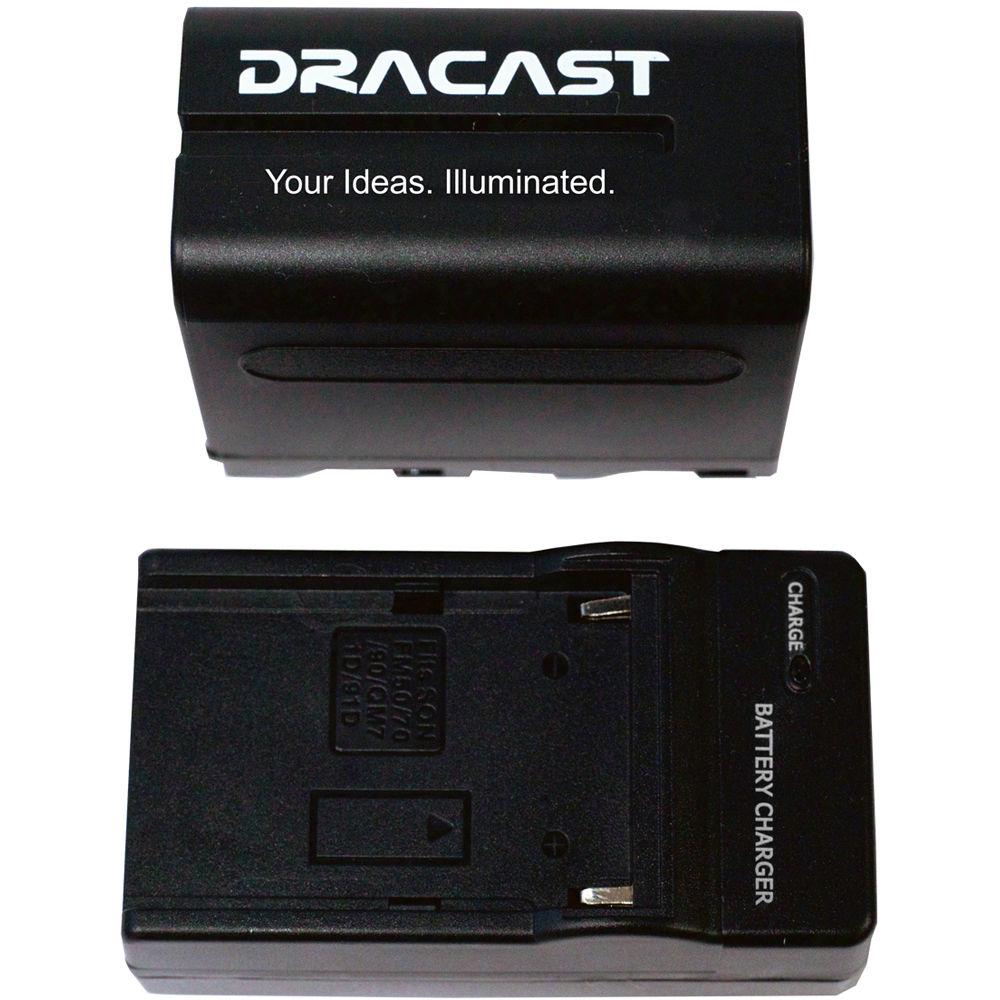

UPC: 602401681774 - Dracast 2x NP-F 2200mAh Batteries and 1 Charger Kit The Dracast 2x NP-F 2200mAh Batteries and Charger Kit provides power to LED light fixtures when mains power is unavailable. The kit contains two NP-F 2200mAh lithium-ion batteries and a multi-voltage charger. Run time is approximately 90 minutes with Dracast's LED160, LED200, X1, or X2 lights on a fully charged battery. UPC: 602401682528
In the Box - CamLux SMD Pro On-Camera Light (Bi-Color)

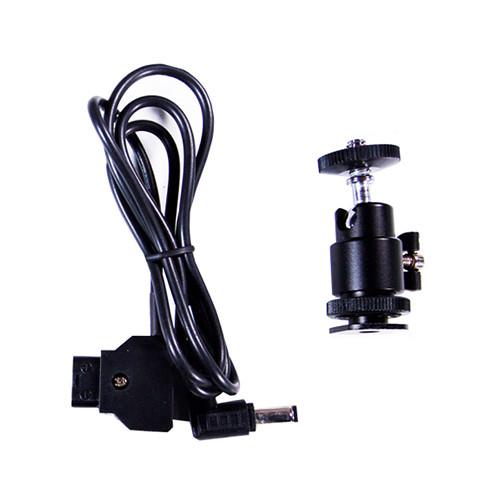

- Cold Shoe Mount
- D-Tap Cable
- Limited 1-Year Warranty
- 2x NP-F 2200mAh Batteries and 1 Charger Kit
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast CamLux SMD Pro On-Camera Light with Battery and Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dracast CamLux SMD Pro On-Camera Light (Bi-Color)
| | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 120 | | Effective Distance | 20.0' / 6.0 m | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | DC Input Power | 7.2 to 8.4 VDC | | Max Power Consumption | 25 W | | Power Input Connector | D-Tap | | Power Source | External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 8 x 6 x 4" / 203.2 x 152.4 x 101.6 mm | | Weight | 1.5 lb / 0.68 kg | | | | Box Dimensions (LxWxH) | 9.15 x 6.9 x 4.35" | - Dracast 2x NP-F 2200mAh Batteries and 1 Charger Kit
| | | Battery Runtime | 1.5 Hours | | Battery Plate | 1 x Sony L-Series (NP-F) | | | | Amp-Hours | 2200 mAh | | Chemistry | Lithium-Ion | | Output Voltage | 7.2 VDC | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 150 mA | | Output Voltage | 8.4 V | | Number of Battery Bays | 1 | | Indicator | LED | | | | Box Dimensions (LxWxH) | 4.5 x 4.3 x 4.3" |
