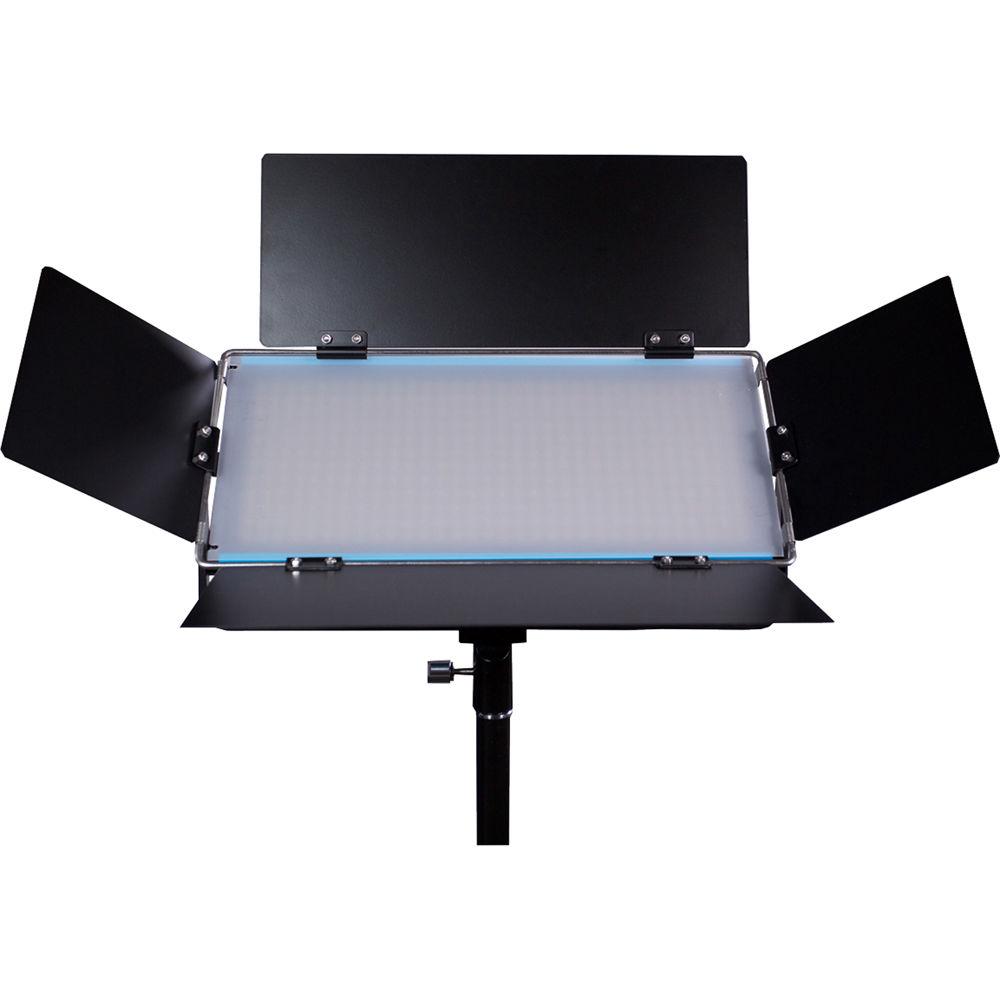

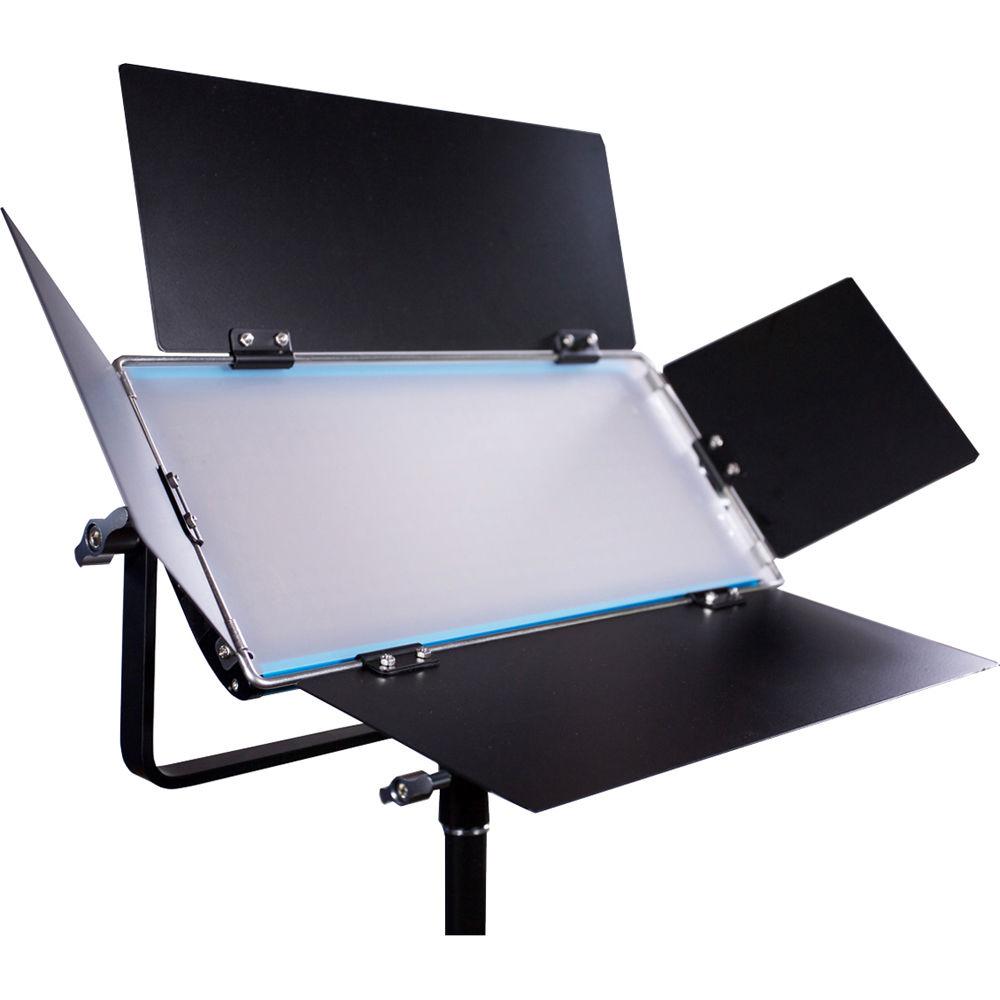

User Manual for Dracast Cineray Series LED350 Bi-Color LED Panel with V-Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Dracast Cineray Series LED350 Bi-Color LED
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast Cineray Series LED350 Bi-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

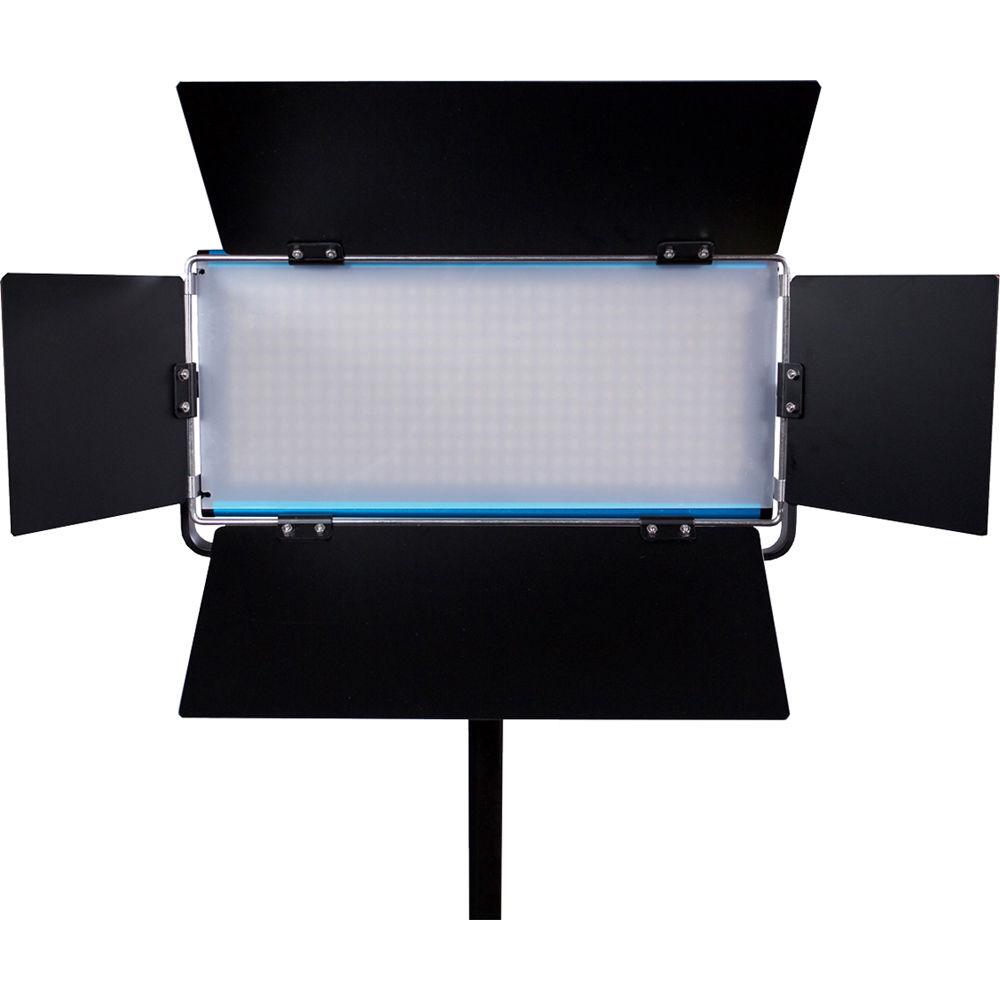

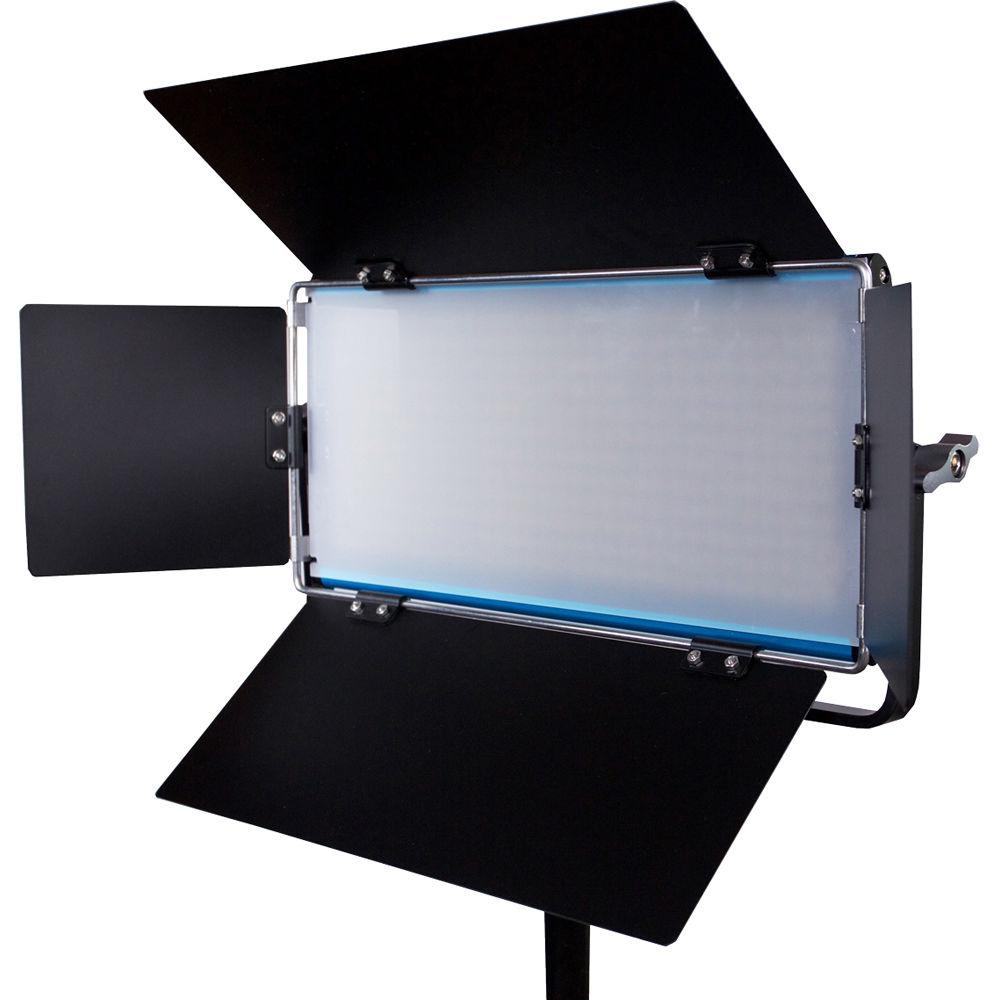

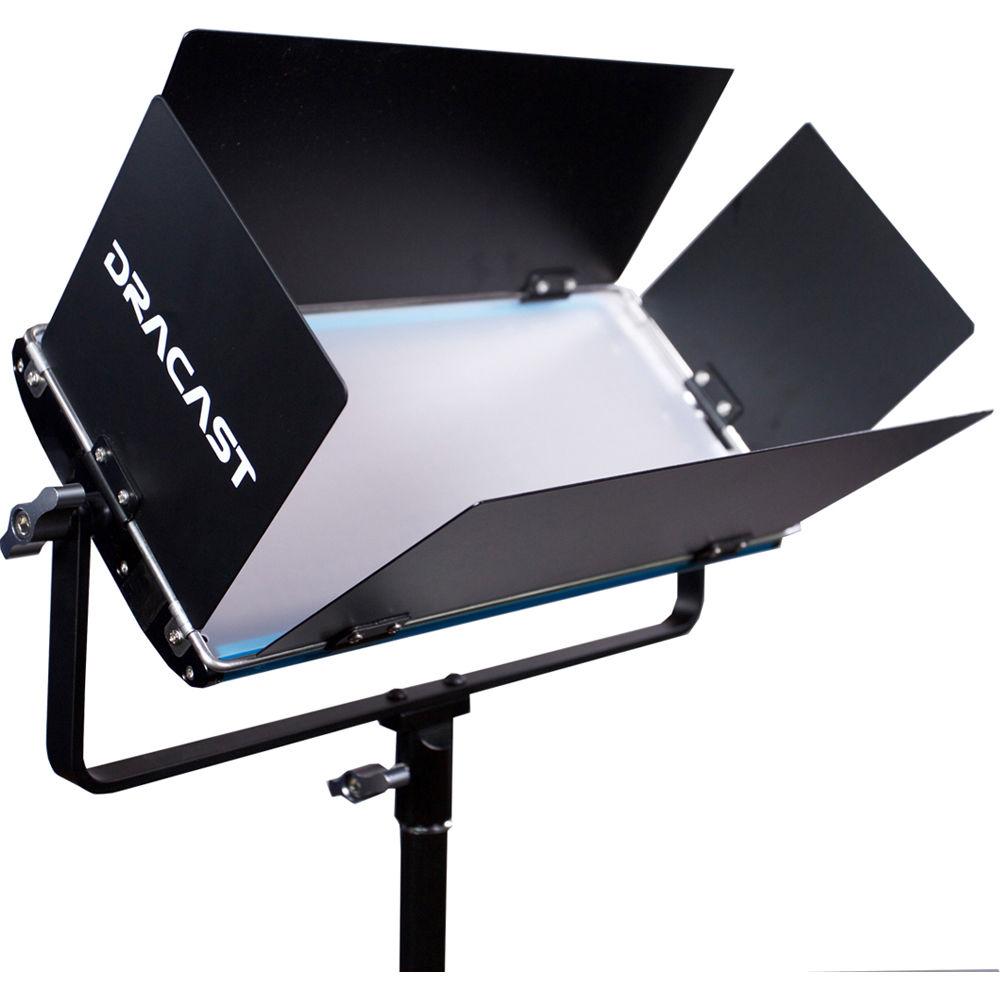

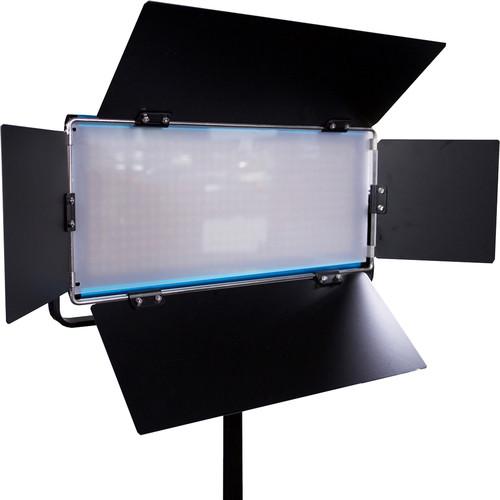

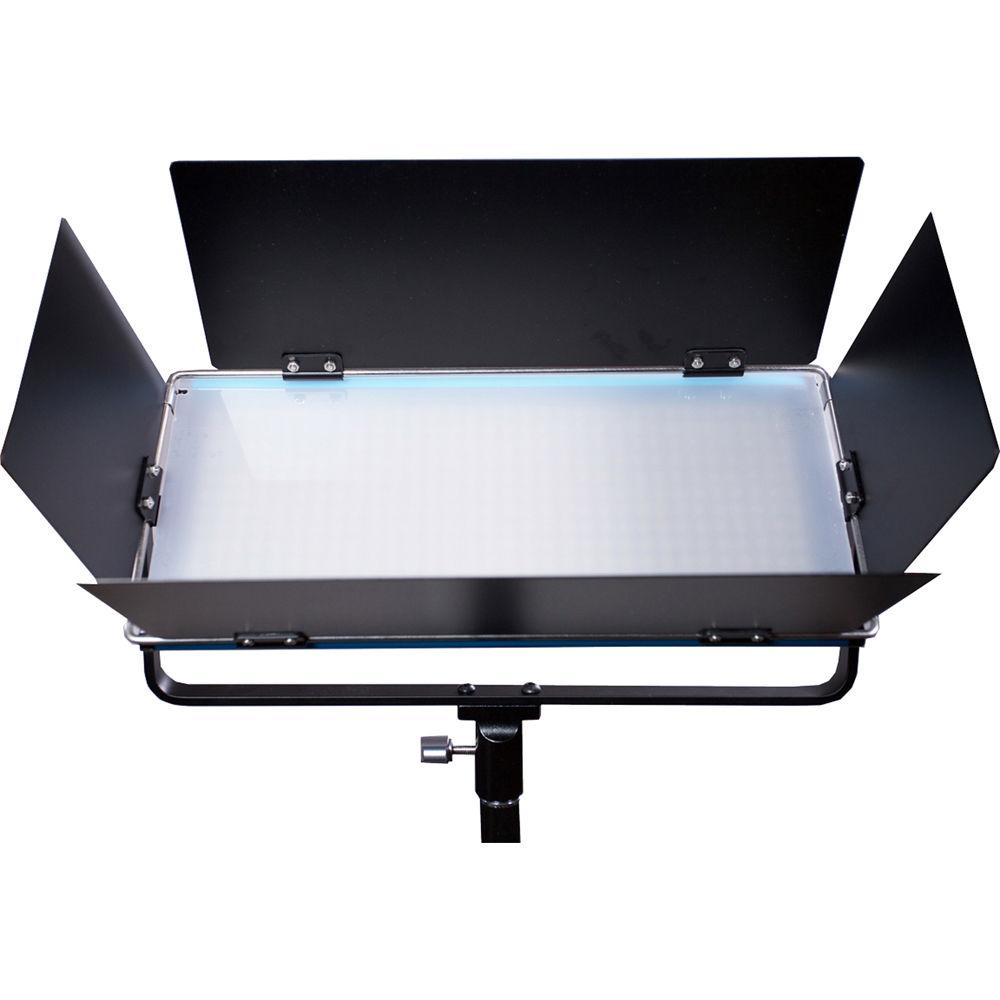

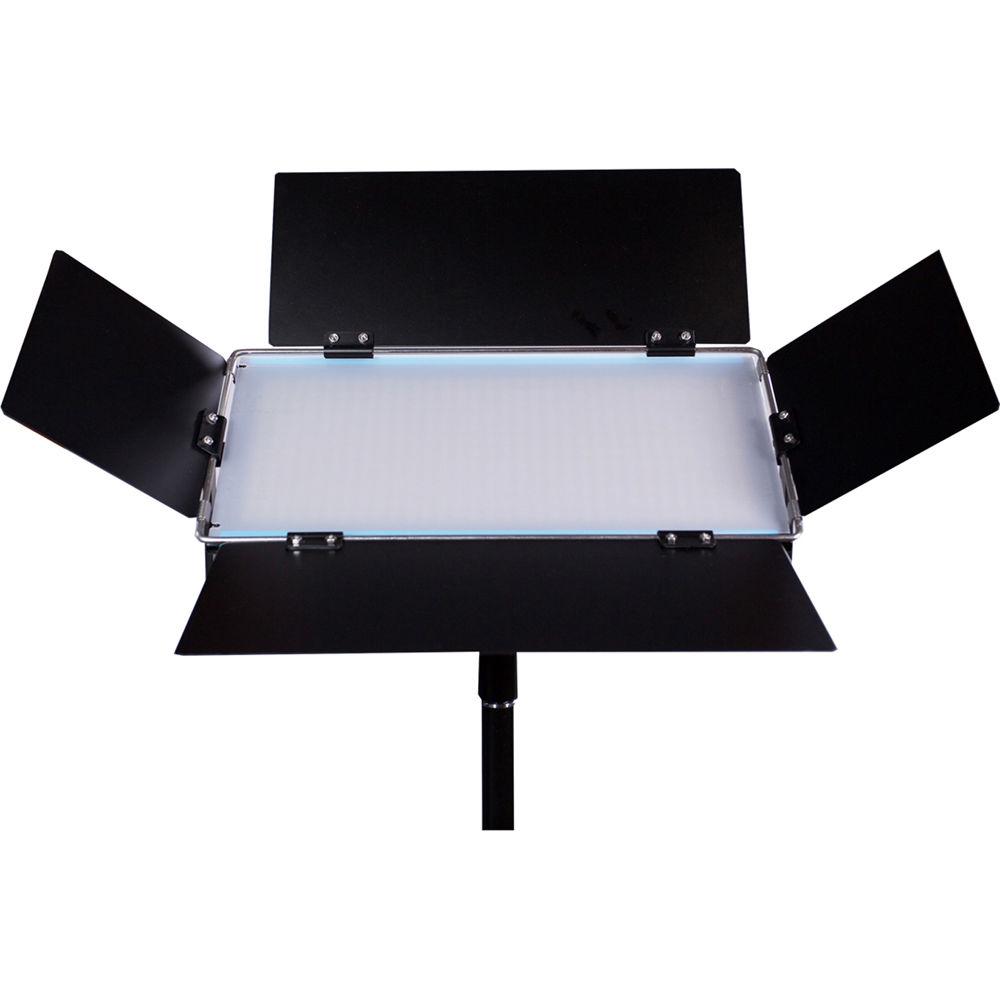

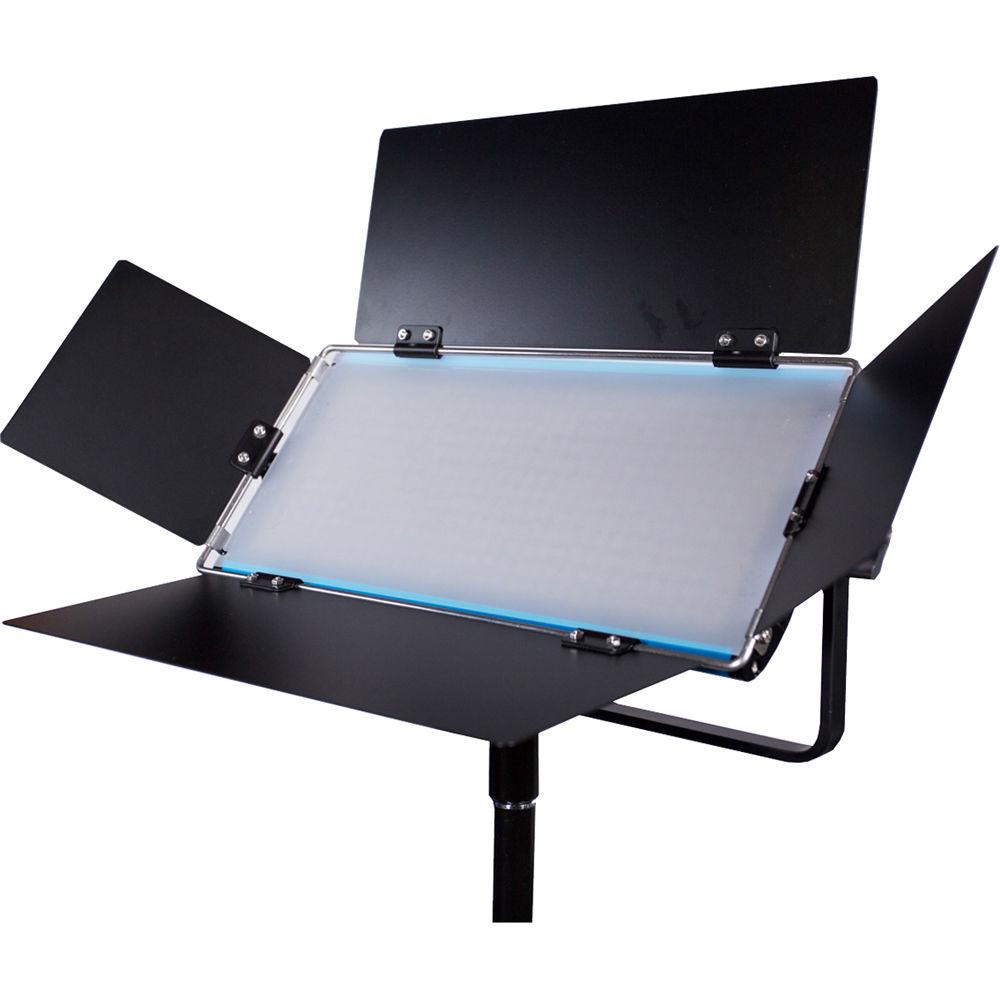

Product description Slim and soft are the defining characteristics of the Cineray Series LED350 Bi-Color LED Panel from Dracast. Using an array of 384 LEDs with a CRI greater than 96, this panel will deliver a bright output of light with a wide beam angle of 120°. This version also features a bi-color design, allowing users to quickly adjust the color temperature from 3200-5600K in order to best match with the other light sources. Power output can be controlled from 0-100% via an external controller that is equipped with a V-mount battery plate for working with readily available 14.8 VDC packs.

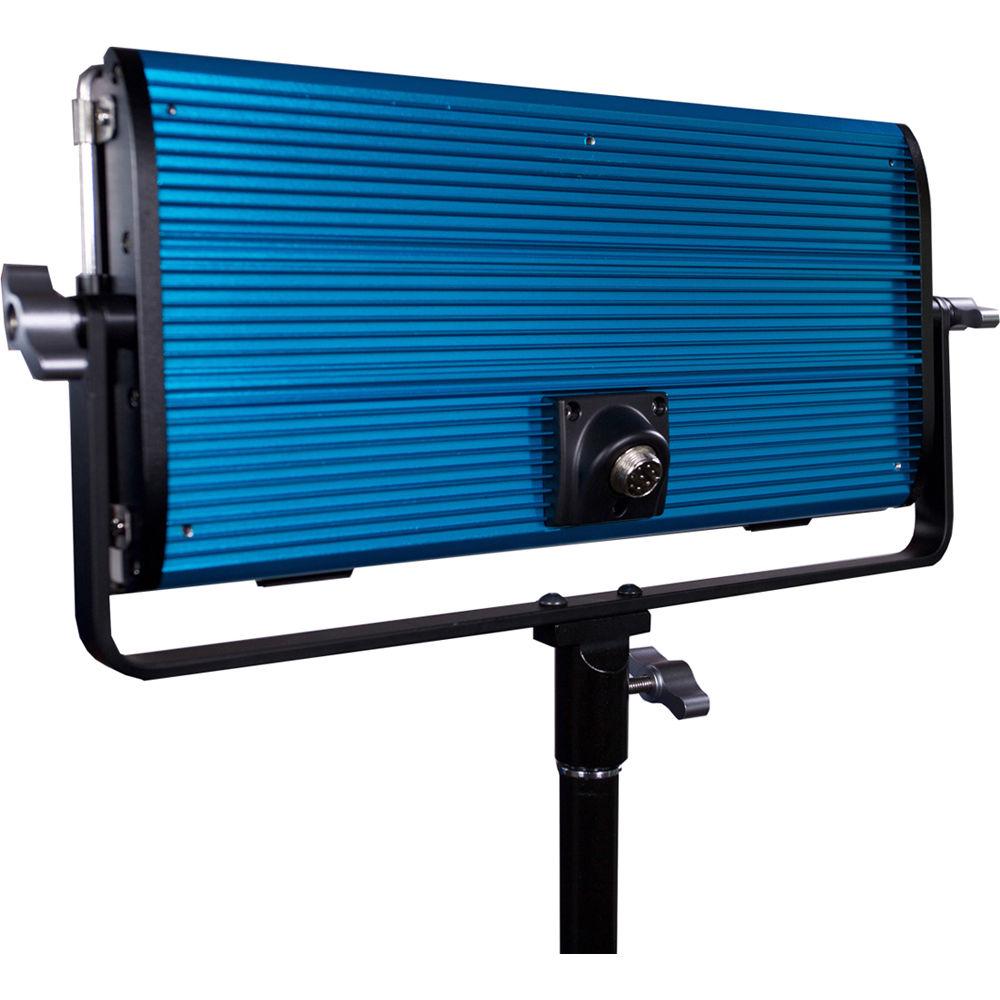

For mounting, a standard yoke with 5/8" receiver is installed on the fixture. Along with the slim design, the LED350 sports a durable aluminum construction and comes with a universal 110-240 VAC power supply for mains power. Additionally, it comes with a soft diffusion filter and a soft nylon carrying case. UPC: 602401681866 In the Box Dracast Cineray Series LED350 Bi-Color LED Panel with V-Mount Battery Plate Controller with V-Mount Battery Plate Soft Diffusion Filter 15 VDC Power Adapter Power Cord Soft Nylon Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Cineray Series LED350 Bi-Color LED Panel with V-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED350 Specs | | | Beam Angle | 120° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 96 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Number of LEDs | 384 | | Fixture Dimensions | 13.0 x 9.0 x 0.8" / 33.0 x 23.0 x 2.0 cm | | Fixture Weight | 4 lb / 1.8 kg | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 8-Pin DIN | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 15 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 70 W | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 15.95 x 11.0 x 6.5" |
