Product description

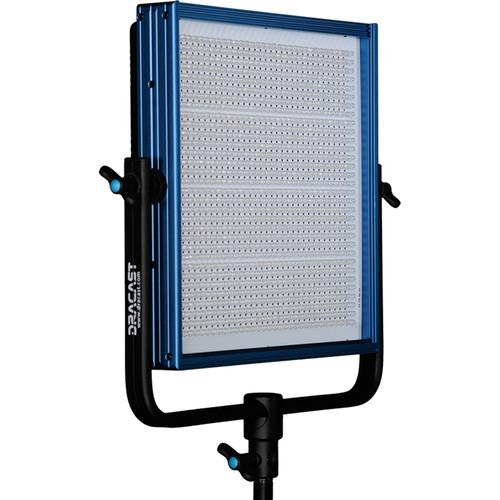

• LED1000 Pro Bi-Color LED Light with Gold Mount Battery Plate At 5.5 lb lb the LED1000 Pro Bi-Color LED Light with Gold Mount Battery Plate from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 60W means a timely return on your investment. The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED1000 can be used worldwide, powered by the included 100-240 VAC adapter or by optional Gold Mount 14.8V batteries. Accessories include optional 4-way barndoors for contouring and control of the LED1000's 45 degree beam angle. A carry case is included.
  Photometrics
  • At 3200K
    3800 lux/353 fc at 3.0' / 0.9 m
    1150 lux/107 fc at 6.0' / 1.8 m
    530 lux/49 fc at 9.0' / 2.7 m
    300 lux/28 fc at 12' / 3.6 m
    At 4400K
    7200 lux/669 fc at 3.0' / 0.9 m
    2050 lux/190 fc at 6.0' / 1.8 m
    950 lux/88 fc at 9.0' / 2.7 m
    560 lux/52 fc at 12' / 3.6 m
    At 5600K
    4200 lux/390 fc at 3.0' / 0.9 m
    1200 lux/111 fc at 6.0' / 1.8 m
    530 lux/49 fc at 9.0' / 2.7 m
    300 lux/28 fc at 12' / 3.6 m
  UPC: 720189883026

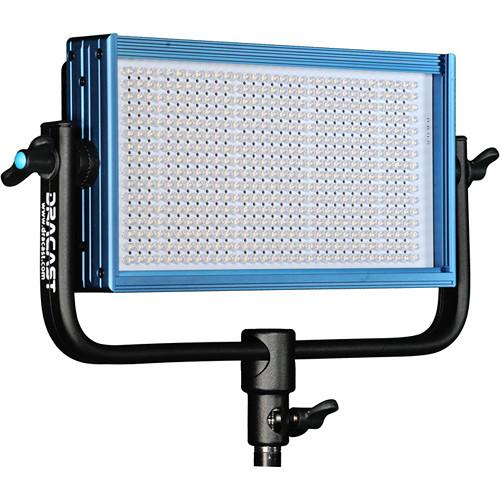

• LED500 Pro Bi-Color LED Light with Gold Mount Battery Plate At just 4.0 lb the LED500 Pro Bi-Color LED Light from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 30W means a timely return on your investment. The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter in the studio, or by Gold Mount batteries in the field. Four-way barndoors for contouring and control of the LED500's 45-degree beam angle are available separately. For protection during transport and storage, a carry case is included.
  Photometrics
  • 2,700 lux/ 251 fc @ 3.0' (0.9m) and 3220K
    750 lux/ 70 fc @ 6.0' (1.8m) and 3220K
    350 lux/ 33 fc @ 9.0' (2.7m) and 3220K
    200 lux/ 19 fc @ 12' (3.6m) and 3220K

    4,400 lux/ 409 fc @ 3.0' (0.9m) and 4400K
    1250 lux/ 116 fc @ 6.0' (1.8m) and 4400K
    600 lux/ 56 fc @ 9.0' (2.7m) and 4400K
    350 lux/ 33 fc @ 12' (3.6m) and 4400K

    1950 lux/ 181 fc @ 3.0' (0.9m) and 5600K
    530 lux/ 49 fc @ 6.0' (1.8m) and 5600K
    265 lux/ 25 fc @ 9.0' (2.7m) and 5600K
    150 lux/ 14 fc @ 12' (3.6m) and 5600K
  UPC: 720189882937

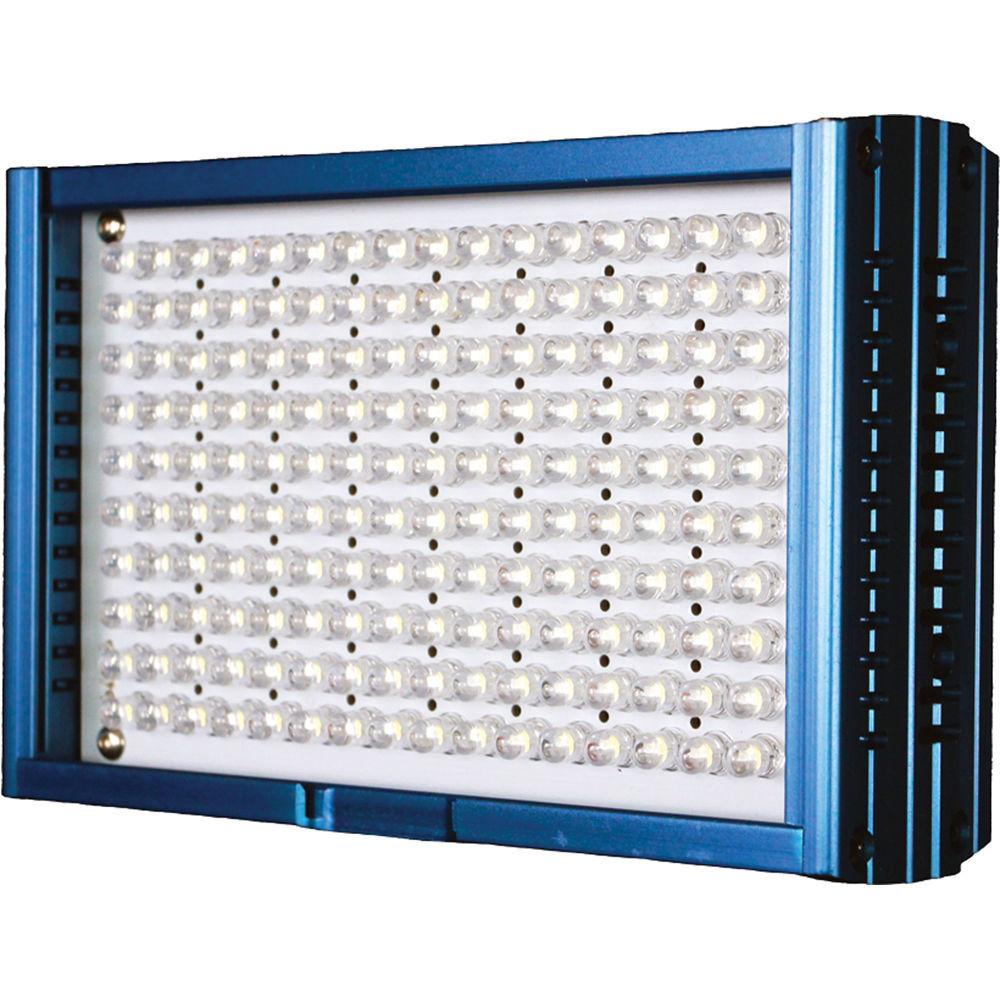

• LED160 3200-5600K Variable Color On-Camera Light (Aluminum, Blue) This is a 3200-5600K variable-color Dracast LED160 On-Camera Light, housed in an aluminum, blue case and measures a compact 6 x 4". It features a high, 160W equivalent light output with a 45° flood beam angle. It'll give you approximately 20 ft effective distance.
  Key Features
  • • 3200-5600K variable-color LED light
    • 160W equivalent light output
    • 45° flood beam angle
    • Approximately 20 ft effective distance
    • >95 CRI
    • Brightness dimmer dial on the rear
    • Integrated L-series battery plate
    • 4-LED indicator on the rear
• DR-CH2A Dual Gold Mount Battery Charger The portable DR-CH2A Dual Gold Mount Battery Charger from Dracast allows you to simultaneously charge two Gold Mount batteries (or a single battery) from 90 to 240 VAC sources. It features a top handle for easy transport and built-in capacity management system to ensure fast charging. The charger will automatically shutdown once the batteries reach their full charge. Additionally, the charger can function as a portable AC to DC power adapter, taking the AC power input and outputting 15 VDC at 4A via a 4-pin XLR connector. The output is only active when no batteries are attached. UPC: 610708234258
• Barndoors for LED1000 These Barndoors from Dracast are made for the LED1000, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder. UPC: 639713546811
• Barndoors for LED500 These Barndoors from Dracast are made for the LED500, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder. UPC: 639713546910
• Filter Frame for LED1000 Light The Dracast Filter Frame for LED1000 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture's accessory channel. It has a frame lock to prevent filter slippage. UPC: 720189882555
• Filter Frame for LED500 Light The Dracast Filter Frame for LED500 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture's accessory channel. It has a frame lock to prevent filter slippage. UPC: 720189881152
• Diffusion Filter Set for LED1000 Panel This Dracast Diffusion Filter Set for the LED1000 Panel is comprised of two rigid drop-in modifiers that soften and diffuse the light's output. The set includes a 1/2 diffusion and an opal frost filter. They measure approximately 12 x 12" each. These filters need a filter frame or barndoors (both sold separately) to fit onto the Dracast LED1000. UPC: 753807556743
• Diffusion Filter Set for LED500 Panel This Dracast Diffusion Filter Set for the LED500 Panel is comprised of two rigid drop-in modifiers that soften and diffuse the light's output. The set includes a 1/2 diffusion and an opal frost filter. They measure approximately 10 x 5.5" each. These filters need a filter frame or barndoors (both sold separately) to fit onto the Dracast LED500. UPC: 753807556828

• Carry Case

• AC Power Adapter for LED1000 Light

• Limited 1-Year Warranty

• Carry Case

• AC Power Adapter for LED500 Light

• Limited 1-Year Warranty

• Nylon Soft Case

• Shoulder Strap

• Hot-Shoe Mount

• P-Tap to DC Connector Cable

• Power Supply 2-Prong U.S.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Opal Frost Filter

• Half Diffusion Filter

• Limited 1-Year Warranty

• Opal Frost Filter

• Half Diffusion Filter

• Limited 1-Year Warranty

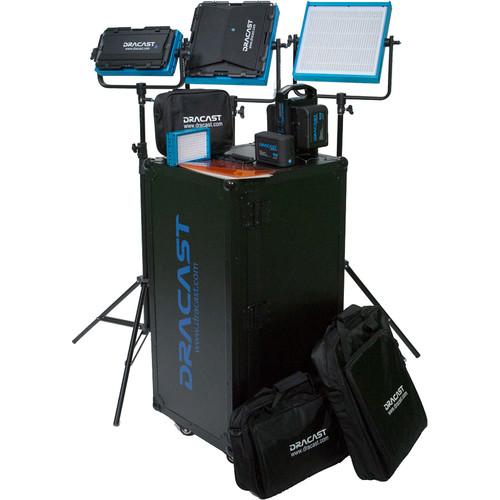

Also Includes

• 3 x DR-90A Batteries
• Sony L-Series Battery
• Sony Battery Charger
• 3 x Light Stands
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED1000 Pro Bi-Color LED Light with Gold Mount Battery Plate

  Beam Angle	45°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	12.0 x 12.0 x 2.0" / 305.0 x 305.0 x 51.0 mm
  Fixture Weight	5.5 lb / 2.5 kg

  Battery Plate	1 x Gold Mount

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 14.8 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	60 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	30.0 x 24.0 x 10.0"

• LED500 Pro Bi-Color LED Light with Gold Mount Battery Plate

  Beam Angle	45°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	12.0 x 6.0 x 2.0" / 305.0 x 152.0 x 51.0 mm
  Fixture Weight	4 lb / 1.8 kg

  Battery Plate	1 x Gold Mount

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	30 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	18.11 x 11.654 x 8.268"

• LED160 3200-5600K Variable Color On-Camera Light (Aluminum, Blue)

  Beam Angle	45°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Expected Lamp Life	50000 Hours
  Number of LEDs	160
  Effective Distance	20.0' / 6.0 m

  Battery Plate	1 x Sony L-Series (NP-F)
  DC Input Power	7.2 to 8.4 VDC
  Max Power Consumption	9.5 W

  Mount Type	1/4"-20 Female Thread
  Dimensions	6 x 4 x 2" / 15 x 10 x 5 cm
  Weight	0.5 lb / 227 g

  Box Dimensions (LxWxH)	12.05 x 9.0 x 3.65"

• DR-CH2A Dual Gold Mount Battery Charger

  Power Input	Input: 90 to 240 VAC, 47 to 63 Hz
  Power Output	4-pin XLR, 15 VDC, 4 A
  Power Consumption	50 W
  Dimensions	4.6 x 8.9 x 5.5" (11.7 x 22.6 x 14 cm)
  Weight	2.2 lb (1 kg)

  Box Dimensions (LxWxH)	10.7 x 9.4 x 5.3"

• Barndoors for LED1000

  Material	Aluminum
  Weight	2 lb (0.9 kg)

  Box Dimensions (LxWxH)	13.25 x 12.75 x 1.95"

• Barndoors for LED500

  Material	Aluminum
  Weight	1 lb (0.5 kg)

  Box Dimensions (LxWxH)	12.75 x 7.3 x 2.3"

• Filter Frame for LED1000 Light

  Material	Aluminum
  Dimensions	Approximately: 12 x 12" (30.5 x 30.5 cm)

  Box Dimensions (LxWxH)	15.5 x 11.5 x 0.9"

• Filter Frame for LED500 Light

  Material	Aluminum
  Dimensions	Approximately: 12 x 6.0" (30.5 x 15.2 cm)

  Box Dimensions (LxWxH)	11.8 x 6.85 x 1.6"

• Diffusion Filter Set for LED1000 Panel

  Dimensions

  12 x 12" (30.5 x 30.5 cm)

  Box Dimensions (LxWxH)	11.6 x 10.7 x 0.75"

• Diffusion Filter Set for LED500 Panel

  Dimensions

  10.0 x 5.5" (25.4 x 14.0 cm)

  Box Dimensions (LxWxH)	10.7 x 6.4 x 0.7"
