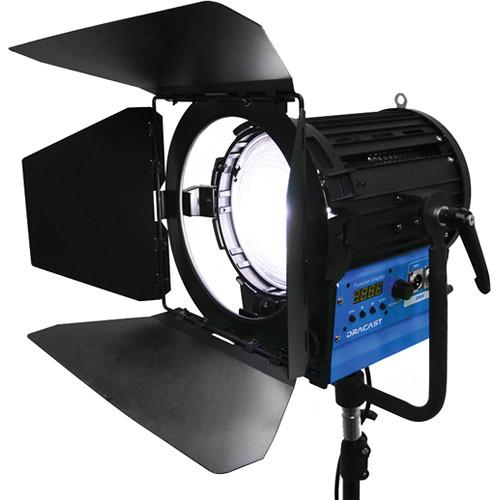

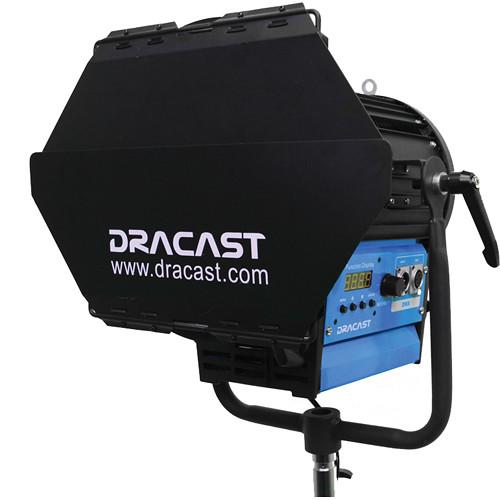

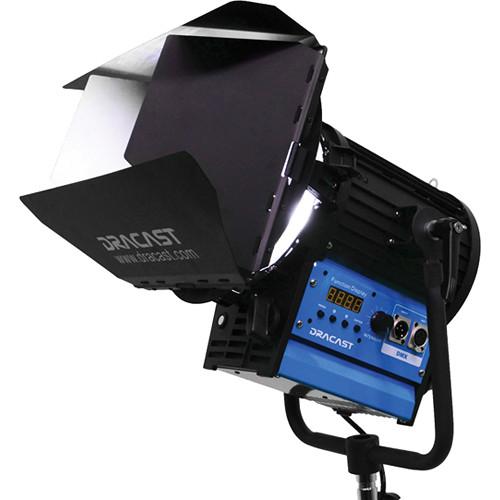

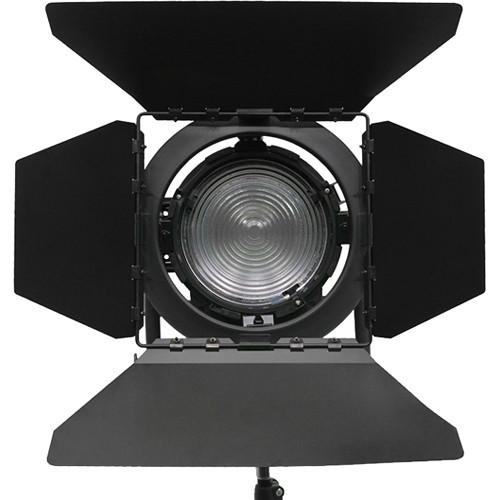

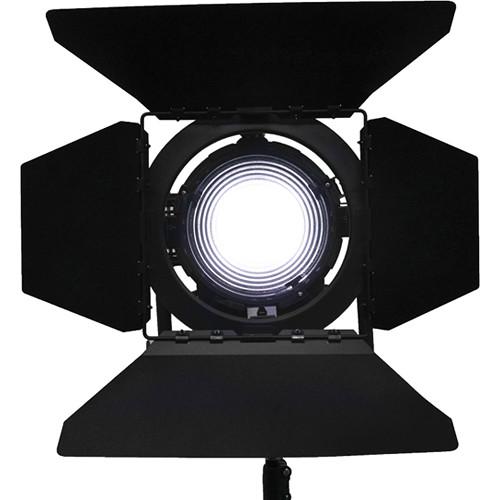

User Manual for Dracast Fresnel 2000 Bi-Color LED Light Click to enlarge the picture
Contents of the user manual for the Dracast Fresnel 2000 Bi-Color LED Light
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast Fresnel 2000 Bi-Color LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|
Product description - Dracast LED Fresnel Series Overview
The Fresnel 2000 Bi-Color LED Light from Dracast is packed with the latest LED technology backed with solid construction, intuitive design and a wide 15-60 degree range of beam adjustment. Instead of using filters, the Fresnel 2000 can vary the color balance from 3200-5600K or anywhere in between with the turn of a knob. Dimming from 0-100% is equally straightforward and both adjustments can be done locally on the unit or remotely via DMX. The Fresnel 2000 outputs the equivalent of a 2000W tungsten halogen Fresnel while running cool to the touch and consuming a fraction of the power, resulting in lower HVAC running costs in the studio and a quick return on your investment. The light ships with a 100-240 VAC power adapter for worldwide use and, with an optional adapter, it also runs on 24 VDC in locations where mains power is unavailable. The Fresnel 2000 comes with a 5/8" receiver for hanging or stand mounting. - Photometrics
- At 15°
5700 lux at 6.0' (1.8 m)
2400 lux at 12' (3.6 m)
600 lux at 18' (5.5 m)
At 60°
2400 lux at 6.0' (1.8 m)
590 lux at 12' (3.6 m)
260 lux at 18' (5.5 m) UPC: 683405283553 In the Box Dracast Fresnel 2000 Bi-Color LED Light 4-Way Barndoors AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Fresnel 2000 Bi-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast Fresnel 2000 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Lumens | 17,000 | | Fixture Dimensions | 20.4 x 18.9 x 13.0" / 51.8 x 48.0 x 33.0 cm (Including Yoke & Barndoors) | | Fixture Weight | 26.45 lb / 12 kg (Including Yoke, Barndoors) | | | | Lens Diameter | 7" / 17.8 cm | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 10 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 17.5 x 16.0 x 14.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
