Product description - Dracast LED Fresnel Series Overview

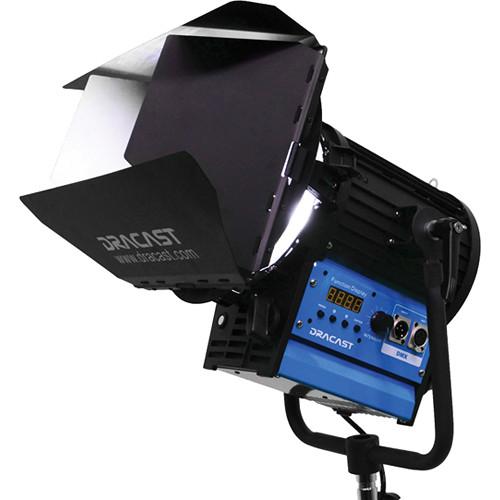

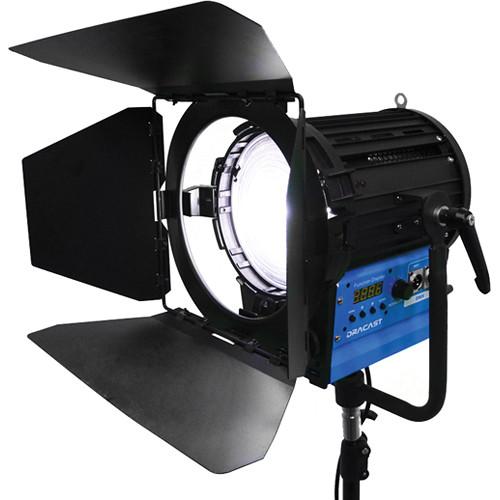

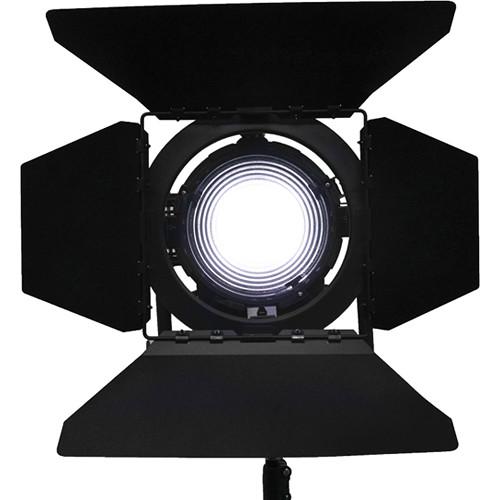

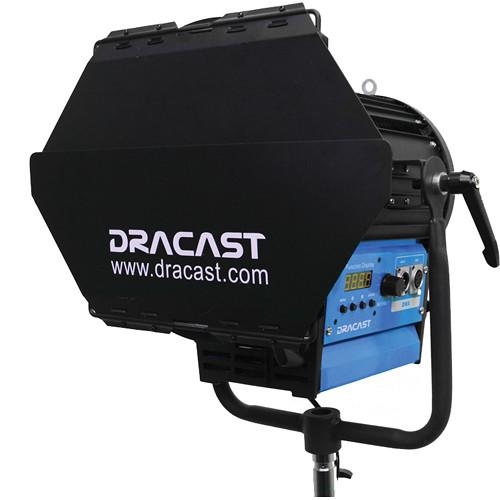

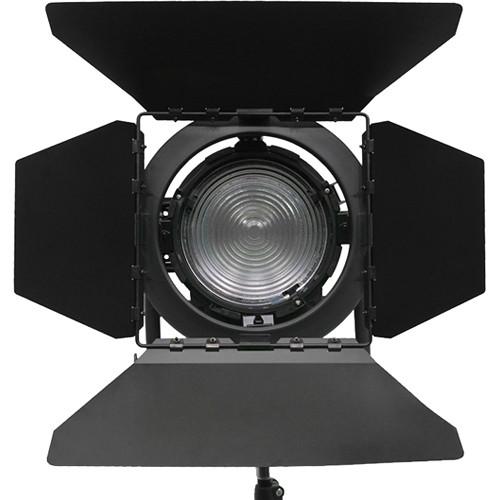

The Fresnel 2000 Daylight LED Light from Dracast is packed with the latest LED technology backed with solid construction, intuitive design and a wide 15-60 degree range of beam adjustment. The daylight balanced light has a Kelvin temperature or 5,600 for work outdoors or to match other light sources such as HMIs. Dimming from 0-100% is easily done locally on the unit or remotely via DMX. The Fresnel 2000 outputs the equivalent of a 2,000W tungsten halogen Fresnel while running cool to the touch and consuming a fraction of the power, resulting in lower HVAC running costs in the studio and a quick return on your investment. The light ships with a 100-240 VAC power adapter for worldwide use and it also runs on 24 VDC in locations where mains power is unavailable. The Fresnel 2000 comes with a 5/8" receiver for hanging or stand mounting. - Photometrics
- At 15°
7,500 lux @ 6.0' (1.8 m)
1,800 lux @ 12' (3.6 m)
790 lux @ 18' (5.5 m)
At 60°
2,900 lux @ 6.0' (1.8 m)
760 lux @ 12' (3.6 m)
360 lux @ 18' (5.5 m) UPC: 683405283560 In the Box Dracast Fresnel 2000 Daylight LED Light 4-Way Barndoors AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Fresnel 2000 Daylight LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast Fresnel 2000 Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Lumens | 17,000 | | Fixture Dimensions | 20.4 x 18.9 x 13.0" / 51.8 x 48.0 x 33.0 cm (Including Yoke & Barndoors) | | Fixture Weight | 26.45 lb / 12 kg (Including Yoke, Barndoors) | | | | Lens Diameter | 7" / 17.8 cm | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 10 A | | Power Source | AC Adapter, External Battery | | | | Package Weight | 24.1 lb | | Box Dimensions (LxWxH) | 17.9 x 16.6 x 14.6" |
