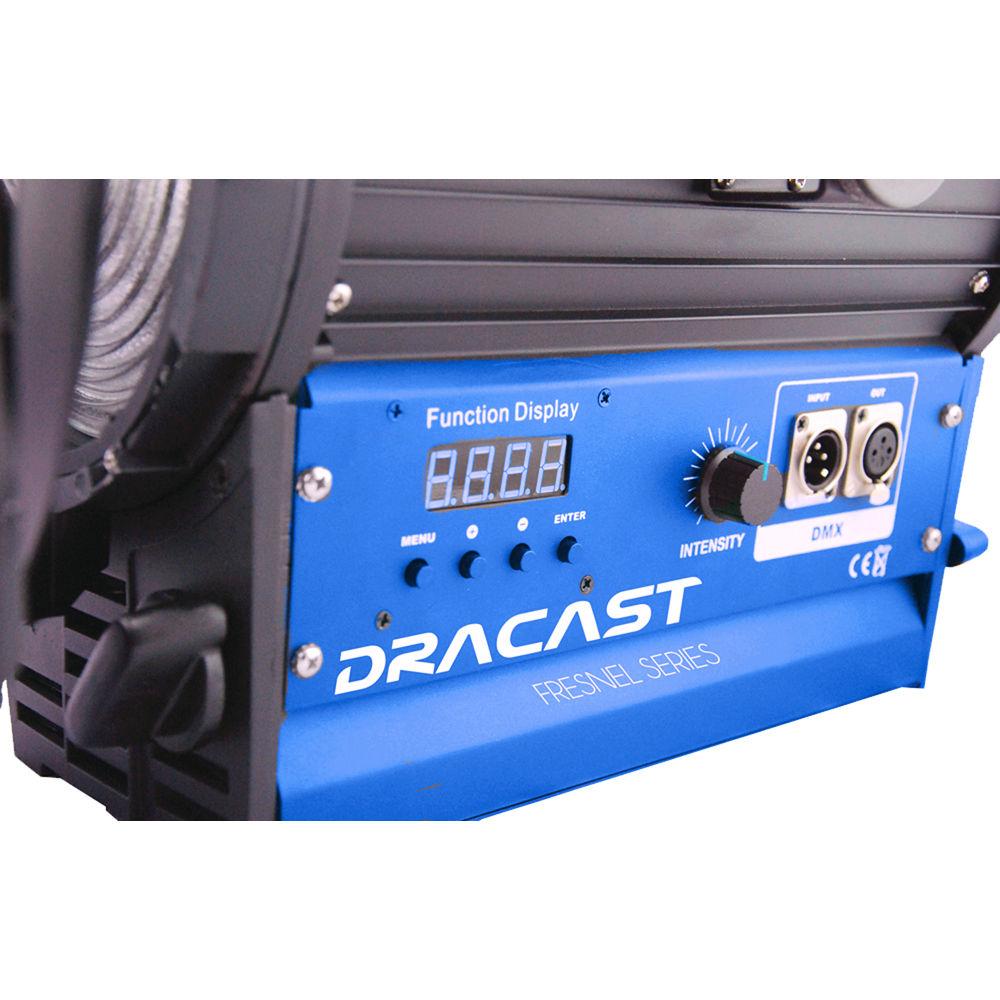

Product description Create a focused beam of light with the Fresnel Studio LED2000 Bi-Color LED Light from Dracast which is equipped with a 6.8" lens that can be adjusted to change the beam angle from 15-60° for both flood and spot lighting. This controls the light from the 48 surface-mounted CREE LEDs which sport a high CRI of 95 for accurate color reproduction. Also, this bi-color-balanced fixture offers a color temperature of 3200-5600K and can be dimmed continuously from 0-100% using either on-board controls or through the 3-Pin XLR connections.
Benefitting from the use of LEDs, the Fresnel Studio LED2000 uses a silent passive heat sink cooling system and only draws 200W of power while maintaining a high output. It will run anywhere in the world thanks to a universal 110-240 VAC power supply and 24 VDC input. The light also features a durable aluminum construction, and it comes with 4-way barndoors and a mounting yoke with 5/8" baby pin receiver that allows users to tilt the light up to 90°. - Photometrics
- 15°
530 fc / 5700 lux at 6' / 1.8 m
223 fc / 2400 lux at 12' / 3.7 m
60°
223 fc / 2400 lux at 6' / 1.8 m
55 fc / 590 lux at 12' / 3.7 m UPC: 712324583649 In the Box Dracast Fresnel Studio LED2000 Bi-Color LED Light 4-Way Barndoors 5/8" Baby Pin Mounting Yoke AC Power Cable Limited 1-Year Warranty User Manual PDF 147.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Fresnel Studio LED2000 Bi-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast Fresnel Studio LED2000 Specs | Light Source | LED | | Lens | 6.8" / 17.4 cm | | CRI | 90 | | Color Temperature | 3200-5600K | | Beam Angle | 15-60° | | Dimming | 0-100% | | DMX | 3-Pin XLR Input
3-Pin XLR Output | | Power Requirements | 110-240 VAC, 50-60 Hz, 2 A
24 VDC | | Power Consumption | 200W | | Mounting | 5/8" / 16 mm Baby Pin Mounting Yoke | | Construction | Aluminum | | Dimensions | 15.7 x 20.7 x 11.5" / 40.0 x 52.7 x 29.3 cm with Yoke | | Weight | 20 lb / 9.1 kg | | | | Package Weight | 28.65 lb | | Box Dimensions (LxWxH) | 19.5 x 18.0 x 17.5" |
