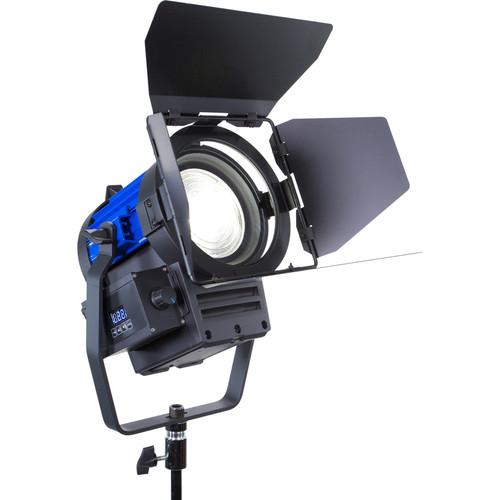

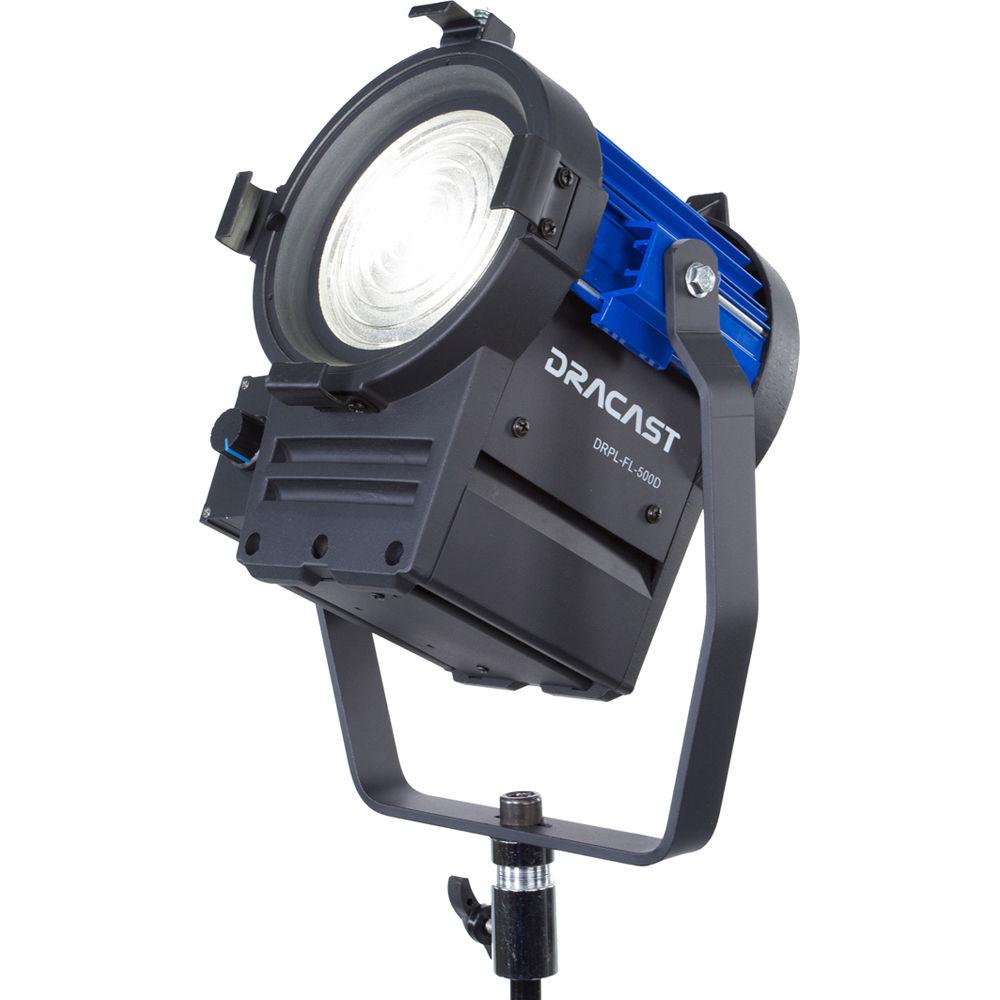

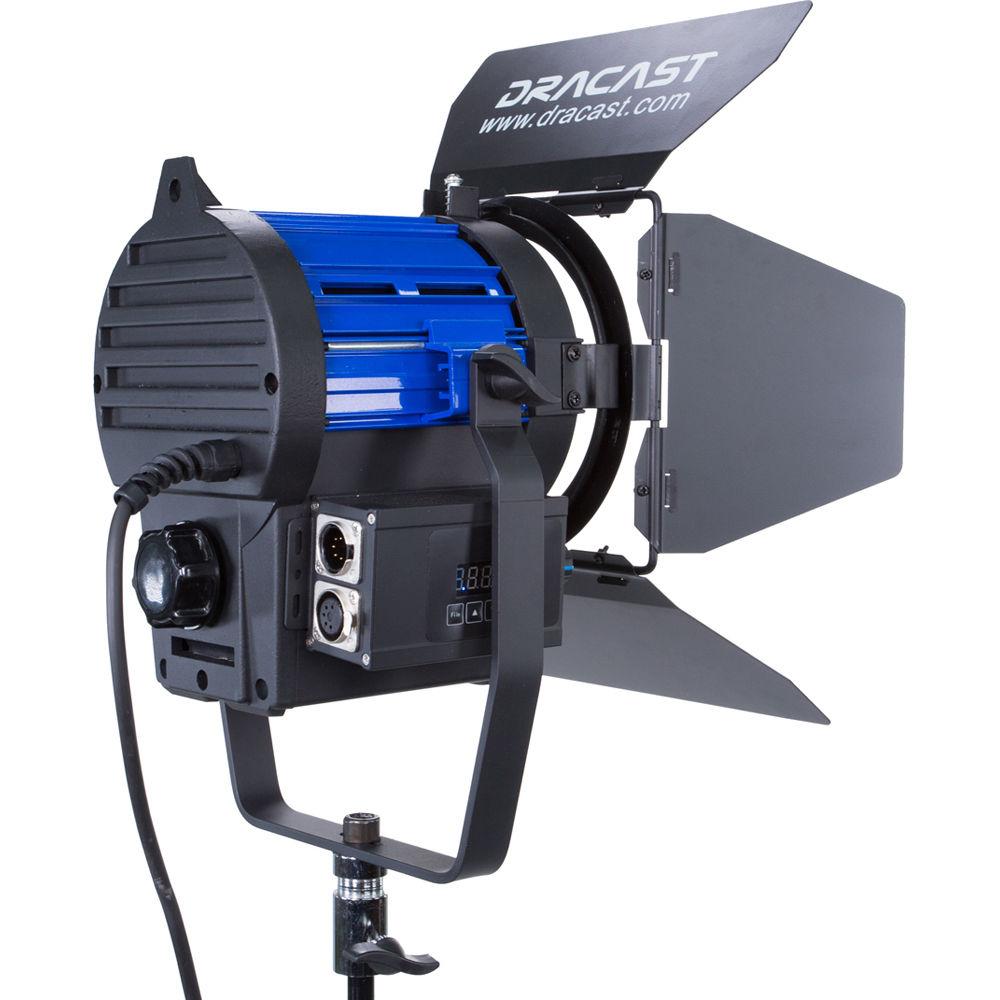

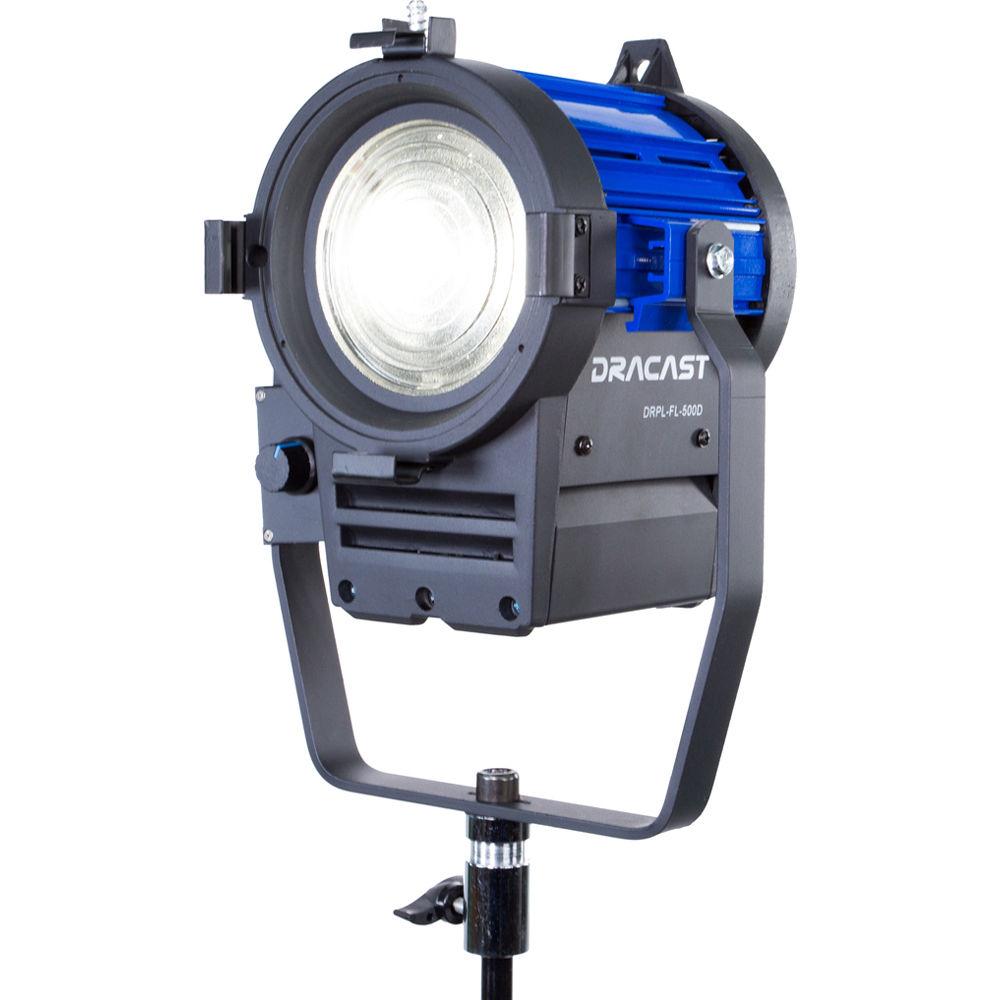

Product description Create a focused beam of light with the Fresnel Studio LED500 Daylight LED Light from Dracast which is equipped with a 4" lens that can be adjusted to change the beam angle from 15-60° for both flood and spot lighting. This controls the light from the surface-mounted LEDs which sport a high CRI of 95 for accurate color reproduction. Also, this daylight-balanced fixture offers a color temperature of 5600K and can be dimmed continuously from 0-100% using either on-board controls or through the 5-pin XLR connections.

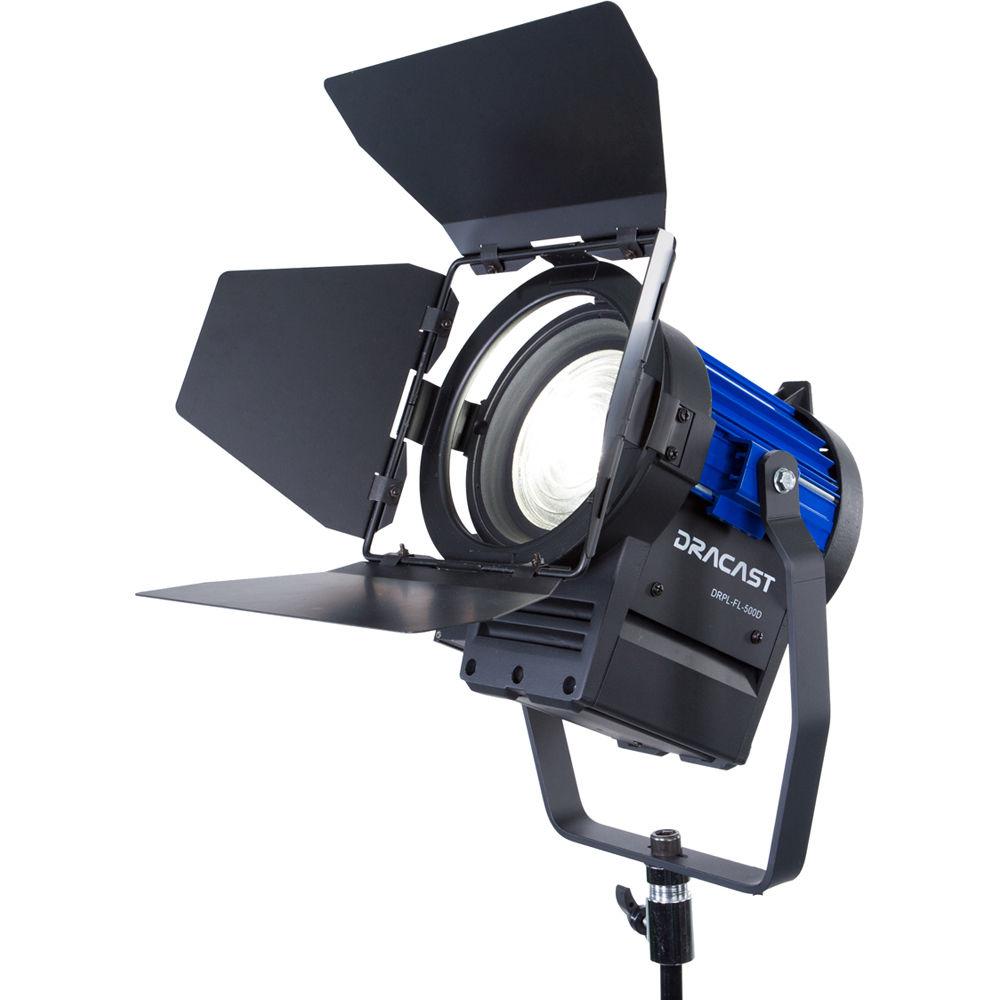

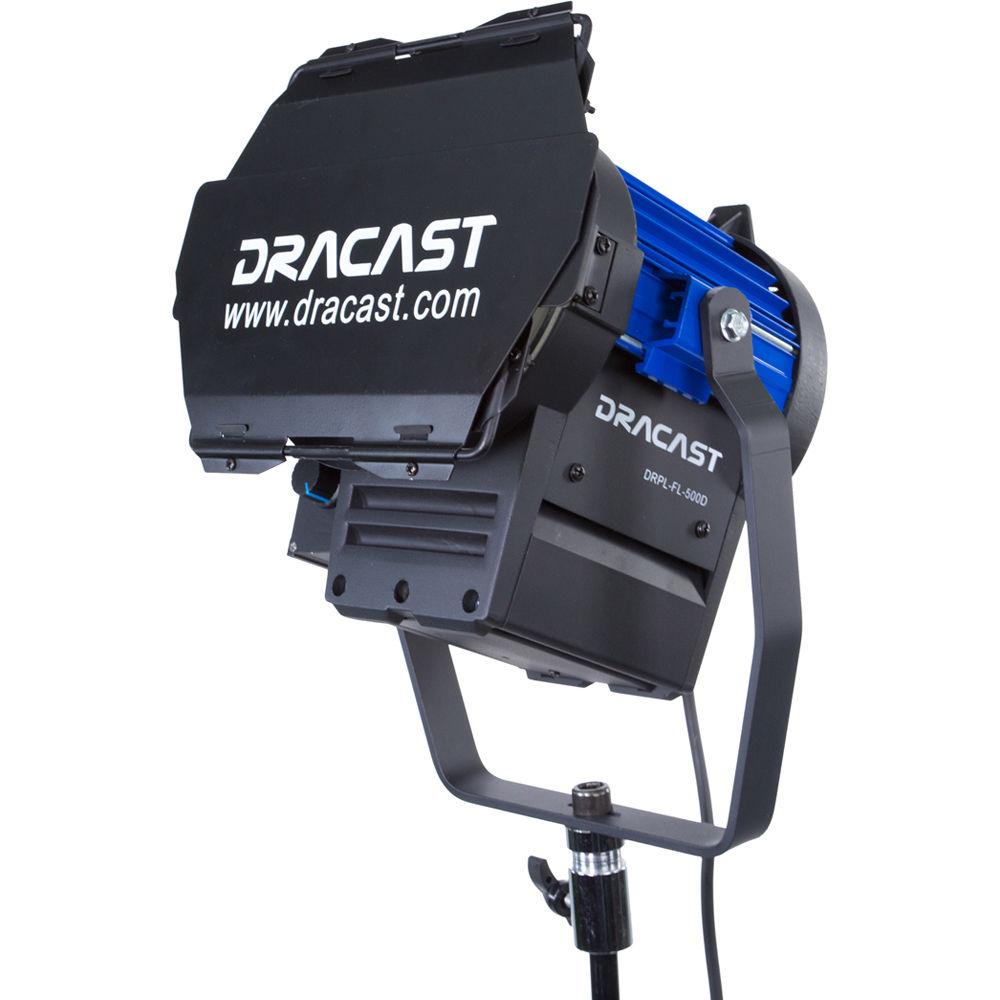

Benefitting from the use of LEDs, the Fresnel500 uses a silent passive heat sink cooling system and only draws 50 W of power while maintaining a high output. It will run anywhere in the world thanks to a universal 110-240 VAC power supply and 36 VDC input. The light also features a durable aluminum construction and comes with 4-way barndoors and a mounting yoke with 5/8" baby pin receiver that allows users to tilt it up to 90°. - Photometrics
- 15°
755 fc / 8129 lux at 3' / 0.9 m
215 fc / 2316 lux at 6' / 1.8 m
60°
545 fc / 5870 lux at 3' / 0.9 m
135 fc / 1454 lux at 6' / 1.8 m UPC: 712324583724 In the Box Dracast Fresnel Studio LED500 Daylight LED Light 4-Way Barndoors 5/8" Baby Pin Mounting Yoke AC Power Cable Limited 1-Year Warranty Specification PDF 457.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Fresnel Studio LED500 Daylight LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast Fresnel Studio LED500 Specs | | | Beam Angle | 15 to 60° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 9.2 x 8.0 x 14.0" / 23.5 x 20.3 x 35.6 cm (Including Yoke) | | Fixture Weight | 9.1 lb / 4.1 kg | | | | Lens Diameter | 4" / 7.6 cm | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 2 A | | DC Input Power | 36 VDC | | Power Source | AC Adapter | | Max Power Consumption | 50 W | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 15.7 x 12.2 x 11.6" |
