User Manual for Dracast Fresnel Studio LED500 Tungsten LED Light Click to enlarge the picture
Contents of the user manual for the Dracast Fresnel Studio LED500 Tungsten LED
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast Fresnel Studio LED500 Tungsten LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

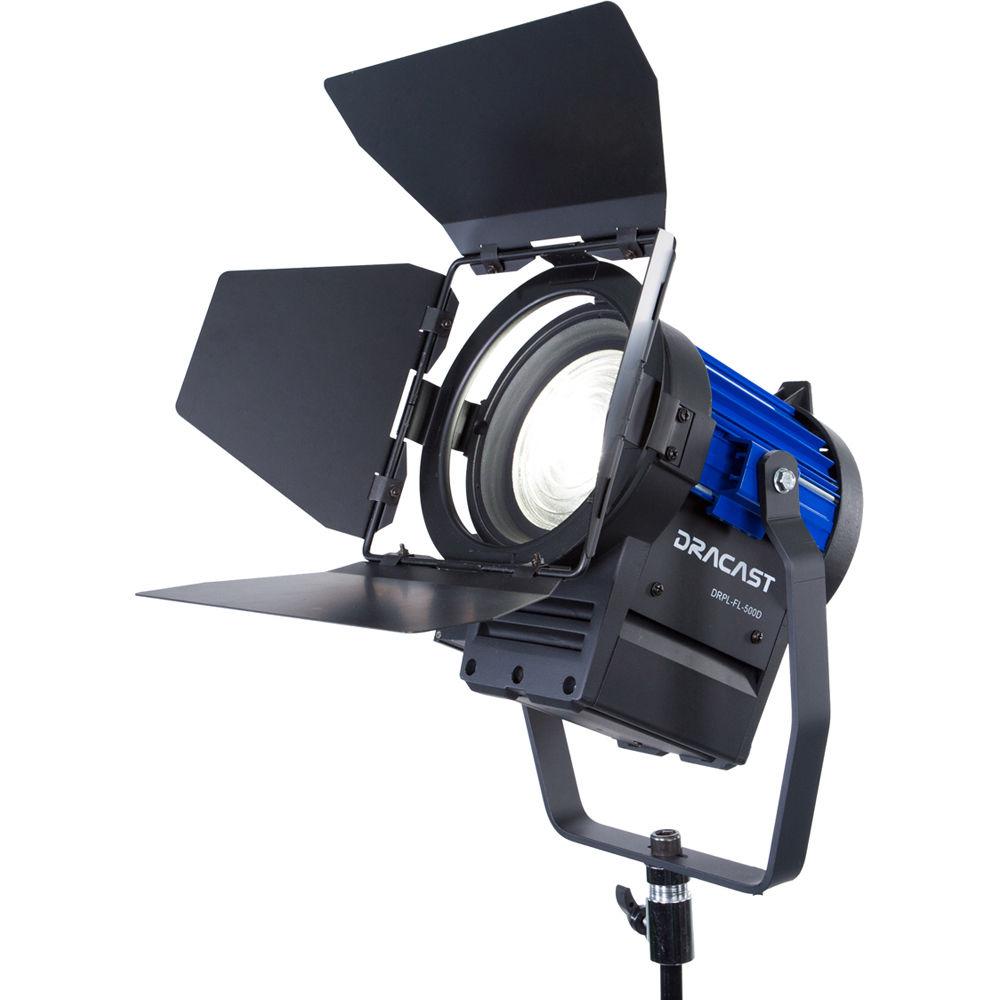

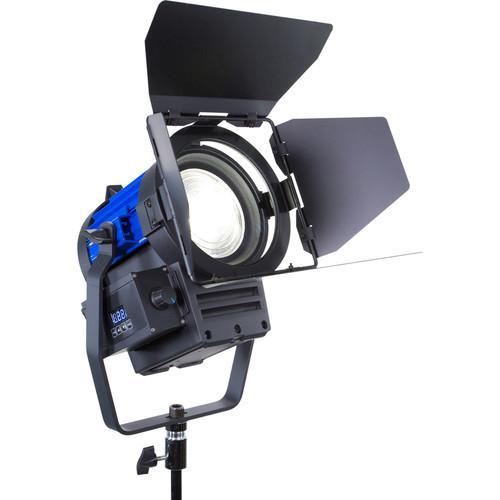

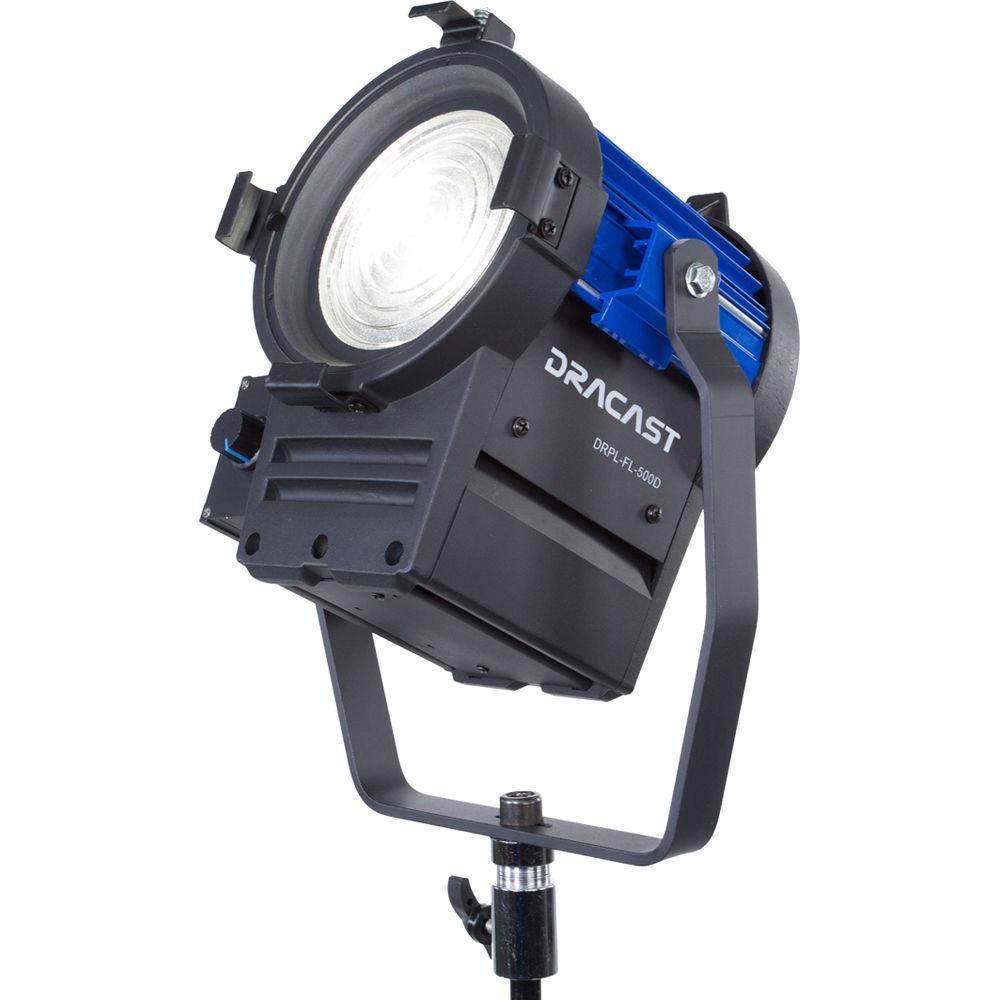

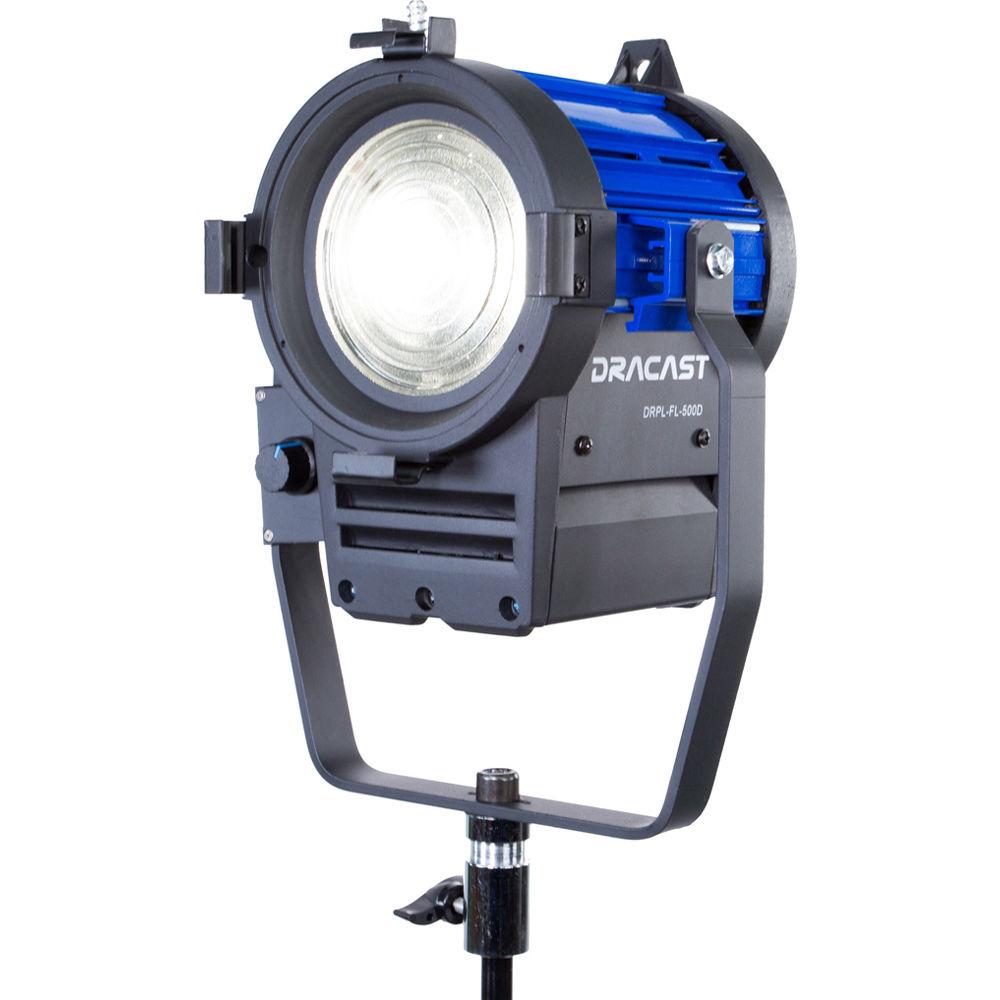

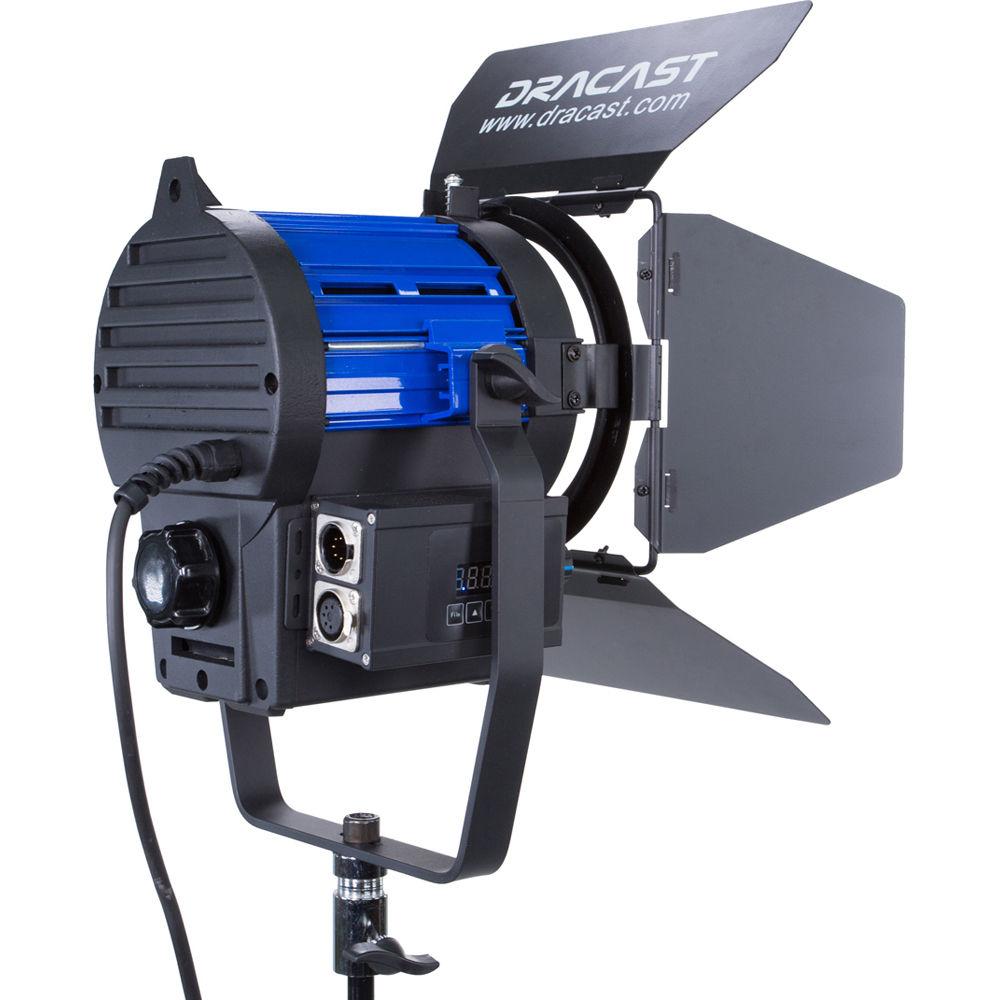

Product description Create a focused beam of light with the Fresnel Studio LED500 Tungsten LED Light from Dracast which is equipped with a 4" lens that can be adjusted to change the beam angle from 15-60° for both flood and spot lighting. This controls the light from the surface-mounted LEDs which sport a high CRI of 95 for accurate color reproduction. Also, this tungsten-balanced fixture offers a color temperature of 3200K and can be dimmed continuously from 0-100% using either on-board controls or through the 5-pin XLR connections.

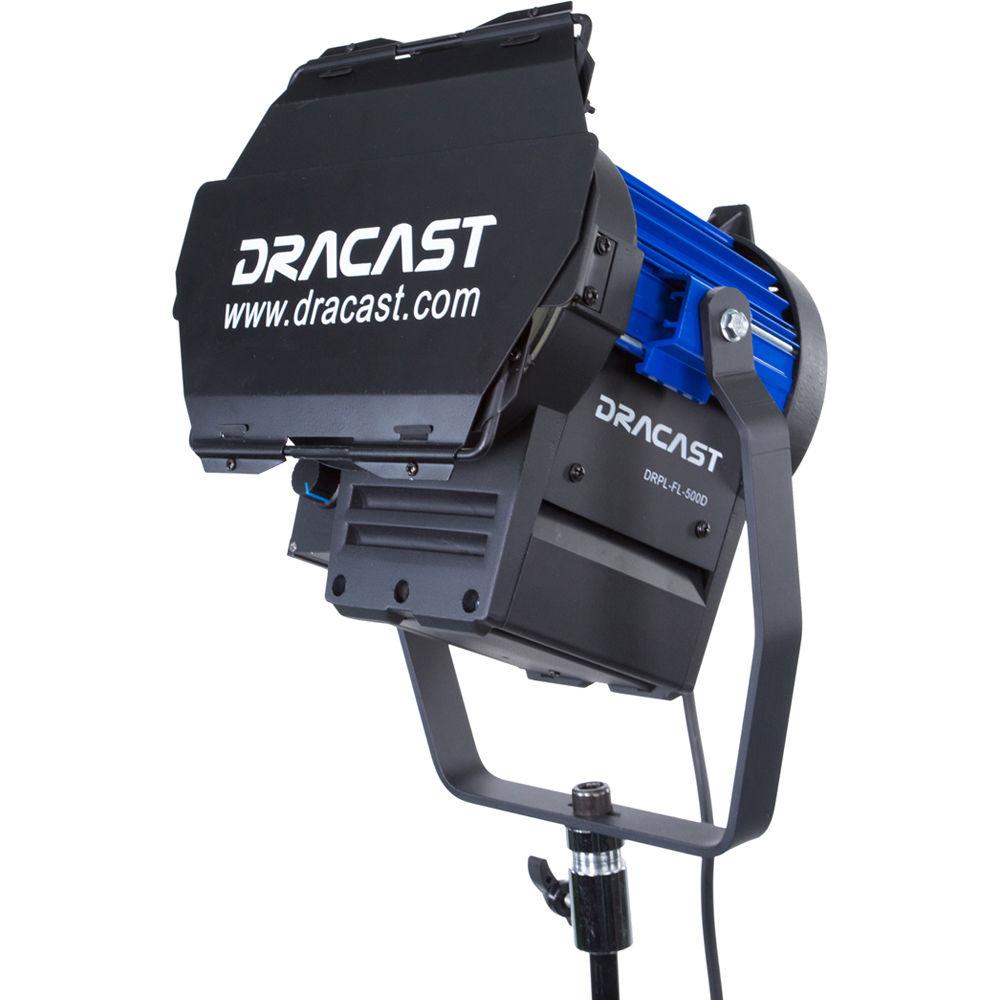

Benefitting from the use of LEDs, the Fresnel500 uses a silent passive heat sink cooling system and only draws 50 W of power while maintaining a high output. It will run anywhere in the world thanks to a universal 110-240 VAC power supply and 36 VDC input. The light also features a durable aluminum construction and comes with 4-way barndoors and a mounting yoke with 5/8" baby pin receiver that allows users to tilt it up to 90°. - Photometrics
- 15°
297 fc / 5934 lux at 3' / 0.9 m
85 fc / 1691 lux at 6' / 1.8 m
60°
173 fc / 4285 lux at 3' / 0.9 m
49 fc / 1061 lux at 6' / 1.8 m UPC: 712324583717 In the Box Dracast Fresnel Studio LED500 Tungsten LED Light 4-Way Barndoors 5/8" Baby Pin Mounting Yoke AC Power Cable Limited 1-Year Warranty User Manual PDF 147.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Fresnel Studio LED500 Tungsten LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast Fresnel Studio LED500 Specs | | | Beam Angle | 15 to 60° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 9.2 x 8.0 x 14.0" / 23.5 x 20.3 x 35.6 cm (Including Yoke) | | Fixture Weight | 9.1 lb / 4.1 kg | | | | Lens Diameter | 4" / 7.6 cm | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 2 A | | DC Input Power | 36 VDC | | Power Source | AC Adapter | | Max Power Consumption | 50 W | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 15.6 x 12.1 x 11.8" |
