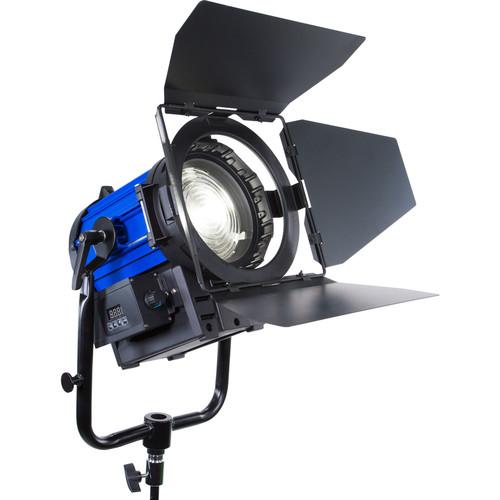

User Manual for Dracast Fresnel Studio LED700 Daylight LED Light Click to enlarge the picture
Contents of the user manual for the Dracast Fresnel Studio LED700 Daylight LED
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast Fresnel Studio LED700 Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

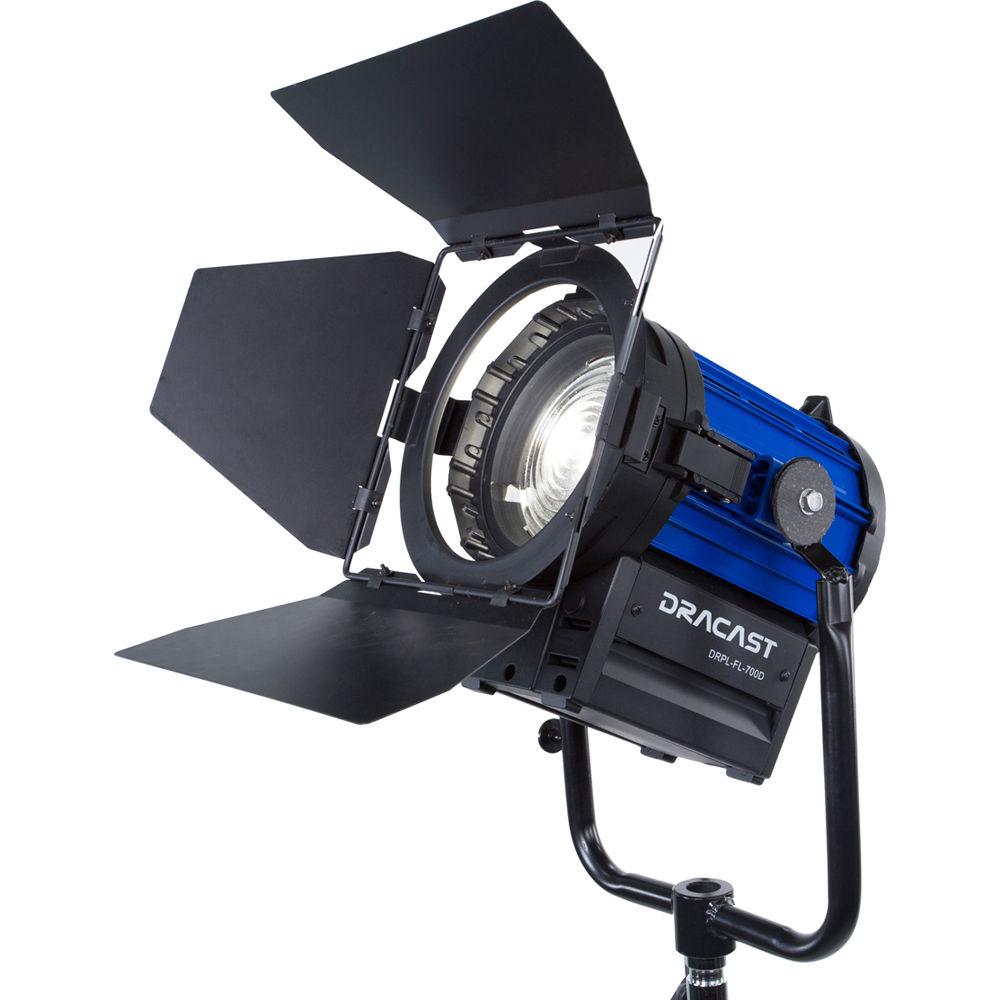

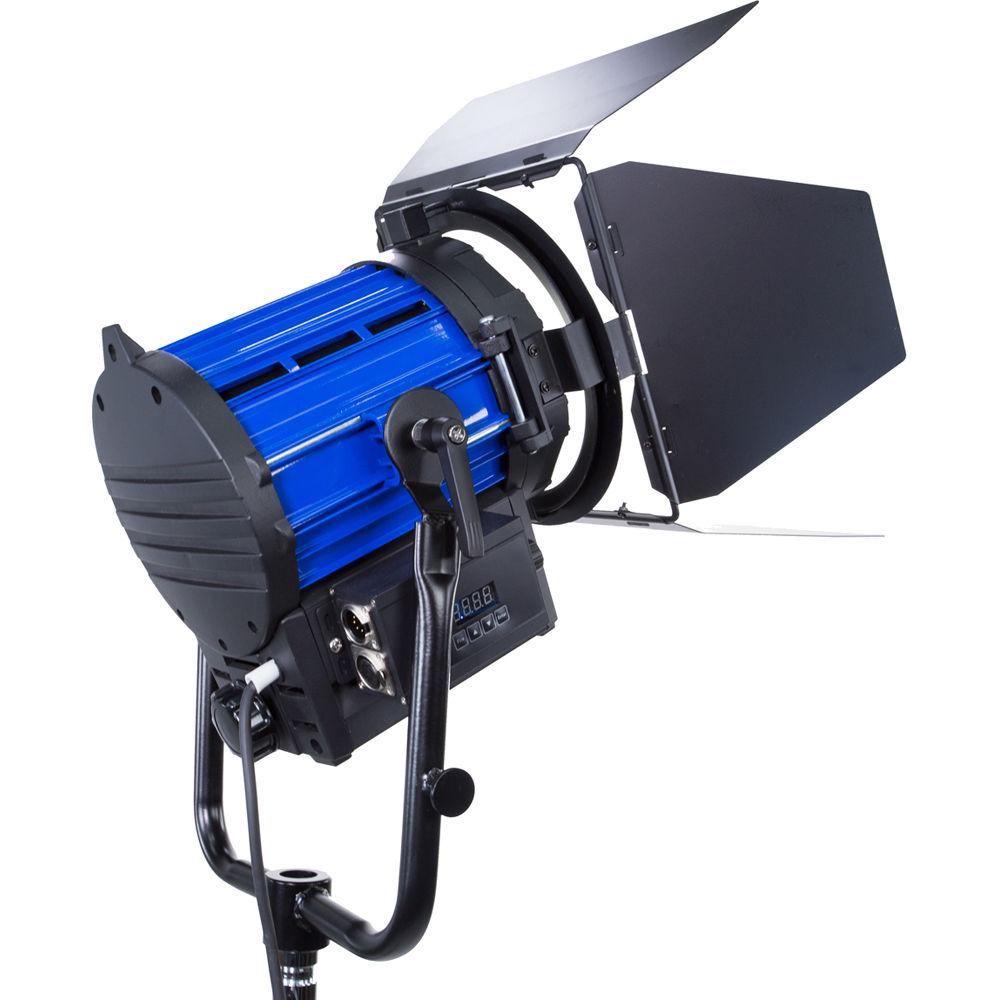

Product description The Fresnel Studio LED700 Daylight LED Light from Dracast is packed with the latest LED technology backed with solid construction, intuitive design and a wide 15º to 60º degree range of beam adjustment. The daylight-balanced light has a Kelvin temperature of 5600K for work outdoors or to match other light sources. Dimming from 0-100% is easily done locally on the unit or remotely via DMX.The Fresnel Studio LED700 outputs the equivalent of a 700W tungsten halogen Fresnel, while running cool to the touch and consuming a fraction of the power, resulting in lower HVAC running costs in the studio and a quick return on your investment. The light ships with a 100-240 VAC power cable for worldwide use, 4-way barndoors and a yoke with 5/8" receiver for hanging or stand mounting. - Photometrics
- At 15°
3949 lux / 367 fc @ 6.0' (1.8 m)
1837 lux / 171 fc @ 9.0' (2.7 m)
1091 lux / 101 fc @ 12' (3.7 m)
At 60°
1758 lux / 163 fc @ 6.0' (1.8 m)
850 lux / 79 fc @ 9.0' (2.7 m)
495 lux / 46 fc @ 12' (3.7 m) UPC: 712324583205 In the Box Dracast Fresnel Studio LED700 Daylight LED Light 4-Way Barndoors AC Power Cable Yoke Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Fresnel Studio LED700 Daylight LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast Fresnel Studio LED700 Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 10.2 x 11.5 x 10.5" / 260.0 x 291.0 x 267.0 mm | | Fixture Weight | 13.25 lb / 6.0 kg | | | | Lens Diameter | 4.75" / 12.1 cm | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 36 VDC at 2 A | | Power Source | AC Adapter | | Max Power Consumption | 70 W | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 16.8 x 14.1 x 12.8" |
