Product description - Dracast LED Fresnel Series Overview

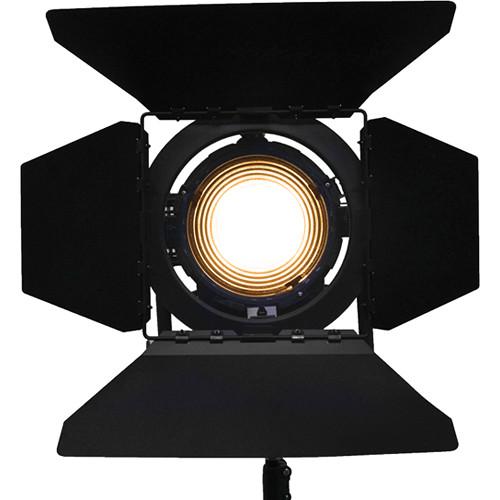

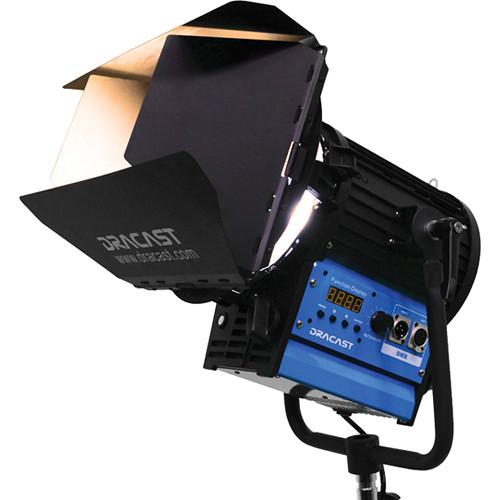

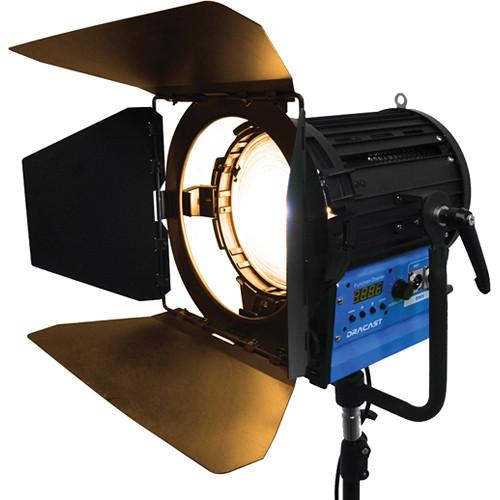

The Fresnel1000 Tungsten LED Light from Dracast is packed with the latest LED technology backed with solid construction and intuitive design. The tungsten-balanced light has a Kelvin temperature of 3200K for work indoors or to match other standard traditional light sources. Light intensity is variable from 0-100% locally on the unit or remotely via DMX. The Fresnel1000 outputs the equivalent of a 1000W tungsten halogen Fresnel while running cool to the touch and consuming a fraction of the power, resulting in lower HVAC running costs in the studio and a quick return on your investment. The light ships with a 100-240 VAC power adapter for worldwide use and, with an optional adapter, it also runs on 24 VDC in locations where mains power is unavailable. The Fresnel1000 comes with a 5/8" receiver for hanging or stand mounting. - Photometrics
- At 15°
3230 lux at 6.0' (1.8 m)
720 lux at 12' (3.6 m)
340 lux at 18' (5.5 m)
At 60°
1250 lux at 6.0' (1.8 m)
310 lux at 12' (3.6 m)
105 lux at 18' (5.5 m) UPC: 683405283591 In the Box Dracast Fresnel1000 Tungsten LED Light 4-Way Barndoors AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast Fresnel1000 Tungsten LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast Fresnel 1000 Specs | | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Lumens | 8500 | | Fixture Dimensions | 20.4 x 15.8 x 13.0" / 51.8 x 40.0 x 33.0 cm (Including Yoke & Barndoors) | | Fixture Weight | 18.75 lb / 8.5 kg (Including Yoke, Barndoors) | | | | Lens Diameter | 7" / 17.8 cm | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 5 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Package Weight | 22.95 lb | | Box Dimensions (LxWxH) | 18.2 x 16.3 x 14.7" |
