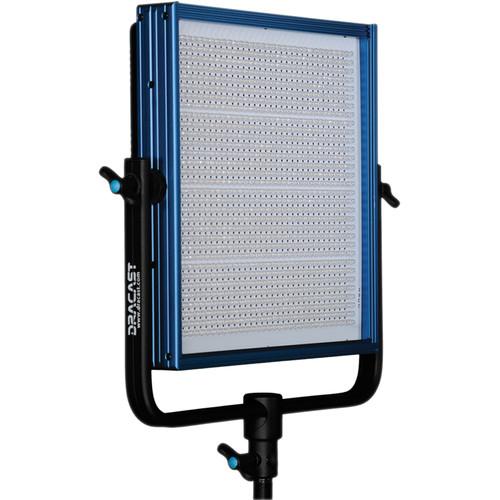

User Manual for Dracast LED1000-DX Studio Daylight LED Light with DMX Click to enlarge the picture
Contents of the user manual for the Dracast LED1000-DX Studio Daylight LED Light
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED1000-DX Studio Daylight LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

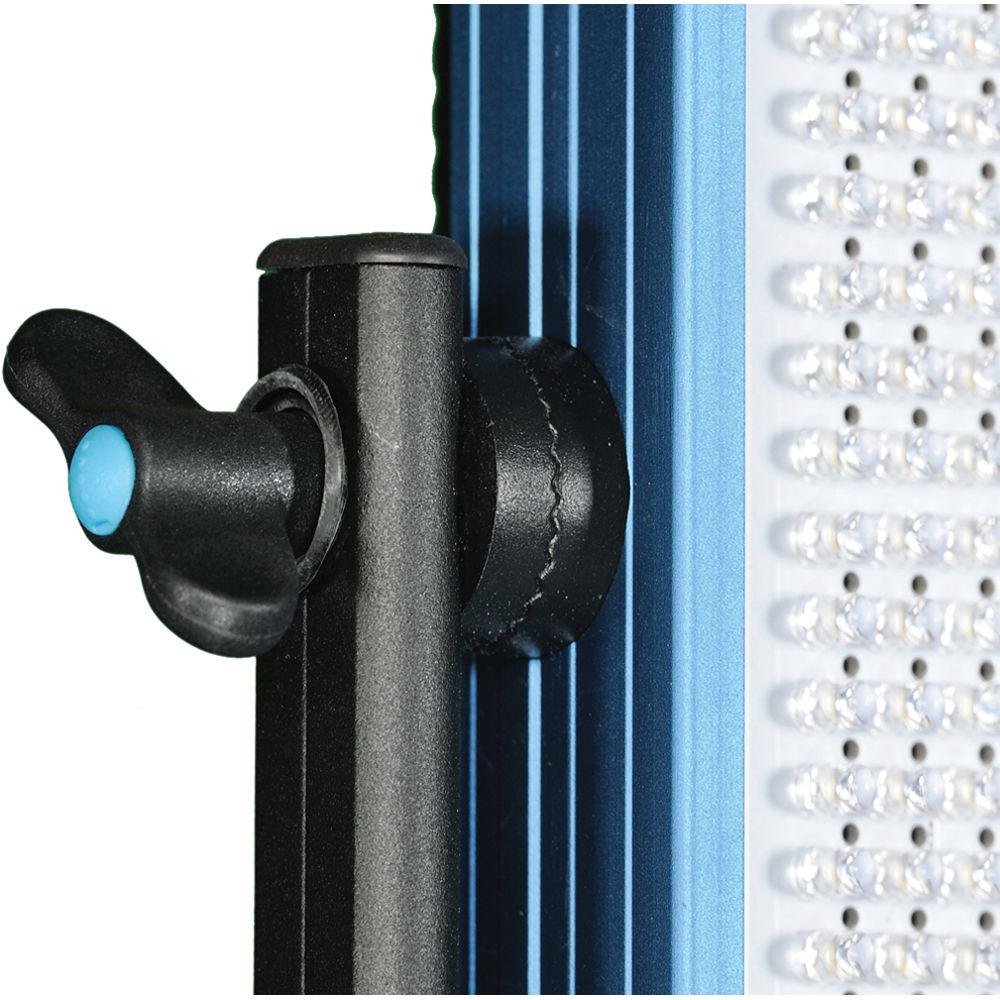

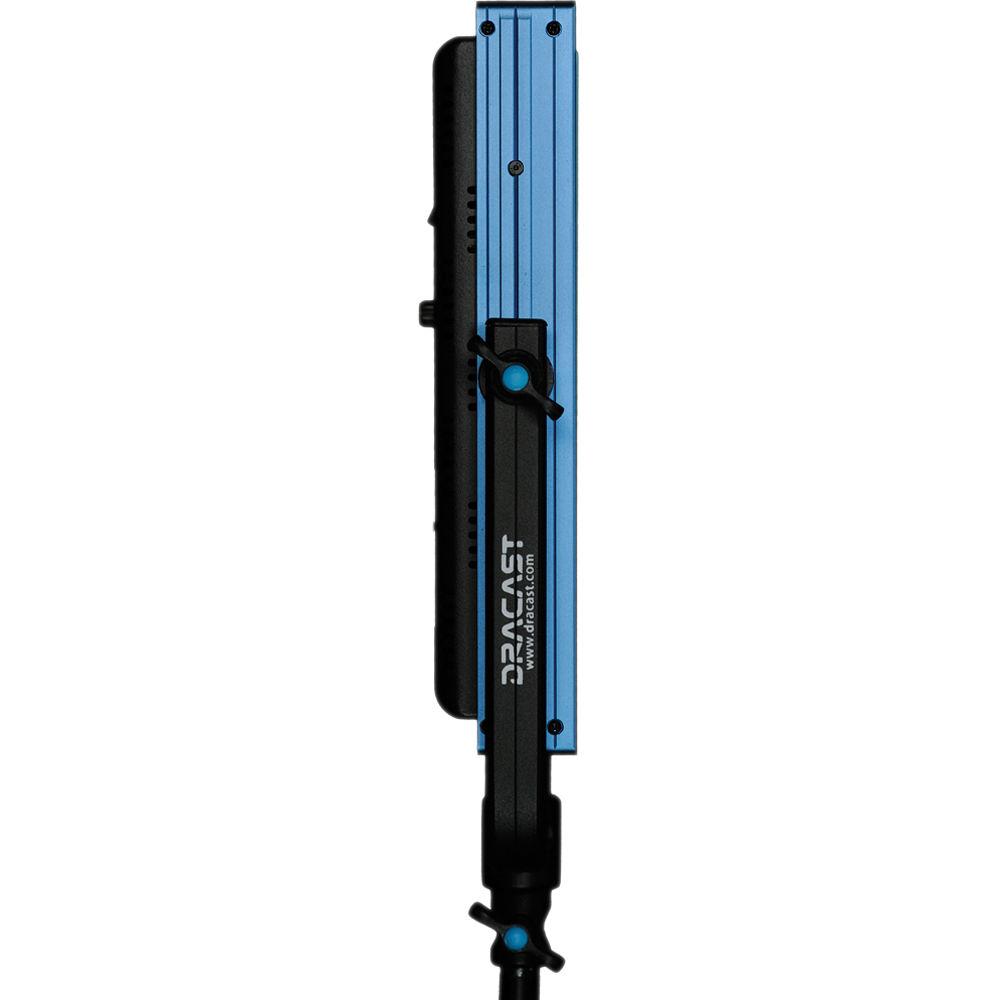

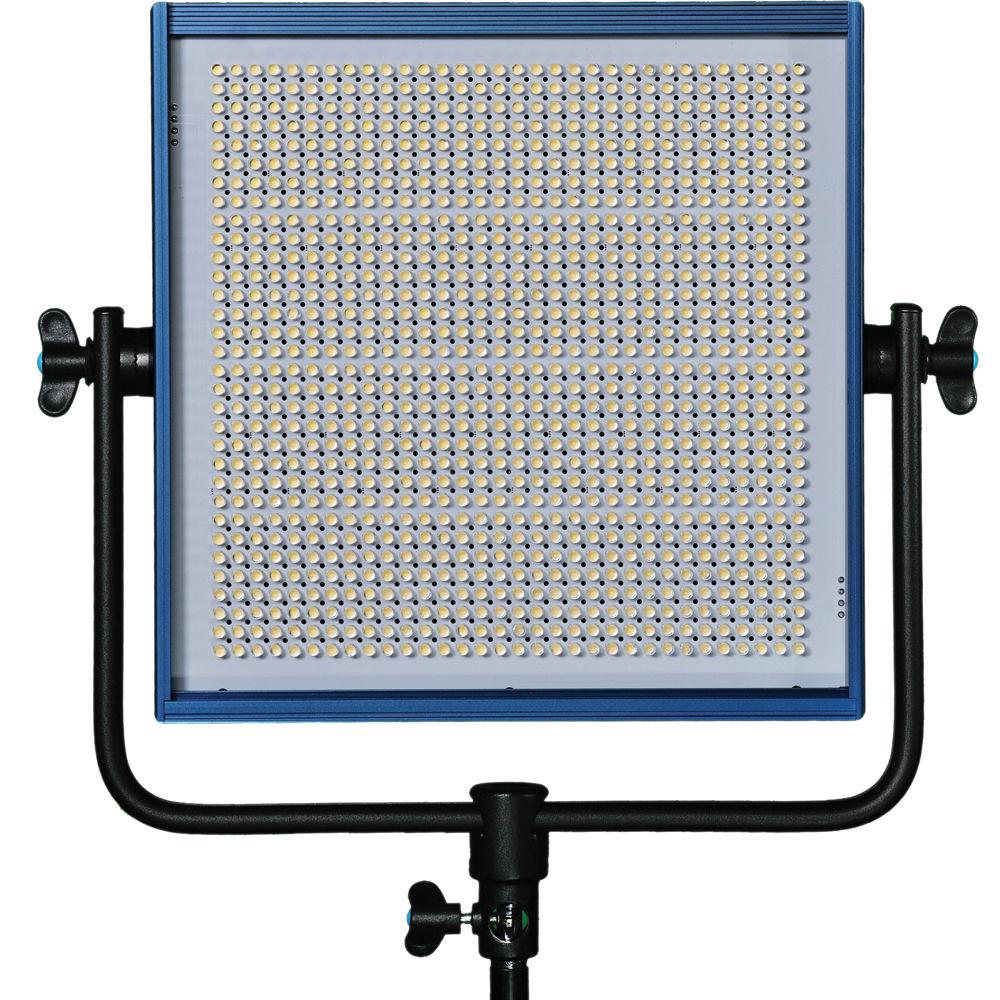

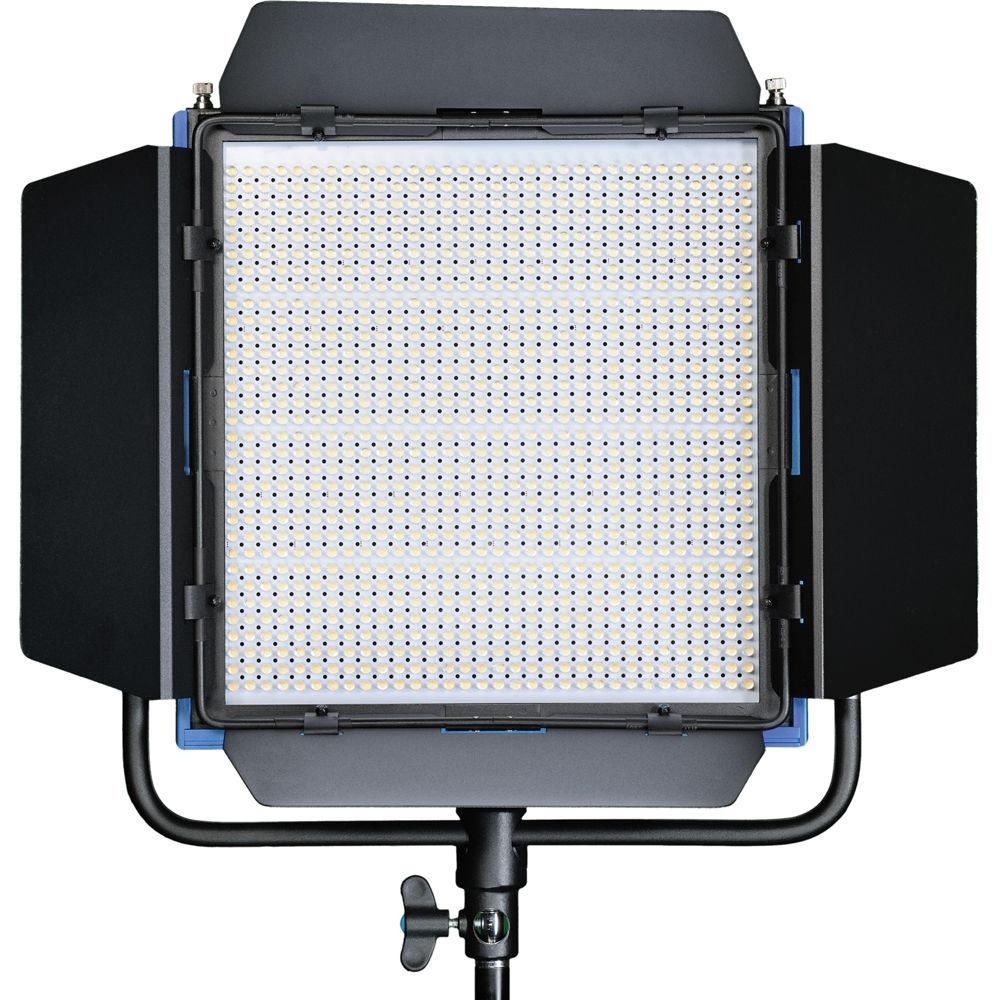

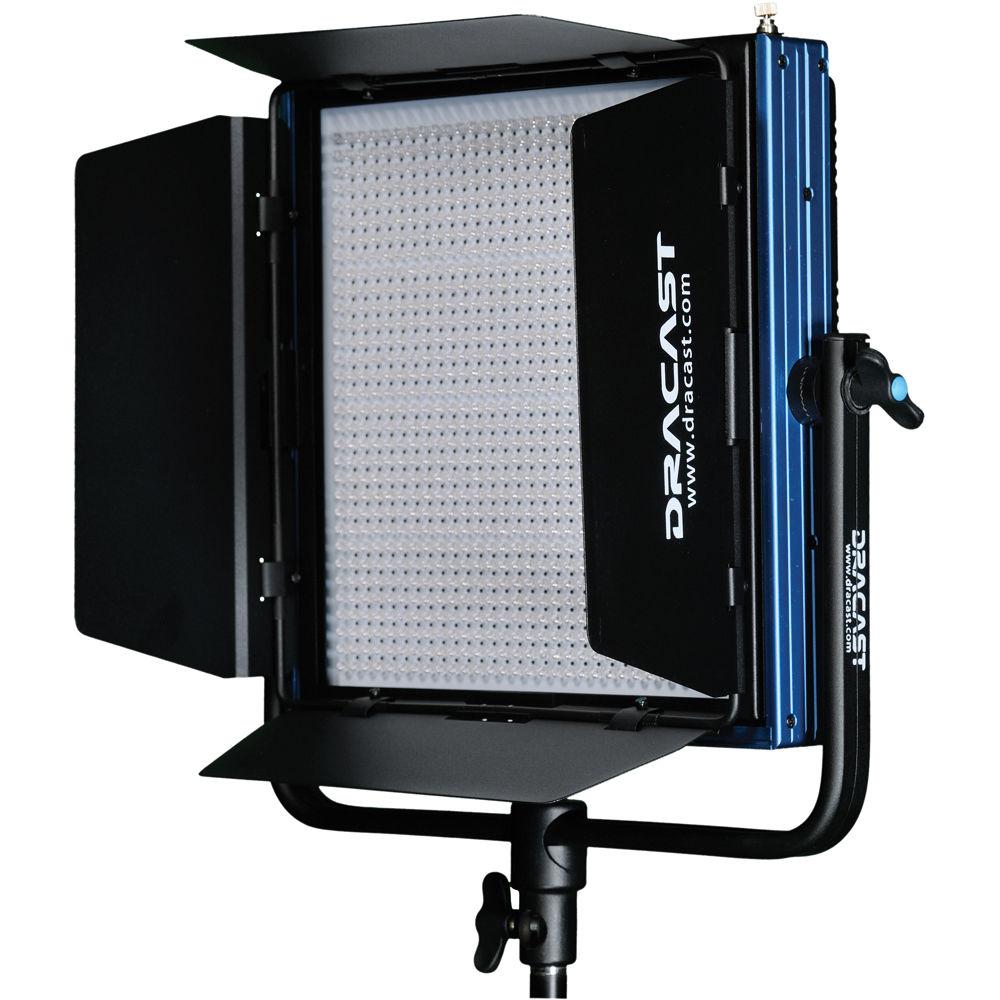

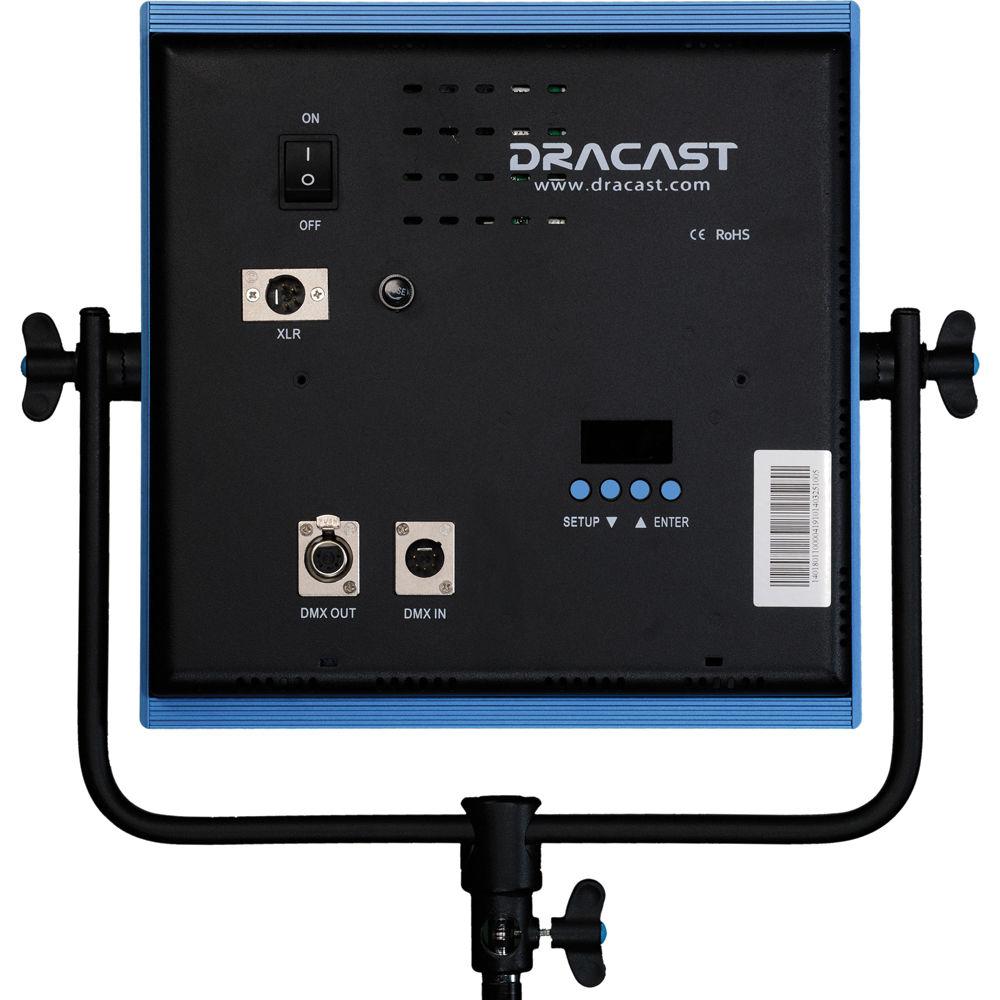

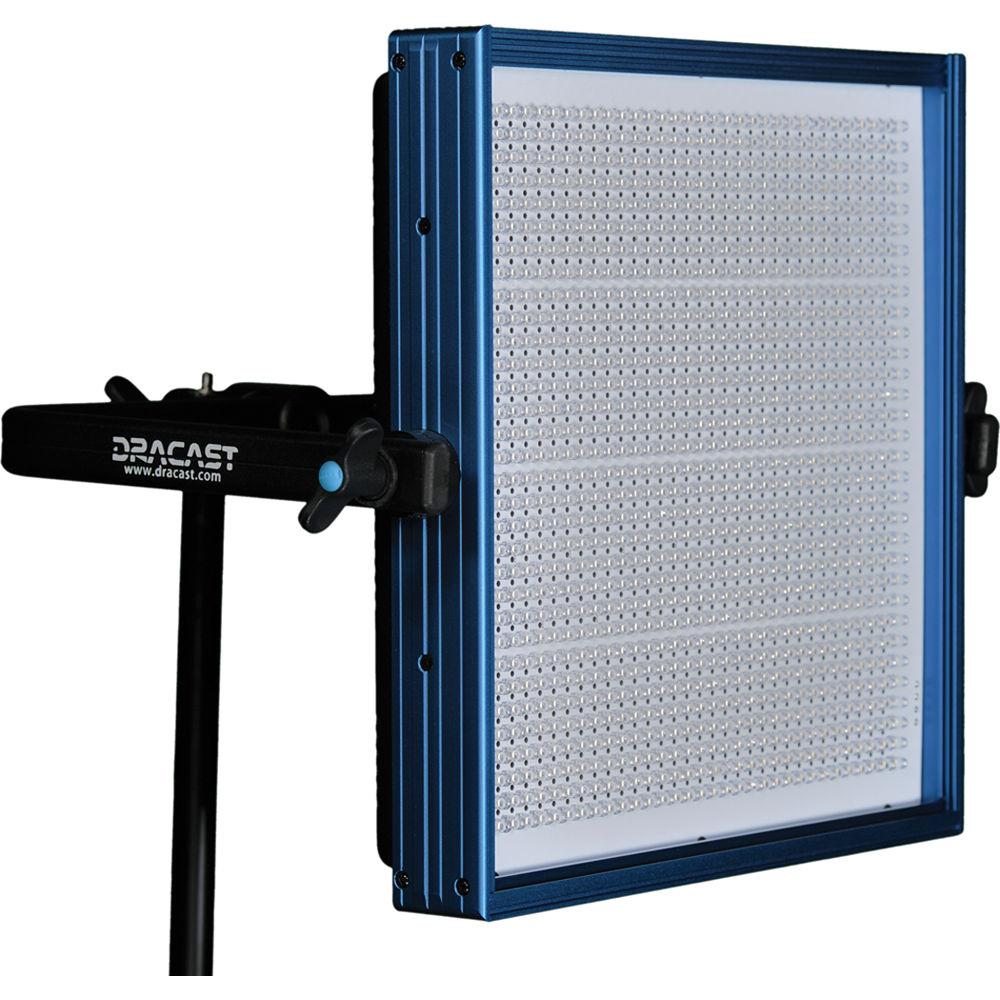

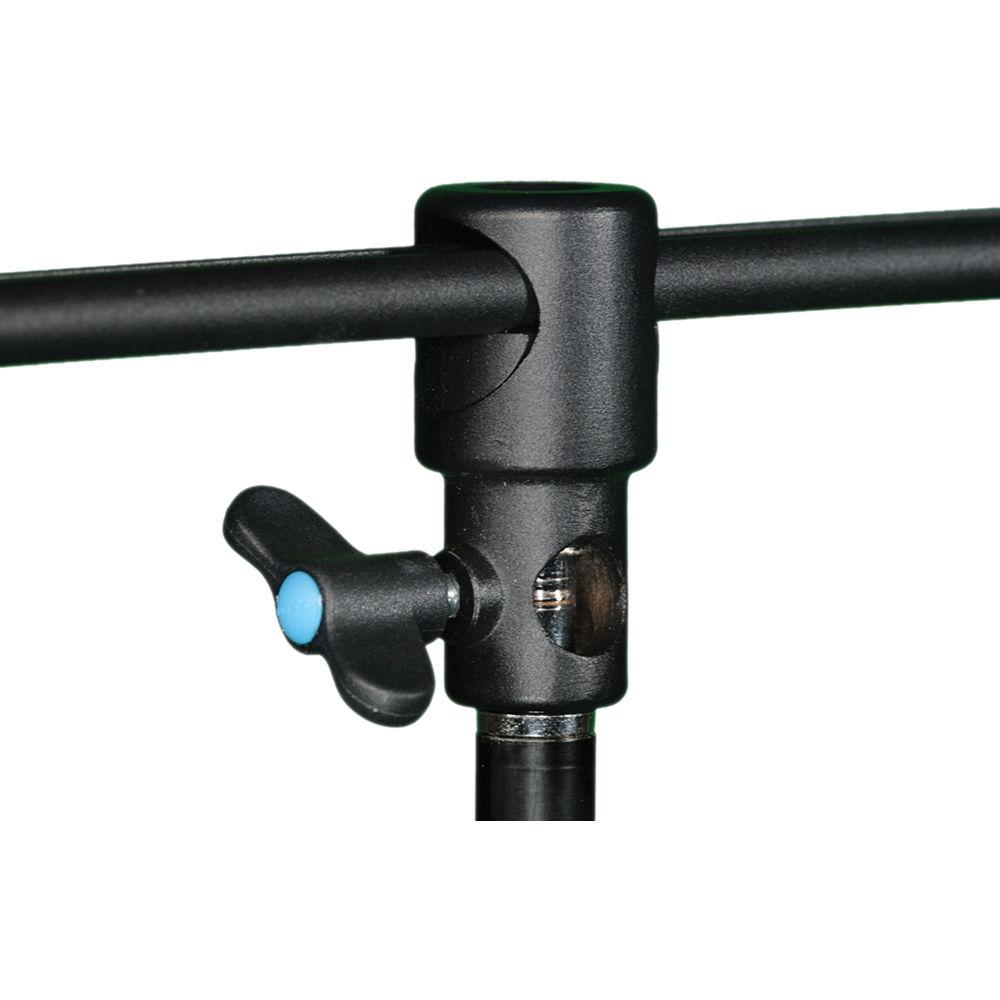

Product description At 5.5 lb the LED1000-DX Studio Daylight LED Light with DMX from Dracast is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED1000-DX's daylight-balanced output is well-suited to outdoor work or for color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel button that adjusts the output with negligible color shift and indicates the light level on a digital readout. Alternatively, you can control the light's functions remotely thanks to its DMX capability. The low electrical draw of just 60W means a timely return on your investment.The durable anodized aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This version of the LED1000 can be used worldwide, powered by the included 100-240 VAC power adapter. Accessories include optional 4-way barndoors for contouring and control of the LED1000-DX's 45 degree beam angle. - Photometrics
- 8000 lux / 743 fc at 3.0' (0.9 m)
2100 lux / 195 fc at 6.0' (1.8 m)
1025 lux / 95 fc at 9.0' (2.7 m)

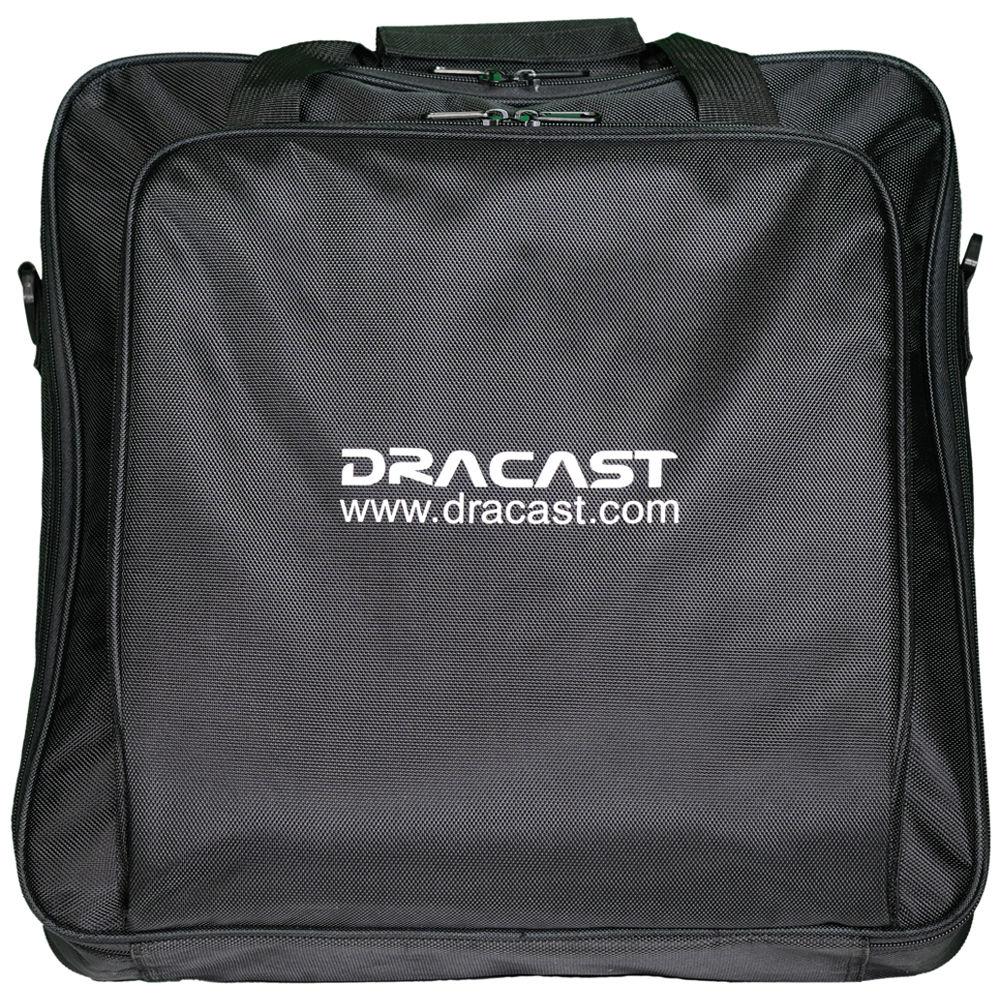

600 lux / 56 fc at 12' (3.6 m) UPC: 720189882999 In the Box Dracast LED1000-DX Studio Daylight LED Light with DMX Carry Case AC Power Adapter for LED1000 Light Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED1000-DX Studio Daylight LED Light with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED1000-DX Studio Specs | | | Beam Angle | 45° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 12.0 x 12.0 x 2.0" / 305.0 x 305.0 x 51.0 mm | | Fixture Weight | 5.5 lb / 2.5 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Package Weight | 11.35 lb | | Box Dimensions (LxWxH) | 18.0 x 17.8 x 8.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
