User Manual for Dracast LED1000 Kala Bi-Color LED Panel Click to enlarge the picture
Contents of the user manual for the Dracast LED1000 Kala Bi-Color LED Panel
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED1000 Kala Bi-Color LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

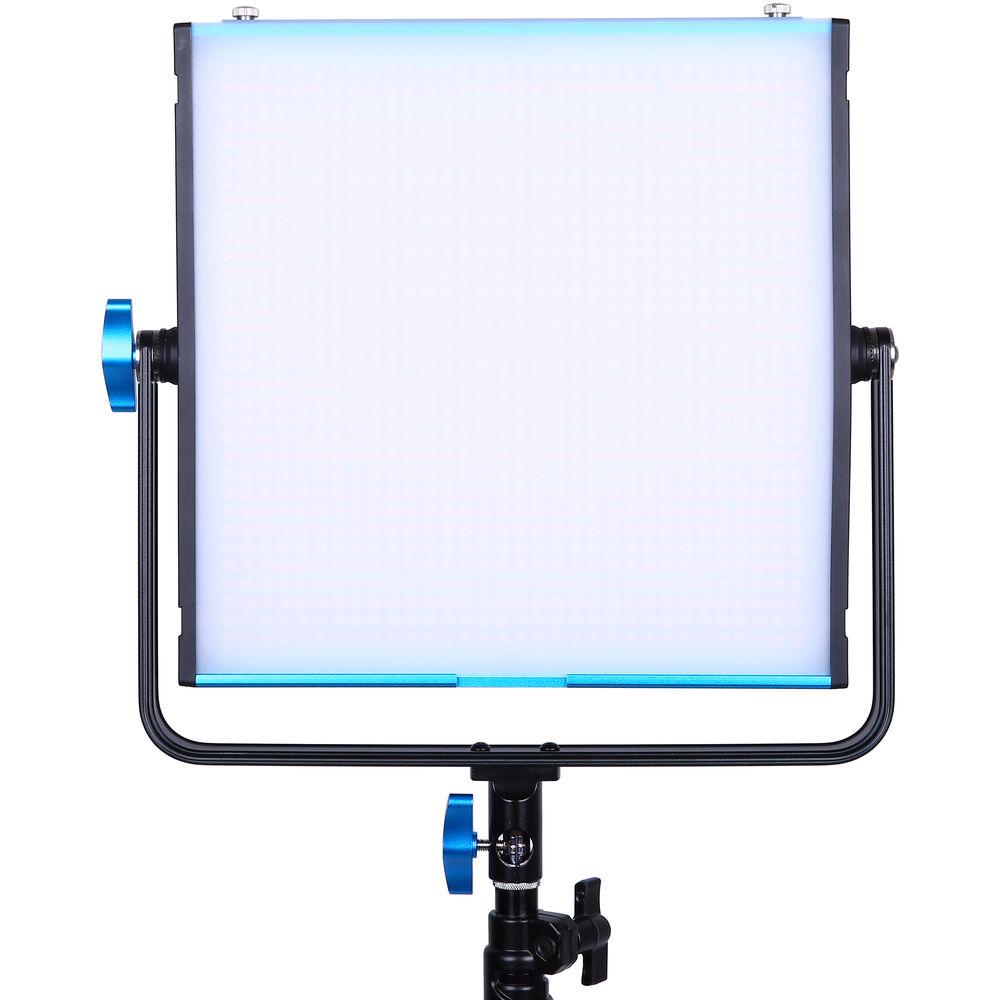

Product description - DRACAST KALA LED1000 Bi-Color Panel

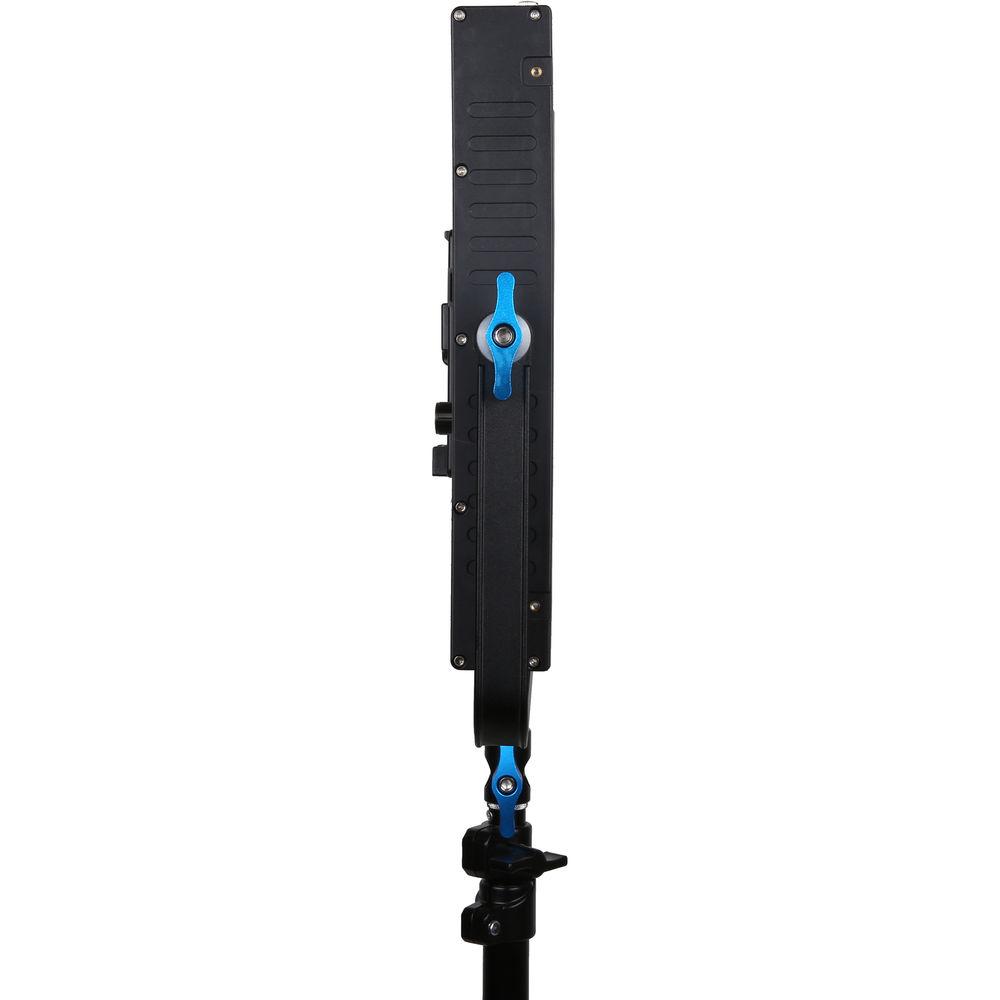

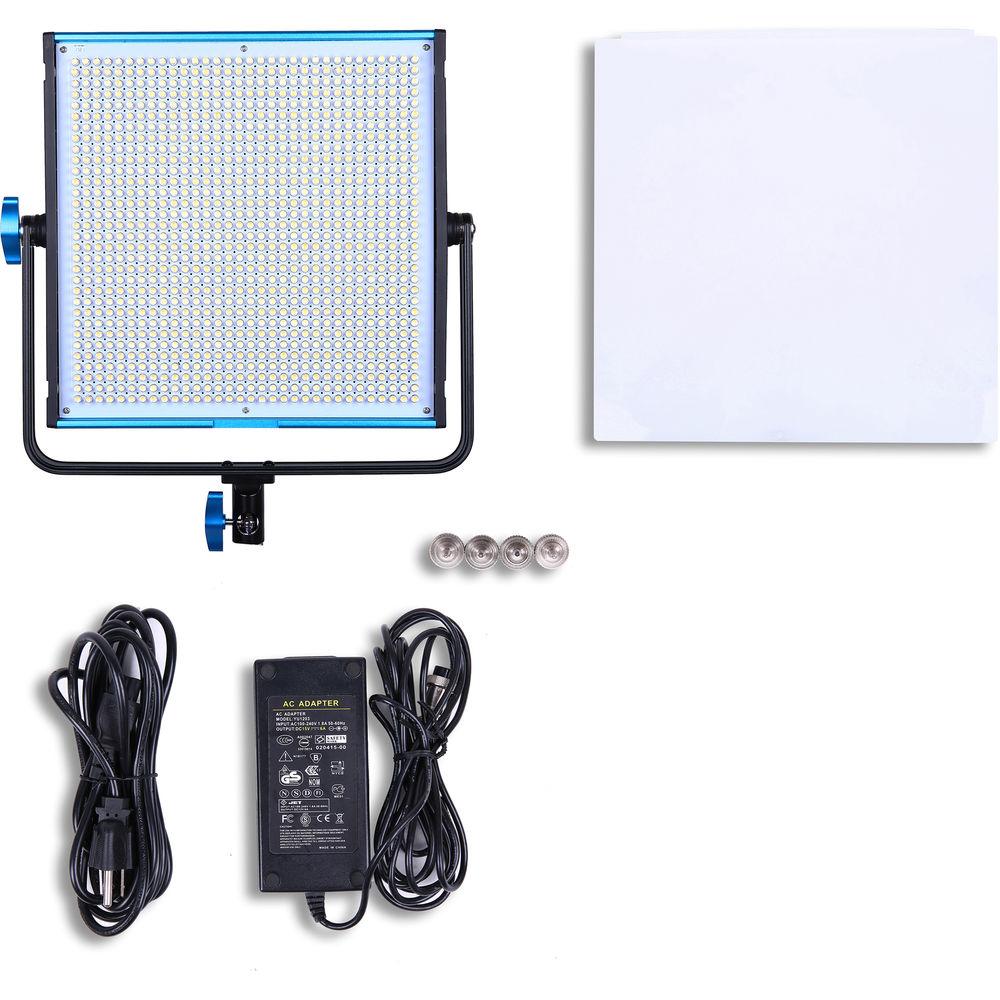

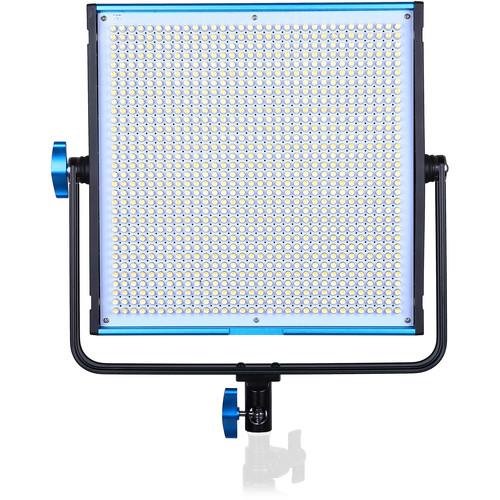

Another addition to Dracast's extensive line of LED panels, the all metal, 12 x 15 x 2" LED1000 Kala Bi-Color LED Panel offers a CRI of 96 with a variable color temperature from 3200-5600K for quickly matching either other fixtures or ambient light conditions without spending time resorting to gels. Light intensity is also variable from 0-100% and both color and dimming can be controlled remotely via onboard DMX or with the added enhancement of wireless control that can allow adjustments at distances up to 100'. By designating one light as the master, any change that is made on it will also be transmitted and matched by other lights in the group. This function not only works with Kala lights but also with Silq series lights or multiple lights that includes both series. Offering directional control, the Kala has a medium-spot beam angle of 45°. The panel is ready for worldwide use thanks to the included multi-voltage power adapter, but Dracast has also provided a V-mount plate for optional batteries when in situations where mains power is unavailable. A soft diffusion panel is also included to take to edge off of the LEDs' output. UPC: 612520464394 In the Box Dracast LED1000 Kala Bi-Color LED Panel Soft Diffusion Panel AC Adapter V-Mount Battery Plate Soft Individual Case Limited 1-Year Warranty User Manual PDF 38.6mbueztdqrszxbzcb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED1000 Kala Bi-Color LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

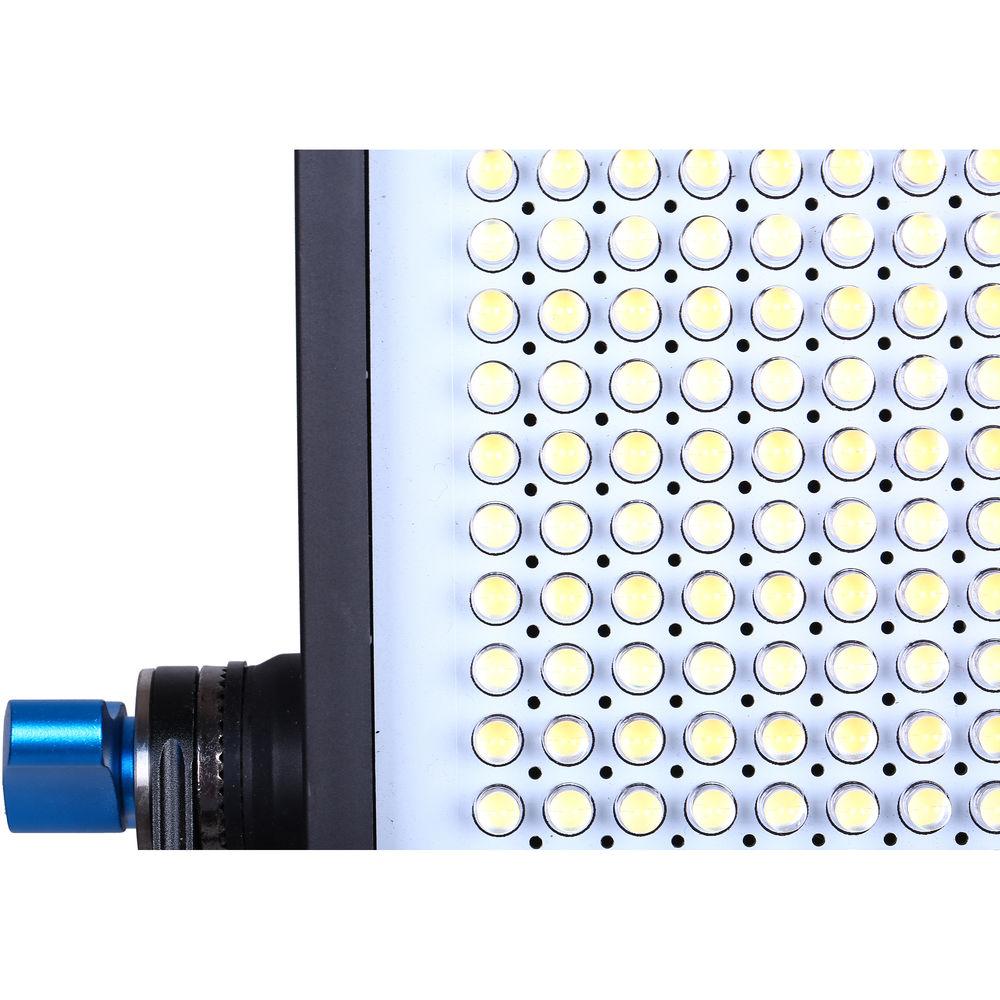

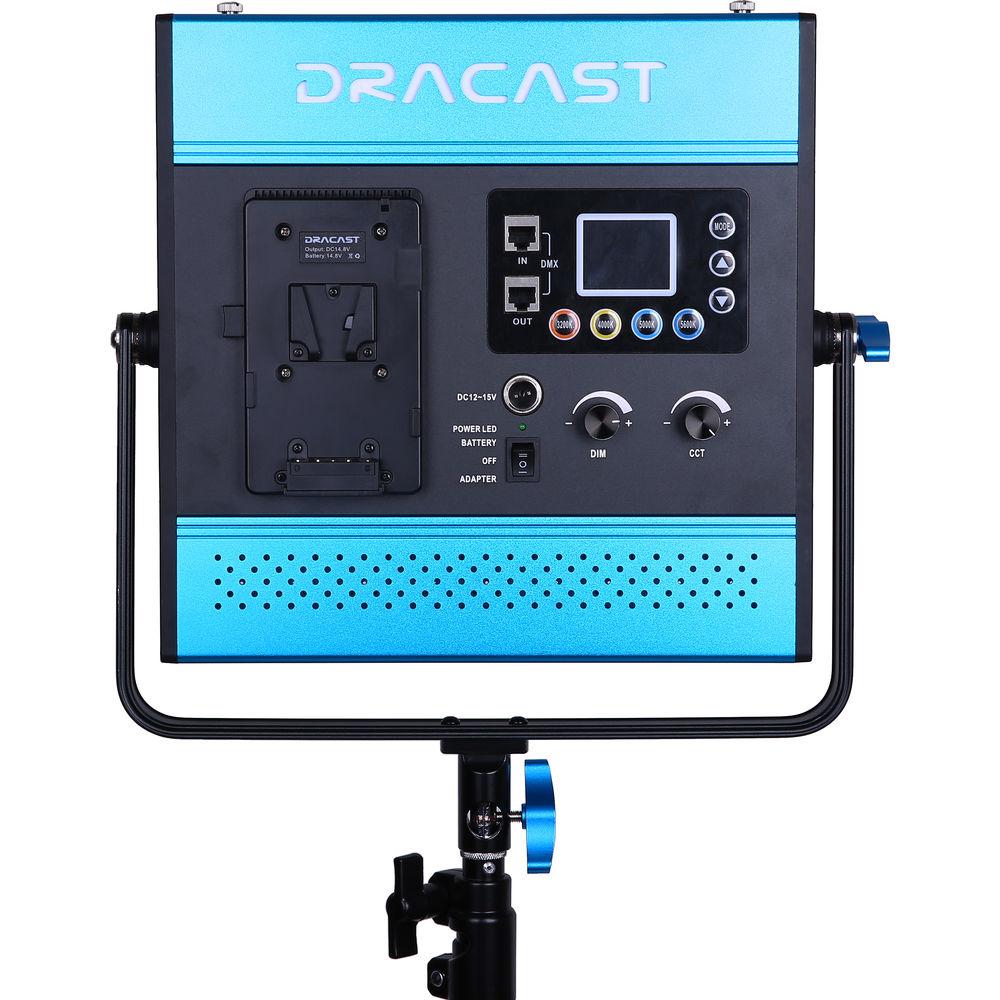

Technical parametersDracast LED1000 Specs | Light Source | 1024 LEDs | | CRI | 96 | | Color Range | 3200-5600K, continuous or 5 presets | | Beam Angle | 45° | | Dimming | 0-100% | | DMX | Yes, In and Out | | Control | Locally on the unit
DMX

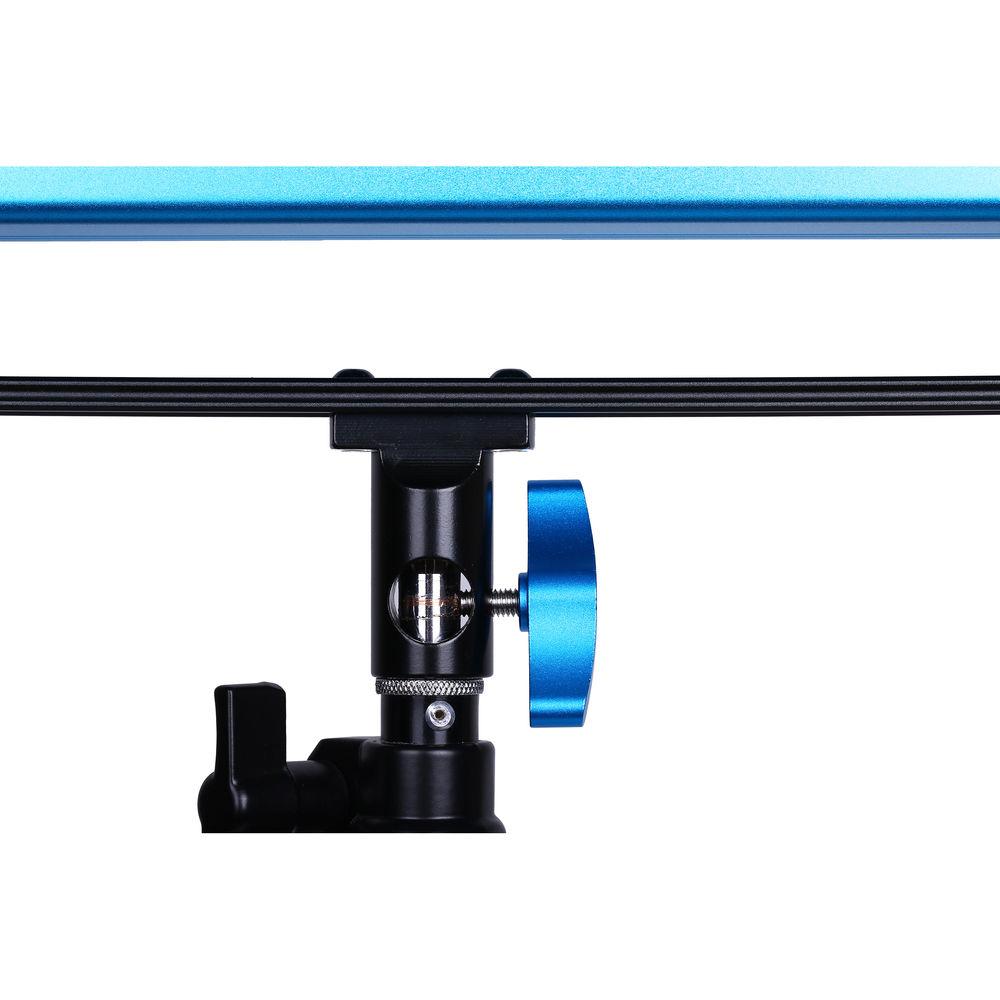

Proprietary Wireless, 100' / 30.5 m range | | Construction | All metal chassis | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 50 W | | Battery Plate | V-Mount | | Mount | Yoke with 5/8" / 16 mm receiver | | Dimensions | 12 x 15 x 2.0" / 30.5 x 38 x 5.0 cm | | Weight | 6.75 lb / 3.0 kg | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 17.6 x 15.9 x 6.5" |
Rating68% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
