User Manual for Dracast LED1000 Kala Daylight LED 2-Light Kit Click to enlarge the picture
Contents of the user manual for the Dracast LED1000 Kala Daylight LED 2-Light
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED1000 Kala Daylight LED 2-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

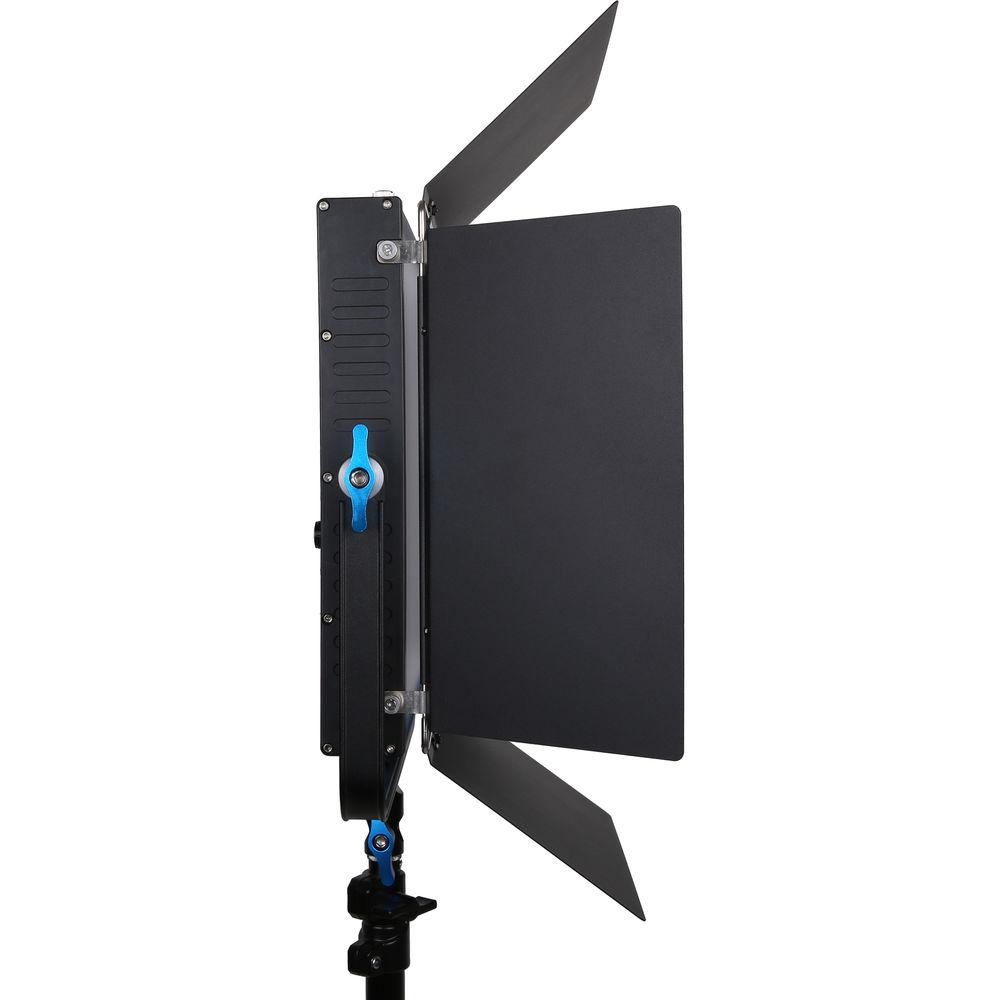

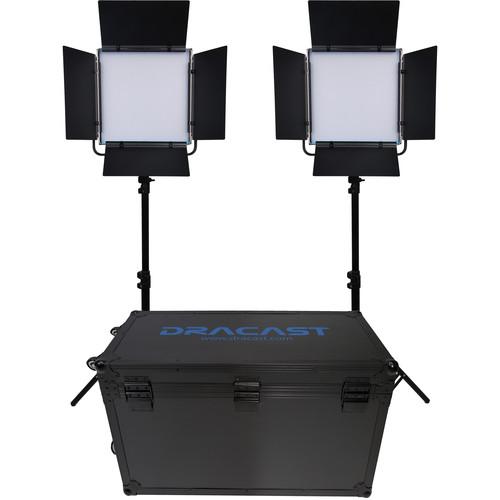

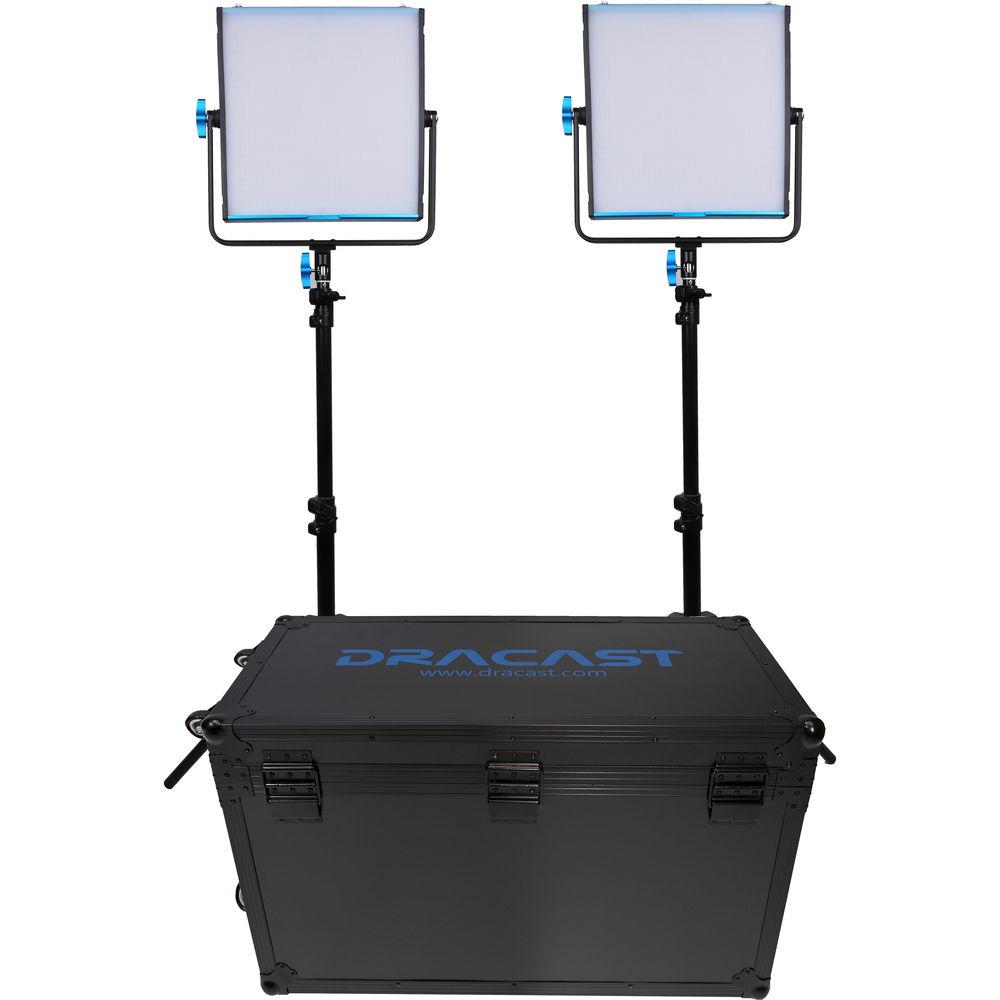

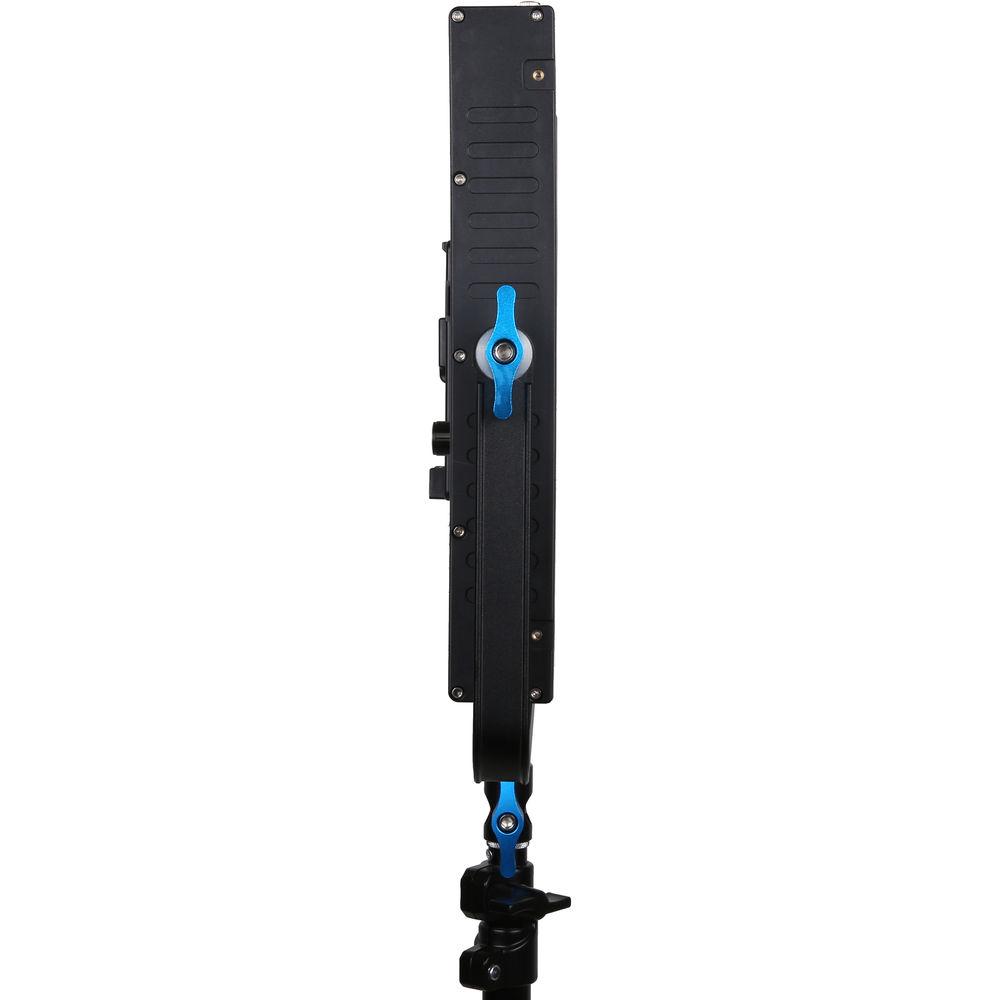

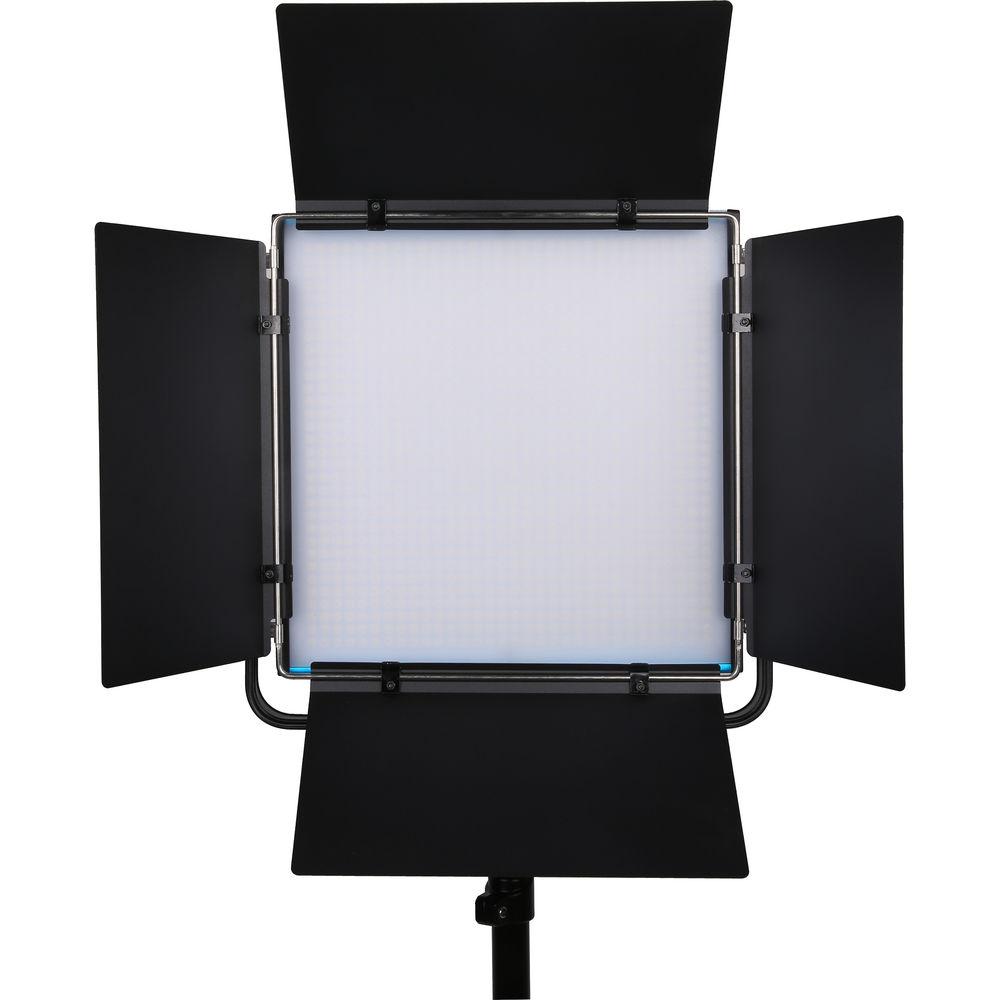

Product description Dracast has put together the LED1000 Kala Daylight LED 2-Light Kit to give image makers the benefit of superior light quality in the studio or on the road. The kit includes two 12 x 15 x 2" LED1000 Daylight panels with all metal construction, a 45-degree beam angle, and onboard DMX. Each light comes with removable 4-way barndoors, a diffusion filter, V-mount battery plate, multi-voltage AC adapter, a soft nylon case, and a light stand. A Travel Case is also included for storage and transport. - LED1000 Kala Daylight LED Panel Another addition to Dracast's extensive line of LED panels, the all metal, 12 x 15 x 2" LED1000 Kala Daylight LED Panel provides a color temperature of 5600K with a high CRI of 96, indicating accurate and faithful rendition of color. Light intensity is variable from 0-100% and can be controlled remotely via onboard DMX, or with the added enhancement of wireless IR control that can make adjustments at distances up to 100'. Labeled "IRR", this function not only works with Kala lights but also with Silq series lights or multiple lights that includes both series.Offering directional control, the Kala has a medium-spot beam angle of 45°. The panel is ready for worldwide use thanks to the included multi-voltage power adapter, but Dracast has also provided a V-mount plate for optional batteries when in situations where mains power is unavailable. A soft diffusion panel is also included to take to edge off of the LEDs' output. UPC: 612520464400
- Battery Plate for LED500 and LED1000 (V-Mount) This V-Mount Battery Plate for LED500 and LED1000 from Dracast allows convenient DC operation of the LED 500 and 1000 fixtures. The plate accepts a Dracast or other brand battery with a V-mount. This battery requires a backing plate for use.
In the Box Bundle Items 2 x LED1000 Kala Daylight LED Panel 2 x Battery Plate for LED500 and LED1000 (V-Mount) dtftxrqyscrfvsswxvrftdbeureezfy
Also Includes - 2 x Light Stands
- 2 x Barndoor Sets
- Travel Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED1000 Kala Daylight LED 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED1000 Kala Daylight LED Panel
| Light Source | 1024 LEDs | | CRI | 96 | | Color Range | 5600K | | Beam Angle | 45° | | Dimming | 0-100% | | DMX | Yes, In and Out | | Control | Locally on the unit
DMX
Wireless IRR, 100' (30.5 m) range | | Construction | All metal chassis | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 50 W | | Battery Plate | V-Mount | | Mount | Yoke with 5/8" (16 mm) receiver | | Dimensions | 12 x 15 x 2.0" / 30.5 x 38 x 5.0 cm | | Weight | 6.75 lb / 3.0 kg | | | | Box Dimensions (LxWxH) | 18.8 x 17.2 x 5.0" | - Battery Plate for LED500 and LED1000 (V-Mount)
| | | Box Dimensions (LxWxH) | 7.7 x 5.2 x 0.7" |
