User Manual for Dracast LED1000 Plus Series Bi-Color LED Light Click to enlarge the picture
Contents of the user manual for the Dracast LED1000 Plus Series Bi-Color LED
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED1000 Plus Series Bi-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

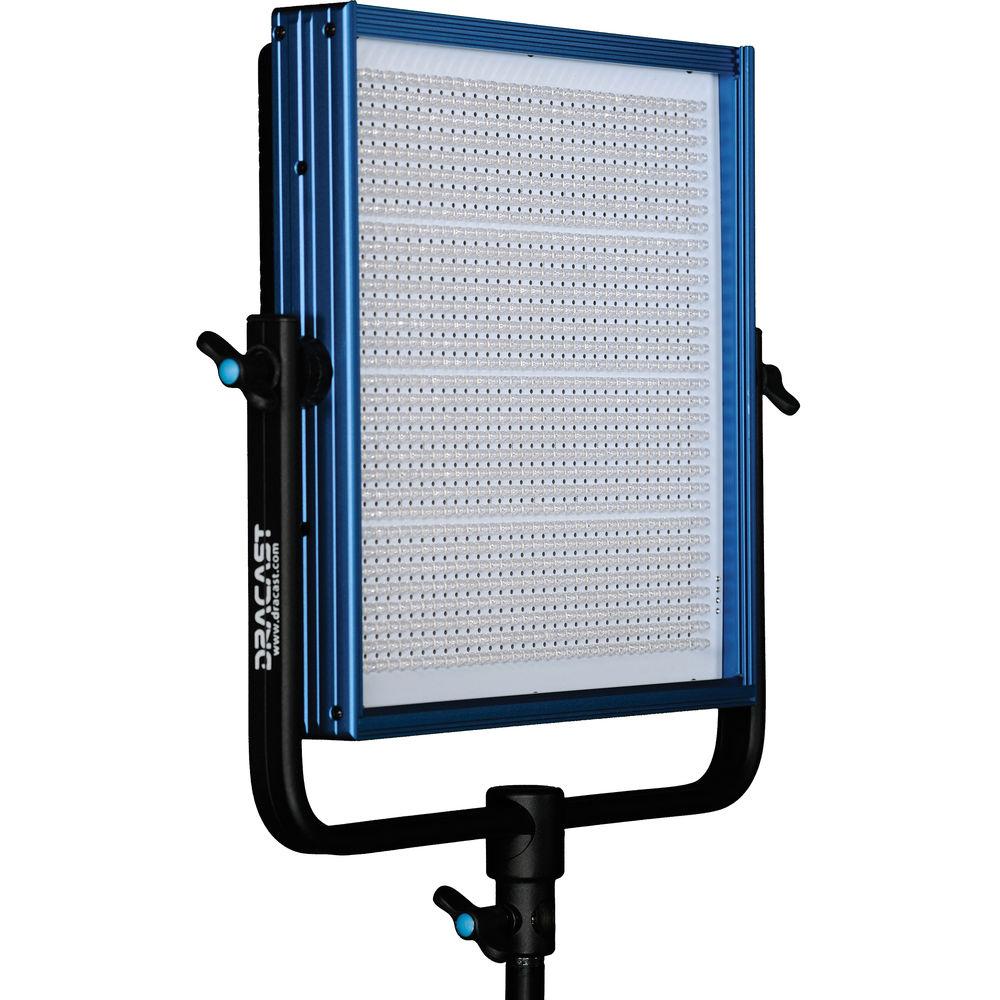

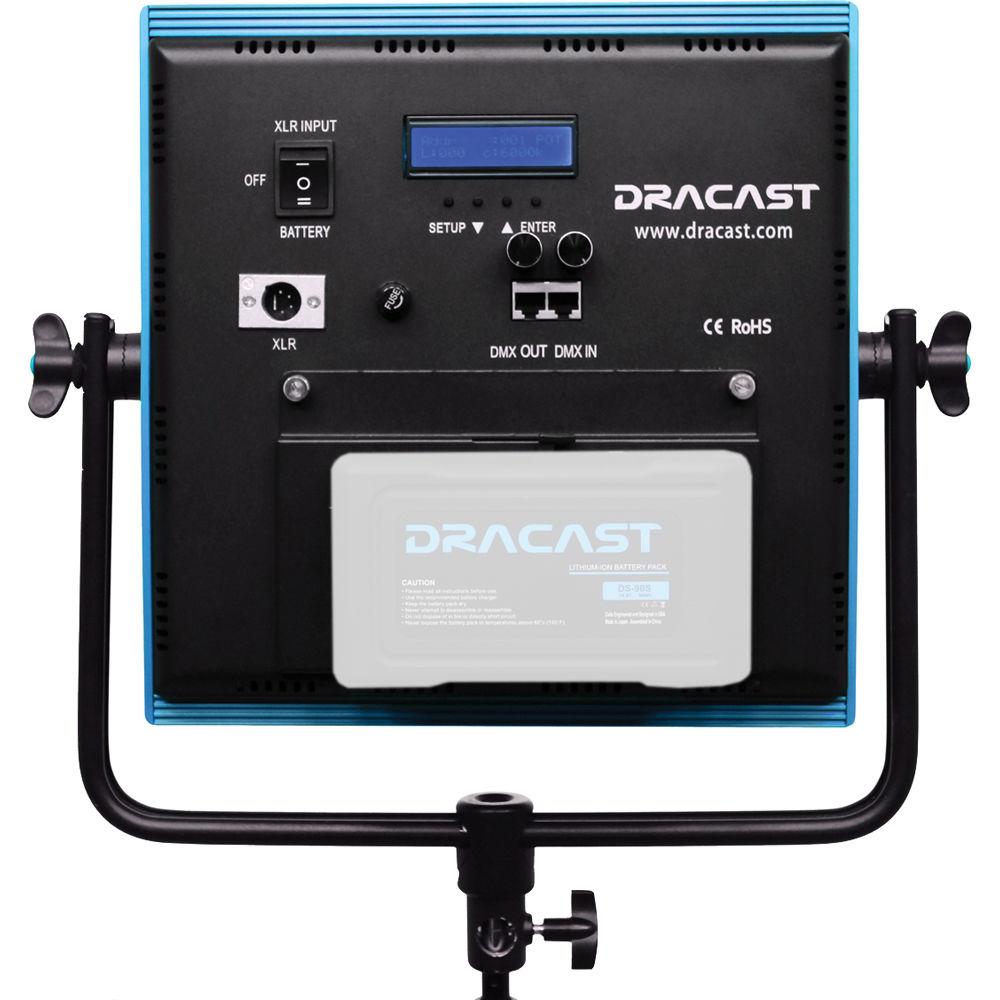

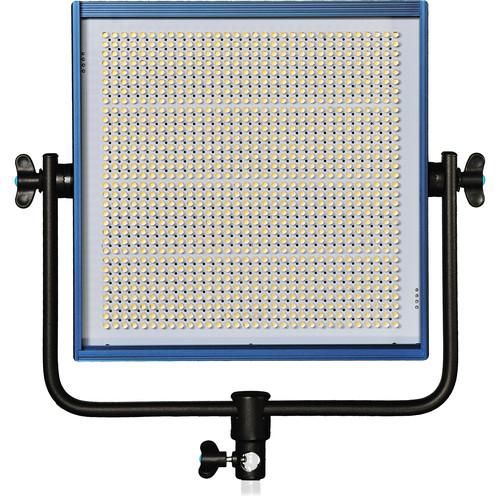

Product description Expanding on their line of panels, the LED1000 Plus Series Bi-Color LED Light from Dracast adds a digital display for adjusting output as well as Cat5 DMX input and output for linking and comes with both Gold mount and V-mount battery plates. The light features 1024 LEDs with a high CRI of >95 for excellent color accuracy. Also, this model features a variable color temperature from 3200-5600K for quickly matching either daylight or tungsten sources without needing to mess around with gels.

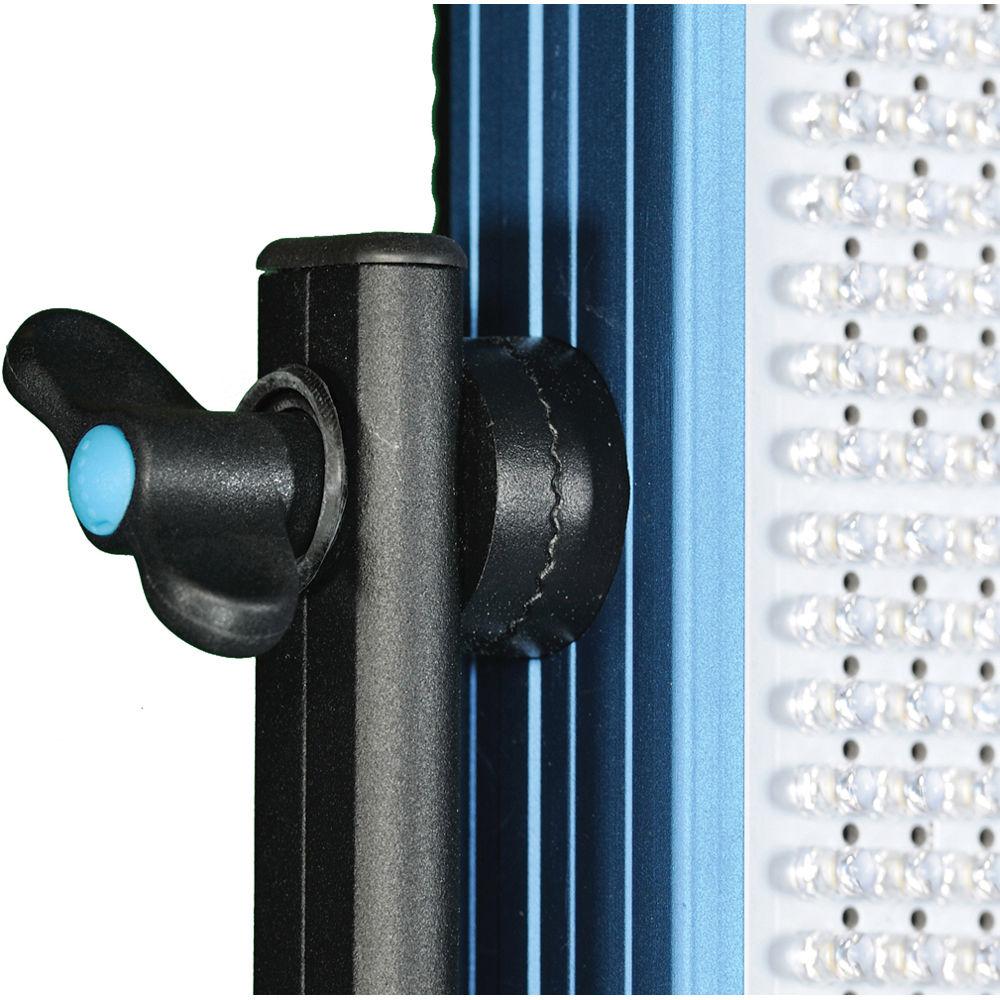

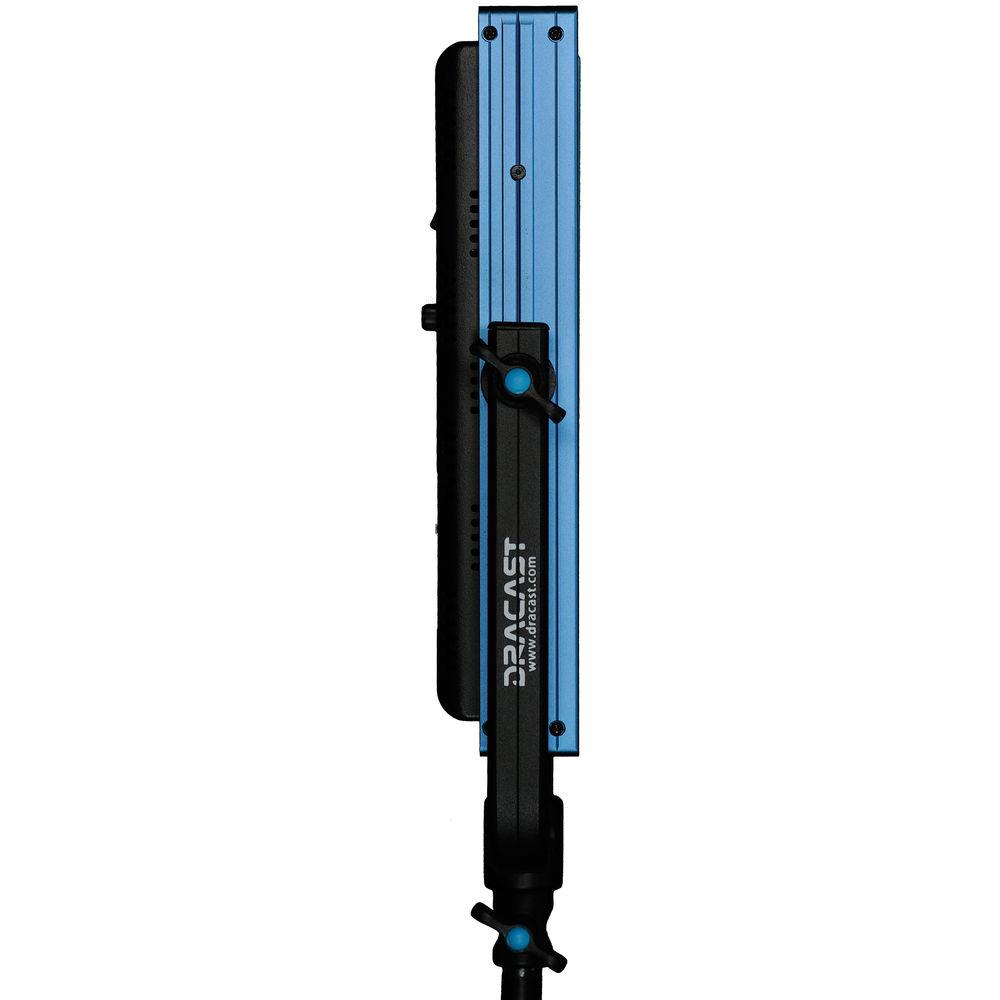

The lights offer a spot beam angle of 45° as well as dimming from 0-100%. Benefiting operation, it can run off of either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well with an aluminum chassis, frame, and mounting yoke and it only consumes 60W of power. Additionally, it is lightweight at just 5.5 lb and measures 12 x 12 x 2" in size. - Photometrics
- At 3200K
3800 lux / 353 fc at 3' (1m)
1150 lux / 107 fc at 6' (2m)
530 lux / 49 fc at 9' (3m)
300 lux / 28 fc at 12' (4m)
At 4300K
7200 lux / 669 fc at 3' (1m)
2050 lux / 190 fc at 6' (2m)
950 lux / 88 fc at 9' (3m)
560 lux / 52 fc at 12' (4m)
At 5600K
4200 lux / 390 fc at 3' (1m)
1200 lux / 111 fc at 6' (2m)
530 lux / 49 fc at 9' (3m)

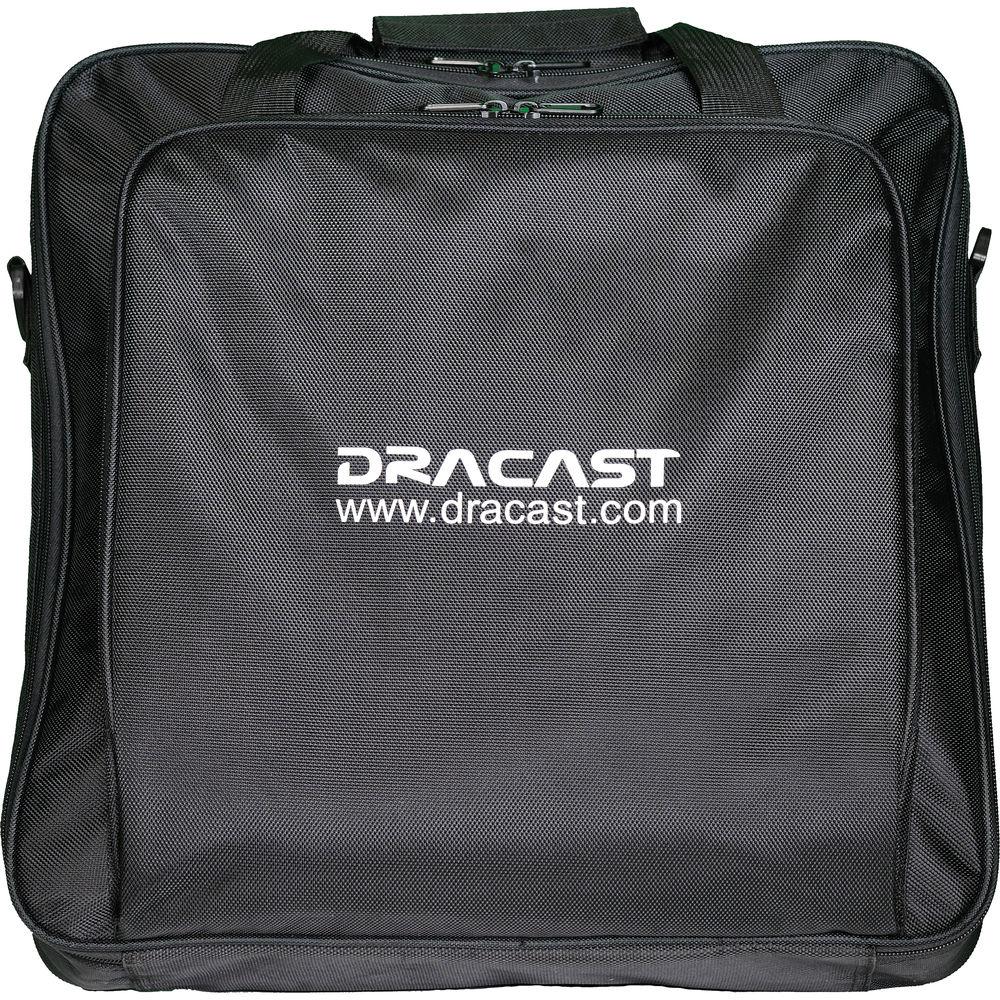

300 lux / 28 fc at 12' (4m) UPC: 743724583199 In the Box Dracast LED1000 Plus Series Bi-Color LED Light Battery Plate for LED500 and LED1000 (Gold Mount) Battery Plate for LED500 and LED1000 (V-Mount) Aluminum Yoke for LED1000 Light AC Power Adapter for LED1000 Light Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED1000 Plus Series Bi-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED1000 Plus Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Number of LEDs | 1024 | | Fixture Dimensions | 12.0 x 12.0 x 2.0" / 305.0 x 305.0 x 51.0 mm | | Fixture Weight | 5.5 lb / 2.5 kg | | | | Battery Plate | 1 x Gold Mount

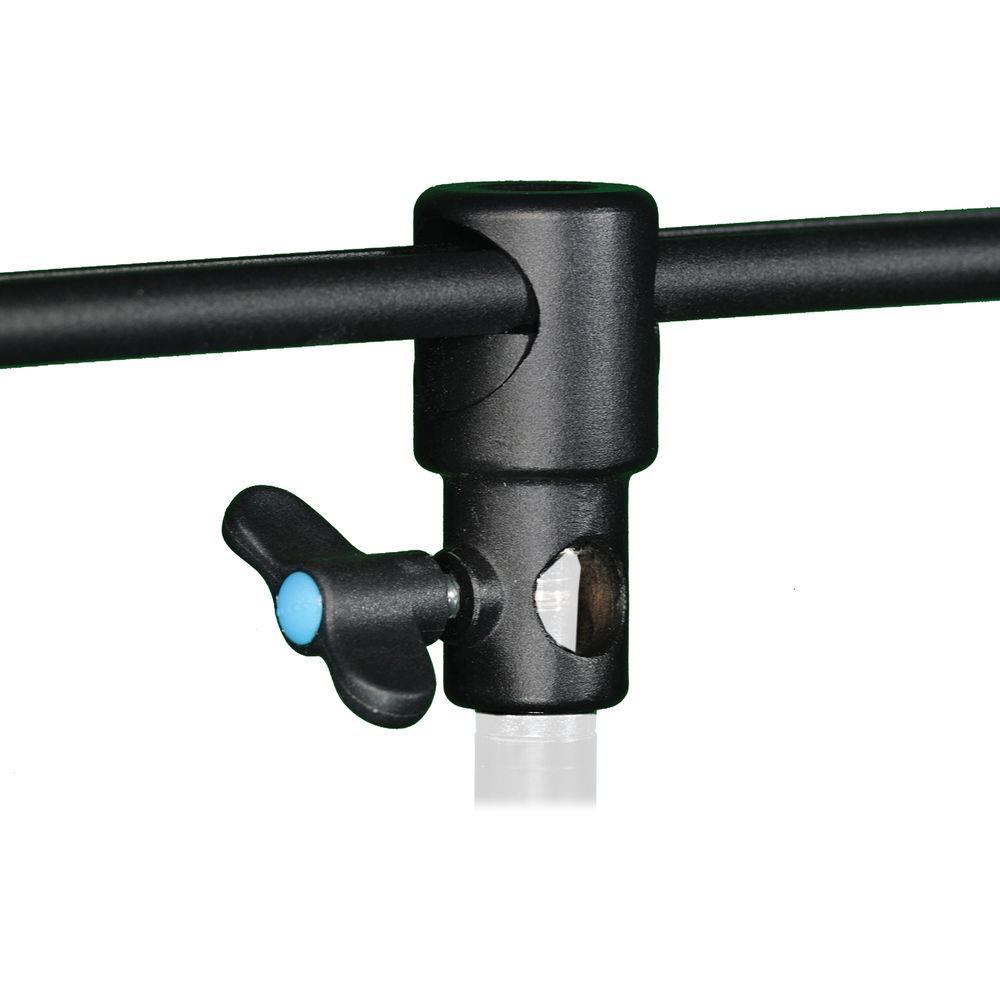

1 x V-Mount | | DMX Connector | RJ45 | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 17.0 x 11.0 x 8.0" |
