Dracast LED1000 Pro Bi-Color LED 2-Light

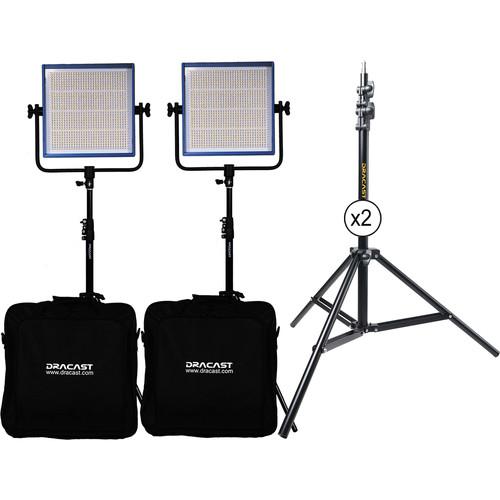

User Manual for Dracast LED1000 Pro Bi-Color LED 2-Light Kit with Stands and V-Mount Battery Plates

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

• Dracast LED1000 Pro Bi-Color LED 2-Light with V-Mount Battery Plates Ideal for location shooters, the LED1000 Pro Bi-Color LED 2-Light Kit with V-Mount Battery Plates from Dracast is comprised of 2 LED1000 Bi-Color Lights, each with a multi-voltage power adapter, case and a 6.5' light stand.At 5.5 lb the LED1000 Pro Bi-Color LED Light is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3,200K-5,600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The LED1000 outputs the hot light equivalent of 1,000W but you won't have to be concerned about the talent's comfort - the panel runs barely warm to the touch. And the low electrical draw of just 60W means a timely return on your investment.The durable anodized aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED1000 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-Mount 12 VDC batteries. Accessories include optional 4-way barndoors for contouring and control of the LED1000's 45-degree beam angle. UPC: 720189881794
• 2 x Dracast DLS-805 Spring-Cushioned Light Stand (6') The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5" to 72" and has a load capacity of 13 lb. It folds down to 28.5" for transport, and weighs 3.4 lb. There is a 5/8" stud on top of the stand.

  The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments. UPC: 639713546699

• LED1000 Pro Bi-Color LED 2-Light with V-Mount Battery Plates
• 2 x LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate
• 2 x DLS-805 Spring-Cushioned Light Stand (6')
• Limited 1-Year Warranty

• 2 x DLS-805 Spring-Cushioned Light Stand (6')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Dracast LED1000 Pro Bi-Color LED 2-Light with V-Mount Battery Plates

  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Display	None

  Battery Plate	1 x V-Mount

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery

  IP Rating	IP20

  Box Dimensions (LxWxH)	26.5 x 20.5 x 20.5"

• 2 x Dracast DLS-805 Spring-Cushioned Light Stand (6')

  Load Capacity	13 lb / 6 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	72" / 182.9 cm
  Minimum Working Height	28.5" / 72.4 cm
  Collapsed Height	28.5" / 72.4 cm
  Leg Shape	Round
  Air Cushioned	No Spring-Cushioned
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	3.4 lb / 1.5 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	37.5 x 4.0 x 4.0"
