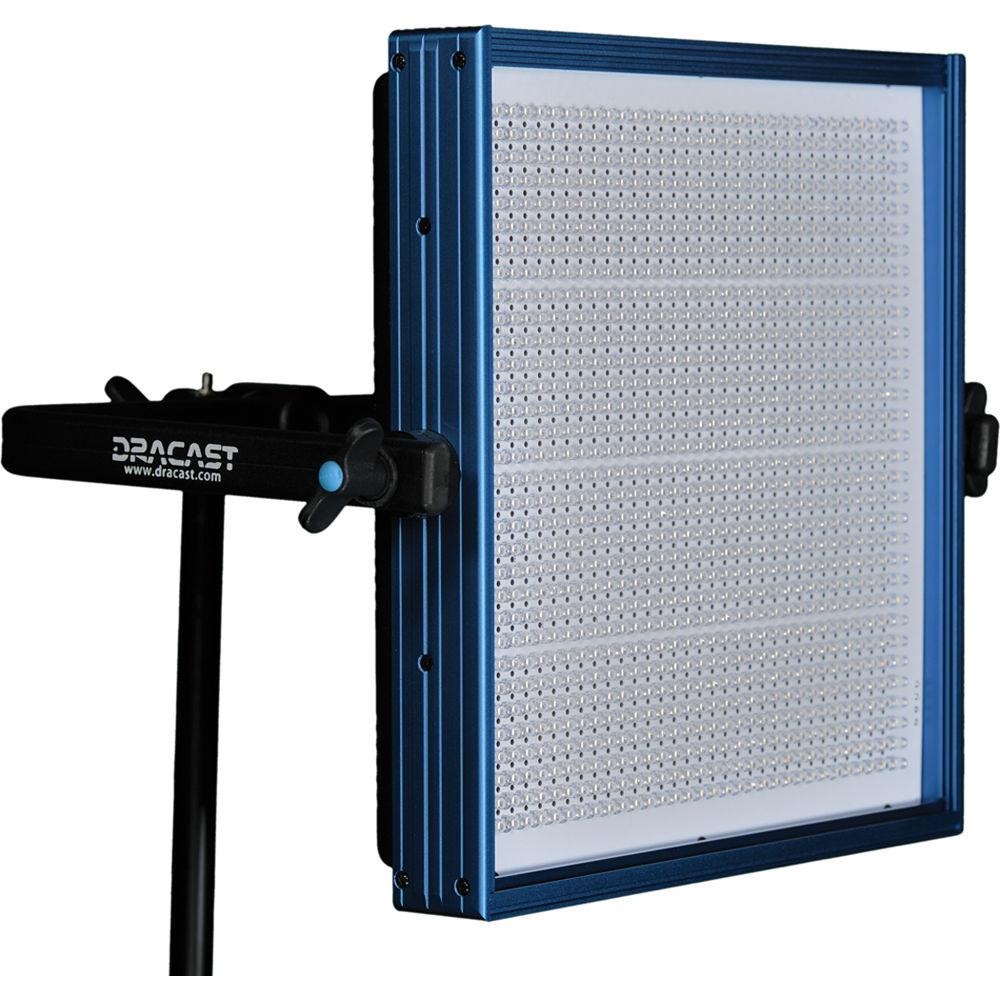

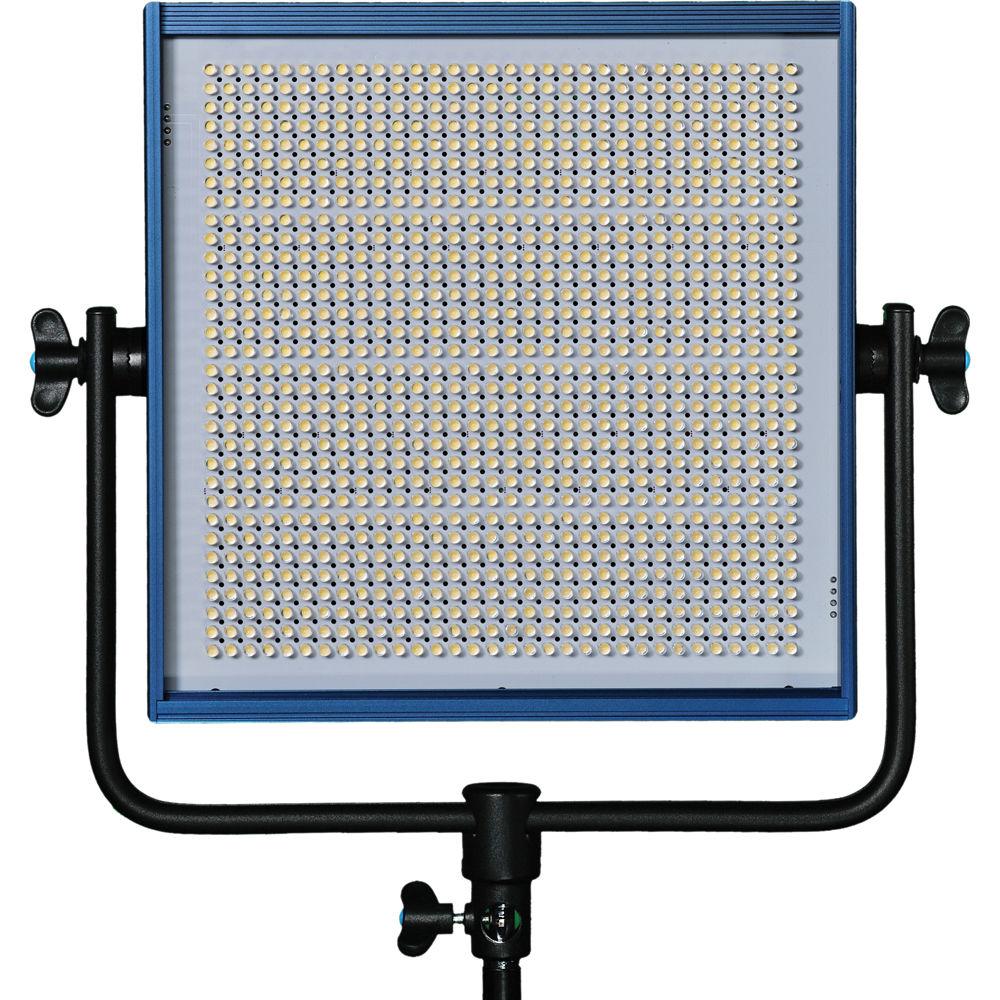

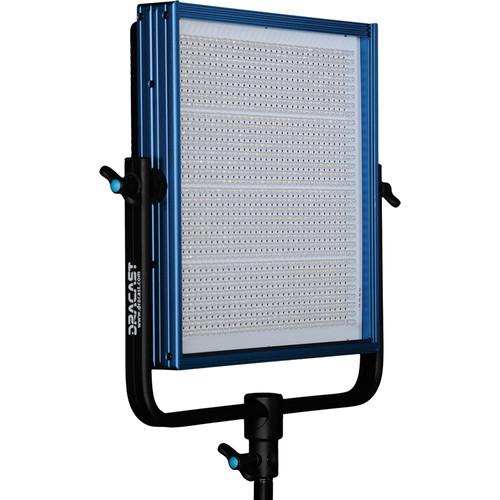

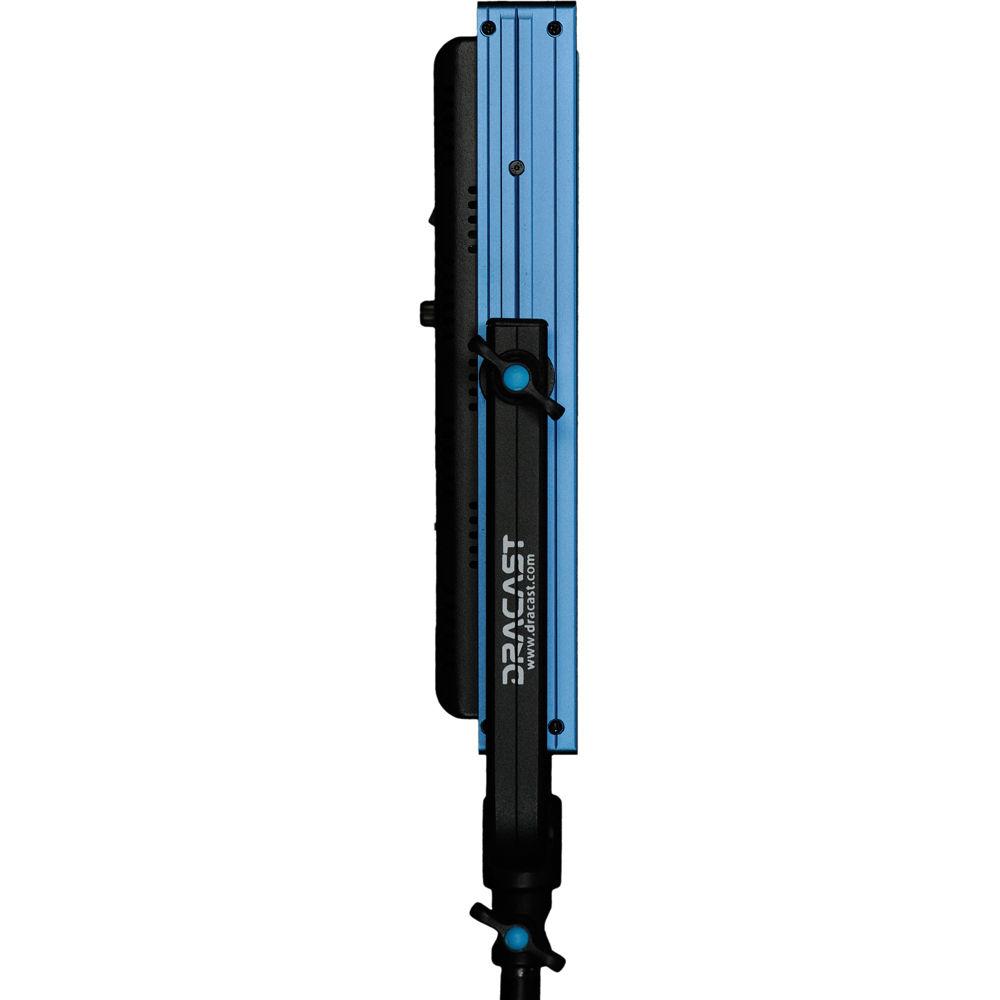

User Manual for Dracast LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Dracast LED1000 Pro Bi-Color LED Light
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED1000 Pro Bi-Color LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

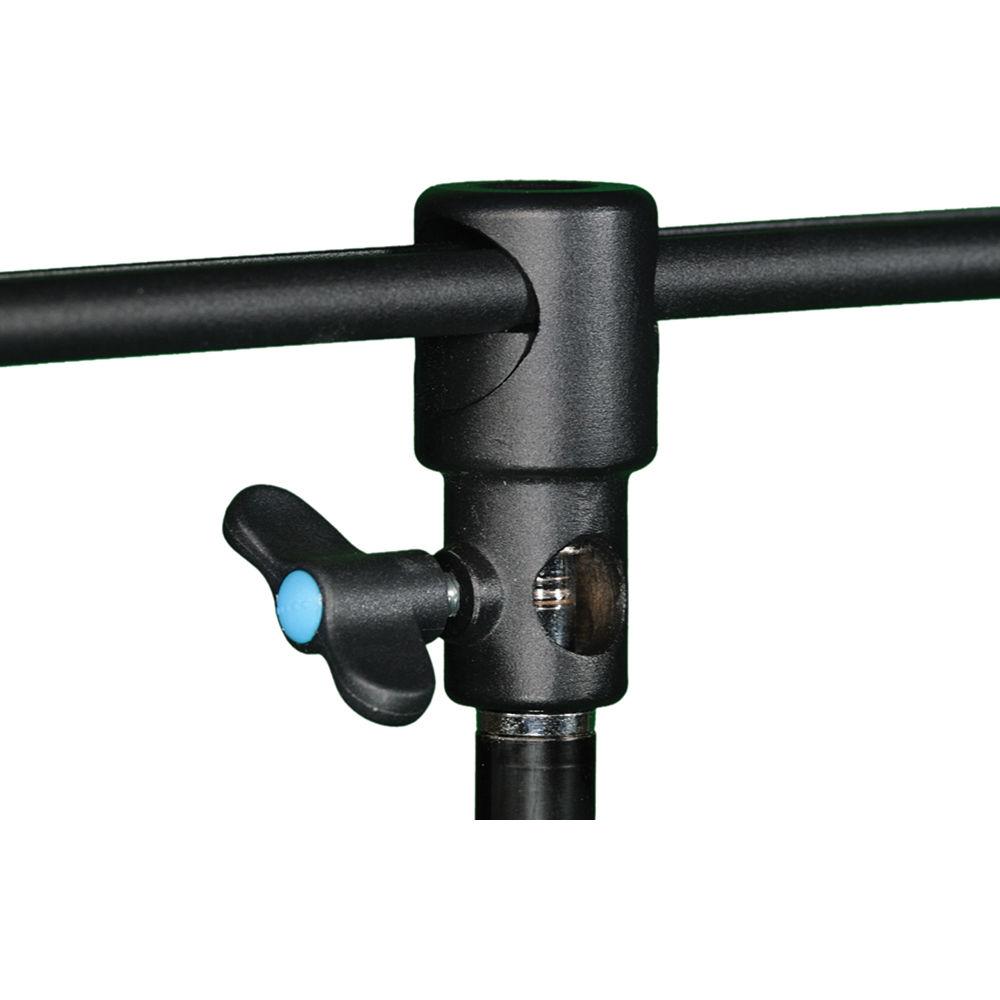

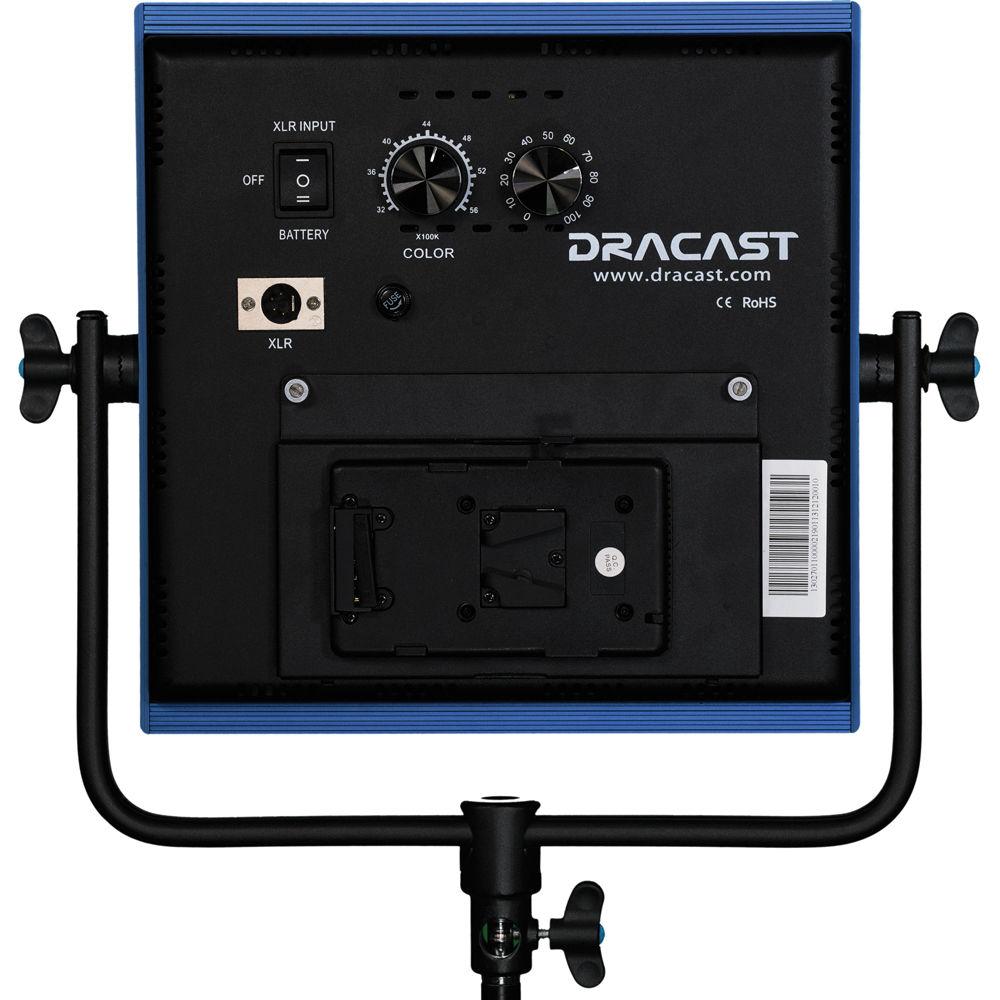

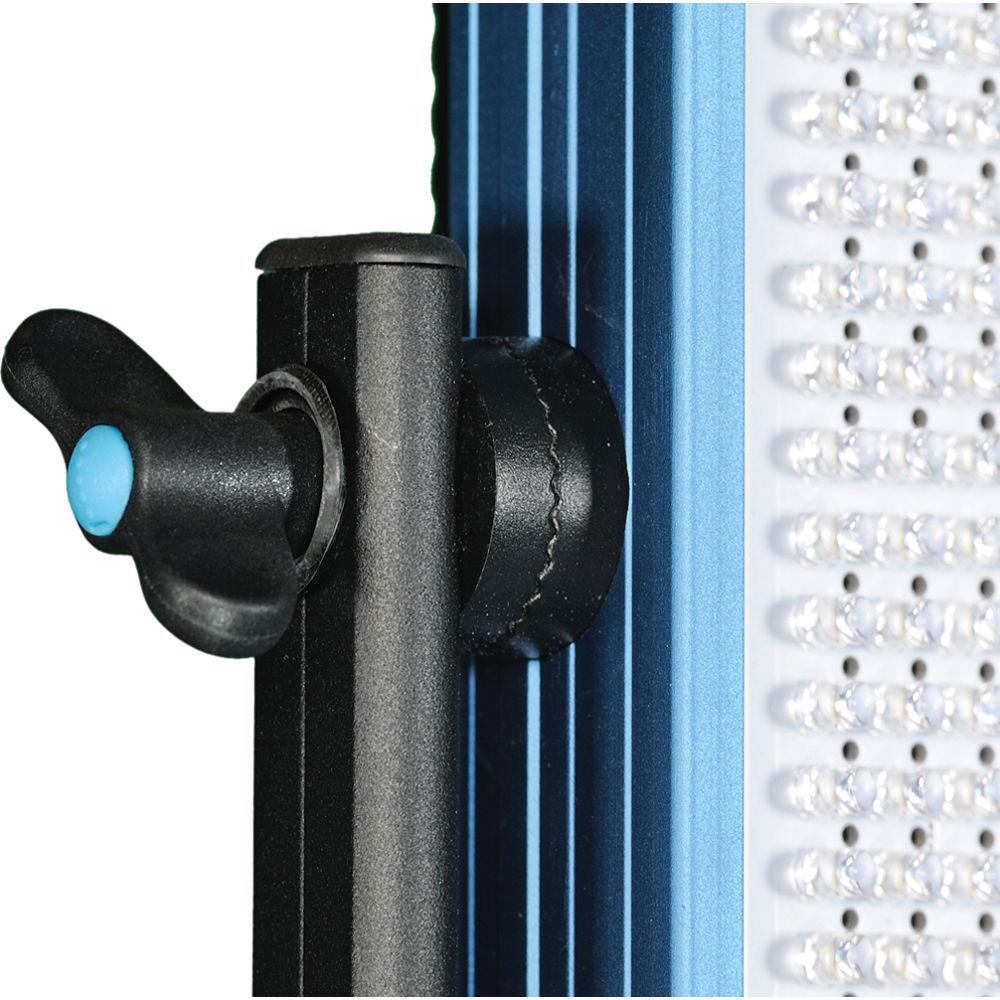

Product description At 5.5 lb lb the LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 60W means a timely return on your investment. The durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED1000 can be used worldwide, powered by the included 100-240 VAC adapter or by optional V-Mount 14.8V batteries. Accessories include optional 4-way barndoors for contouring and control of the LED1000's 45 degree beam angle. A carry case is included. - Photometrics
- At 3200K
3800 lux/353 fc at 3.0' / 0.9 m
1150 lux/107 fc at 6.0' / 1.8 m
530 lux/49 fc at 9.0' / 2.7 m
300 lux/28 fc at 12' / 3.6 m
At 4400K
7200 lux/669 fc at 3.0' / 0.9 m
2050 lux/190 fc at 6.0' / 1.8 m
950 lux/88 fc at 9.0' / 2.7 m
560 lux/52 fc at 12' / 3.6 m
At 5600K
4200 lux/390 fc at 3.0' / 0.9 m
1200 lux/111 fc at 6.0' / 1.8 m
530 lux/49 fc at 9.0' / 2.7 m

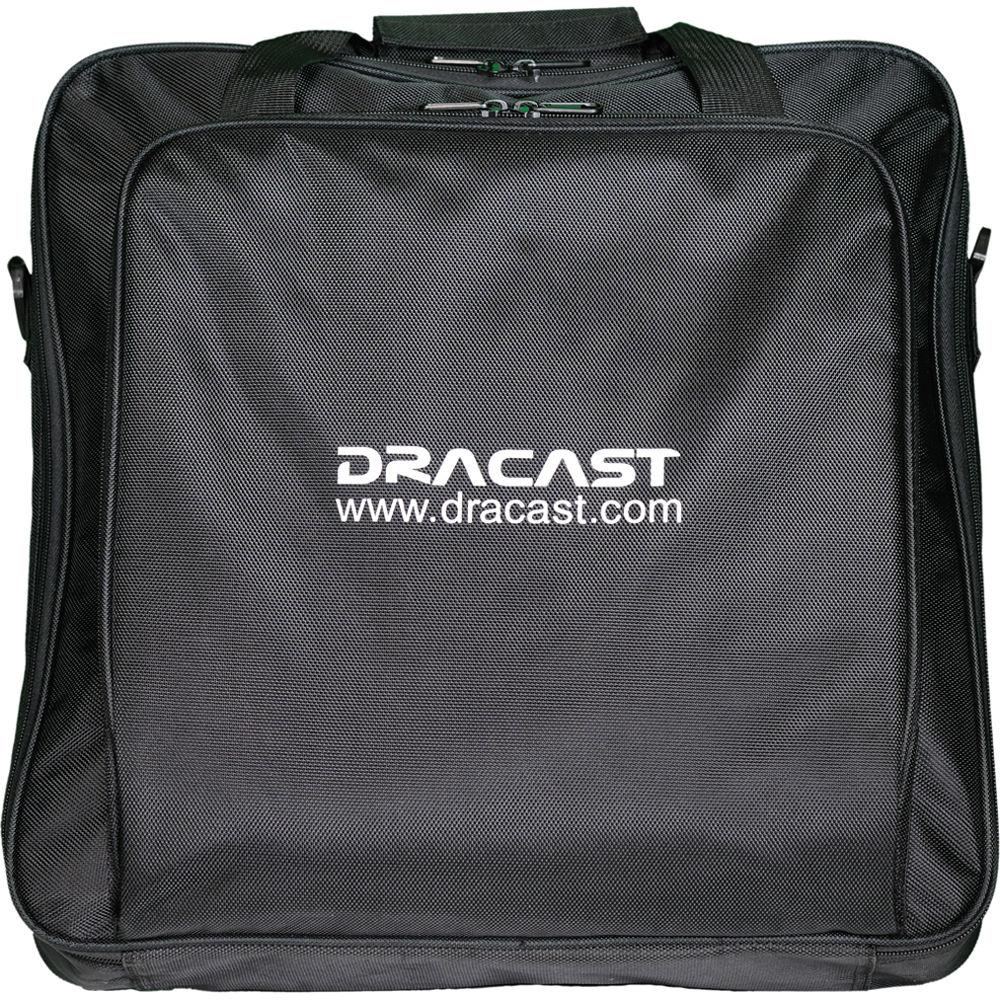

300 lux/28 fc at 12' / 3.6 m UPC: 720189883019 In the Box Dracast LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate Carry Case AC Power Adapter for LED1000 Light vwzxsfcqwdbvrescvsccwezsvcszdy Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED1000 Pro Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 12.0 x 12.0 x 2.0" / 305.0 x 305.0 x 51.0 mm | | Fixture Weight | 5.5 lb / 2.5 kg | | | | Battery Plate | 1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 14.8 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 18.0 x 17.6 x 8.3" |
