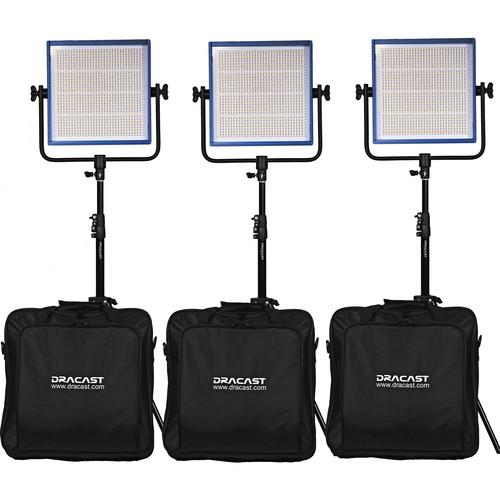

Product description Useful for location shooters, B&H has put together the Dracast LED1000 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates and Stands for the photographer on the road. The kit is comprised of three LED1000 lights, each with a multi-voltage power adapter and individual case. Three light stands are also included for support.

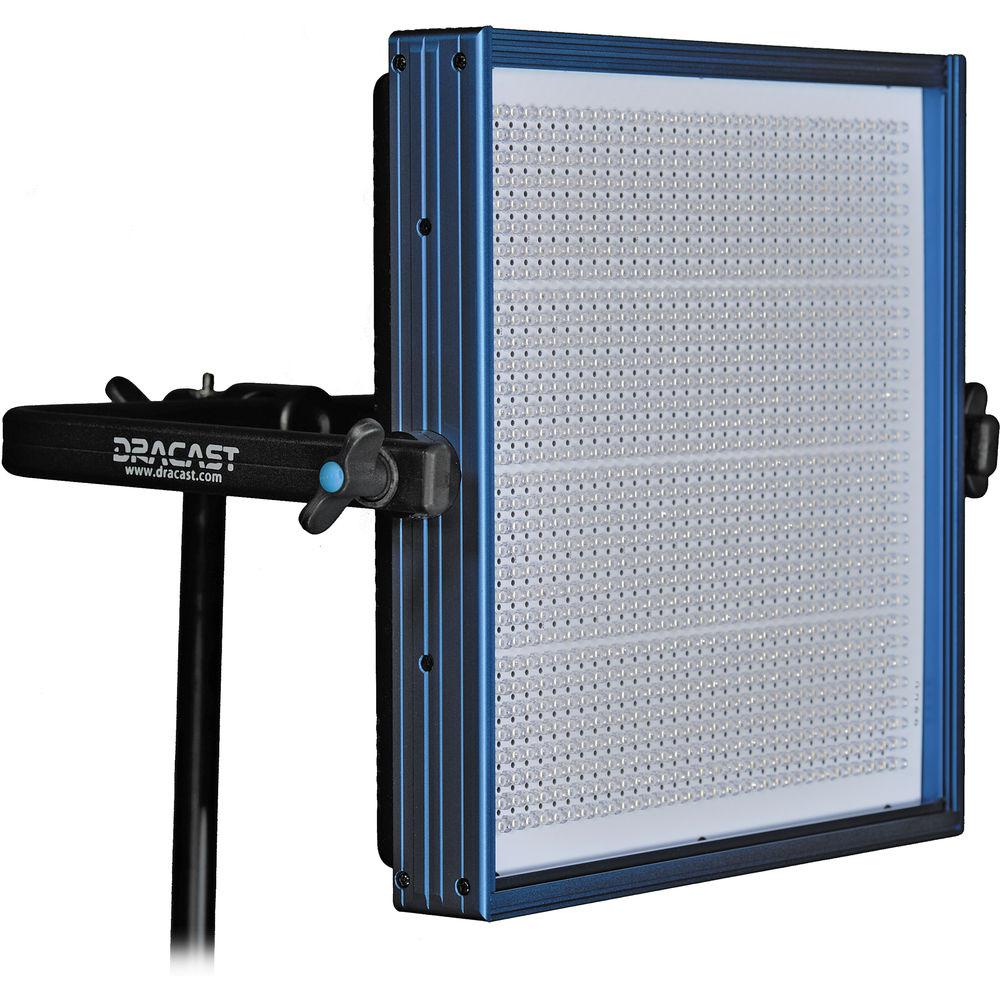

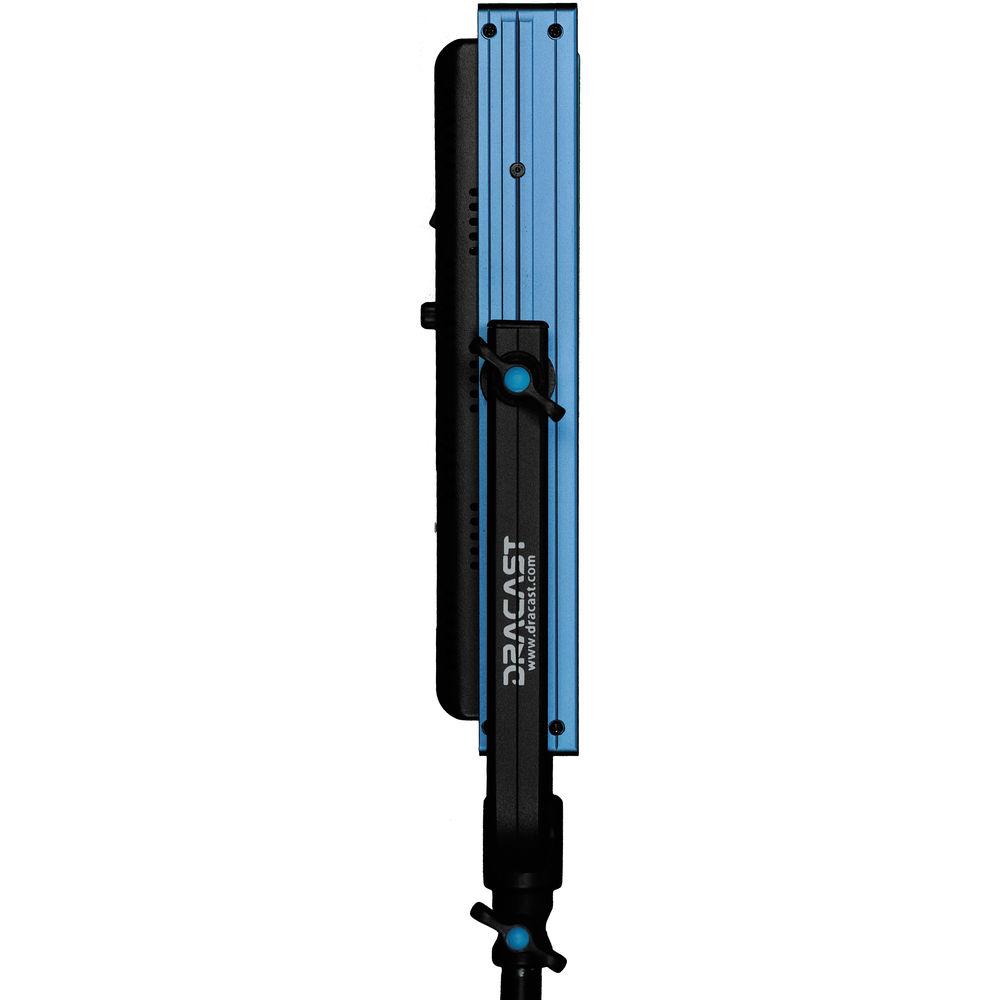

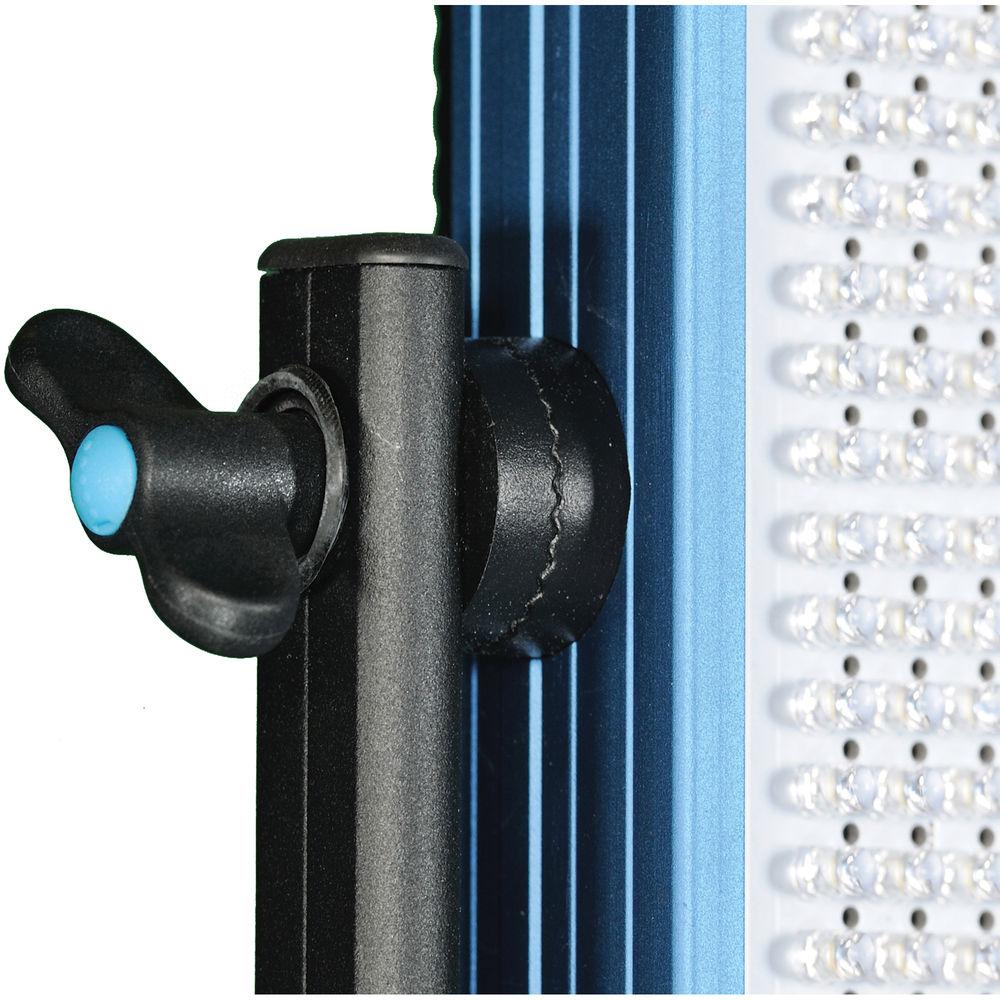

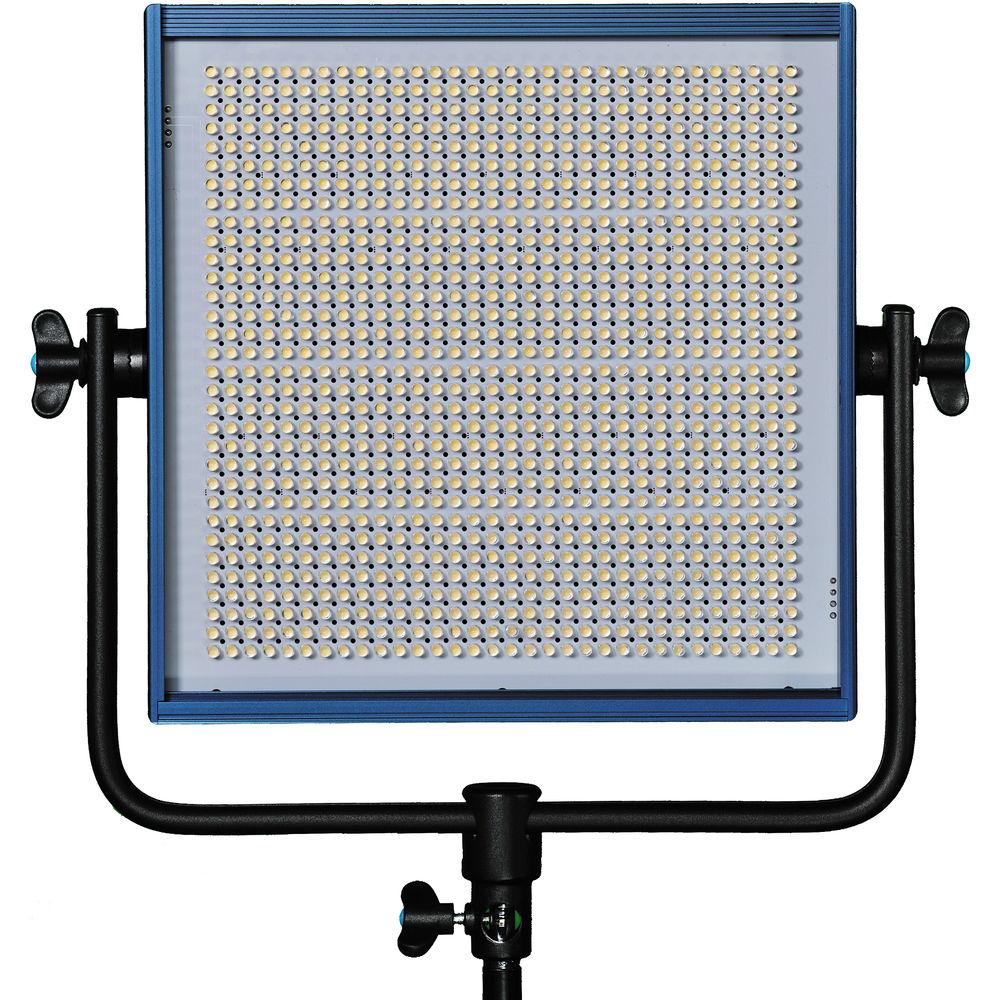

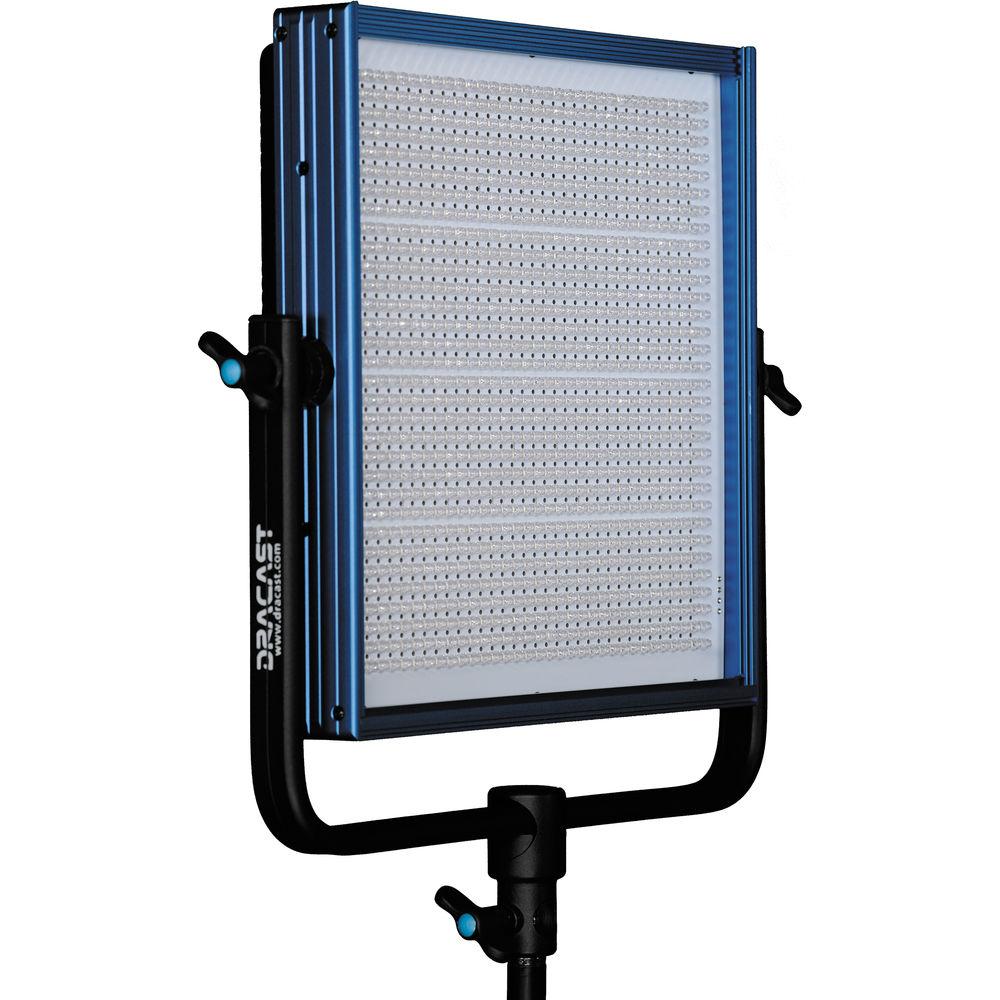

At just 5.5 lb, the LED1000 Pro Daylight LED is a lightweight option for location work, interviews, and small sets where color accuracy, control, and flicker-free output are of major importance. Daylight-balanced 5600K color temperature makes this light well-suited for pairing with strobes or HMI fixtures, as well as balancing with ambient daylight conditions. Dimming is equally convenient via another knob that adjusts the light intensity from 0-100% with negligible color shift, and the low electrical draw of just 60W means a timely return on your investment. The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED1000 can be used worldwide, powered by the included 100-240 VAC adapter or by optional 12 VDC batteries. - Dracast LED1000 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates Get a lighting kit that you can use nearly anywhere with this LED1000 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates from Dracast. The kit is comprised of three LED1000 fixtures rated at 5600K, each with a case, light stand, and multi-voltage power adapter, a great basic set to get started with advanced lighting techniques. Each panel also weighs just 5.5 lb, making is extremely useful for both studio and location work where color accuracy and performance are critical. Also, the lights are flicker-free and daylight-balanced for use outdoors or for matching HMI fixtures without the need for gels.

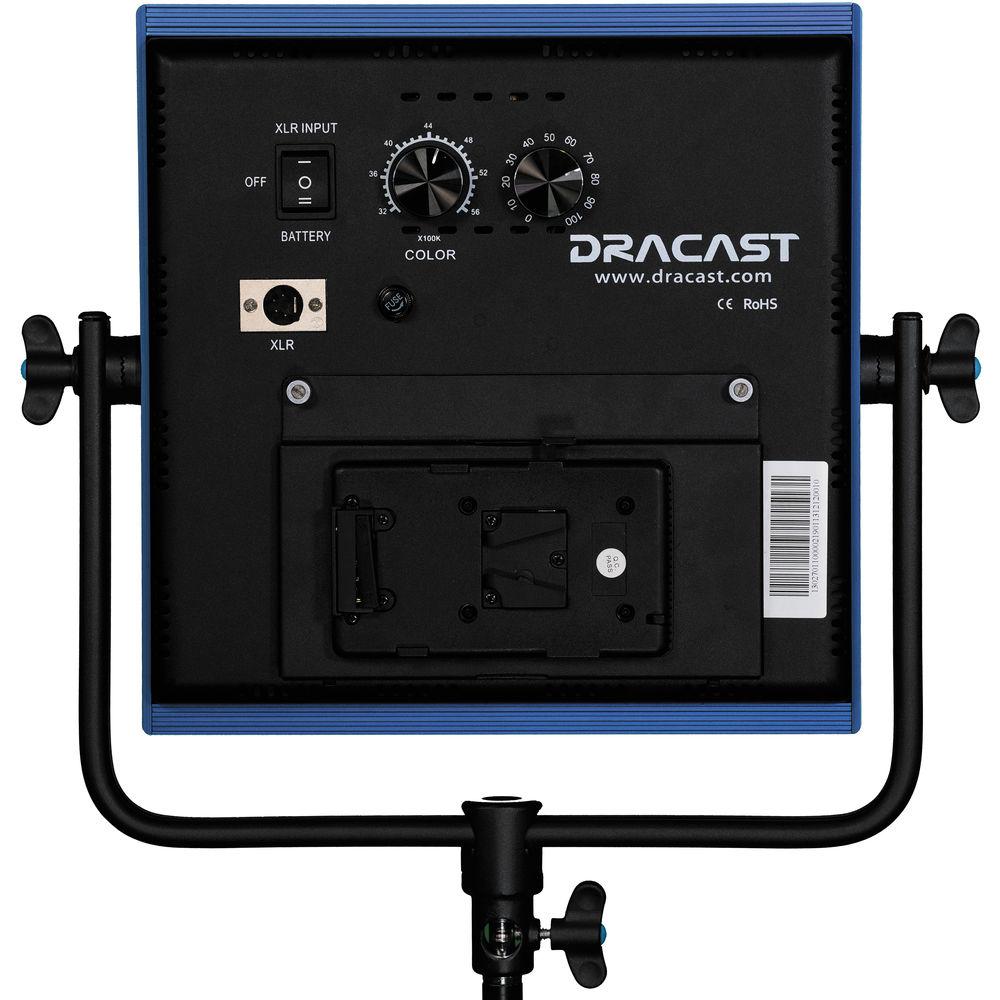

The LED1000 greatly benefits from a high CRI or 95 which offer excellent color reproduction. A knob on the back makes adjusting power output from 0-100% a breeze and the light will generate a hot light equivalent of 1,000W while still running barely warm to the touch. Additionally, it draws just 60W of power and has a durable aluminum frame that features a U-shaped yoke and a standard 5/8" receiver. Along with these features, the fixture has a 100-240 VAC power adapter for worldwide operation and a V-Mount battery plate for using 12 VDC batteries when mains power isn't available. - Photometrics
- 18,750 lux/ 1,800 fc @ 3.0' (0.9 m)
4,950 lux/ 450 fc @ 6.0' (1.8 m)
2,250 lux/ 225 fc @ 9.0' (2.7 m)

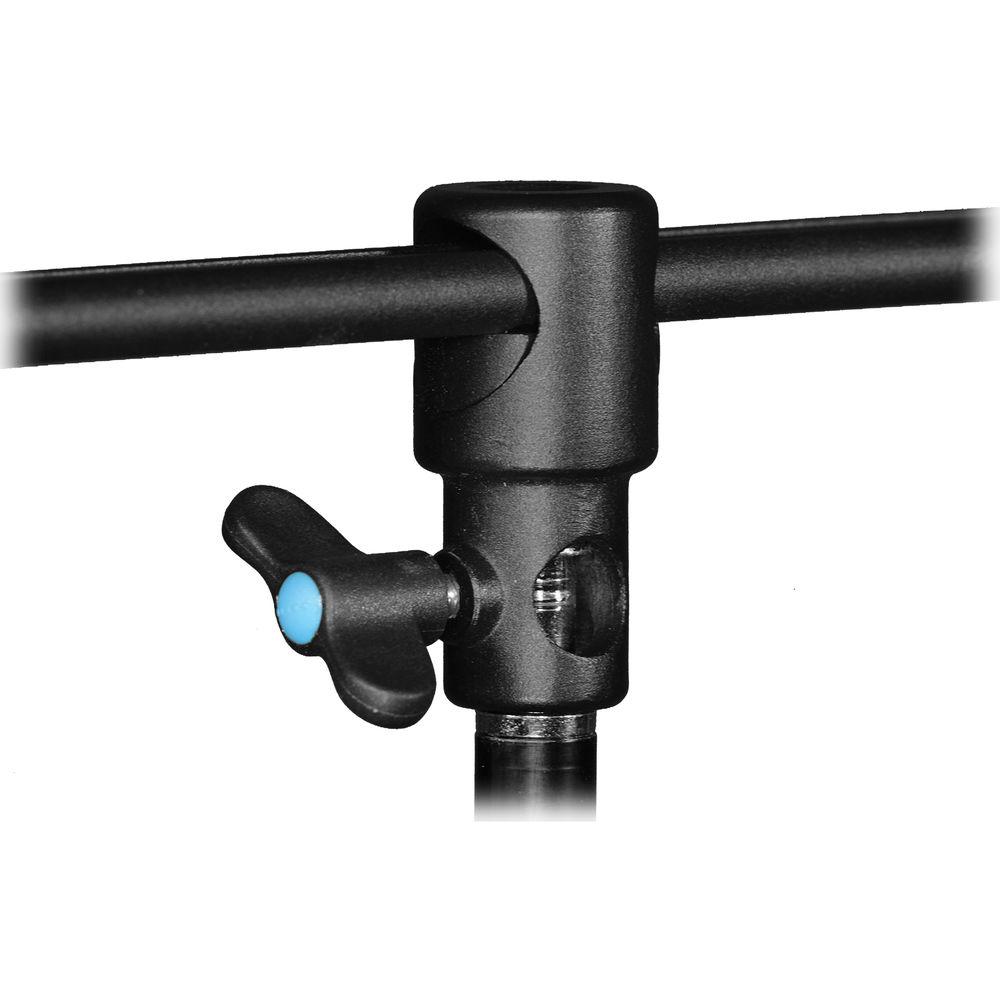

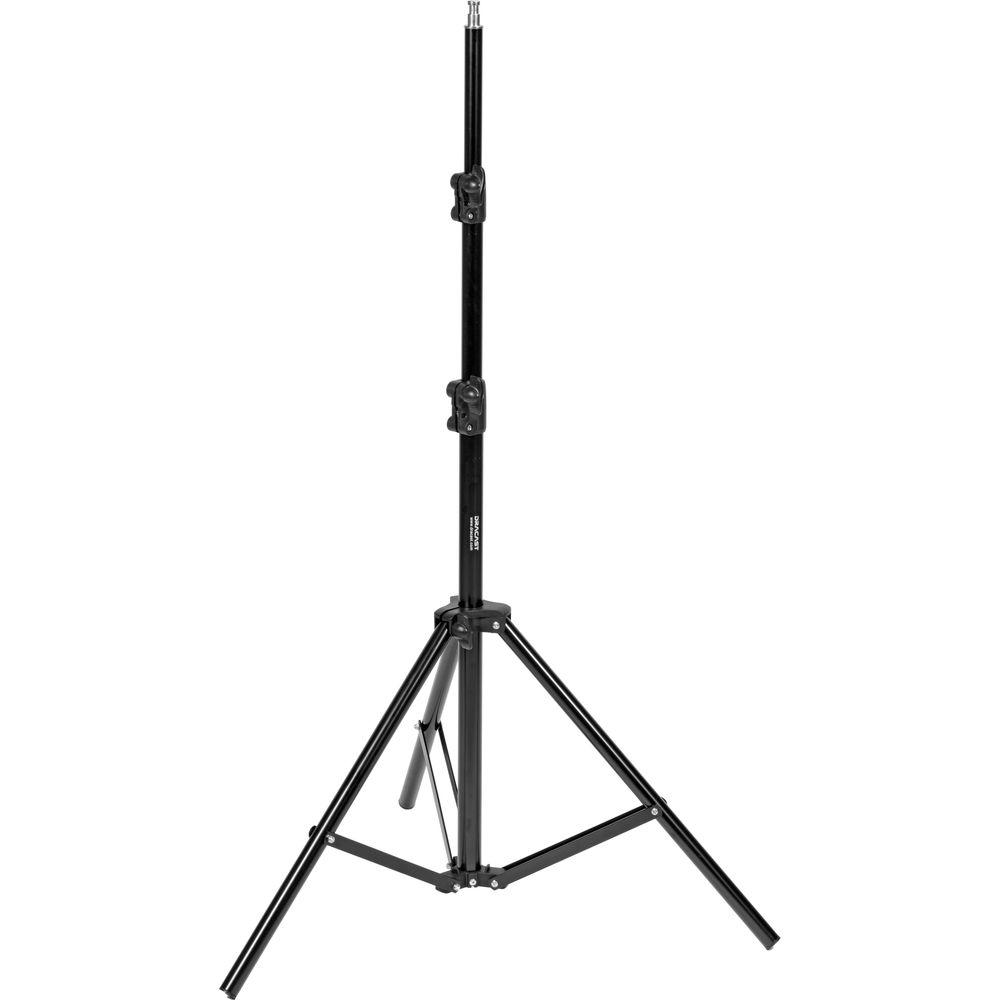

1,200 lux/ 120 fc @ 12' (3.6 m) UPC: 720189882111 - 3 x Dracast DLS-805 Spring-Cushioned Light Stand (6') The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5" to 72" and has a load capacity of 13 lb. It folds down to 28.5" for transport, and weighs 3.4 lb. There is a 5/8" stud on top of the stand.
The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments. UPC: 639713546699 In the Box - LED1000 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates
- 3 x LED1000 Pro Daylight LED Light with V-Mount Battery Plate
- 3 x AC Power Adapter for LED1000 Light

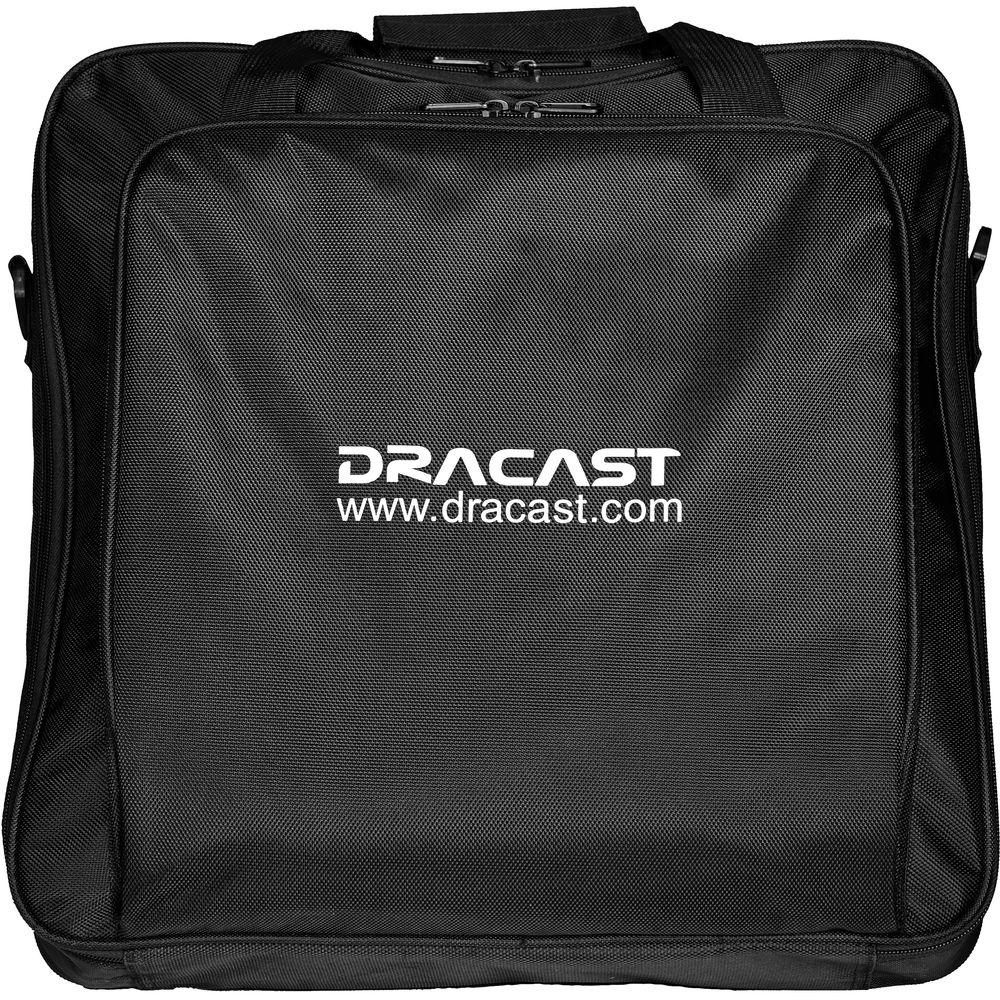

- 3 x Carry Case
- Limited 1-Year Warranty
- 3 x DLS-805 Spring-Cushioned Light Stand (6')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED1000 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates and Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dracast LED1000 Pro Daylight LED Light with V-Mount Battery Plate
| | | Beam Angle | 45° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 12.0 x 12.0 x 2.0" / 305.0 x 305.0 x 51.0 mm | | Fixture Weight | 5.5 lb / 2.5 kg | | | | Battery Plate | 1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Box Dimensions (LxWxH) | 17.953 x 17.717 x 7.795" | - Dracast AC Power Adapter for LED1000 Light
| | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Box Dimensions (LxWxH) | 8.3 x 5.9 x 2.6" | - 3 x Dracast DLS-805 Spring-Cushioned Light Stand (6')
| Load Capacity | 13 lb / 6 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 72" / 182.9 cm | | Minimum Working Height | 28.5" / 72.4 cm | | Collapsed Height | 28.5" / 72.4 cm | | Leg Shape | Round | | Air Cushioned | No Spring-Cushioned | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Material | Aluminum | | Weight | 3.4 lb / 1.5 kg | | Warranty Length | Limited 1-Year Warranty | | | | Box Dimensions (LxWxH) | 37.5 x 4.0 x 4.0" |
