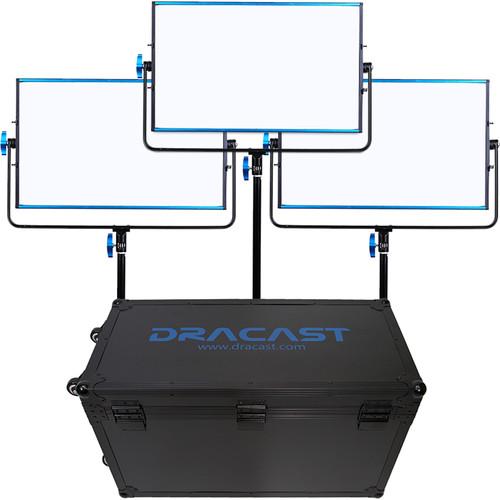

Dracast LED1000D Silq Daylight LED 3-Light

User Manual for Dracast LED1000D Silq Daylight LED 3-Light Kit

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

• LED1000 Silq Daylight LED Panel Another addition to Dracast's extensive line of LED panels, the all metal, 22 x 16 x 2" LED1000 Silq Daylight LED Panel offers 5600K color temperature with a high CRI of 96, indicative of accurate and faithful color rendering that makes it ideal for shooting outdoors, in spaces with large windows, or to match other daylight-balanced fixtures such as HMIs. Light intensity is variable from 0-100% and dimming can be controlled remotely via onboard DMX or with the added enhancement of wireless IR control that can make adjustments at distances up to 100'. Labeled "IRR", this function not only works with the Silq series but also with Kala series lights or multiple lights that includes both series.Offering wide coverage, the Silq has a beam angle of 120 degrees can be further modified using separately purchased, removable barndoors. The panel is ready for worldwide use thanks to the included multi-voltage power adapter. UPC: 612520464349
• iSeries 3021-18 Waterproof Utility Case The SKB iSeries 3021-18 Waterproof Utility Case is a water and dustproof, polypropylene, copolymer resin case. It is resistant to UV, solvents, corrosion, fungus, and impact damage to keep your delicate items safe and dry. It features an automatic ambient pressure equalization valve as well as a secure molded-in hinge design. A trigger release latch system maintains a tight seal and offers easy access.

  Transporting the case is possible with three snap-down, overmolded grip handles and one tow handle to use when rolling the case on the four in-line skate-style wheels. The padlock holes come with stainless steel protector clips .
  • The case comes empty
  UPC: 789270995208

• AC Adapter

• Soft Nylon Case

• Limited 1-Year Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED1000 Silq Daylight LED Panel

  Light Source	680 SMD LEDs
  Beam Angle	120°
  CRI	96
  Color Range	5600K
  Dimming	0-100%
  DMX	Yes, In and Out
  Control	Locally on the unit DMX Wireless IRR, 100' (30.5 m) range
  Construction	All metal chassis
  Operating Voltage	100-240 VAC, 50/60 Hz
  Power Consumption	100
  Mount	Yoke with 5/8" (16 mm) receiver
  Dimensions	22 x 16 x 2.0" (55.8 x 40.6 x 5.0 cm)
  Weight	7.2 lb (3.3 kg)

  Box Dimensions (LxWxH)	23.5 x 19.0 x 7.0"

• iSeries 3021-18 Waterproof Utility Case

  Carry/Transport Options	Side Handle, Top Handle, Wheels
  Closure Type	Latch
  Materials	Polypropylene
  Interior Contents	None
  Exterior Dimensions	18.9 x 23.5 x 32.9" / 48.0 x 59.7 x 83.6 cm
  Interior Dimensions	30 x 21 x 18" / 76.2 x 53.3 x 45.7 cm
  Base Depth	16" / 40.64 cm
  Lid Depth	2" / 5.08 cm
  Interior Cubic Volume	6.6 ft³ / 0.187 m³
  Watertight	Yes
  MIL Certification	MIL-STD-4150J, MIL-STD-648C, MIL-STD-810F, per Manufacturer
  Storage Temperature	-40 to 210°F / -40 to 98.9°C
  Weight	37 lb / 16.8 kg

  Box Dimensions (LxWxH)	34.0 x 22.0 x 19.0"
