Product description

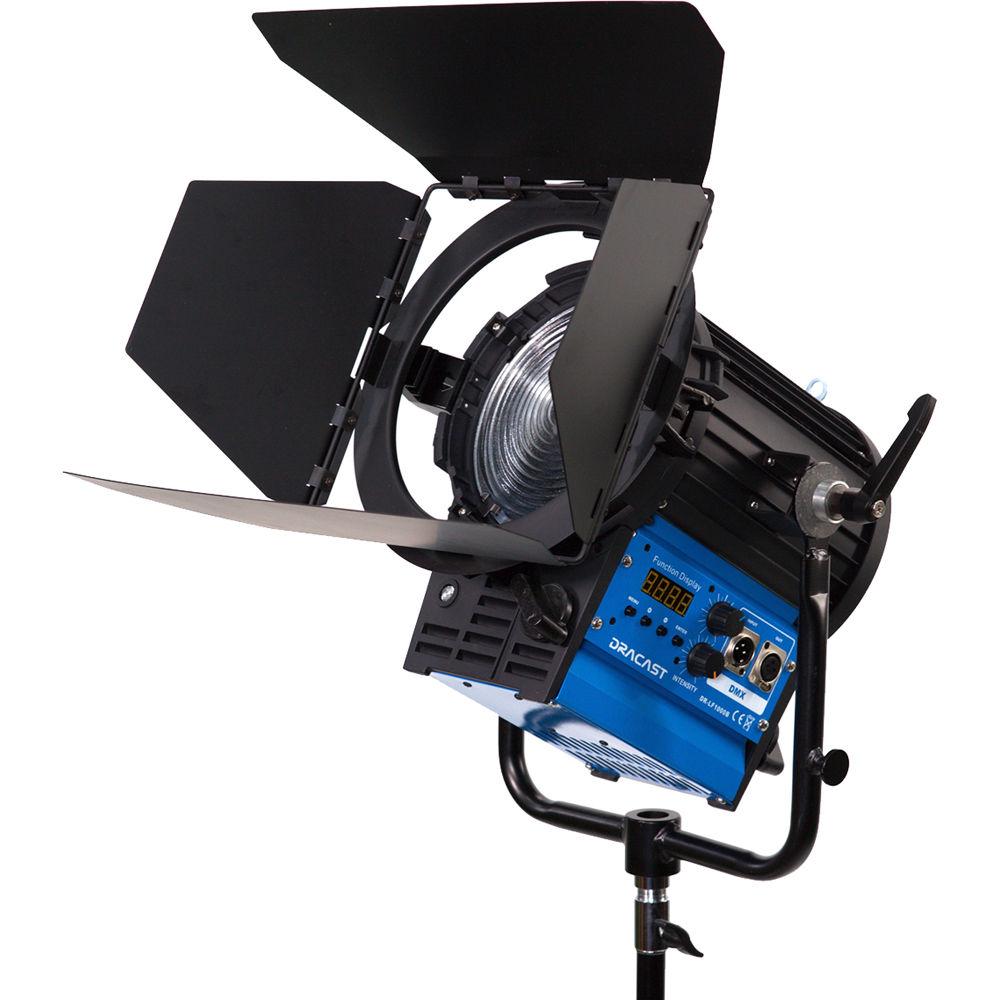

• Fresnel1000 Daylight LED Light The Fresnel1000 Daylight LED Light from Dracast is packed with the latest LED technology backed with solid construction and intuitive design. The daylight-balanced light has a Kelvin temperature of 5600K for work outdoors or to match other light sources such as HMIs. Dimming from 0-100% is easily done locally on the unit or remotely via DMX. The fixture's wide 15-60 spot to flood range allows impressive control of the field of light which can be further controlled with the included barndoors. For sound-sensitive situations, the Fresnel 1000 is designed with a completely silent passive heat sink cooling system. The Fresnel1000 outputs the equivalent of a 1000W tungsten halogen Fresnel while running cool to the touch and consuming a fraction of the power, resulting in lower HVAC running costs in the studio and a quick return on your investment. The light ships with a 100-240 VAC power adapter for worldwide use and, with an optional adapter, it also runs on 24 VDC in locations where mains power is unavailable. The Fresnel1000 comes with a 5/8" receiver for hanging or stand mounting.
  Photometrics
  • At 15°
    4250 lux at 6.0' (1.8m)
    1080 lux at 12' (3.6m)
    480 lux at 18' (5.5m)
    At 60°
    1600 lux at 6.0' (1.8m)
    400 lux at 12' (3.6m)
    180 lux at 18' (5.5m)
  UPC: 683405283584

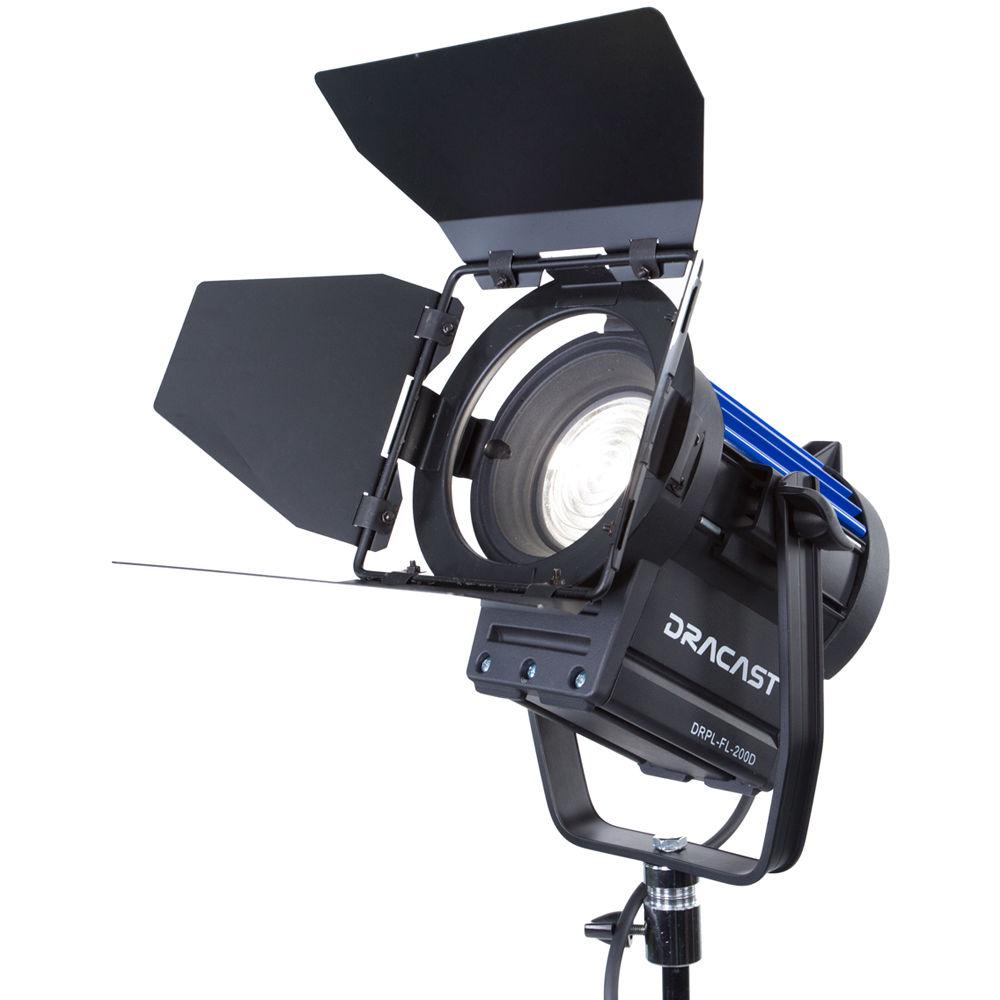

• Fresnel 200 Daylight LED Light Part of the expanding line of Fresnels, the Dracast Fresnel 200 Daylight LED Light has the same quality features as its larger siblings like the Fresnel 2000, but in a smaller lighter package. Ideal for working close-up where less power is needed, the Fresnel 200 offers 0-100% dimming locally and high output with extremely low power draw and virtually no generated heat. This means that no fan is needed and the light runs dead quiet - an important feature in sound-sensitive environments. And the output has a very high CRI rating of 95 thanks to Dracast's use of Cree Surface Mount LED, meaning faithful rendering of colors down to the most subtle tones. The LED 200 is built on a sturdy aluminum alloy housing and comes with a mounting yoke and 4-way barndoors. UPC: 712324583182

• 4-Way Barndoors

• AC Power Adapter

• Limited 1-Year Warranty

• Four-Way Barndoors

• Limited 1-Year Warranty

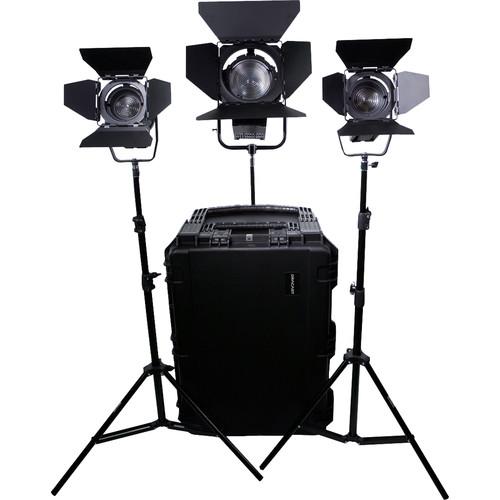

Also Includes

• 3 x Light Stands

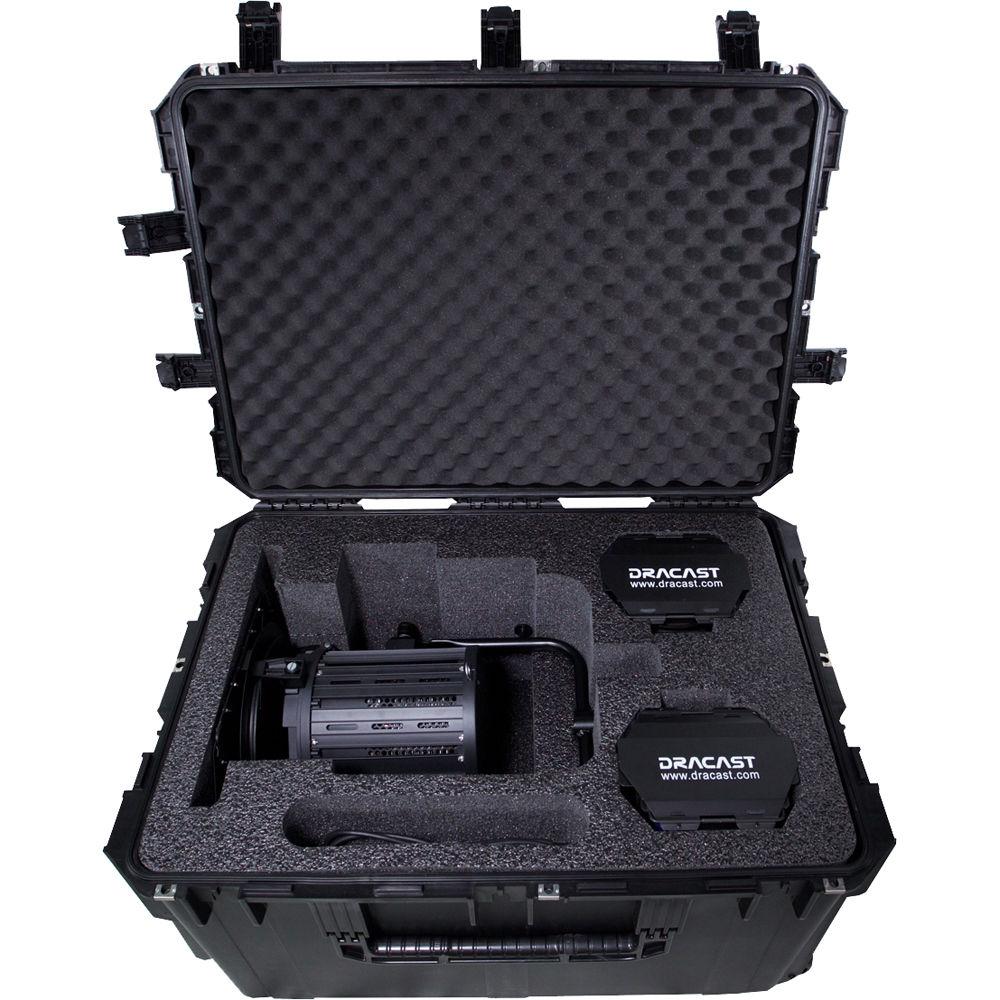

• Case for Lights
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fresnel1000 Daylight LED Light

  Color Temperature	5600K
  Color Accuracy Standard	CRI 90
  Cooling System	Passive
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Lumens	8500
  Fixture Dimensions	20.4 x 15.8 x 13.0" / 51.8 x 40.0 x 33.0 cm (Including Yoke & Barndoors)
  Fixture Weight	18.75 lb / 8.5 kg (Including Yoke, Barndoors)

  DMX Connector	3-Pin XLR

  Lens Diameter	7" / 17.8 cm
  Lens Type	Fresnel

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	24 VDC at 5 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	100 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	18.0 x 16.0 x 14.0"

• Fresnel 200 Daylight LED Light

  Beam Angle	15 to 60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Dimming	Yes, 0 to 100% (Continuous)
  Display	None
  Expected Lamp Life	50,000 Hours
  Fixture Dimensions	10.2 x 775.0 x 7.0" / 260.0 x 197.0 x 178.0 mm
  Fixture Weight	4.85 lb / 2.2 kg

  Lens Diameter	3" / 76.2 mm
  Lens Type	Fresnel

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	110 to 250 VAC, 50 / 60 Hz at 2 A
  DC Input Power	36 VDC
  Power Source	AC Adapter
  Max Power Consumption	20 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	13.45 x 10.7 x 9.75"
