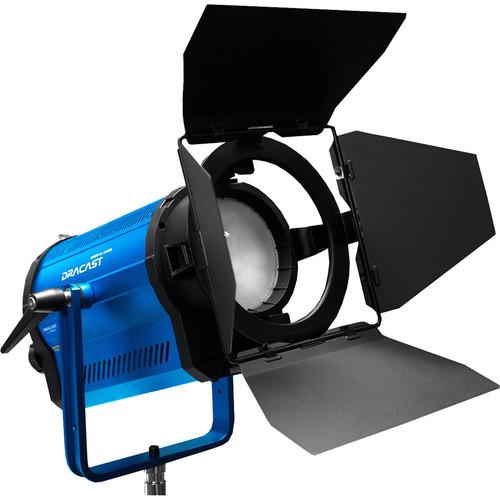

User Manual for Dracast LED1500 Bi-Color LED Fresnel Plus with DMX Control Click to enlarge the picture
Contents of the user manual for the Dracast LED1500 Bi-Color LED Fresnel Plus
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED1500 Bi-Color LED Fresnel Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

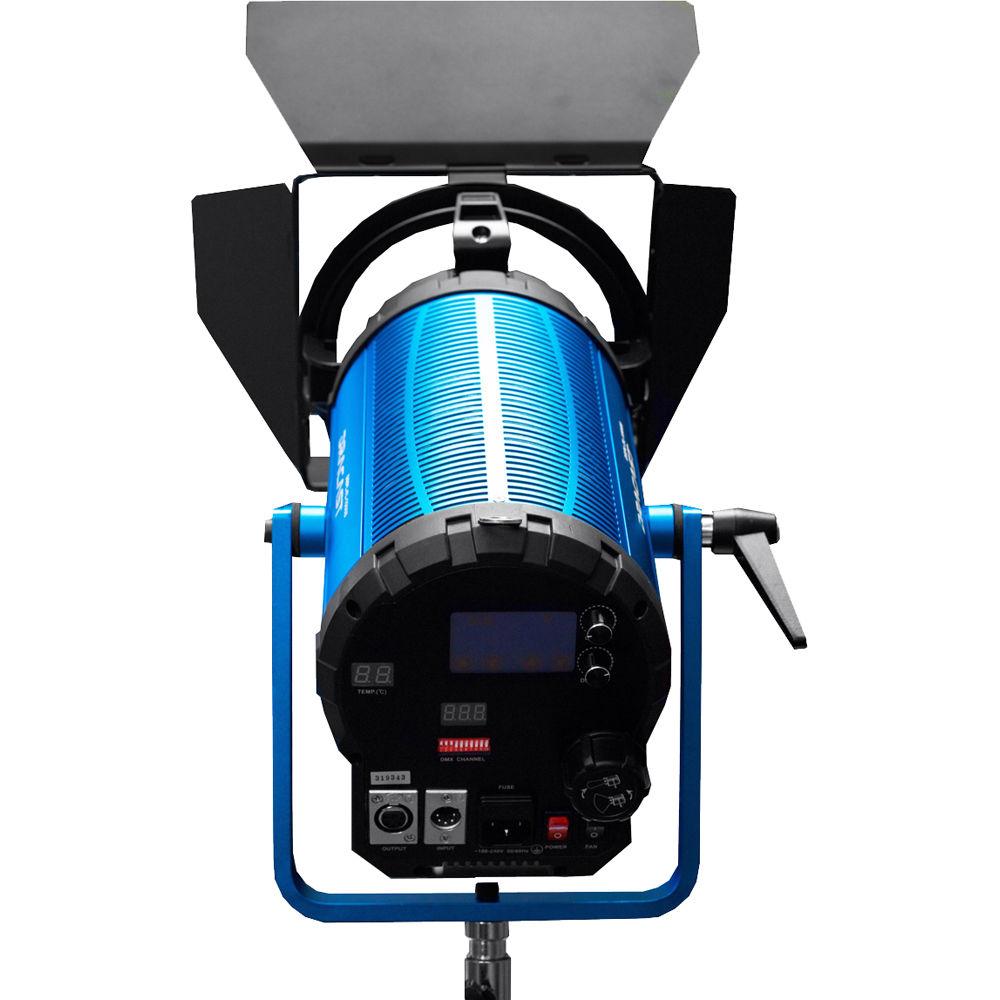

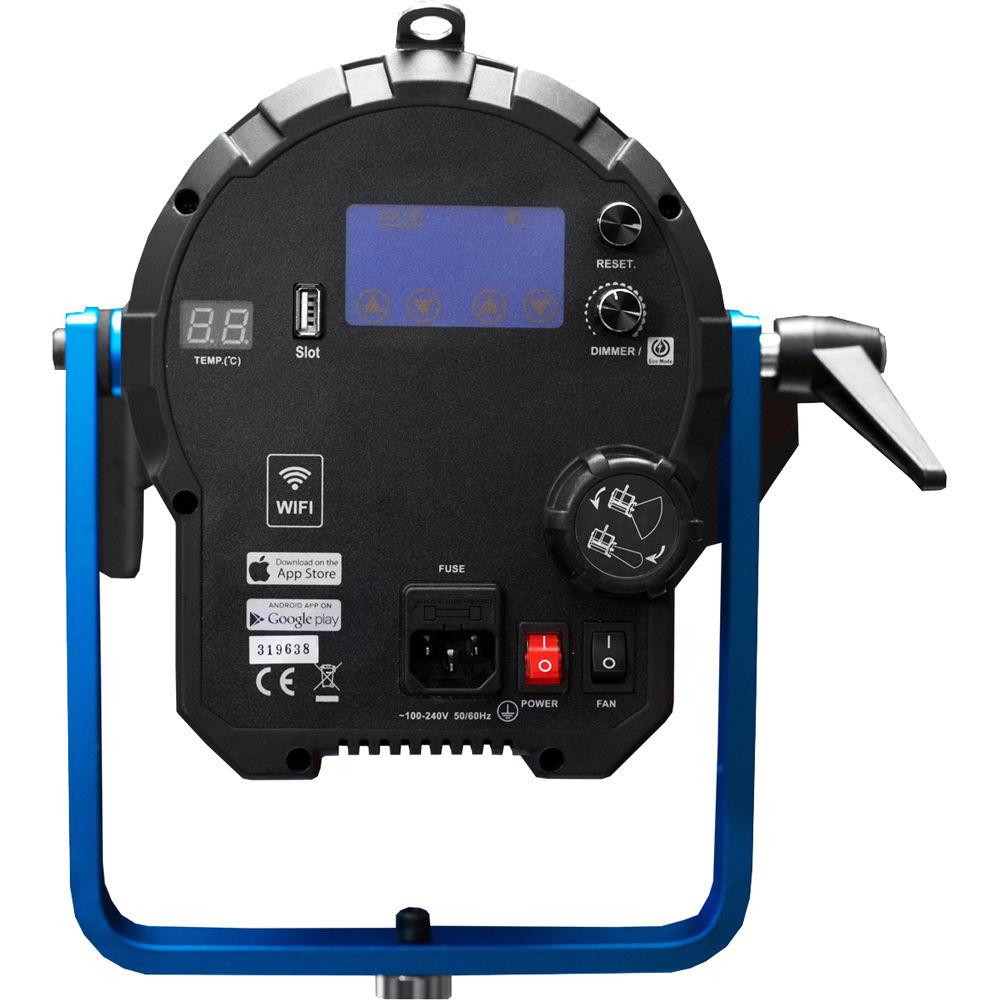

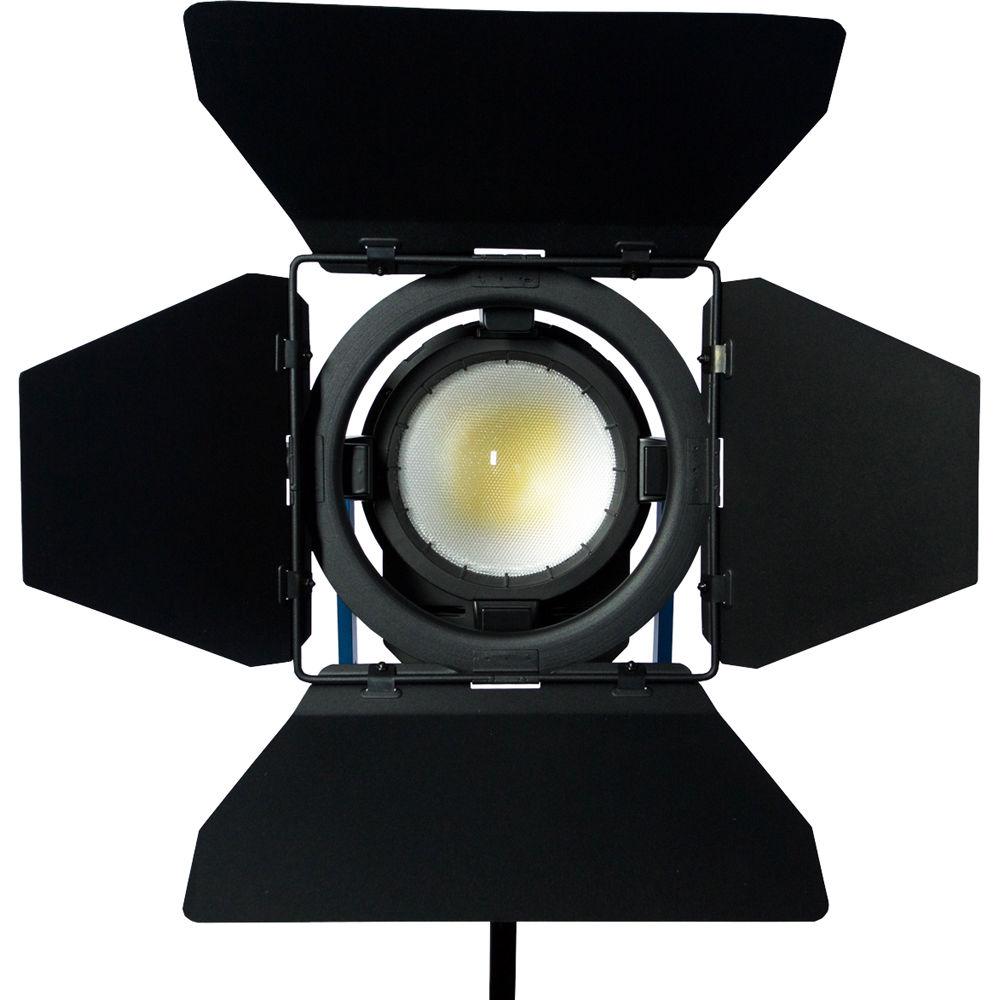

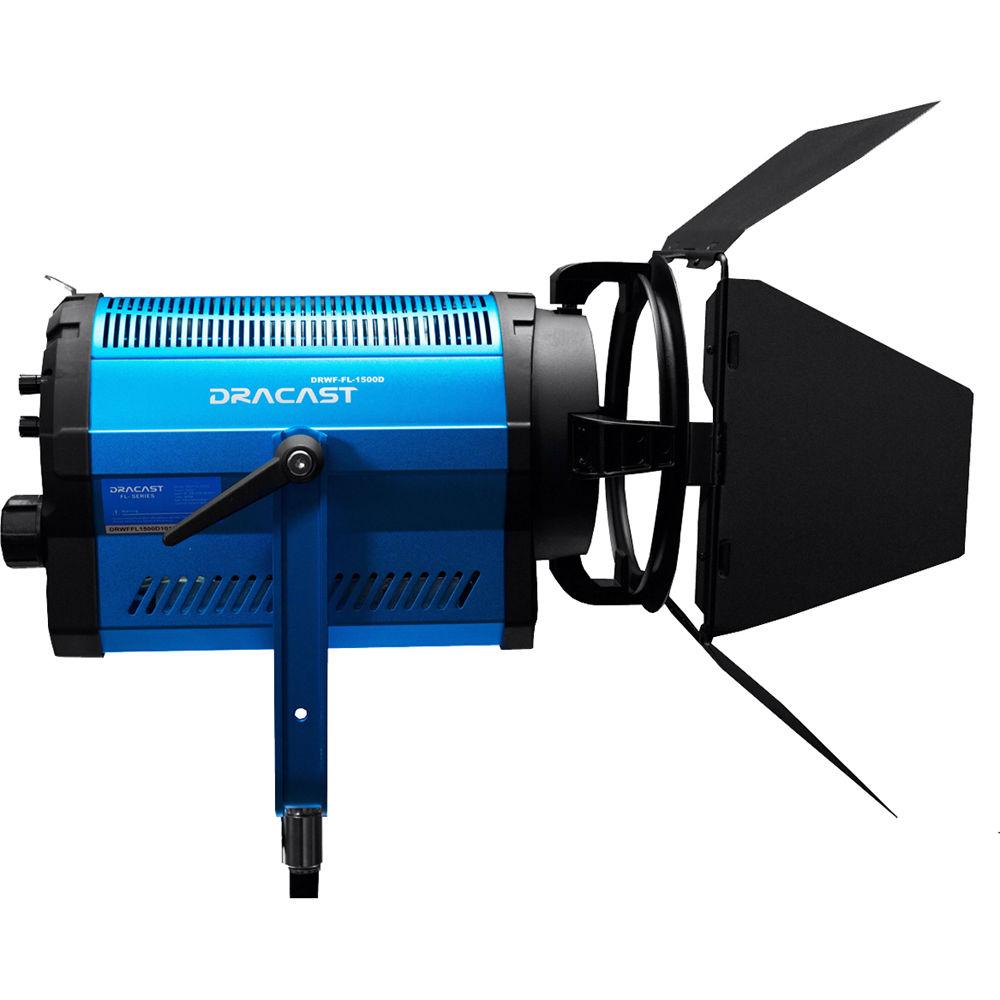

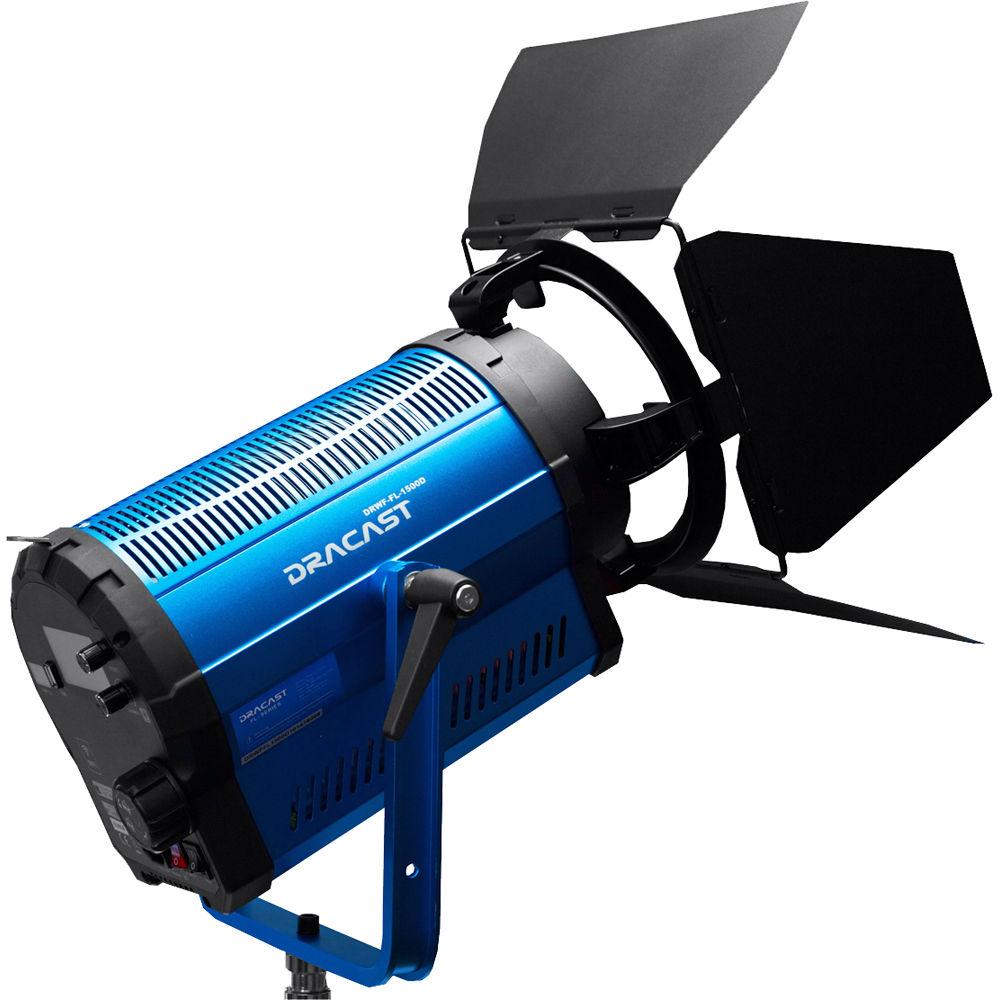

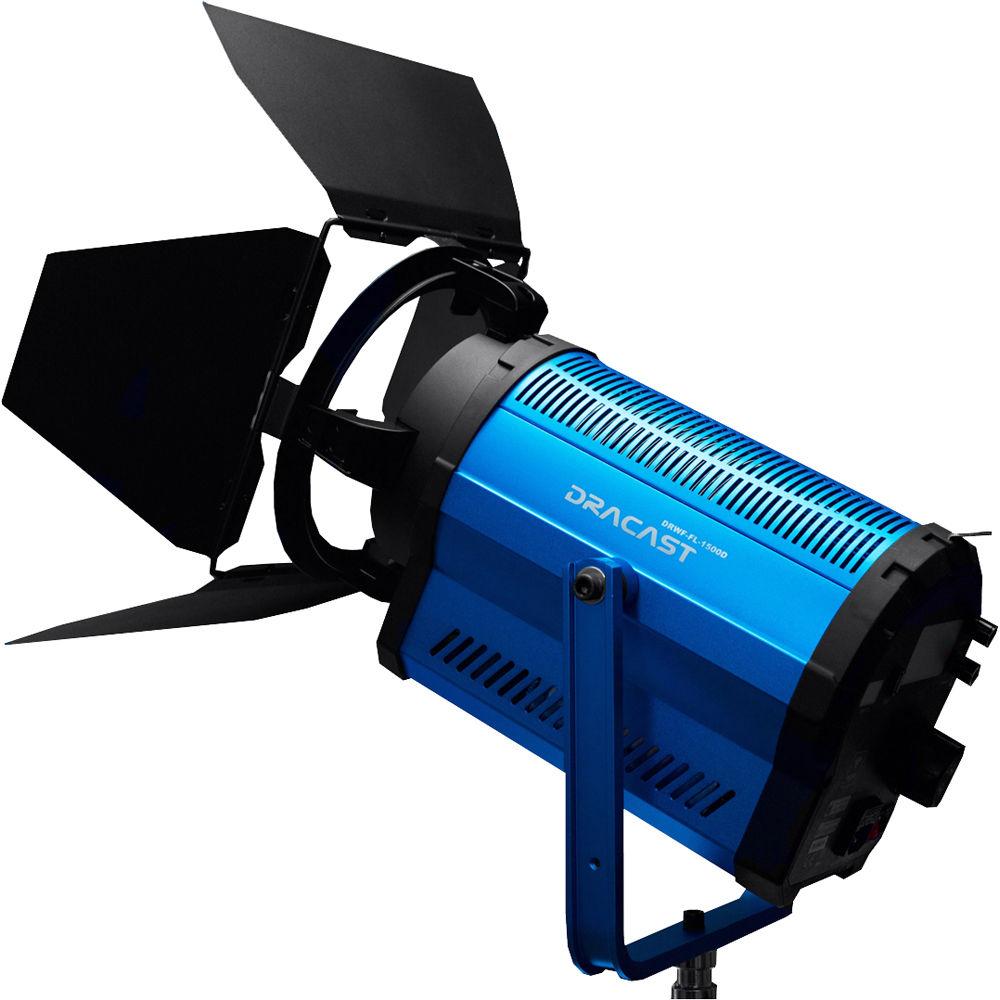

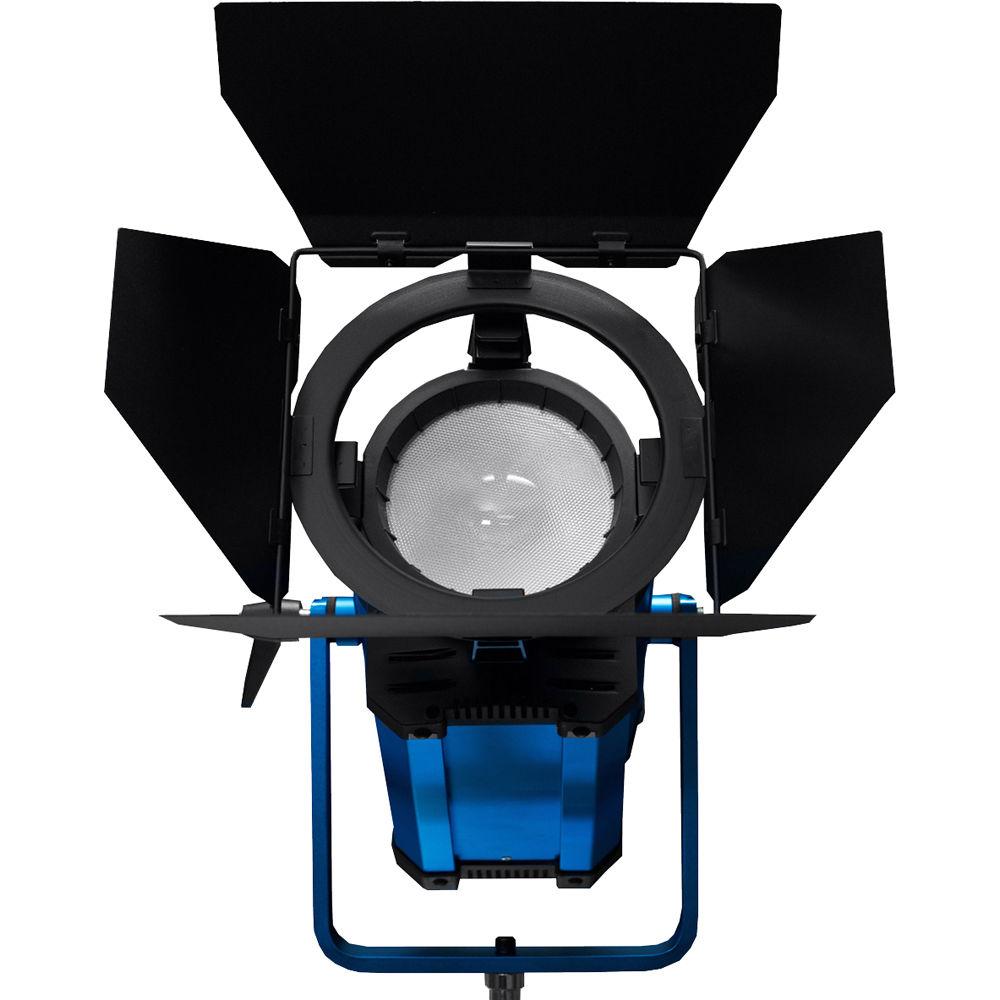

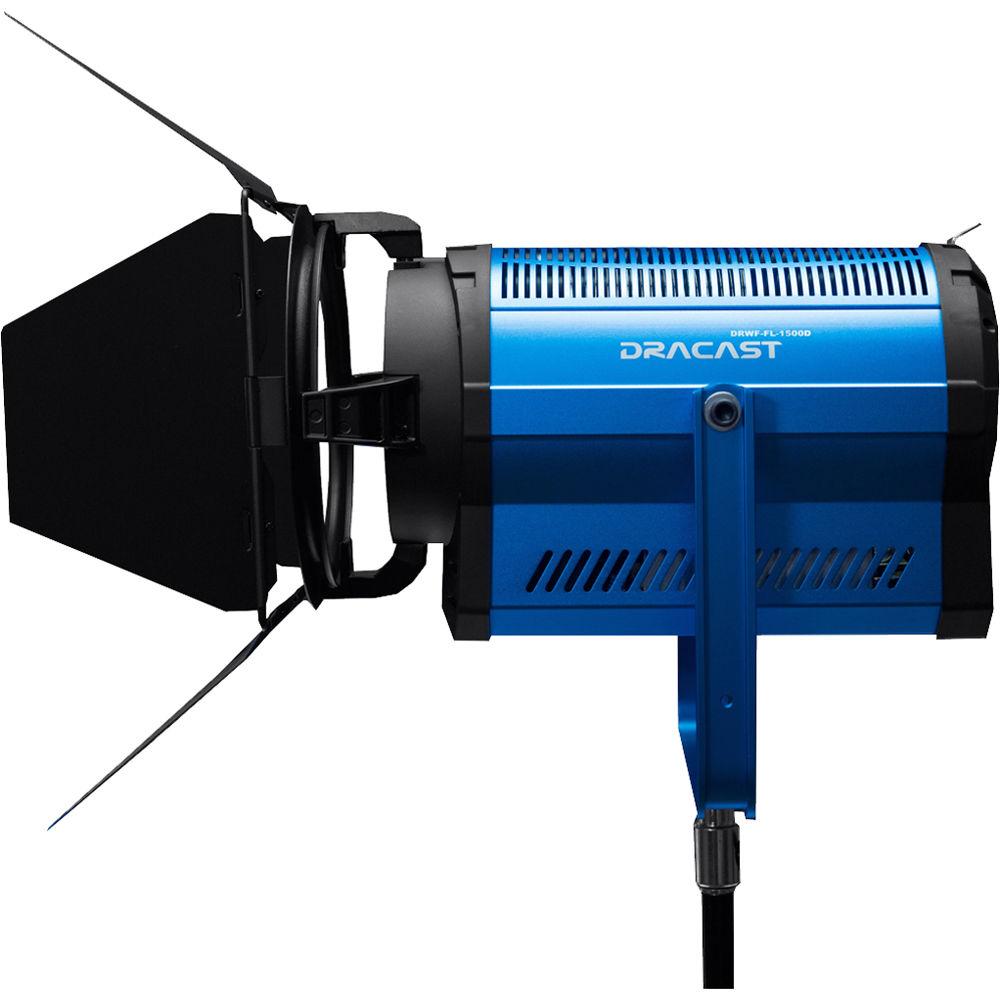

Product description Focus and control your light with this LED1500 Bi-Color LED Fresnel Plus with DMX Control from Dracast which features 5-pin XLR input and output for full DMX512 support so that users can remotely adjust settings on the fixture from a standard controller. The light is projected from a powerful LED source with a CRI of 95 for accurate color rendering and the fixture offers a fresnel lens that allows users to focus the beam from 15-60°. This bi-color model offers a variable color temperature of 3200-5600K, enabling users to quickly and effectively balance the fixture with both tungsten and daylight light sources with ease. Also, for direct control, users will have access to an LCD touchscreen and control knobs to adjust settings, including dimming from 0-100%.
The LED1500 is easily mounted onto stands using its yoke with 5/8" receiver and it comes with a universal 110-240 VAC power supply for operation worldwide. Additionally, it has a hefty aluminum construction for durability and comes with a set of 4-leaf barndoors for light control. UPC: 602401681569 In the Box Dracast LED1500 Bi-Color LED Fresnel Plus with DMX Control Barndoors Power Supply Mounting Yoke Limited 1-Year Warranty User Manual PDF 482.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED1500 Bi-Color LED Fresnel Plus with DMX Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED1500 Specs | | | Beam Angle | 15 to 60° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | LCD Touchscreen | | Expected Lamp Life | 50,000 Hours | | Fixture Weight | 12.25 lb / 5.55 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 2 A | | Power Source | AC Adapter | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 21.1 x 13.4 x 13.3" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
