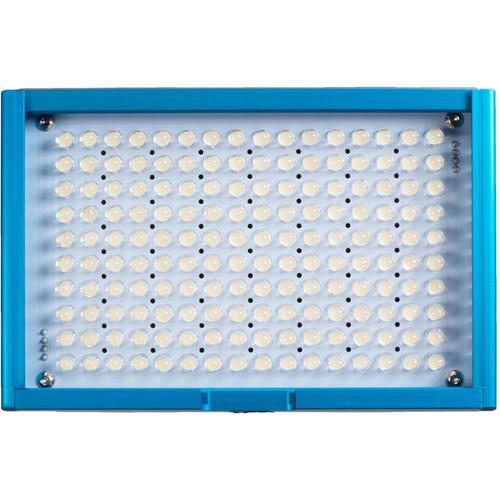

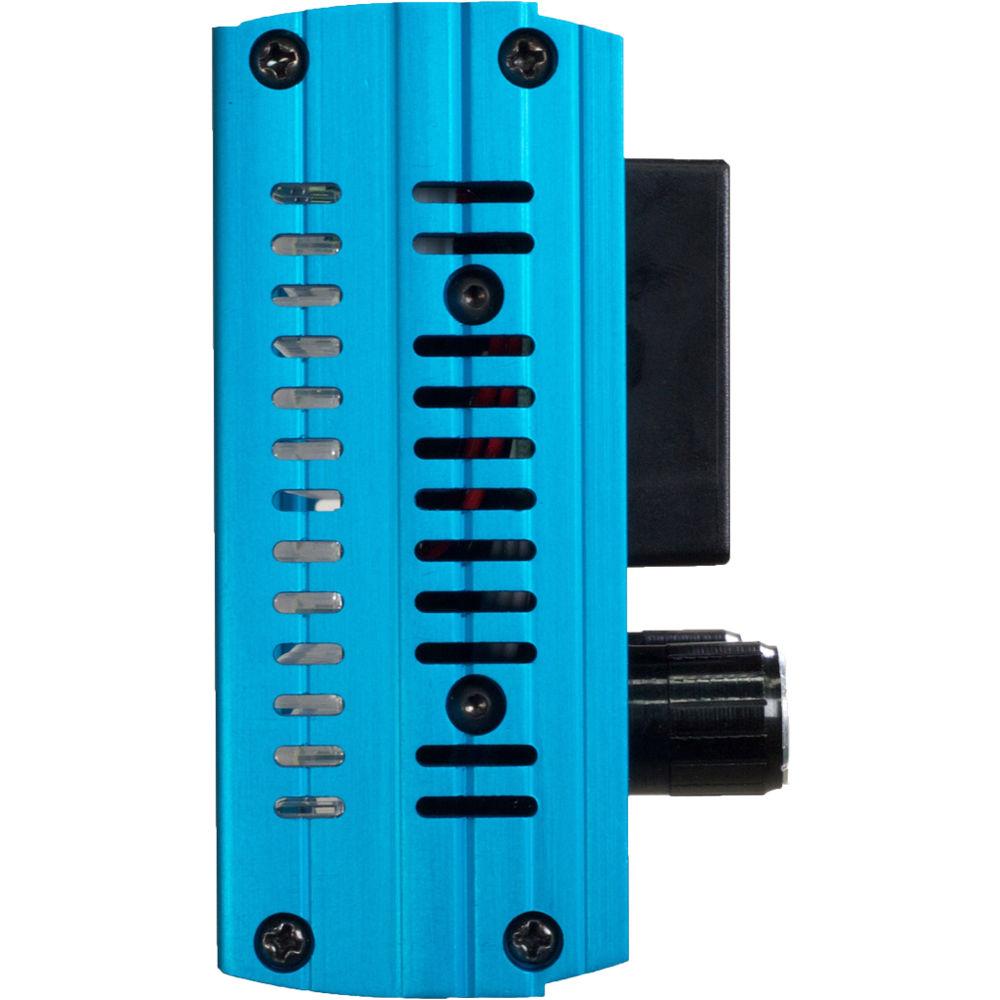

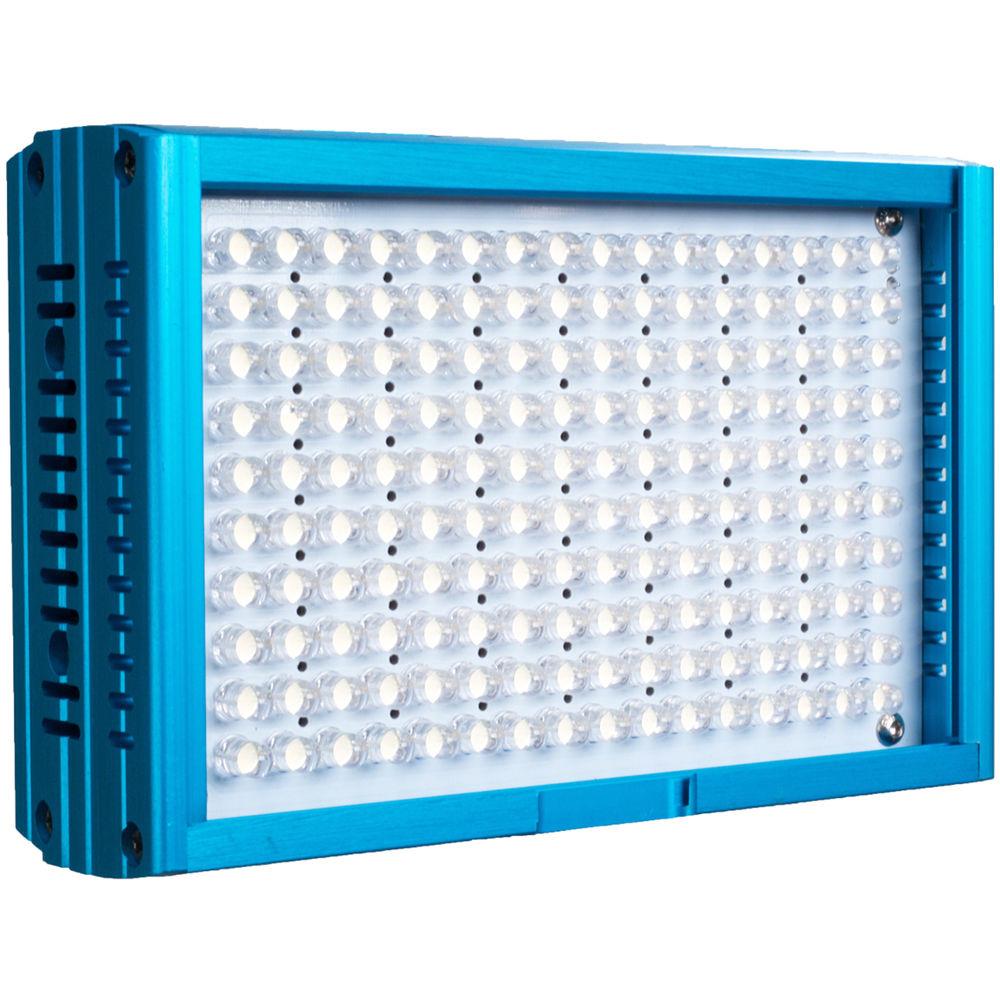

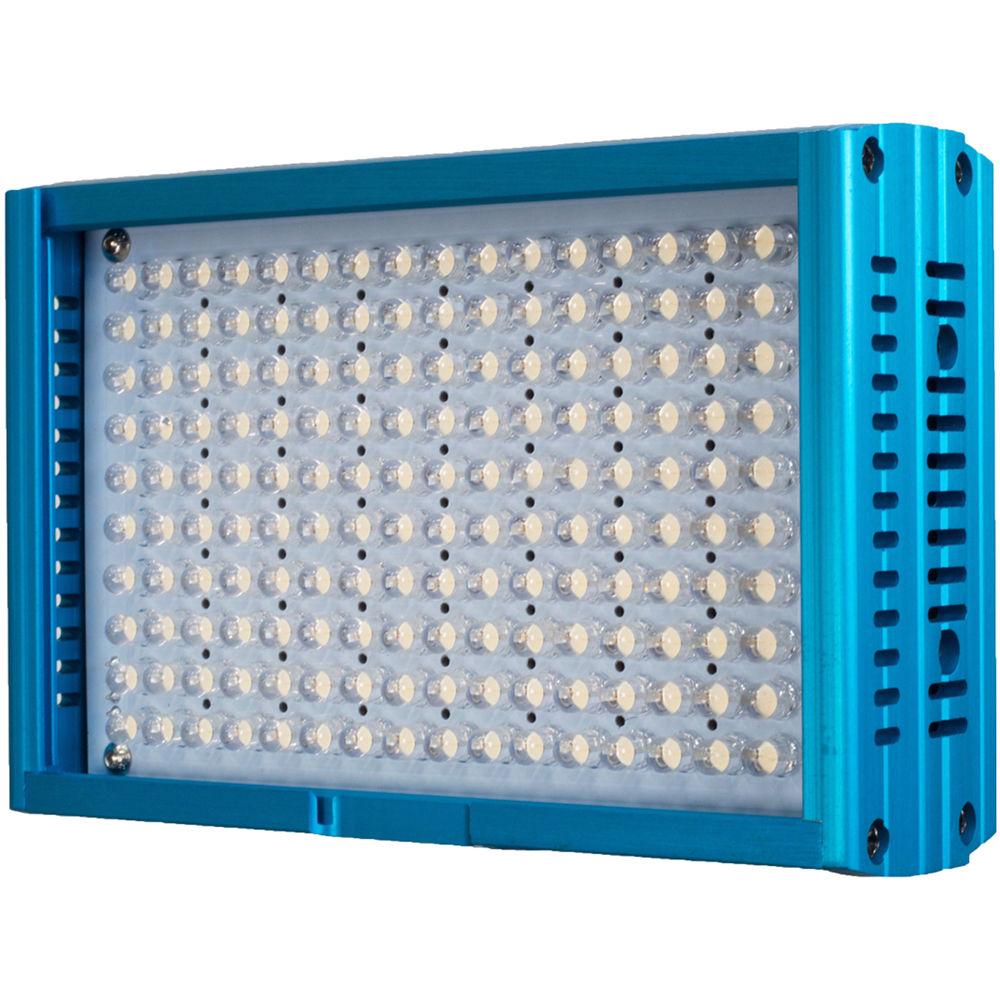

Product description The LED160A Daylight On-Camera LED Light from Dracast is a 5600K daylight-balanced light, housed in an aluminum blue case measuring 6 x 4". With light output equivalent to 160W and a 45° flood beam angle, this light is effective up to 20'. It includes the Sony-type NP-F990 battery and a charger. - Key Features
-
- 5600K daylight-balanced LED light
- 160W equivalent light output
- 45° flood beam angle
- Approximately 20’ effective distance
- Rated at >93 CRI

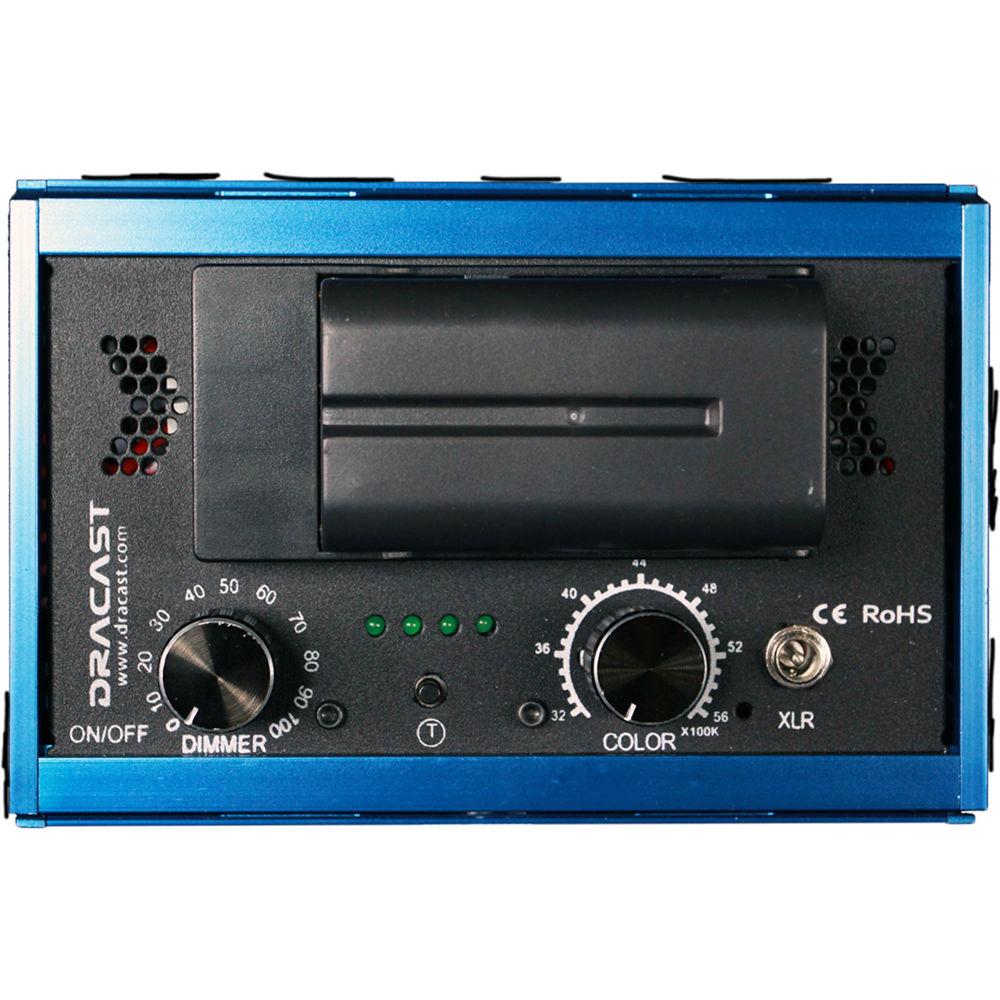

- Brightness dimmer dial on the rear
- Four-LED indicator on the rear

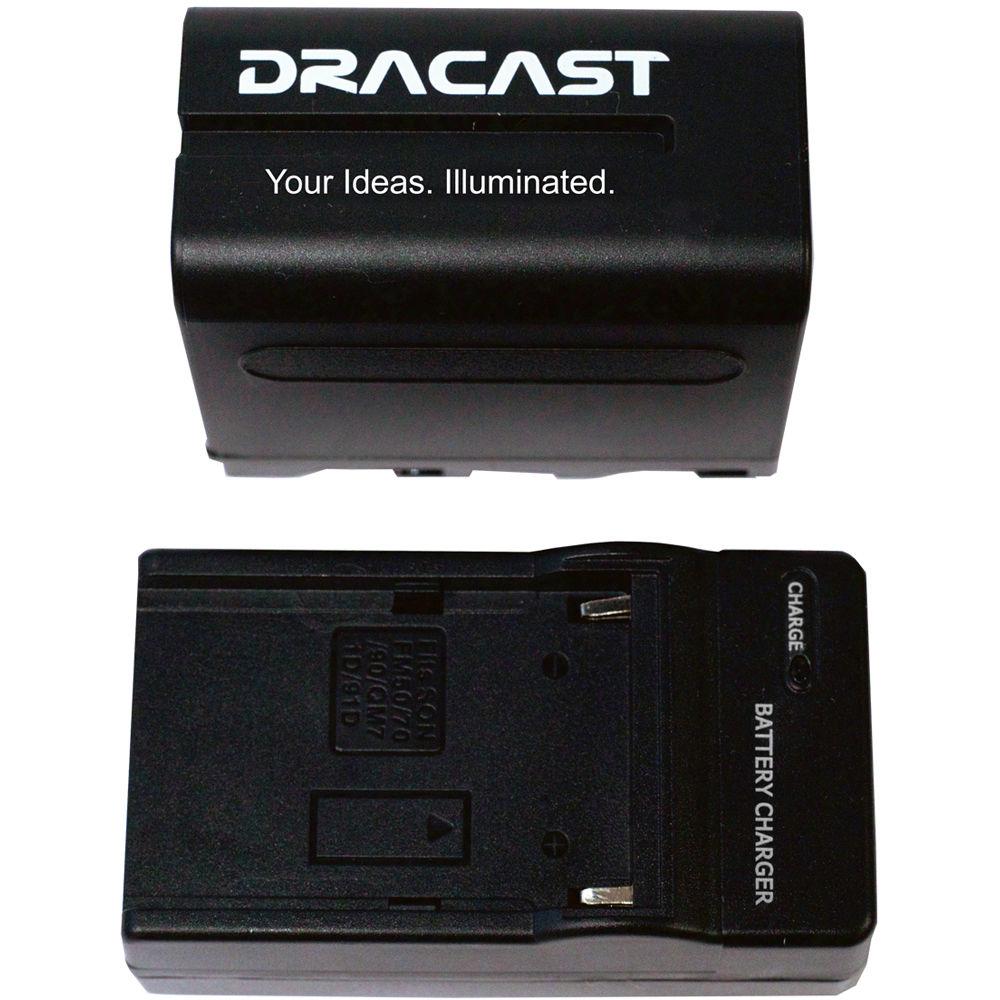

- Supports L-series batteries; includes Sony-type NP-F990 battery with approximate runtime of 5-6 hours

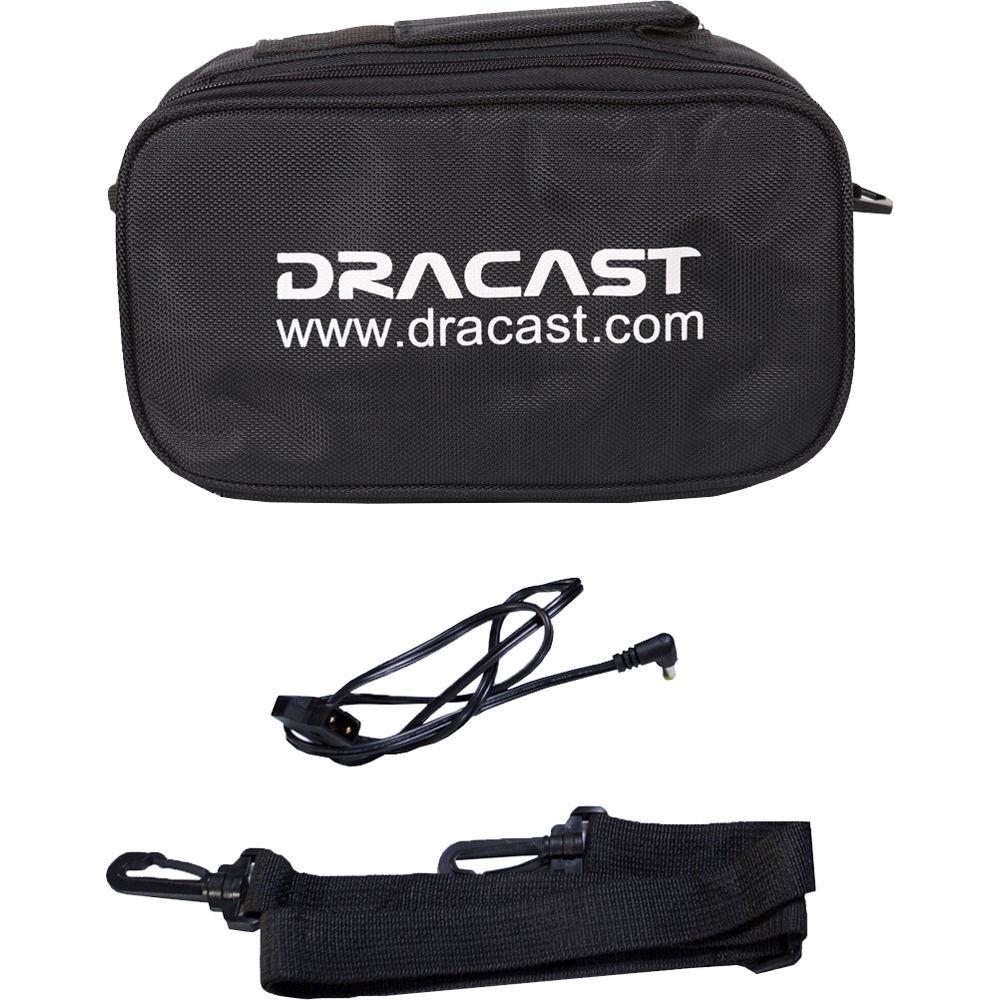

In the Box Dracast LED160A Daylight On-Camera LED Light with Battery & Charger Sony-Type NP-F990 Battery Battery Charger Power Supply D-Tap Cable Shoe Mount Adapter Soft Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED160A Daylight On-Camera LED Light with Battery & Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast Led160A Specs | Light Source | 160 LEDs | | Color Temperature | 5600K | | CRI | >93 | | Beam Angle | 45° flood | | Effective Distance | Approximately 20' (6 m) | | LED Life Expectancy | 50,000 hours | | Housing Material | Aluminum | | Battery Support | Integrated plate supports L-series type batteries
Sony-type NP-F990 battery and charger included | | Illumination | 3' (0.9 m): 1550 lux / 144 fc
6' (1.8 m): 390 lux / 36 fc
9' (2.7 m): 175 lux / 16 fc
12' (3.6 m): 100 lux / 9 fc | | Mount Type | 1/4"-20 threaded hole | | Power Input | 7.2 to 8.4 VDC | | Power Consumption | Approximately 9.5 W maximum | | Dimensions | 6 x 4 x 2" (15.24 x 10.16 x 5.00 cm) | | Weight | 8 oz (226.8 g) without battery |
