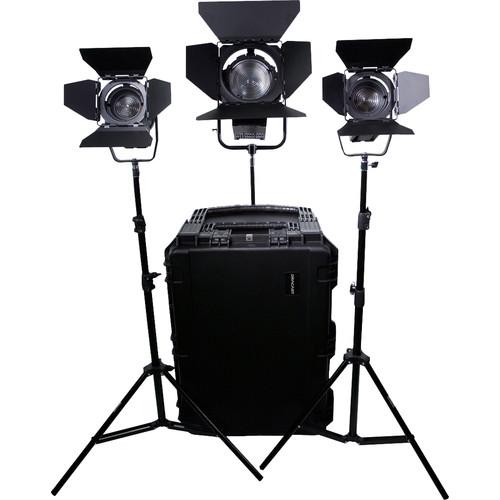

Dracast LED2000 3-Light Fresnel Kit

User Manual for Dracast LED2000 3-Light Fresnel Kit

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

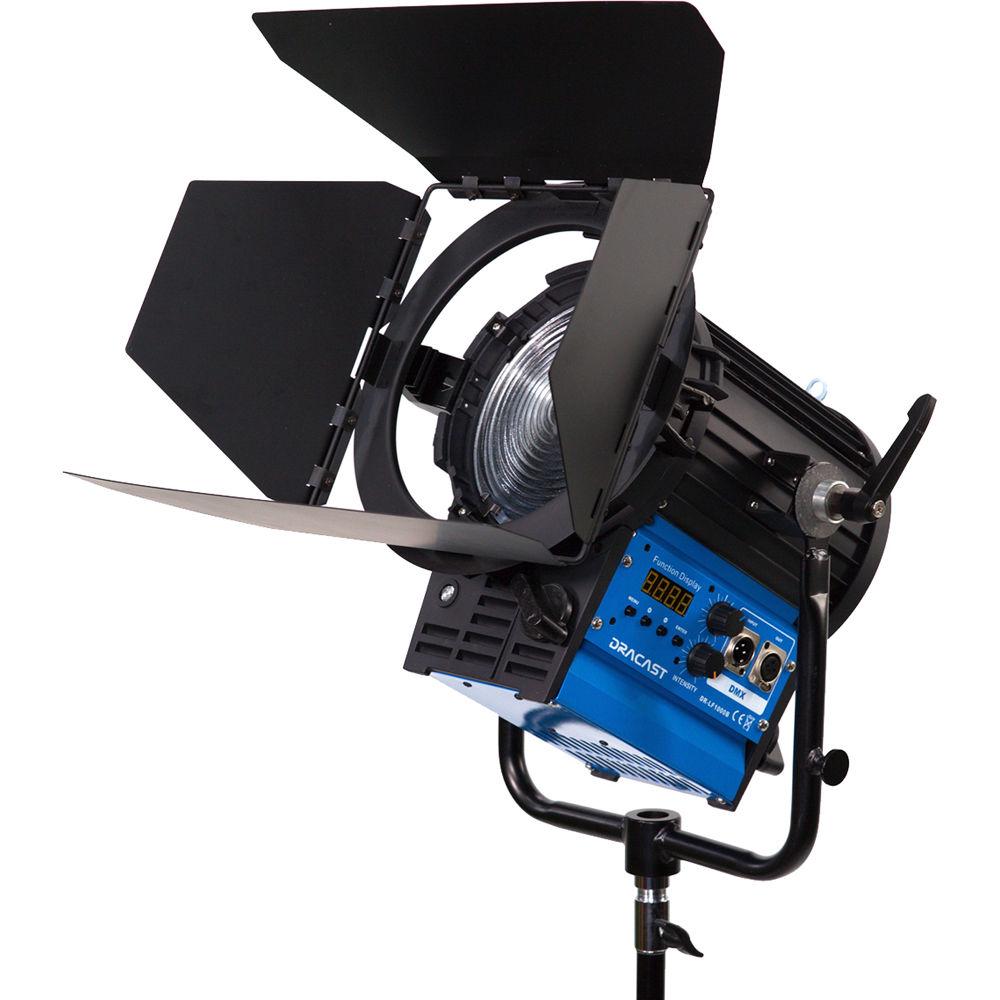

• Fresnel1000 Daylight LED Light The Fresnel1000 Daylight LED Light from Dracast is packed with the latest LED technology backed with solid construction and intuitive design. The daylight-balanced light has a Kelvin temperature of 5600K for work outdoors or to match other light sources such as HMIs. Dimming from 0-100% is easily done locally on the unit or remotely via DMX. The fixture's wide 15-60 spot to flood range allows impressive control of the field of light which can be further controlled with the included barndoors. For sound-sensitive situations, the Fresnel 1000 is designed with a completely silent passive heat sink cooling system. The Fresnel1000 outputs the equivalent of a 1000W tungsten halogen Fresnel while running cool to the touch and consuming a fraction of the power, resulting in lower HVAC running costs in the studio and a quick return on your investment. The light ships with a 100-240 VAC power adapter for worldwide use and, with an optional adapter, it also runs on 24 VDC in locations where mains power is unavailable. The Fresnel1000 comes with a 5/8" receiver for hanging or stand mounting.
  Photometrics
  • At 15°
    4250 lux at 6.0' (1.8m)
    1080 lux at 12' (3.6m)
    480 lux at 18' (5.5m)
    At 60°
    1600 lux at 6.0' (1.8m)
    400 lux at 12' (3.6m)
    180 lux at 18' (5.5m)
  UPC: 683405283584

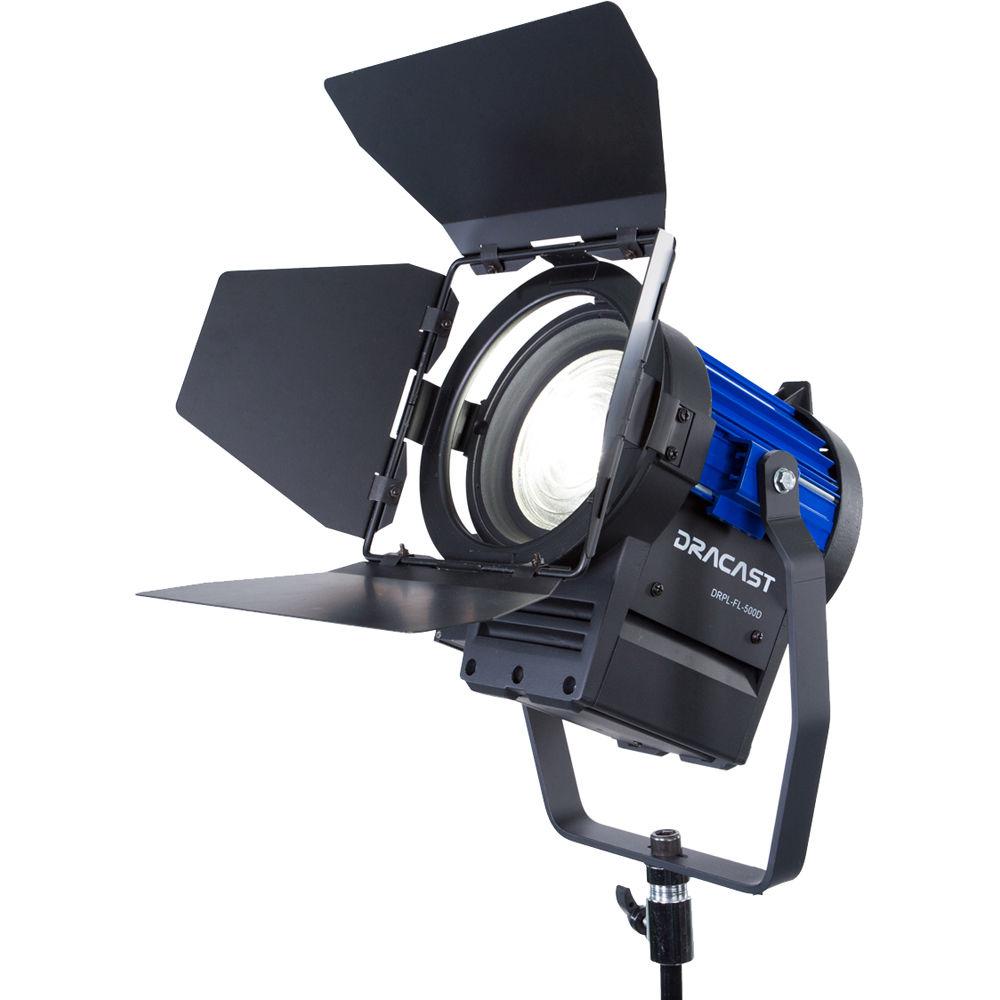

• Fresnel Studio LED500 Daylight LED Light Create a focused beam of light with the Fresnel Studio LED500 Daylight LED Light from Dracast which is equipped with a 4" lens that can be adjusted to change the beam angle from 15-60° for both flood and spot lighting. This controls the light from the surface-mounted LEDs which sport a high CRI of 95 for accurate color reproduction. Also, this daylight-balanced fixture offers a color temperature of 5600K and can be dimmed continuously from 0-100% using either on-board controls or through the 5-pin XLR connections.

  Benefitting from the use of LEDs, the Fresnel500 uses a silent passive heat sink cooling system and only draws 50 W of power while maintaining a high output. It will run anywhere in the world thanks to a universal 110-240 VAC power supply and 36 VDC input. The light also features a durable aluminum construction and comes with 4-way barndoors and a mounting yoke with 5/8" baby pin receiver that allows users to tilt it up to 90°.
  Photometrics
  • 15°
    755 fc / 8129 lux at 3' / 0.9 m
    215 fc / 2316 lux at 6' / 1.8 m
    60°
    545 fc / 5870 lux at 3' / 0.9 m
    135 fc / 1454 lux at 6' / 1.8 m
  UPC: 712324583724

• 4-Way Barndoors

• AC Power Adapter

• Limited 1-Year Warranty

• 4-Way Barndoors

• 5/8" Baby Pin Mounting Yoke

• AC Power Cable

• Limited 1-Year Warranty

Also Includes

• 3 x Light Stand (6')
• Hard Injection-Molded Case
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Fresnel1000 Daylight LED Light

  Color Temperature	5600K
  Color Accuracy Standard	CRI 90
  Cooling System	Passive
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Lumens	8500
  Fixture Dimensions	20.4 x 15.8 x 13.0" / 51.8 x 40.0 x 33.0 cm (Including Yoke & Barndoors)
  Fixture Weight	18.75 lb / 8.5 kg (Including Yoke, Barndoors)

  DMX Connector	3-Pin XLR

  Lens Diameter	7" / 17.8 cm
  Lens Type	Fresnel

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	24 VDC at 5 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	100 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	18.0 x 16.0 x 14.0"

• Fresnel Studio LED500 Daylight LED Light

  Beam Angle	15 to 60°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	9.2 x 8.0 x 14.0" / 23.5 x 20.3 x 35.6 cm (Including Yoke)
  Fixture Weight	9.1 lb / 4.1 kg

  DMX Connector	5-Pin XLR

  Lens Diameter	4" / 7.6 cm

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	110 to 240 VAC, 50 / 60 Hz at 2 A
  DC Input Power	36 VDC
  Power Source	AC Adapter
  Max Power Consumption	50 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	15.7 x 12.2 x 11.6"
