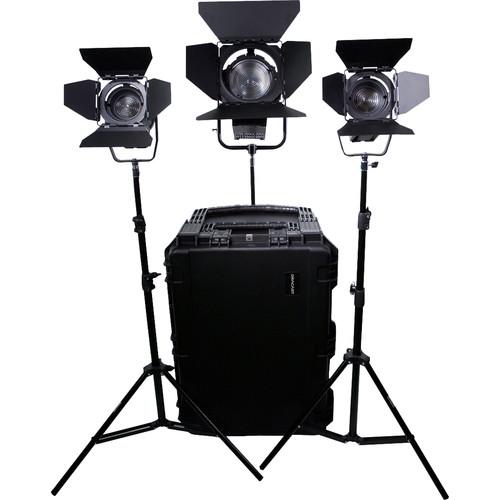

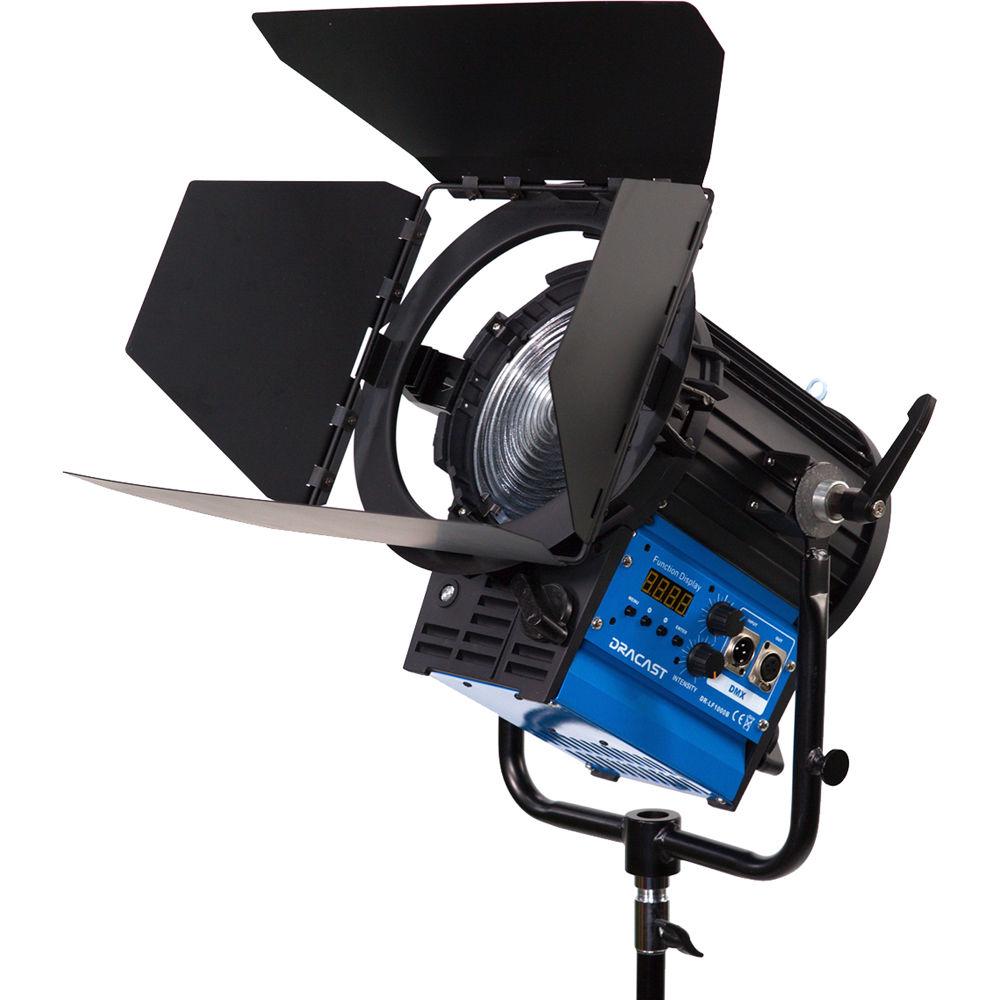

Product description Put together by Dracast for image-makers doing some serious traveling, the LED2000 3-Light Tungsten Fresnel Kit has everything you'll need to bring the studio to your location. The kit contains one LED1000 Tungsten and two LED500 Tungsten fixtures that include Fresnel lenses.Each has a 15- to 60-degree adjustable beam spread and comes with a yoke, multi-voltage power supply, 4-way barndoors, and 6' light stand. It all fits in the kit's hard, injection-molded travel case. - Fresnel1000 Tungsten LED Light The Fresnel1000 Tungsten LED Light from Dracast is packed with the latest LED technology backed with solid construction and intuitive design. The tungsten-balanced light has a Kelvin temperature of 3200K for work indoors or to match other standard traditional light sources. Light intensity is variable from 0-100% locally on the unit or remotely via DMX. The Fresnel1000 outputs the equivalent of a 1000W tungsten halogen Fresnel while running cool to the touch and consuming a fraction of the power, resulting in lower HVAC running costs in the studio and a quick return on your investment. The light ships with a 100-240 VAC power adapter for worldwide use and, with an optional adapter, it also runs on 24 VDC in locations where mains power is unavailable. The Fresnel1000 comes with a 5/8" receiver for hanging or stand mounting.
- Photometrics
- At 15°
3230 lux at 6.0' (1.8 m)
720 lux at 12' (3.6 m)
340 lux at 18' (5.5 m)
At 60°
1250 lux at 6.0' (1.8 m)
310 lux at 12' (3.6 m)

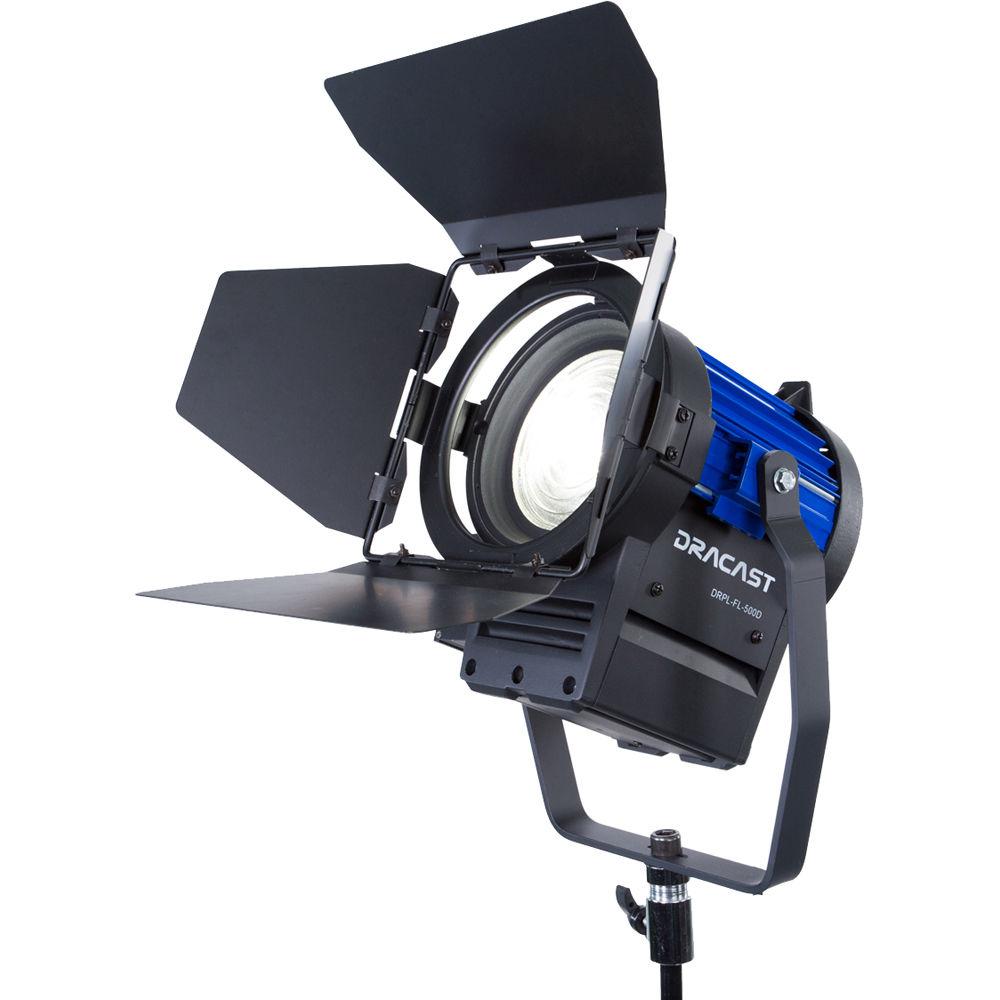

105 lux at 18' (5.5 m) UPC: 683405283591 - Fresnel Studio LED500 Tungsten LED Light Create a focused beam of light with the Fresnel Studio LED500 Tungsten LED Light from Dracast which is equipped with a 4" lens that can be adjusted to change the beam angle from 15-60° for both flood and spot lighting. This controls the light from the surface-mounted LEDs which sport a high CRI of 95 for accurate color reproduction. Also, this tungsten-balanced fixture offers a color temperature of 3200K and can be dimmed continuously from 0-100% using either on-board controls or through the 5-pin XLR connections.
Benefitting from the use of LEDs, the Fresnel500 uses a silent passive heat sink cooling system and only draws 50 W of power while maintaining a high output. It will run anywhere in the world thanks to a universal 110-240 VAC power supply and 36 VDC input. The light also features a durable aluminum construction and comes with 4-way barndoors and a mounting yoke with 5/8" baby pin receiver that allows users to tilt it up to 90°. - Photometrics
- 15°
297 fc / 5934 lux at 3' / 0.9 m
85 fc / 1691 lux at 6' / 1.8 m
60°
173 fc / 4285 lux at 3' / 0.9 m
49 fc / 1061 lux at 6' / 1.8 m UPC: 712324583717 In the Box Bundle Items Fresnel1000 Tungsten LED Light ersecwufeycayavvfxac 2 x Fresnel Studio LED500 Tungsten LED Light - 5/8" Baby Pin Mounting Yoke
Also Includes - 3 x Light Stand (6')

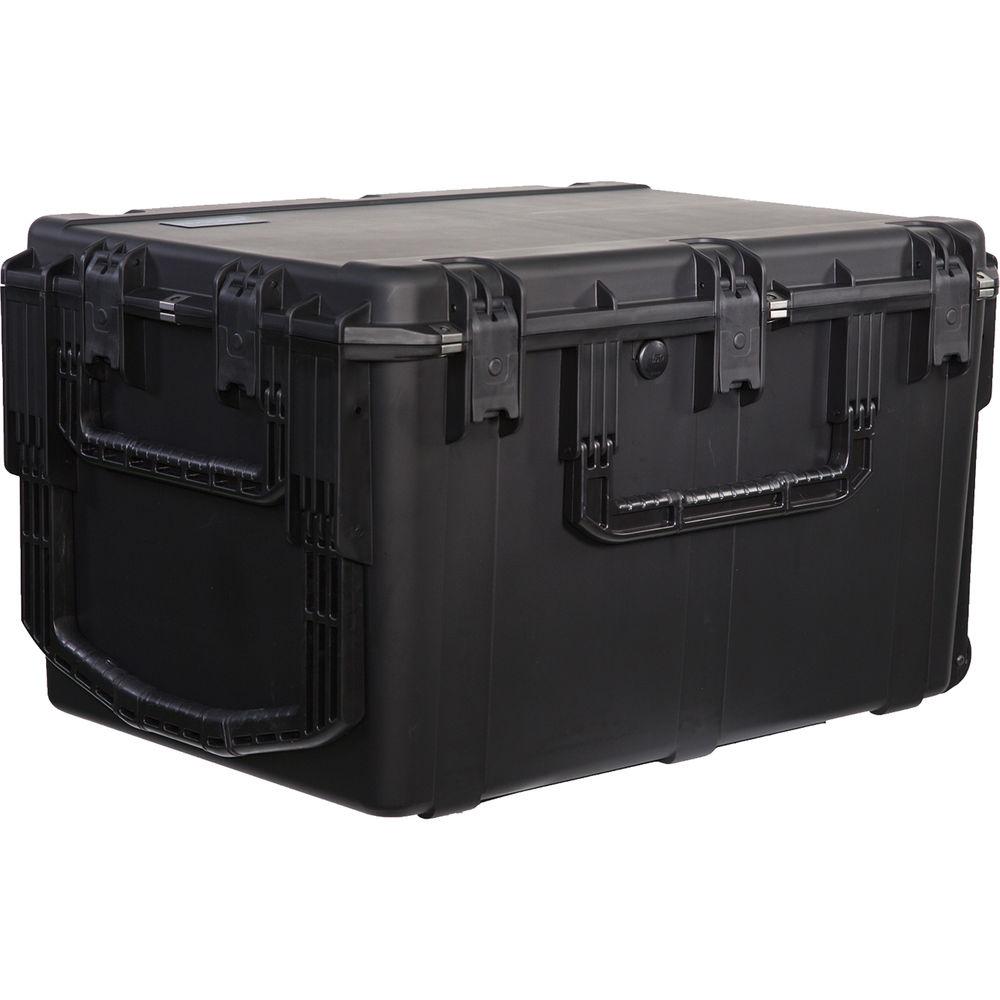

- Hard Injection-Molded Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED2000 3-Light Fresnel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Fresnel1000 Tungsten LED Light
| | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Lumens | 8500 | | Fixture Dimensions | 20.4 x 15.8 x 13.0" / 51.8 x 40.0 x 33.0 cm (Including Yoke & Barndoors) | | Fixture Weight | 18.75 lb / 8.5 kg (Including Yoke, Barndoors) | | | | Lens Diameter | 7" / 17.8 cm | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC at 5 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Box Dimensions (LxWxH) | 18.2 x 16.3 x 14.7" | - Fresnel Studio LED500 Tungsten LED Light
| | | Beam Angle | 15 to 60° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 9.2 x 8.0 x 14.0" / 23.5 x 20.3 x 35.6 cm (Including Yoke) | | Fixture Weight | 9.1 lb / 4.1 kg | | | | Lens Diameter | 4" / 7.6 cm | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 2 A | | DC Input Power | 36 VDC | | Power Source | AC Adapter | | Max Power Consumption | 50 W | | | | Box Dimensions (LxWxH) | 15.6 x 12.1 x 11.8" |
