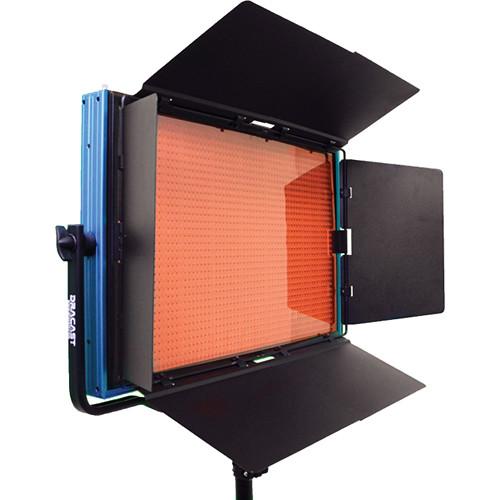

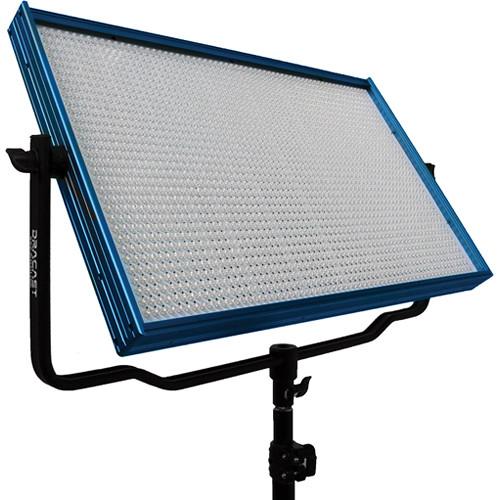

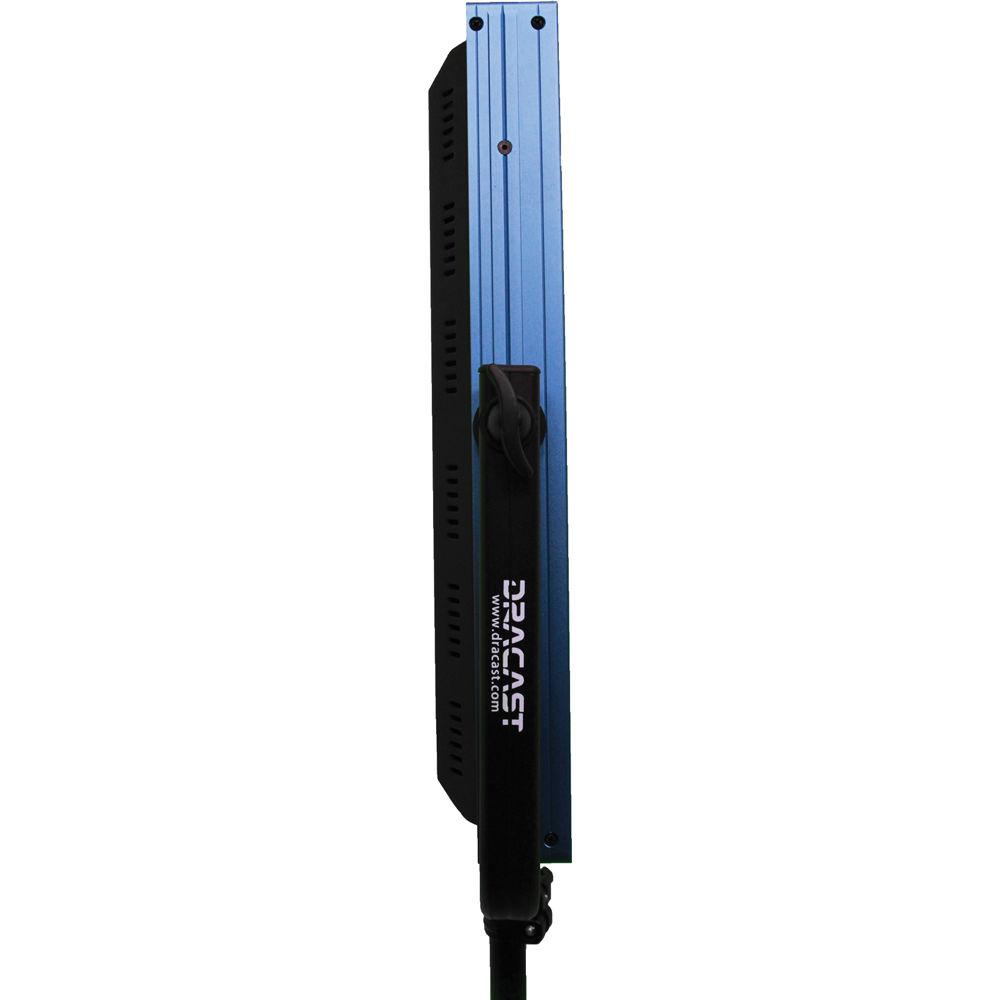

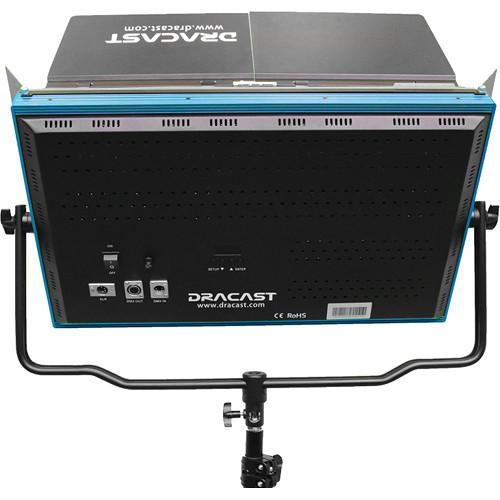

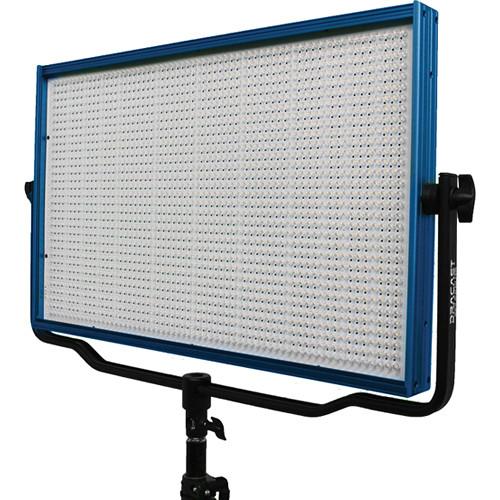

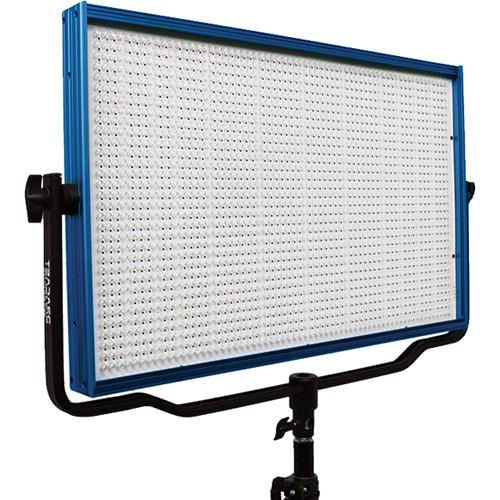

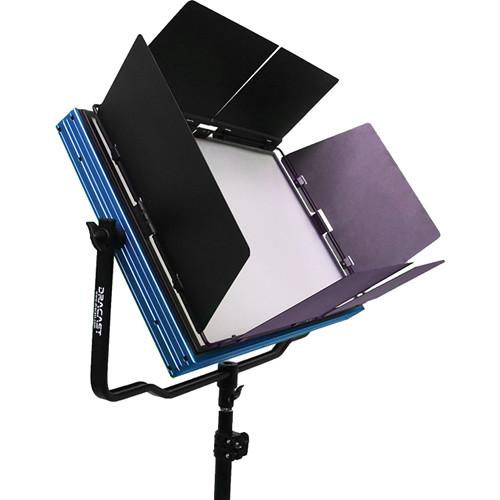

Product description The LED2000-BX Studio Bi-Color LED Light with DMX from Dracast is a good choice for studio or location work where color accuracy, control and flicker-free output are of prime importance. Variable color temperature from 3200-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel button that adjusts the output with negligible color shift and indicates the light level on a digital readout. Alternatively, you can control the light's functions remotely thanks to its DMX capability. The low electrical draw of just 120W means a timely return on your investment.The durable aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED2000-BX can be used worldwide, powered by the included 100-240 VAC power adapter or by 24 VDC battery sources when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED2000-BX's 45-degree beam angle. - Attributes
-
- Full dimming controls
- Manual control Knobs
- DMX 512 controlled
- Lightweight all-aluminum frame
- Optional adjustable, removable barndoors
- Mounting yoke
- Photometrics
- 3200K
4050 lux / 376 fc at 3.0' (0.9 m)
1370 lux / 127 fc at 6.0' (1.8 m)
700 lux / 65 fc at 9.0' (2.7 m)
420 lux / 39 fc at 12' (3.6 m)
4400K
8100 lux / 753 fc at 3.0' (0.9 m)
2700 lux / 251 fc at 6.0' (1.8 m)
1325 lux / 123 fc at 9.0' (2.7 m)
785 lux / 73 fc at 12' (3.6 m)
5600K
4200 lux / 390 fc at 3.0' (0.9 m)
1500 lux / 139 fc at 6.0' (1.8 m)
730 lux / 68 fc at 9.0' (2.7 m)
430 lux / 40 fc at 12' (3.6 m) UPC: 683405283515 In the Box Dracast LED2000-BX Studio Bi-Color LED Light with DMX AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED2000-BX Studio Bi-Color LED Light with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED2000 Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Expected Lamp Life | 30,000 to 50,000 Hours | | Fixture Dimensions | 24.0 x 12.0 x 2.0" / 61.0 x 30.5 x 5.1 cm
24.0 x 15.0 x 2.0" / 61.0 x 38.0 x 5.1 cm (Including Yoke) | | Fixture Weight | 8.0 lb / 3.6 kg
9.5 lb / 4.3 kg (Including Yoke) | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 120 W | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 29.0 x 21.0 x 5.0" |
