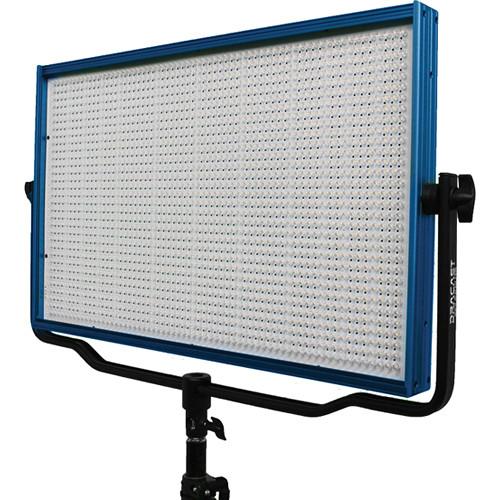

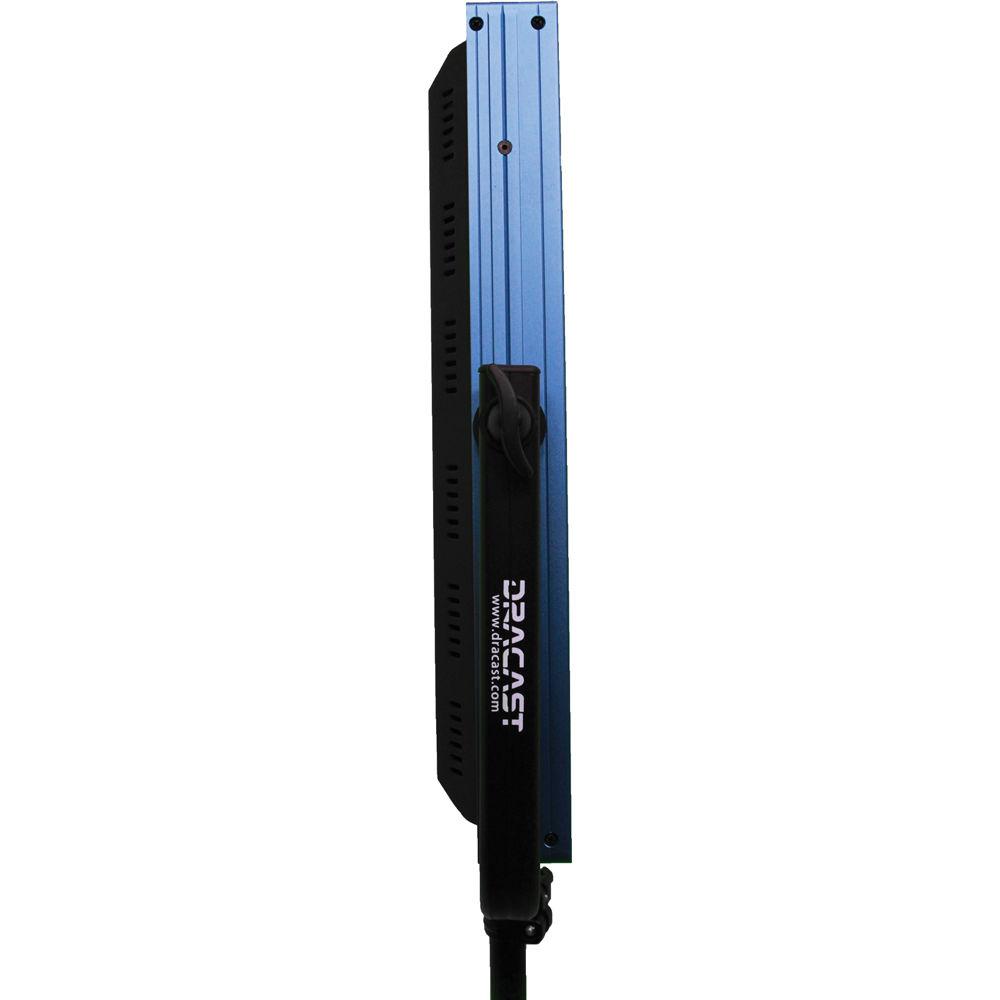

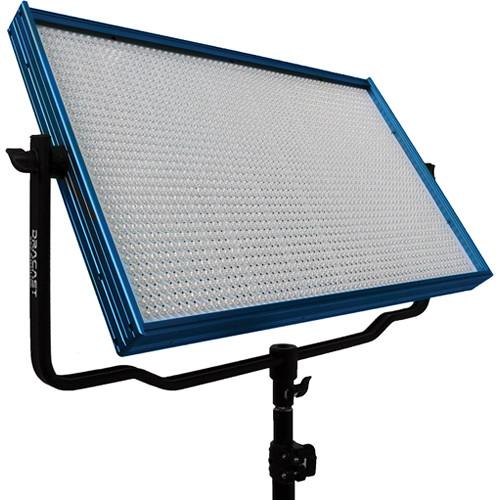

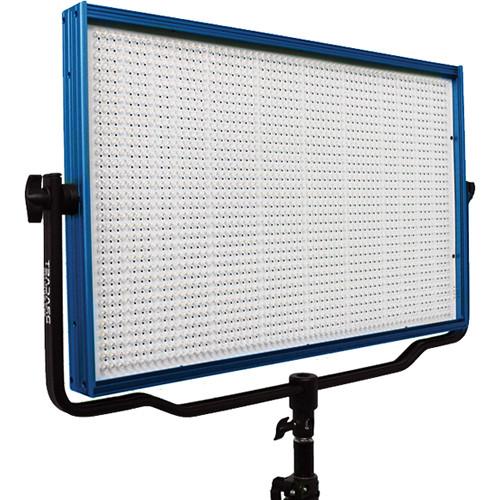

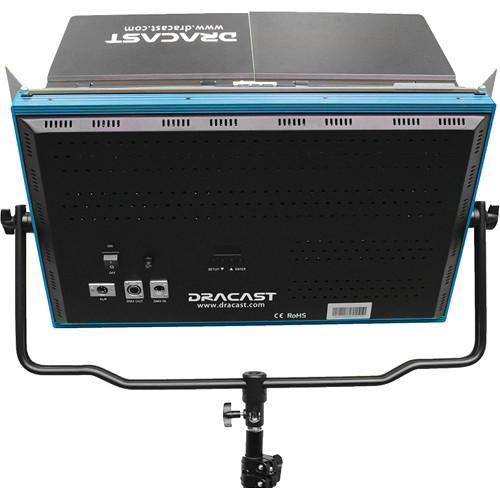

Product description The LED2000-DX Studio Daylight LED Light with DMX from Dracast is a good choice for studio or location work where color accuracy, control and flicker-free output are of prime importance. The LED2000-DX's daylight balanced output is well-suited to outdoor work or for color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel button that adjusts the output with negligible color shift and indicates the light level on a digital readout. Alternatively, you can control the light's functions remotely thanks to its DMX capability. The low electrical draw of just 120W means a timely return on your investment.The durable aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED2000-DX can be used worldwide, powered by the included 100-240 VAC power adapter or by 24 VDC battery sources when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED2000-DX's 45-degree beam angle. - Attributes
-
- Full dimming controls
- Manual control Knobs
- DMX 512 controlled
- Lightweight all-aluminum frame

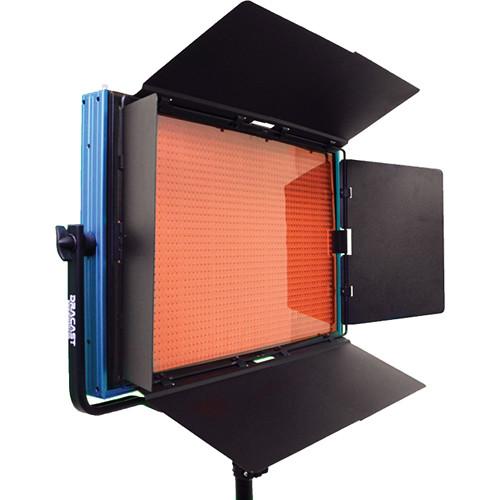

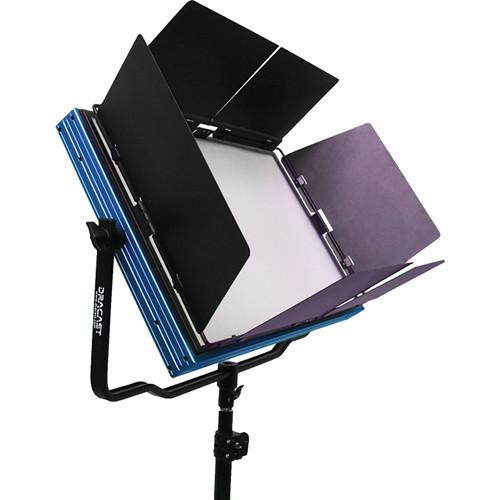

- Optional adjustable, removable barndoors
- Mounting yoke
- Photometrics
- 10,000 lux / 929 fc at 3.0' (0.9 m)
3450 lux / 321 fc at 6.0' (1.8 m)
1785 lux / 166 fc at 9.0' (2.7 m)
1050 lux / 98 fc at 12' (3.6 m) UPC: 683405283539 In the Box Dracast LED2000-DX Studio Daylight LED Light with DMX AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED2000-DX Studio Daylight LED Light with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED2000 Specs | | | Beam Angle | 45° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Expected Lamp Life | 30,000 to 50,000 Hours | | Fixture Dimensions | 24.0 x 12.0 x 2.0" / 61.0 x 30.5 x 5.1 cm
24.0 x 15.0 x 2.0" / 61.0 x 38.0 x 5.1 cm (Including Yoke) | | Fixture Weight | 8.0 lb / 3.6 kg
9.5 lb / 4.3 kg (Including Yoke) | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 120 W | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 29.0 x 21.6 x 5.5" |
