Dracast LED2000 Kala Bi-Color LED 3-Light

User Manual for Dracast LED2000 Kala Bi-Color LED 3-Light Kit

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

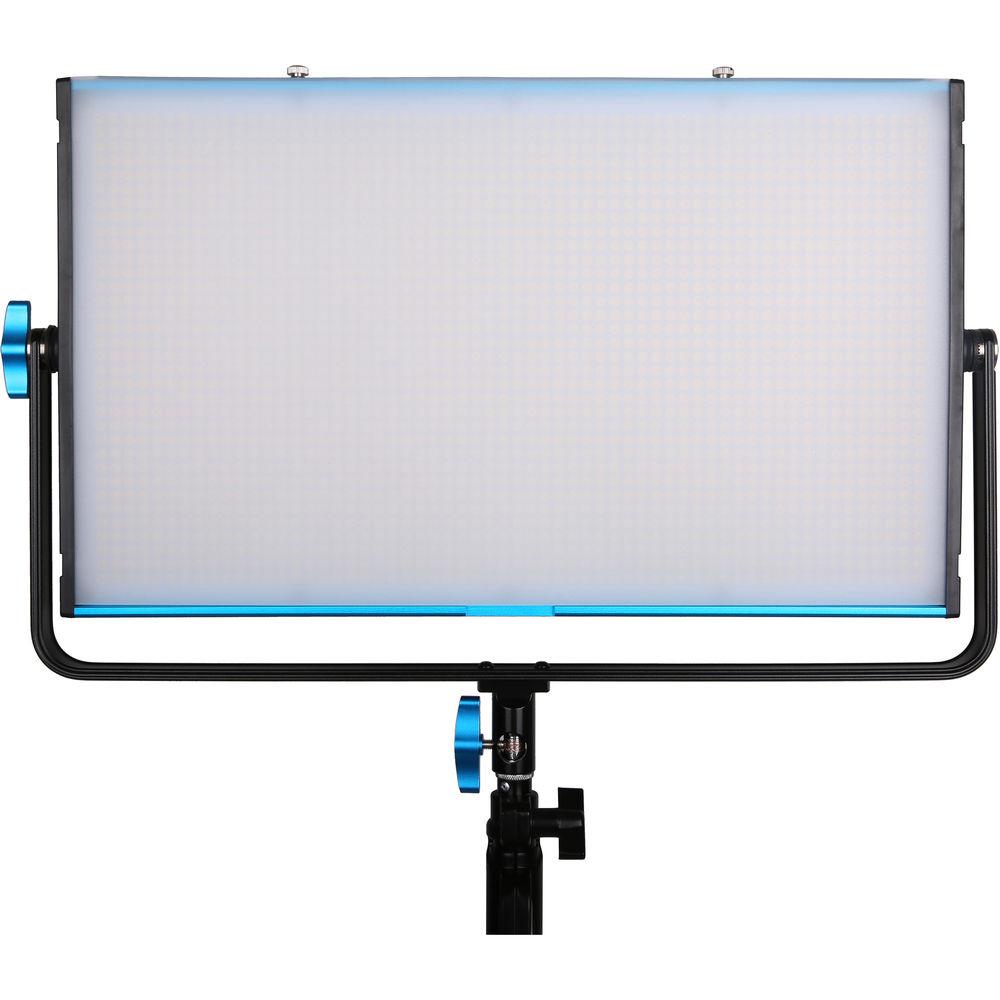

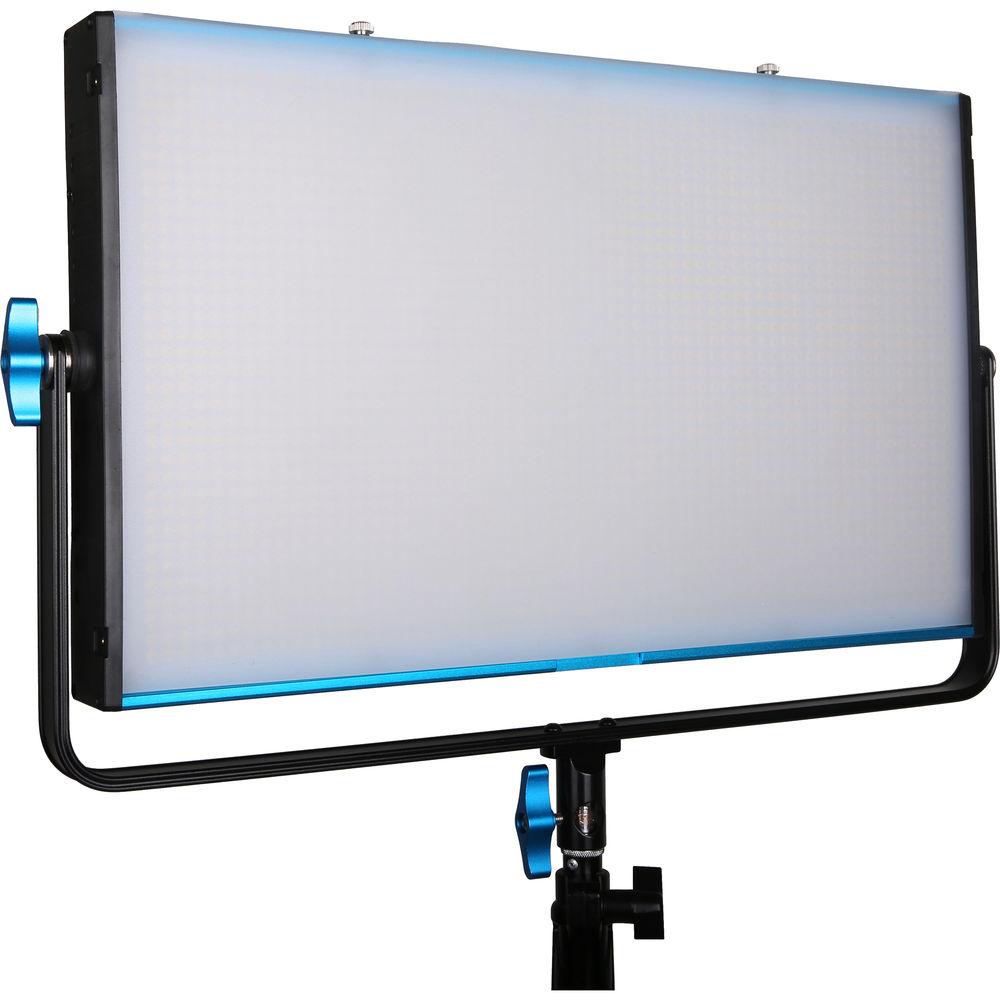

• LED2000 Kala Bi-Color LED Panel Another addition to Dracast's extensive line of LED panels, the all metal, 20 x 15 x 2" LED2000 Kala Bi-Color LED Panel offers a CRI of 96 with a variable color temperature from 3200-5600K for quickly matching either other fixtures or ambient light conditions without spending time resorting to gels. Light intensity is also variable from 0-100% and both color and dimming can be controlled remotely via onboard DMX or with the added enhancement of wireless control that can allow adjustments at distances up to 100'. By designating one light as the master, any change that is made on it will also be transmitted and matched by other lights in the group. This function not only works with Kala lights but also with Silq series lights or multiple lights that includes both series. Offering directional control, the Kala has a medium-spot beam angle of 45°. The panel is ready for worldwide use thanks to the included multi-voltage power adapter, but Dracast has also provided a V-mount plate for optional batteries when in situations where mains power is unavailable. A soft diffusion panel is also included to take to edge off of the LEDs' output. UPC: 612520464370
• Battery Plate for LED500 and LED1000 (V-Mount) This V-Mount Battery Plate for LED500 and LED1000 from Dracast allows convenient DC operation of the LED 500 and 1000 fixtures. The plate accepts a Dracast or other brand battery with a V-mount. This battery requires a backing plate for use.

• Soft Diffusion Panel

• AC Adapter

• V-Mount Battery Plate

• Soft Individual Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

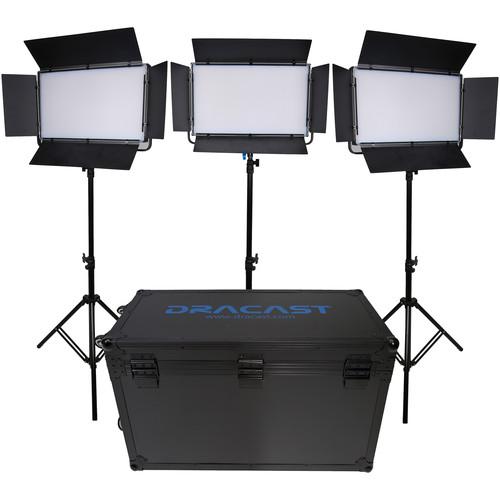

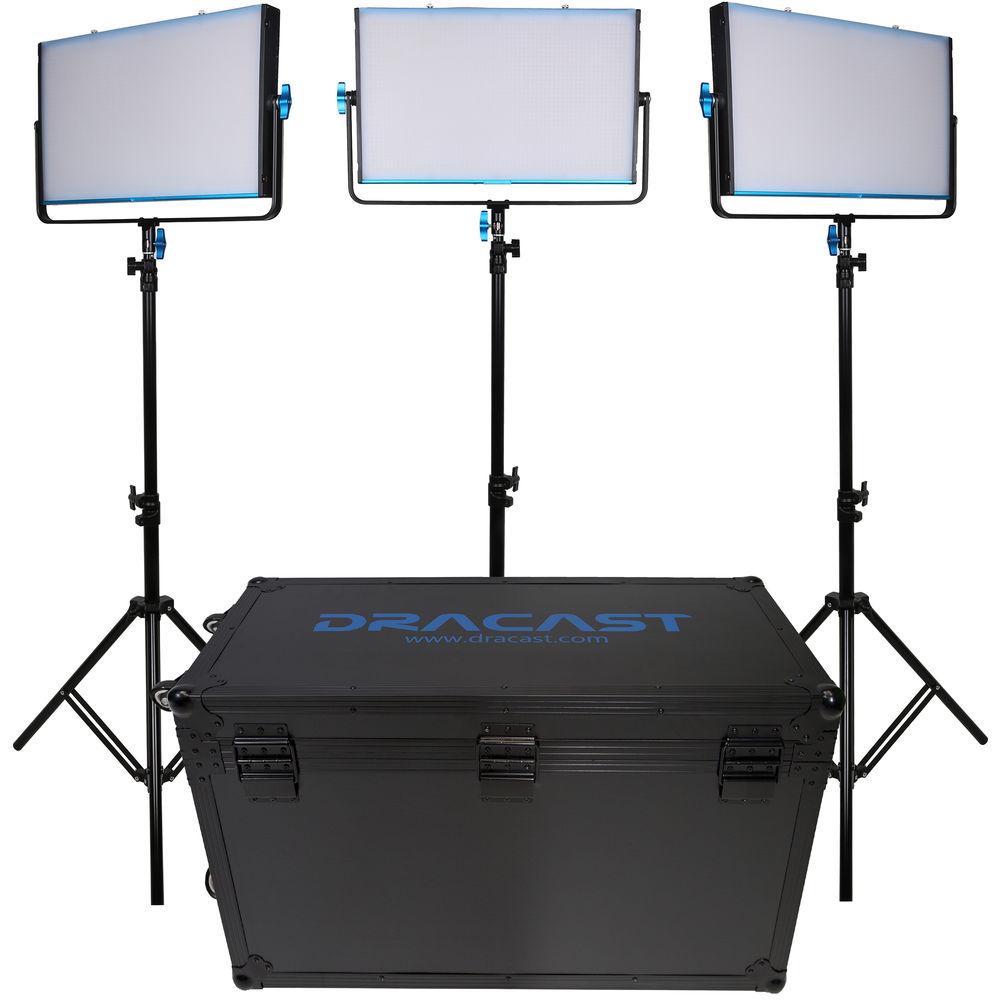

Also Includes

• 3 x Light Stands

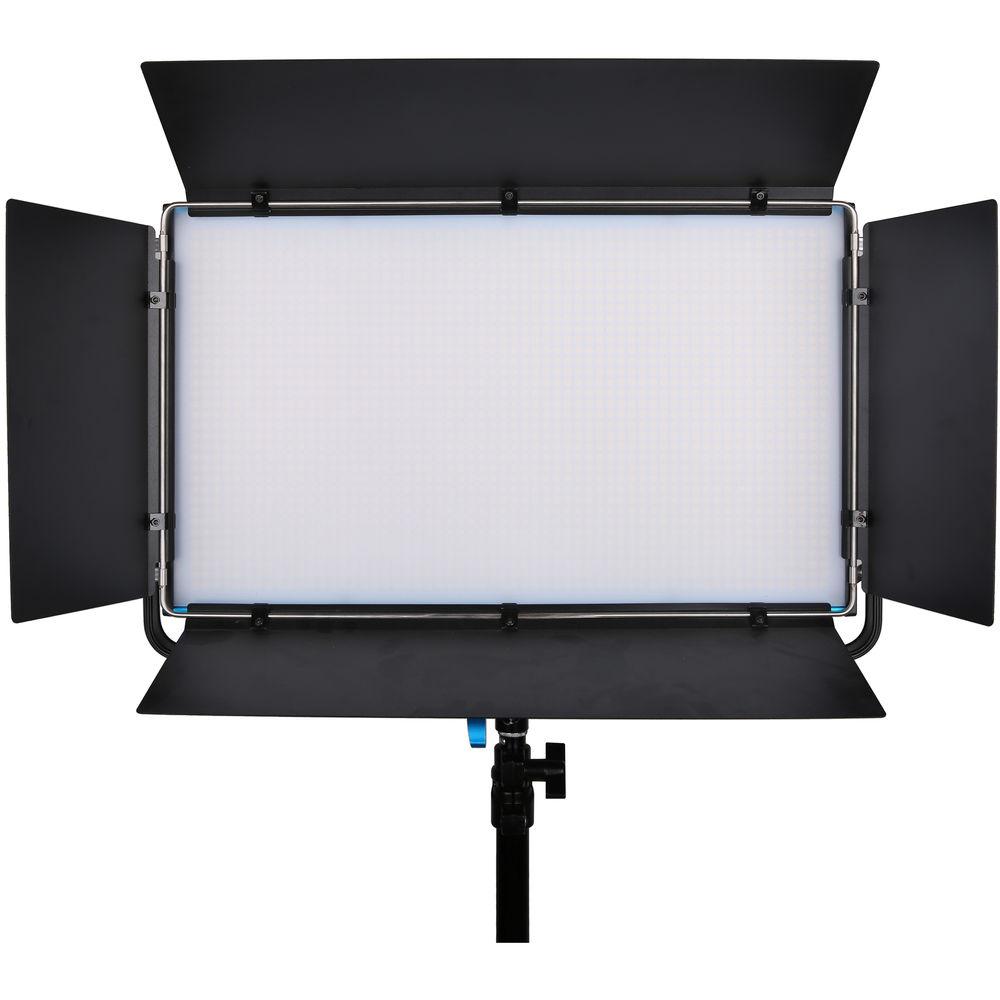

• 3 x Barndoor Sets
• Travel Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED2000 Kala Bi-Color LED Panel

  Light Source	2048 LEDs
  CRI	96
  Color Range	3200-5600K, continuous or 5 presets
  Beam Angle	45°
  Dimming	0-100%

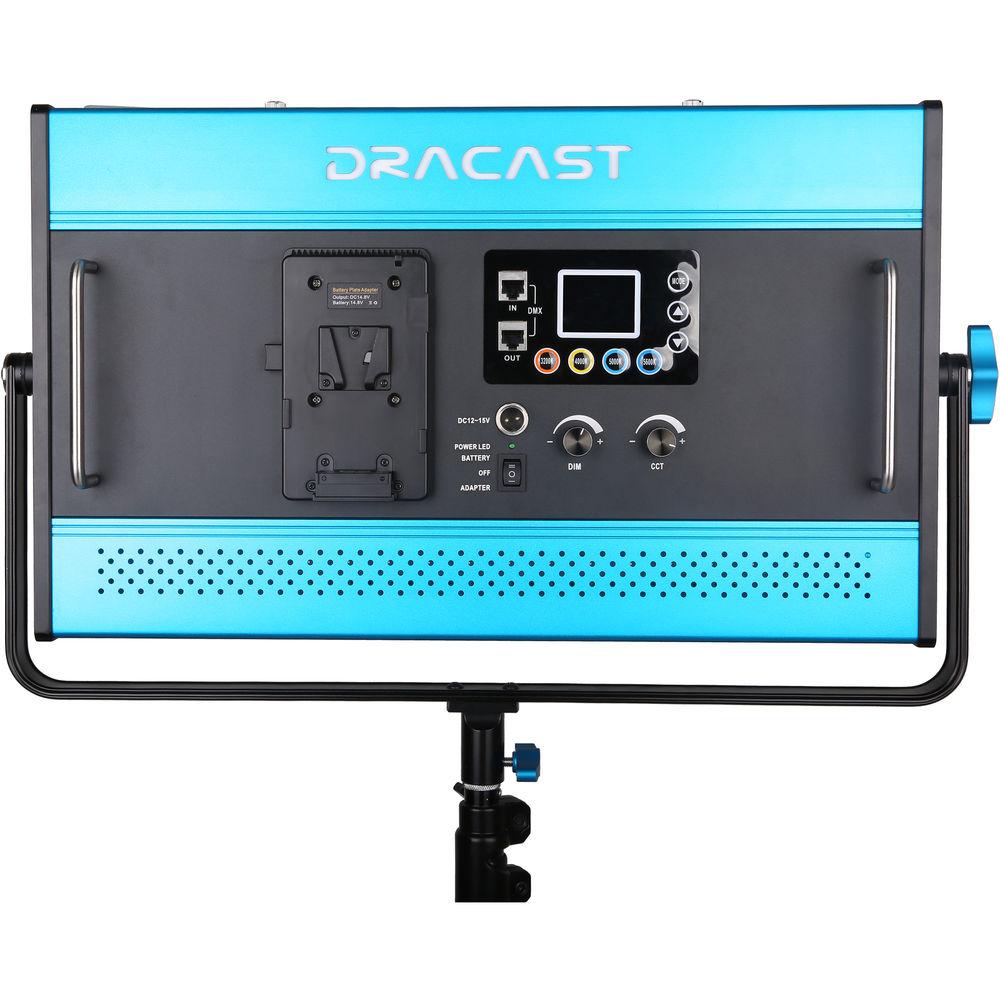

  DMX	Yes, In and Out
  Control	Locally on the unit DMX Proprietary Wireless, 100' / 30.5 m range
  Construction	All metal chassis
  Operating Voltage	100-240 VAC, 50/60 Hz
  Power Consumption	100 W
  Battery Plate	V-Mount

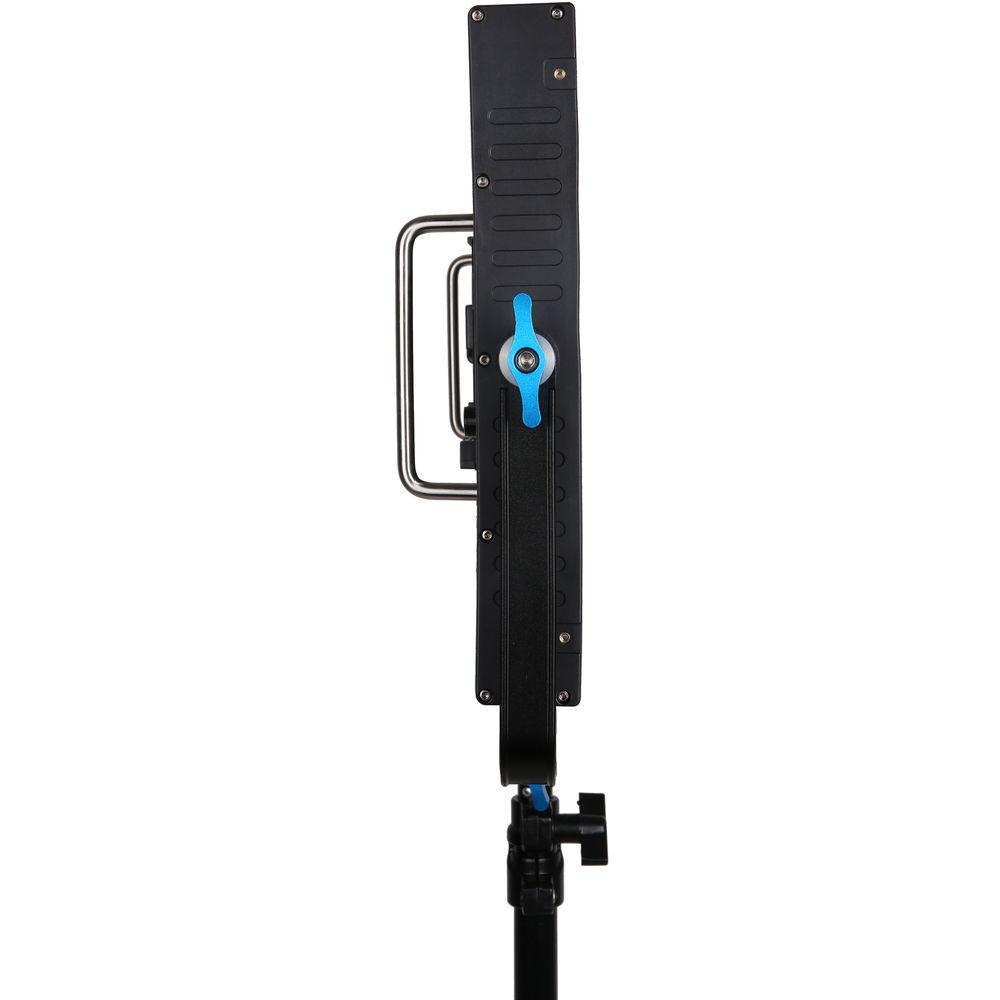

  Mount	Yoke with 5/8" / 16 mm receiver
  Dimensions	20 x 15 x 2.0" / 51 x 38 x 5.0 cm
  Weight	9.9 lb / 4.5 kg

  Box Dimensions (LxWxH)	23.6 x 18.0 x 7.2"

• Battery Plate for LED500 and LED1000 (V-Mount)

  Box Dimensions (LxWxH)	7.7 x 5.2 x 0.7"
