User Manual for Dracast LED2000 Plus Series Tungsten LED Light Click to enlarge the picture
Contents of the user manual for the Dracast LED2000 Plus Series Tungsten LED
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED2000 Plus Series Tungsten LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

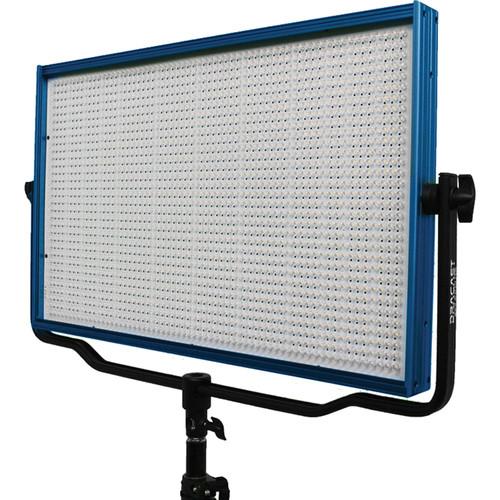

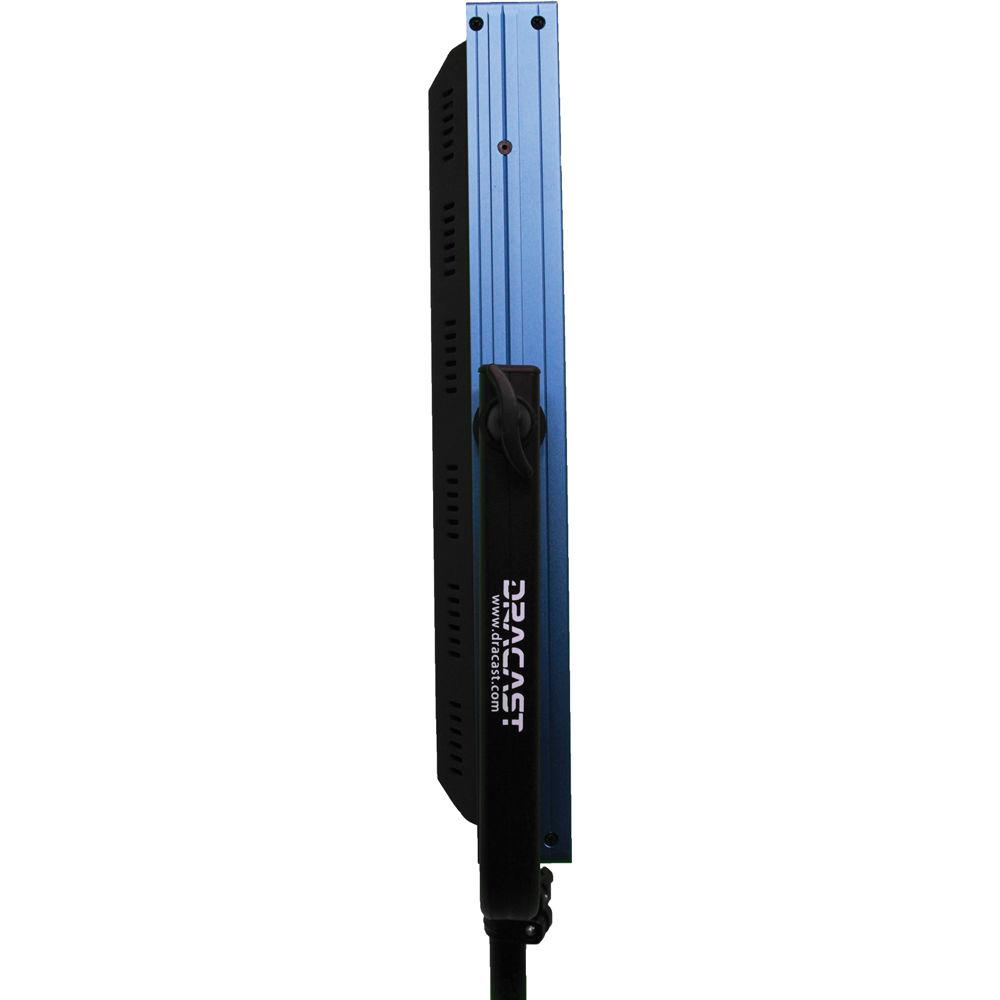

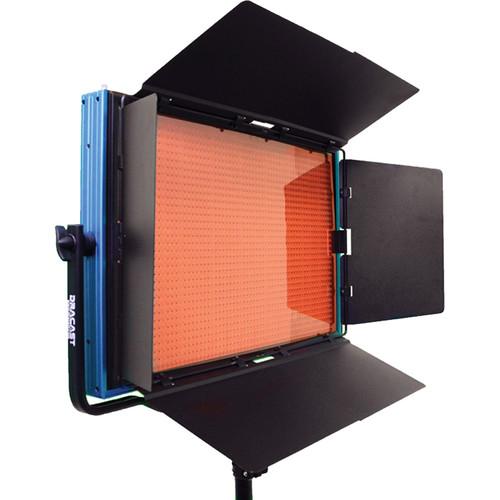

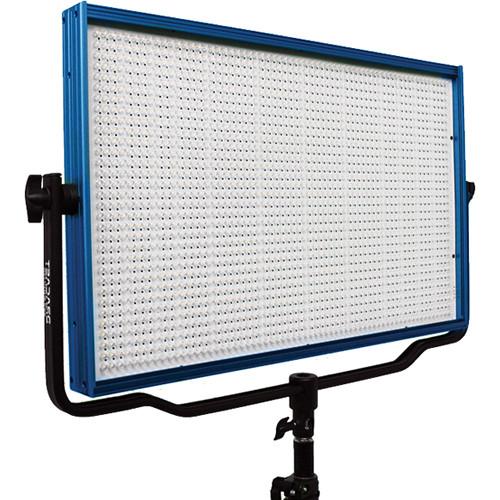

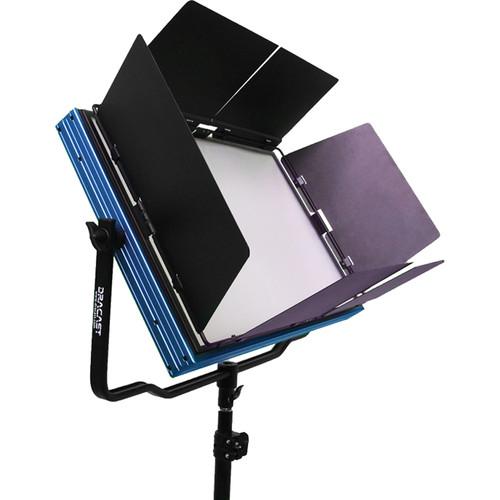

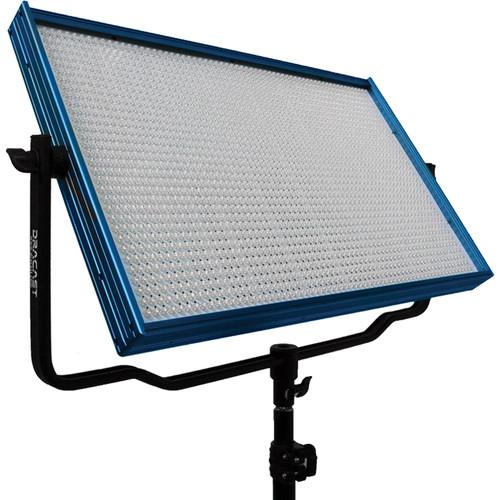

Product description Expanding on their line of panels, the LED2000 Plus Series Tungsten LED Light from Dracast adds a digital display for adjusting output as well as 5-pin XLR DMX input and output for linking and has a standard 4-pin XLR DC input for power. The light features 2048 LEDs with a high CRI of >95 for excellent color accuracy. Also, this model has a tungsten-balanced color temperature of 3200K for matching with other fixtures.
The light offers a spot beam angle of 45° as well as dimming from 0-100%. Benefitting operation, it can run off of either a DC source, such as a 28.8V Block battery, or a universal 100-240 VAC adapter. The light is durable as well with an aluminum chassis, frame, and mounting yoke and it only consumes 130W of power. Additionally, weighs 9.5 lb and measures 15 x 24 x 2" in size. - Photometrics
- 8550 lux / 794 fc at 3' (1m)
2950 lux / 274 fc at 6' (2m)
1475 lux / 137 fc at 9' (3m)
900 lux / 84 fc at 12' (4m) UPC: 743724583205 In the Box Dracast LED2000 Plus Series Tungsten LED Light Yoke for LED2000 Power Supply for LED2000 Panel Limited 1-Year Warranty Specification PDF 746.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED2000 Plus Series Tungsten LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED2000 Plus Specs | Light Source | 2048 LEDs | | CRI | >95 | | Color Range | 3200K | | Beam Angle | 45° | | Dimming | 0-100% | | DMX | 5-pin XLR input
5-pin XLR output | | DC Input | 4-pin XLR | | Construction | Aluminum chassis | | Power Consumption | 130 W | | Operating Voltage | 100-240 VAC
24 VDC | | Mount | Yoke with 5/8" (16 mm) receiver | | Dimensions | 15 x 24 x 2" (381 x 610 x 51 mm) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 29.0 x 21.0 x 6.0" |
