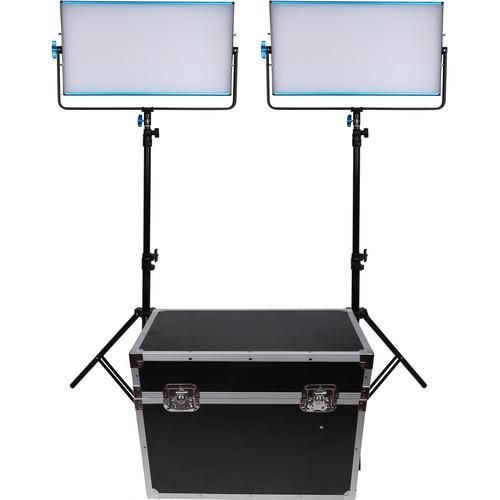

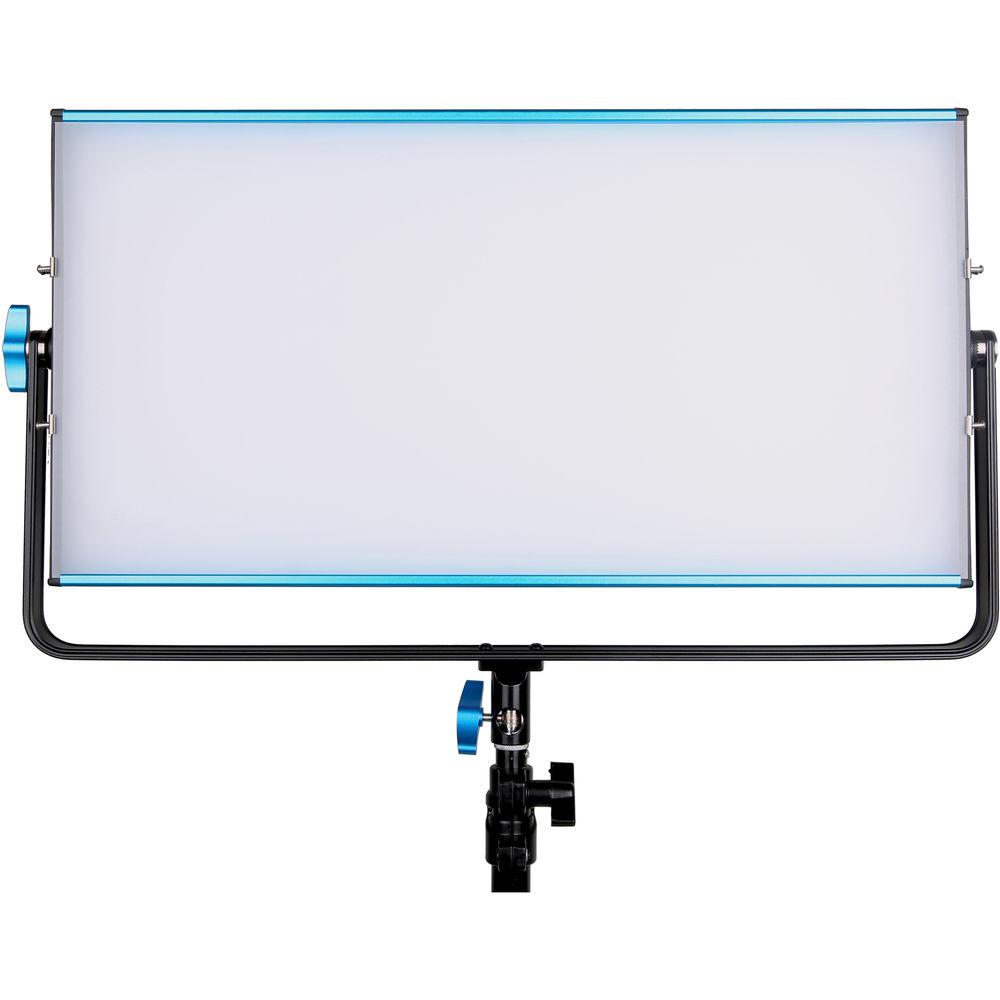

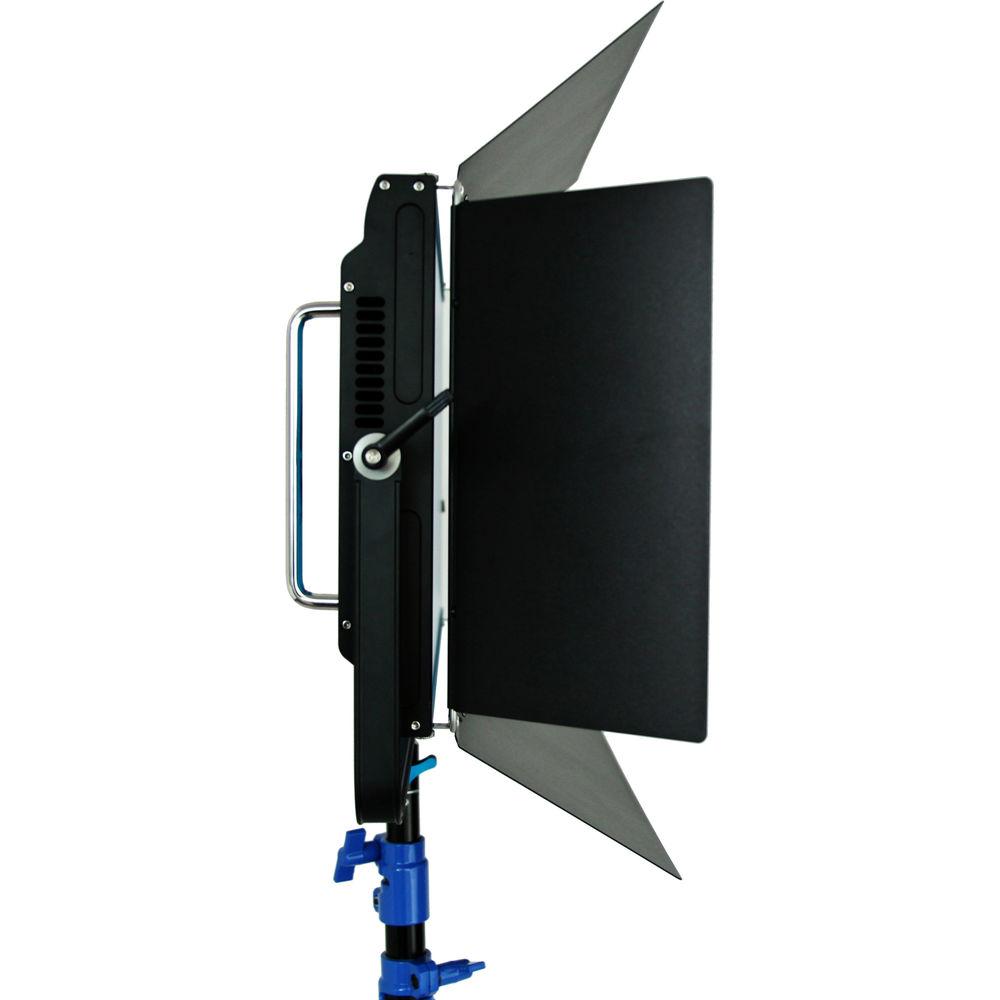

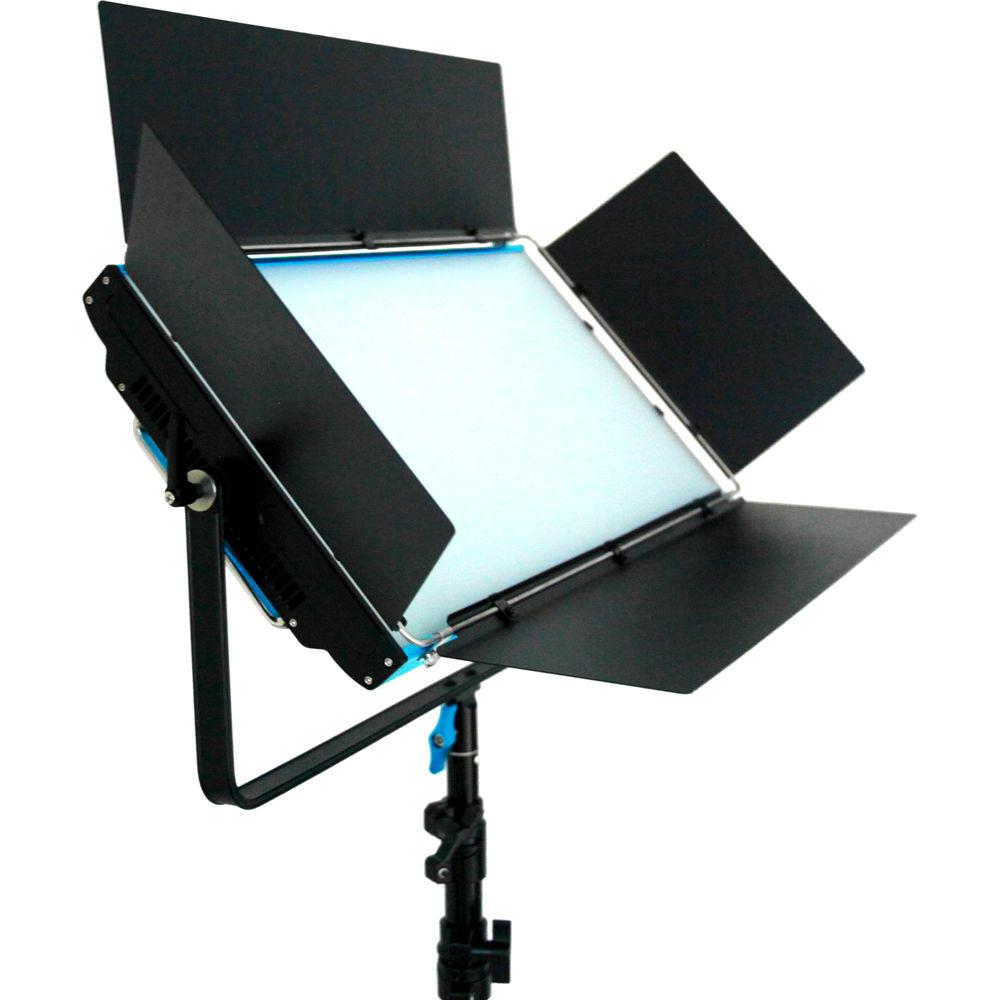

Product description Dracast has put together the LED3000B Silq Bi-Color LED 2-Light Kit to give image makers the benefit of superior light quality in the studio or on the road. The kit includes two 24.8 x 15.7 x 3.5" LED3000B Bi-Color panels with all metal construction, a 120-degree beam angle, and onboard DMX. Each light comes with a diffusion filter, multi-voltage AC adapter, a soft nylon case, and a light stand. A Travel Case is also included for storage and transport. - LED3000 Silq Bi-Color LED Panel Another addition to Dracast's extensive line of LED panels, the all metal, 25 x 16 x 2" LED3000 Silq Bi-Color LED Panel offers color temperature with a high CRI of 96 that's variable from 3200-5600K for quickly matching either other fixtures or ambient light conditions without spending time resorting to gels. Light intensity is also variable from 0-100%, and both color and dimming can be controlled remotely via onboard DMX or with the added enhancement of wireless IR control that can make adjustments at distances up to 100'. Labeled "IRR", this function not only works with Silq lights but also with Kala series lights or multiple lights that includes both series.Offering directional control, the Silq has a beam angle of 120 degrees offering wide coverage that can be modified using separately purchased, removable barndoors. The panel is ready for worldwide use thanks to the included multi-voltage power adapter. UPC: 612520464318
- iSeries 3021-18 Waterproof Utility Case The SKB iSeries 3021-18 Waterproof Utility Case is a water and dustproof, polypropylene, copolymer resin case. It is resistant to UV, solvents, corrosion, fungus, and impact damage to keep your delicate items safe and dry. It features an automatic ambient pressure equalization valve as well as a secure molded-in hinge design. A trigger release latch system maintains a tight seal and offers easy access.
Transporting the case is possible with three snap-down, overmolded grip handles and one tow handle to use when rolling the case on the four in-line skate-style wheels. The padlock holes come with stainless steel protector clips . UPC: 789270995208 In the Box Bundle Items 2 x LED3000 Silq Bi-Color LED Panel zydyrfafcxwcwesbbtevebruxq iSeries 3021-18 Waterproof Utility Case - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED3000B Silq Bi-Color LED 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED3000 Silq Bi-Color LED Panel
| Light Source | 1232 SMD LEDs | | Beam Angle | 120° | | CRI | 96 | | Color Range | 3200-5600K | | Dimming | 0-100% | | DMX | Yes, In and Out | | Control | Locally on the unit
DMX
Wireless IRR, 100' / 30.5 m range | | Construction | All metal chassis | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 300 W | | Mount | Yoke with 5/8" / 16 mm receiver | | Dimensions | 25 x 16 x 2" / 53.5 x 40.6 x 5 cm | | Weight | 11.6 lb / 5.3 kg | | | | Box Dimensions (LxWxH) | 27.2 x 18.4 x 9.9" | - iSeries 3021-18 Waterproof Utility Case
| Carry/Transport Options | Side Handle, Top Handle, Wheels | | Closure Type | Latch | | Materials | Polypropylene | | Interior Contents | None | | Exterior Dimensions | 18.9 x 23.5 x 32.9" / 48.0 x 59.7 x 83.6 cm | | Interior Dimensions | 30 x 21 x 18" / 76.2 x 53.3 x 45.7 cm | | Base Depth | 16" / 40.64 cm | | Lid Depth | 2" / 5.08 cm | | Interior Cubic Volume | 6.6 ft³ / 0.187 m³ | | Watertight | Yes | | MIL Certification | MIL-STD-4150J, MIL-STD-648C, MIL-STD-810F, per Manufacturer | | Storage Temperature | -40 to 210°F / -40 to 98.9°C | | Weight | 37 lb / 16.8 kg | | | | Box Dimensions (LxWxH) | 34.0 x 22.0 x 19.0" |
