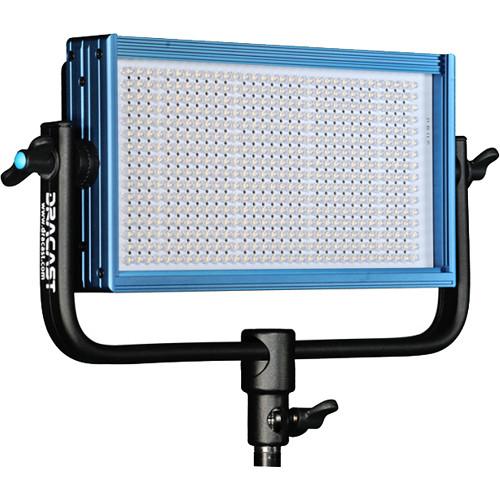

User Manual for Dracast LED500-BX Studio Bi-Color LED Light with DMX Click to enlarge the picture
Contents of the user manual for the Dracast LED500-BX Studio Bi-Color LED Light
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
|
User manual for the Dracast LED500-BX Studio Bi-Color LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|
Product description At 4 lb the LED500-BX Studio Bi-Color LED Light with DMX from Dracast is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED500's bi-color output provides 3200-5600K color temperature adjustment for color matching to either tungsten or daylight-balanced fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift. Alternatively, you can control the light's functions remotely thanks to its DMX capability. The low electrical draw of just 30W means a timely return on your investment.
The durable anodized aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This LED500 can be used worldwide thanks to its included 100-240 VAC power adapter. - Photometrics
- 3200K:
2700 lux / 251 fc at 3.0' (0.9 m)
750 lux / 70 fc at 6.0' (1.8 m)
350 lux / 33 fc at 9.0' (2.7 m)
200 lux / 19 fc at 12' (3.6 m)
4400K:
4400 lux / 409 fc at 3.0' (0.9 m)
1250 lux / 116 fc at 6.0' (1.8 m)
600 lux / 56 fc at 9.0' (2.7 m)
350 lux / 33 fc at 12' (3.6 m)
5600K:
1950 lux / 181 fc at 3.0' (0.9 m)
530 lux / 49 fc at 6.0' (1.8 m)
265 lux / 25 fc at 9.0' (2.7 m)
150 lux / 14 fc at 12' (3.6 m) UPC: 720189882944 In the Box Dracast LED500-BX Studio Bi-Color LED Light with DMX Carry Case AC Power Adapter for LED500 Light Limited 1-Year Warranty Specification PDF 522.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED500-BX Studio Bi-Color LED Light with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED500-BX Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 12.0 x 6.0 x 2.0" / 305.0 x 152.0 x 51.0 mm | | Fixture Weight | 4 lb / 1.8 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 18.1 x 11.8 x 8.3" |
