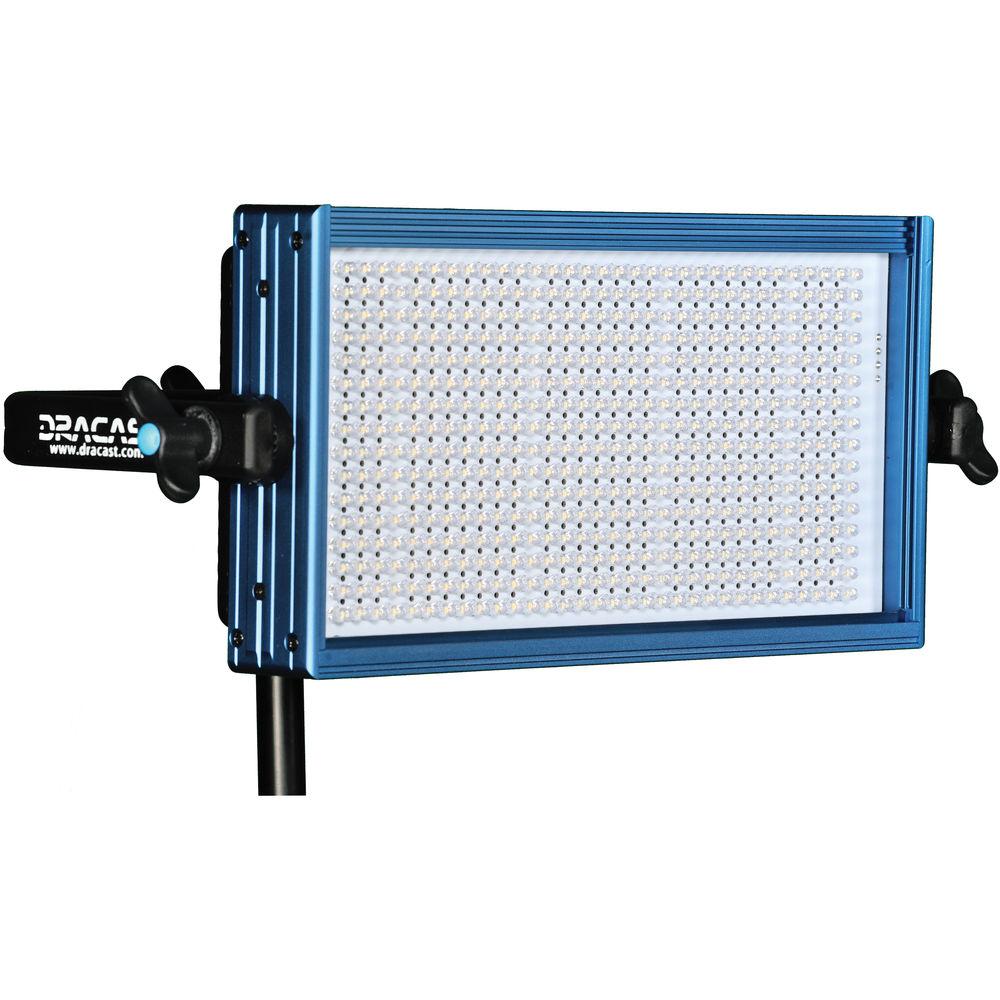

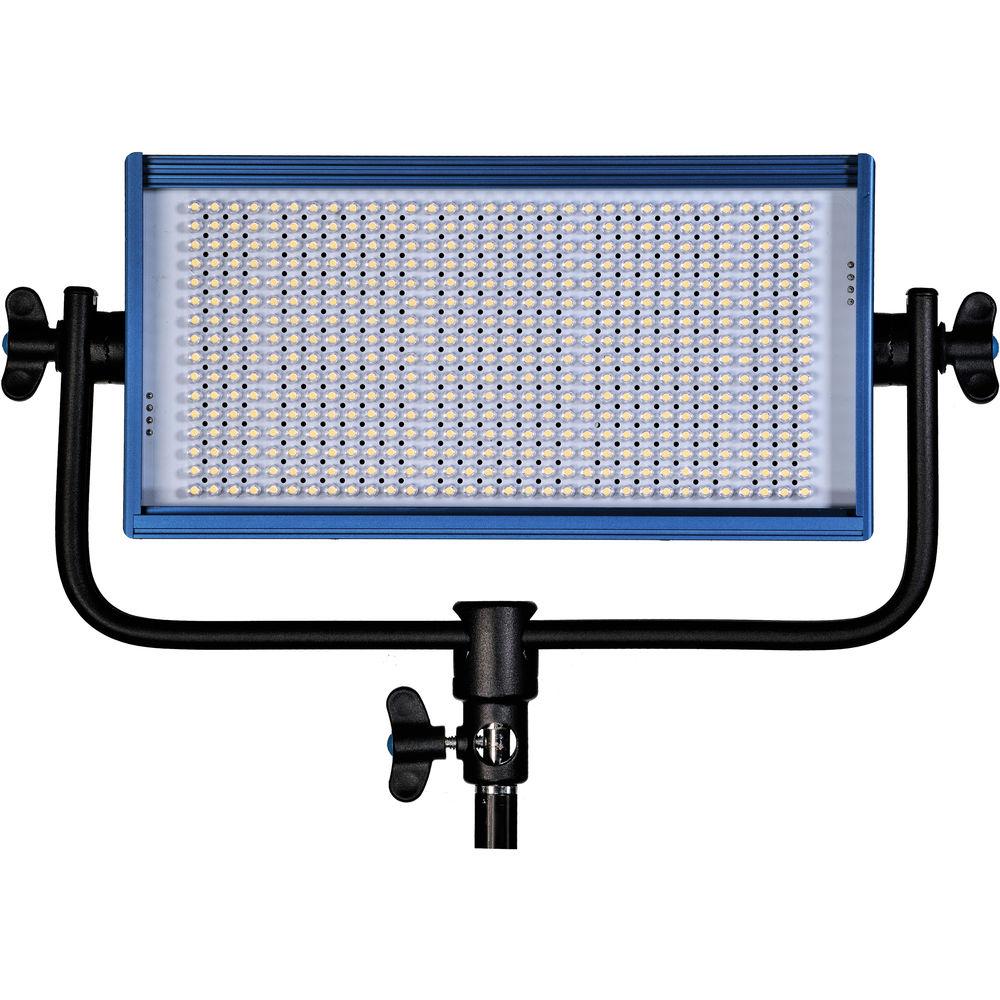

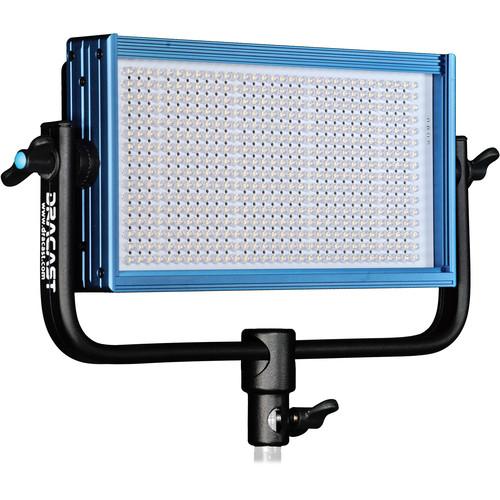

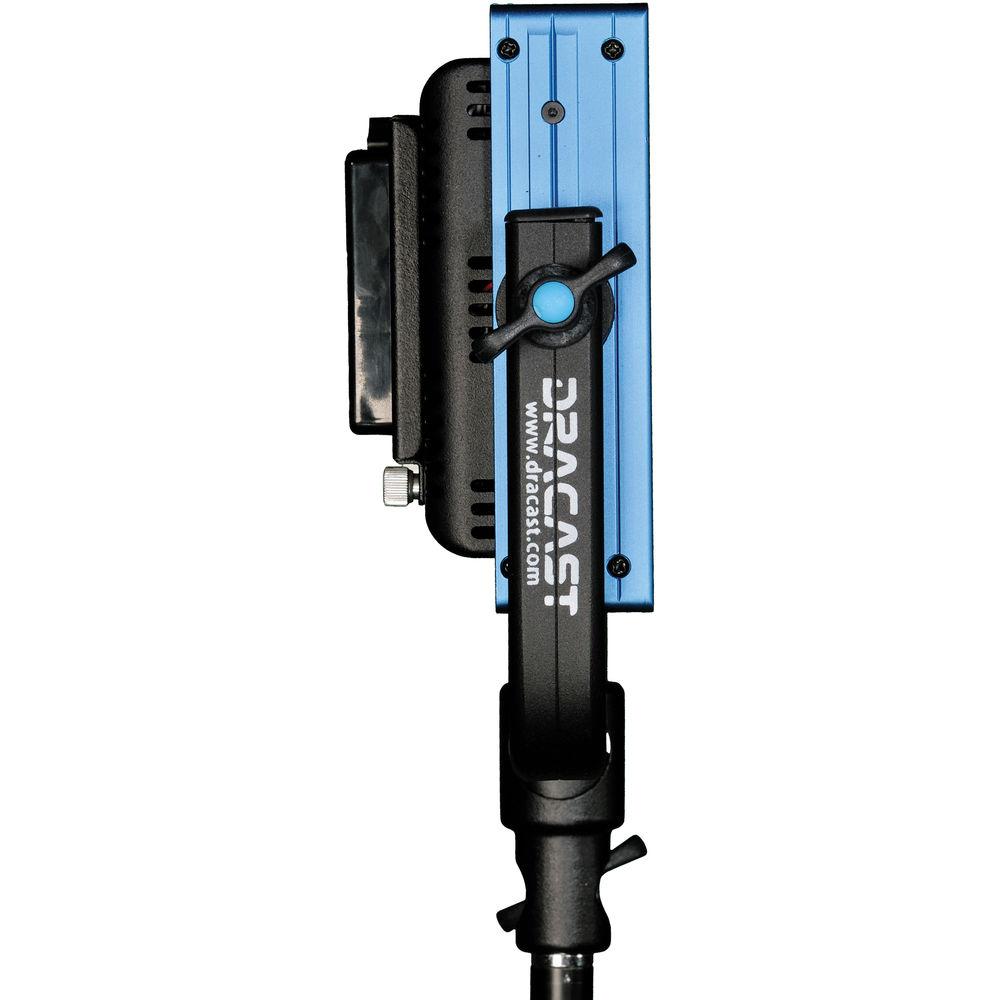

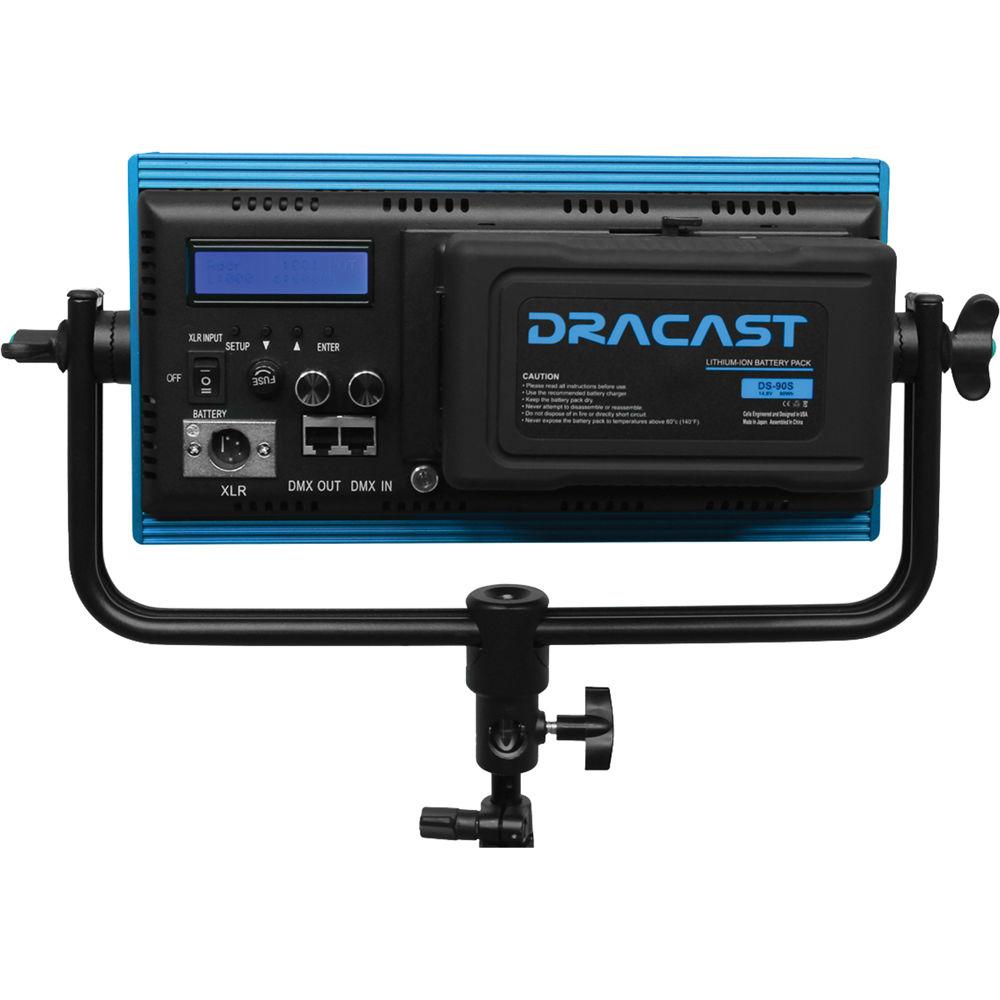

Product description Expanding on their line of panels, the LED500 Plus Series Tungsten LED Light from Dracast adds a digital display for adjusting output as well as Cat5 DMX input and output for linking and comes with both Gold mount and V-mount battery plates. The light features 512 LEDs with a high CRI of >95 for excellent color accuracy. Also, this model has a tungsten-balanced color temperature of 3200K for matching with other fixtures.

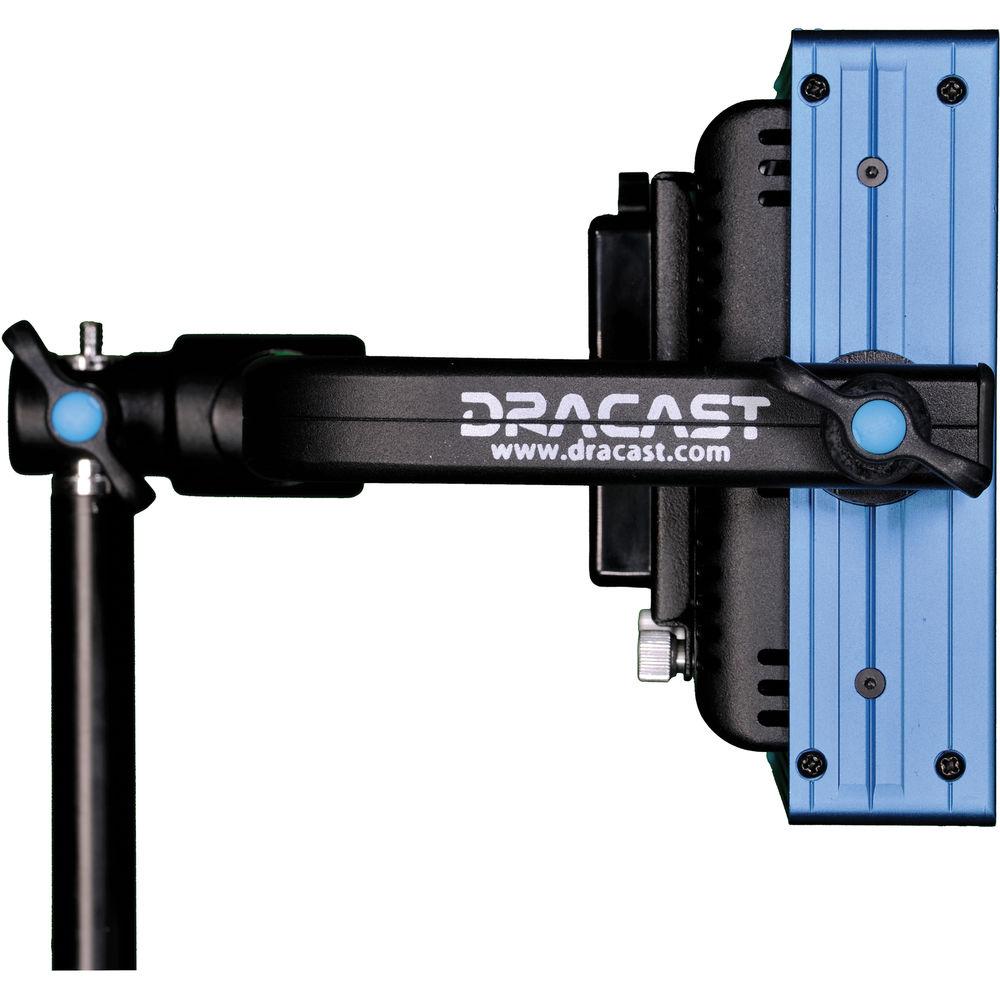

The lights offer a spot beam angle of 45° as well as dimming from 0-100%. Benefiting operation, it can run off of either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well with an aluminum chassis, frame, and mounting yoke and it only consumes 30W of power. Additionally, it is lightweight at just 4 lb and measures 12 x 6 x 2" in size. - Photometrics
- 3800 lux / 353 fc at 3' (1 m)
1150 lux / 107 fc at 6' (2 m)
530 lux / 49 fc at 9' (3 m)

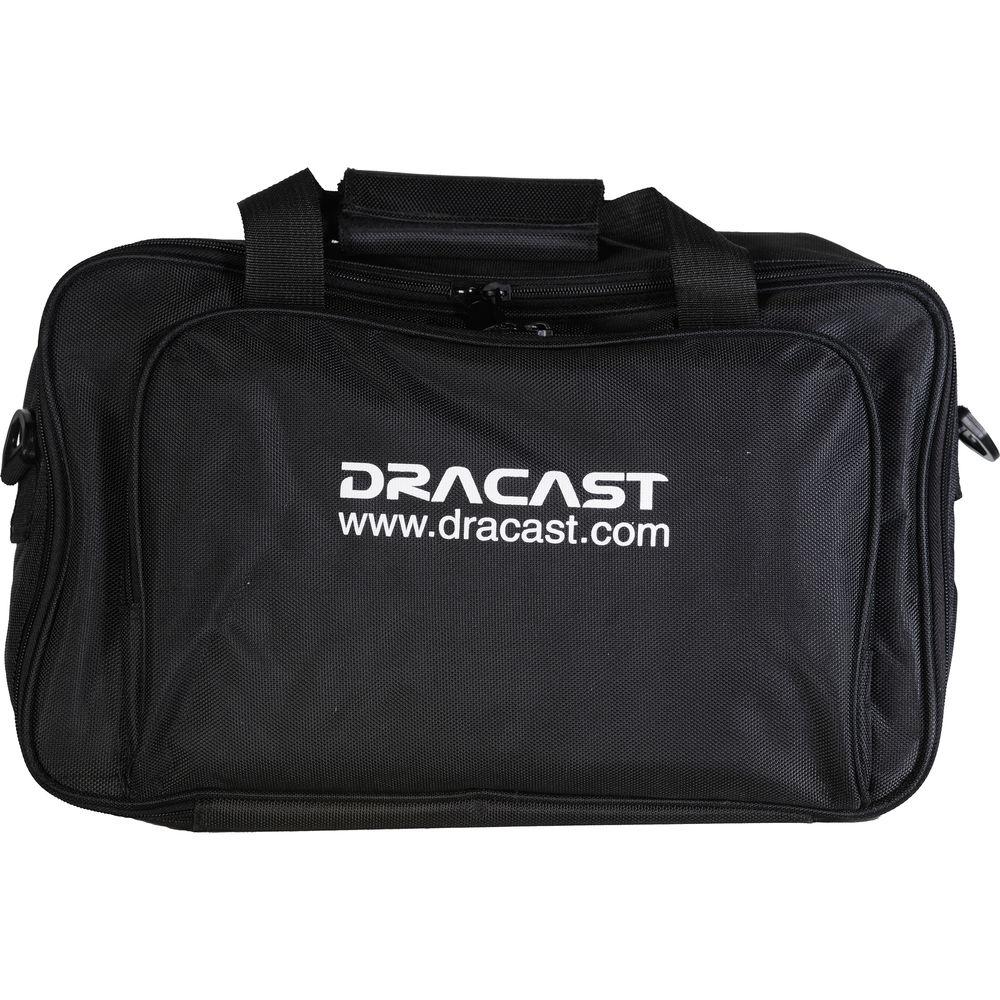

300 lux / 28 fc at 12' (4 m) UPC: 743724583144 In the Box Dracast LED500 Plus Series Tungsten LED Light Battery Plate for LED500 and LED1000 (Gold Mount) Battery Plate for LED500 and LED1000 (V-Mount) Aluminum Yoke for LED500 Light AC Power Adapter for LED500 Light Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED500 Plus Series Tungsten LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED500 Plus Specs | | | Beam Angle | 45° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Number of LEDs | 512 | | Fixture Dimensions | 12.0 x 6.0 x 2.0" / 30.5 x 15.2 x 5.1 cm | | Fixture Weight | 4 lb / 1.8 kg (Including Yoke) | | | | Battery Plate | 1 x Gold Mount

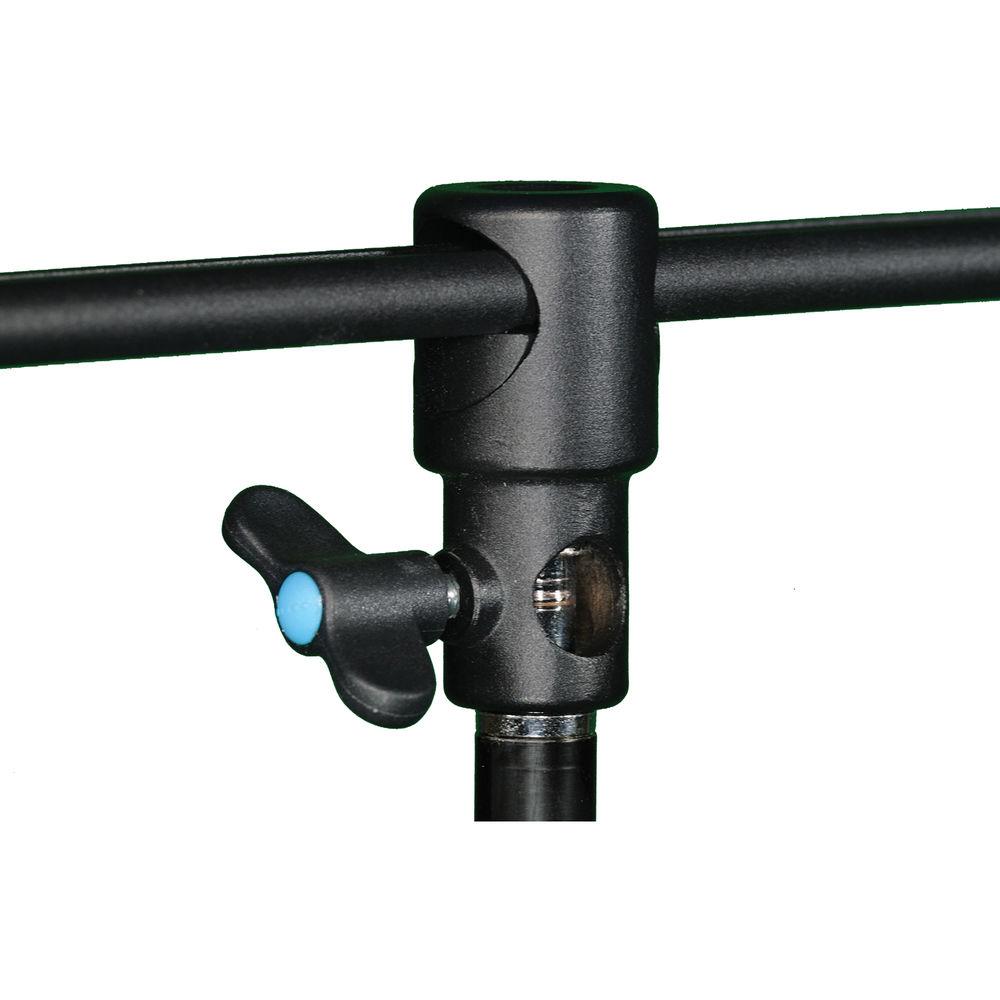

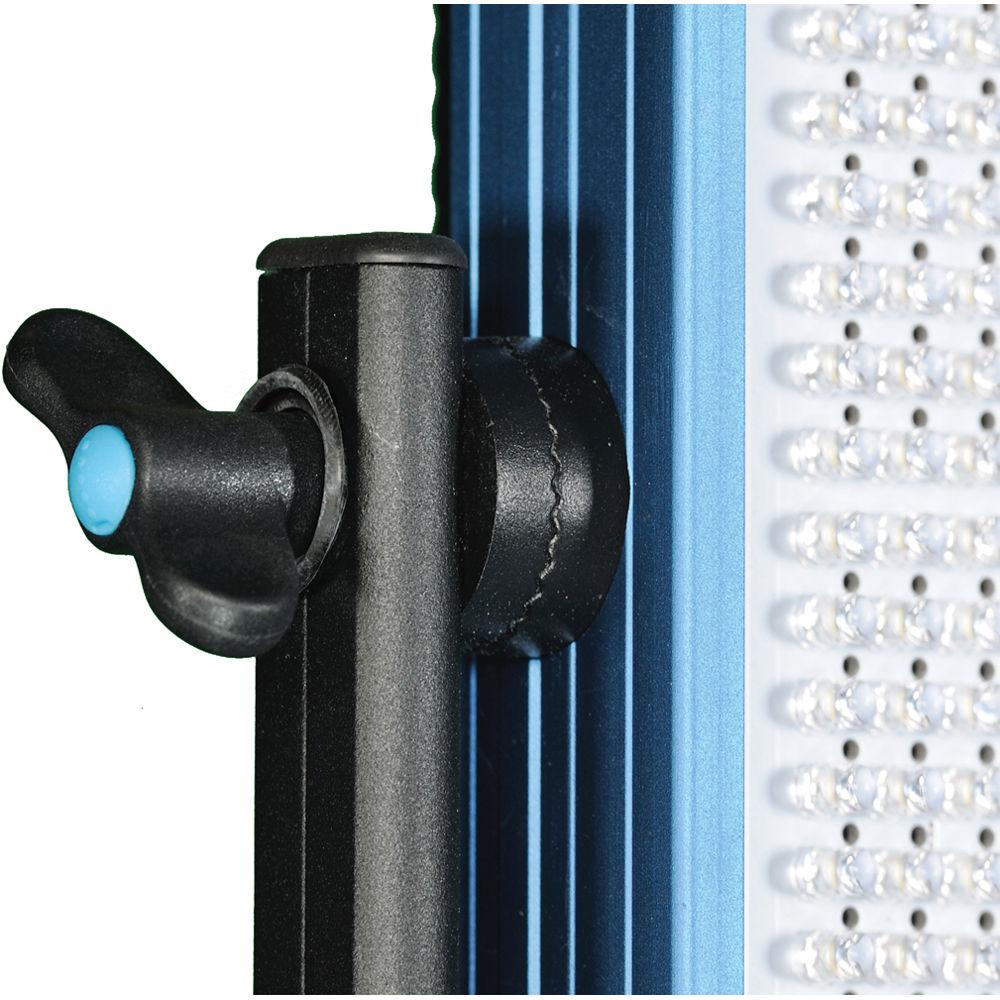

1 x V-Mount | | DMX Connector | RJ45 | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 18.25 x 11.5 x 8.5" |
