Product description

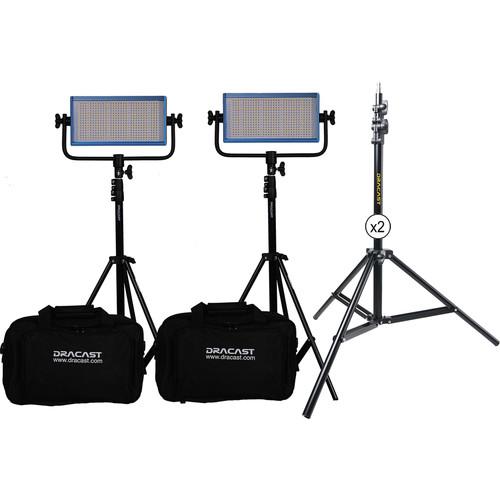

• Dracast LED500 Pro Bi-Color LED 2-Light Kit with V-Mount Battery Plates Ideal for location shooters, the LED500 Pro Bi-Color LED 2-Light Kit with V-Mount Battery Plates from Dracast is comprised of 2 LED500 Bi-Color Lights, each with a multi-voltage power adapter and a case. UPC: 720189881909
• 2 x Dracast DLS-805 Spring-Cushioned Light Stand (6') The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5" to 72" and has a load capacity of 13 lb. It folds down to 28.5" for transport, and weighs 3.4 lb. There is a 5/8" stud on top of the stand.

  The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments. UPC: 639713546699

• LED500 Pro Bi-Color LED 2-Light Kit with V-Mount Battery Plates
• 2 x LED500 Pro Bi-Color LED Light with V-Mount Battery Plate

• 2 x DLS-805 Spring-Cushioned Light Stand (6')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Dracast LED500 Pro Bi-Color LED 2-Light Kit with V-Mount Battery Plates

  Beam Angle	45°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Dimming	Yes, 0 to 100%
  Housing Material	Aluminum
  Lumens	0
  Photometrics	45° at 3200K: 251 fc / 2700 lux at 3' / 0.9 m 45° at 4400K: 409 fc / 4400 lux at 3' / 0.9 m 45° at 5600K: 181 fc / 1950 lux at 3' / 0.9 m
  Rectangular Panel Size	12 x 6" / 30.48 x 15.24 cm
  Fixture Dimensions	12.0 x 6.0 x 2.0" / 30.5 x 15.2 x 5.1 cm
  Fixture Weight	4 lb / 1.81 kg

  Battery Plate	1 x V-Mount
  Power Input Connector	4-Pin XLR
  DMX Connector	None

  Fixture Mount	5/8" Receiver

  Yoke Type	Yoke/Bracket

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC, External Battery
  Max Power Consumption	30 W

  Power Supply Output	12 VDC

  Box Dimensions (LxWxH)	32.0 x 0.01 x 0.01"

• 2 x Dracast DLS-805 Spring-Cushioned Light Stand (6')

  Load Capacity	13 lb / 6 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	72" / 182.9 cm
  Minimum Working Height	28.5" / 72.4 cm
  Collapsed Height	28.5" / 72.4 cm
  Leg Shape	Round
  Air Cushioned	No Spring-Cushioned
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	3.4 lb / 1.5 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	37.5 x 4.0 x 4.0"
