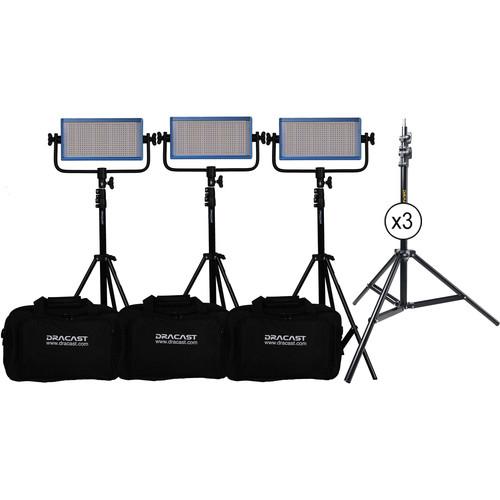

User Manual for Dracast LED500 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates and Stands Click to enlarge the picture
Contents of the user manual for the Dracast LED500 Pro Daylight LED 3-Light
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
|
User manual for the Dracast LED500 Pro Daylight LED 3-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|
Product description With location shooters in mind, B&H put together the Dracast LED500 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates and Stands for the photographer on the road. The kit is comprised of three LED500 lights, each with a multi-voltage power adapter, case, and a light stand. Three 7.2' light stands are also included.
At just 4 lb, the LED500 Pro Daylight LED is a lightweight option for location work, interviews, and small sets where color accuracy, control, and flicker-free output are of major importance. Daylight-balanced 5600K color temperature makes this light well-suited for pairing with strobes or HMI fixtures, as well as balancing with ambient daylight conditions. Dimming is equally convenient via another knob that adjusts the light intensity from 0-100% with negligible color shift, and the low electrical draw of just 30W means a timely return on your investment. The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter or by optional 12 VDC batteries. - Dracast LED500 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates Ideal for location shooters, the LED500 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates from Dracast is comprised of three LED500 lights, each with a multi-voltage power adapter, case, and a 6' light stand.
At just 4.0 lb, the LED500 Pro Daylight LED is an ideal choice for location work, interviews, and small sets where color accuracy, control, and flicker-free output are of major importance. Daylight-balanced 5600K color temperature makes this light well-suited for pairing with strobes or HMI fixtures, as well as balancing with ambient daylight conditions. Dimming is equally convenient via another knob that adjusts the light intensity from 0-100% with negligible color shift, and the low electrical draw of just 30W means a timely return on your investment. The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter or by optional 12 VDC batteries. UPC: 720189882456 - 3 x Dracast DLS-805 Spring-Cushioned Light Stand (6') The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5" to 72" and has a load capacity of 13 lb. It folds down to 28.5" for transport, and weighs 3.4 lb. There is a 5/8" stud on top of the stand.
The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments. UPC: 639713546699 In the Box - LED500 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates
- 3 x LED500 Pro Daylight LED Light with V-Mount Battery Plate
- 3 x DLS-805 Spring-Cushioned Light Stand (6')
- 3 x DLS-805 Spring-Cushioned Light Stand (6')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED500 Pro Daylight LED 3-Light Kit with V-Mount Battery Plates and Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dracast LED500 Pro Daylight LED Light with V-Mount Battery Plate
| | | Beam Angle | 45° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 12.0 x 6.0 x 2.0" / 305.0 x 152.0 x 51.0 mm | | Fixture Weight | 4 lb / 1.8 kg | | | | Battery Plate | 1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Box Dimensions (LxWxH) | 18.189 x 11.811 x 8.11" | - Dracast DLS-805 Spring-Cushioned Light Stand (6')
| Load Capacity | 13 lb / 6 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 72" / 182.9 cm | | Minimum Working Height | 28.5" / 72.4 cm | | Collapsed Height | 28.5" / 72.4 cm | | Leg Shape | Round | | Air Cushioned | No Spring-Cushioned | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Material | Aluminum | | Weight | 3.4 lb / 1.5 kg | | Warranty Length | Limited 1-Year Warranty | | | | Box Dimensions (LxWxH) | 37.5 x 4.0 x 4.0" | - 3 x Dracast DLS-805 Spring-Cushioned Light Stand (6')
| Load Capacity | 13 lb / 6 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 72" / 182.9 cm | | Minimum Working Height | 28.5" / 72.4 cm | | Collapsed Height | 28.5" / 72.4 cm | | Leg Shape | Round | | Air Cushioned | No Spring-Cushioned | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Material | Aluminum | | Weight | 3.4 lb / 1.5 kg | | Warranty Length | Limited 1-Year Warranty | | | | Box Dimensions (LxWxH) | 37.5 x 4.0 x 4.0" |
