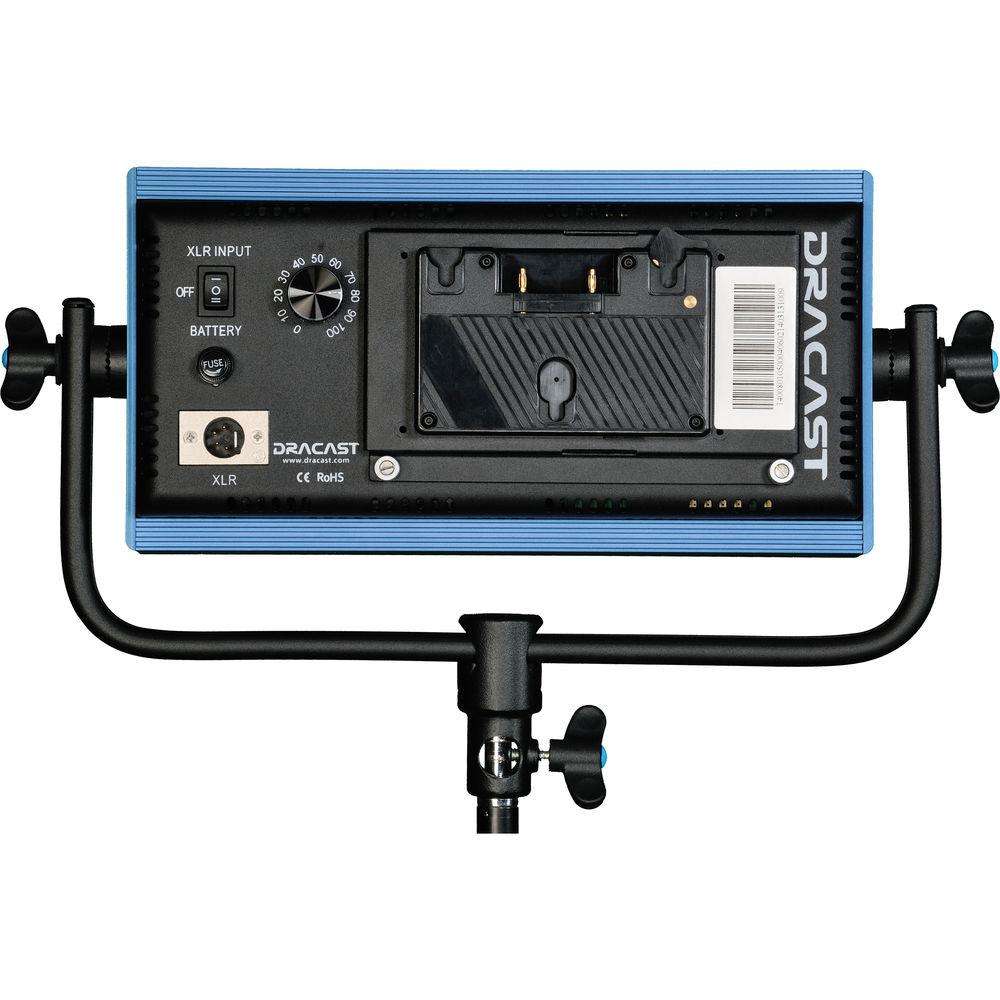

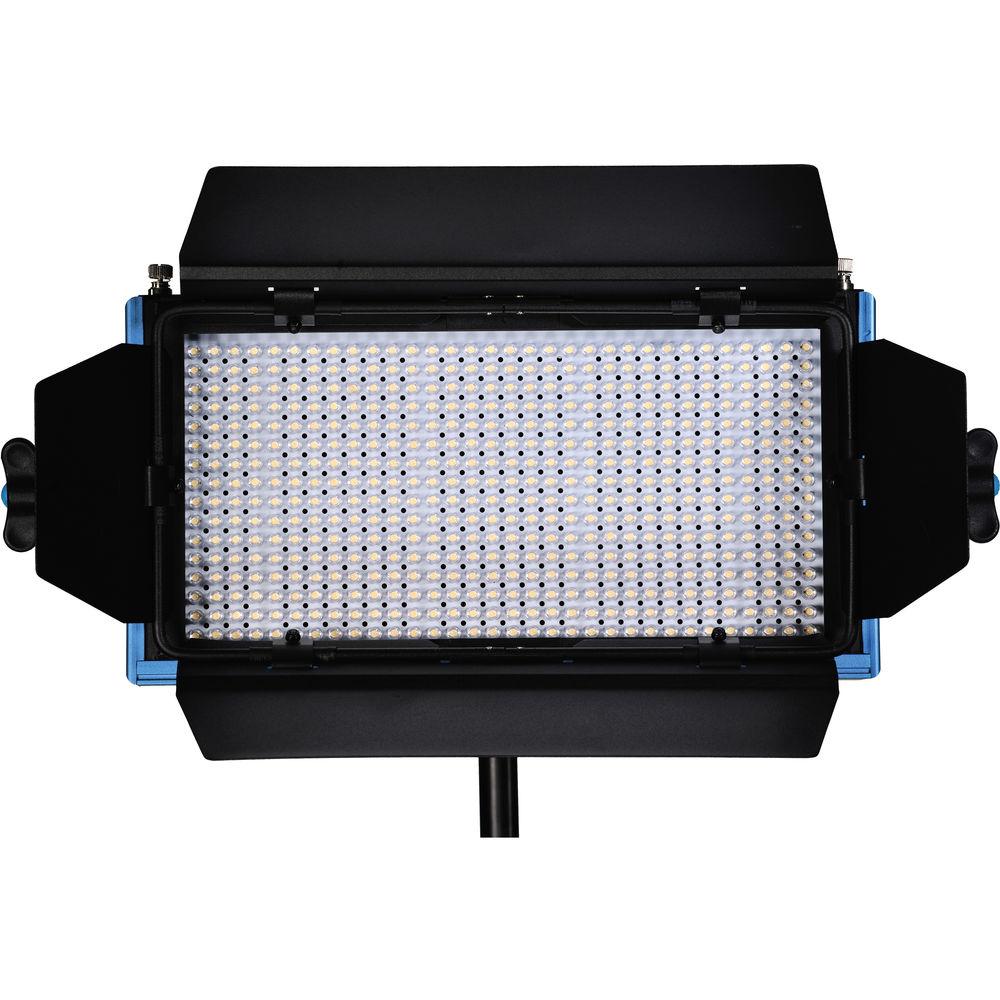

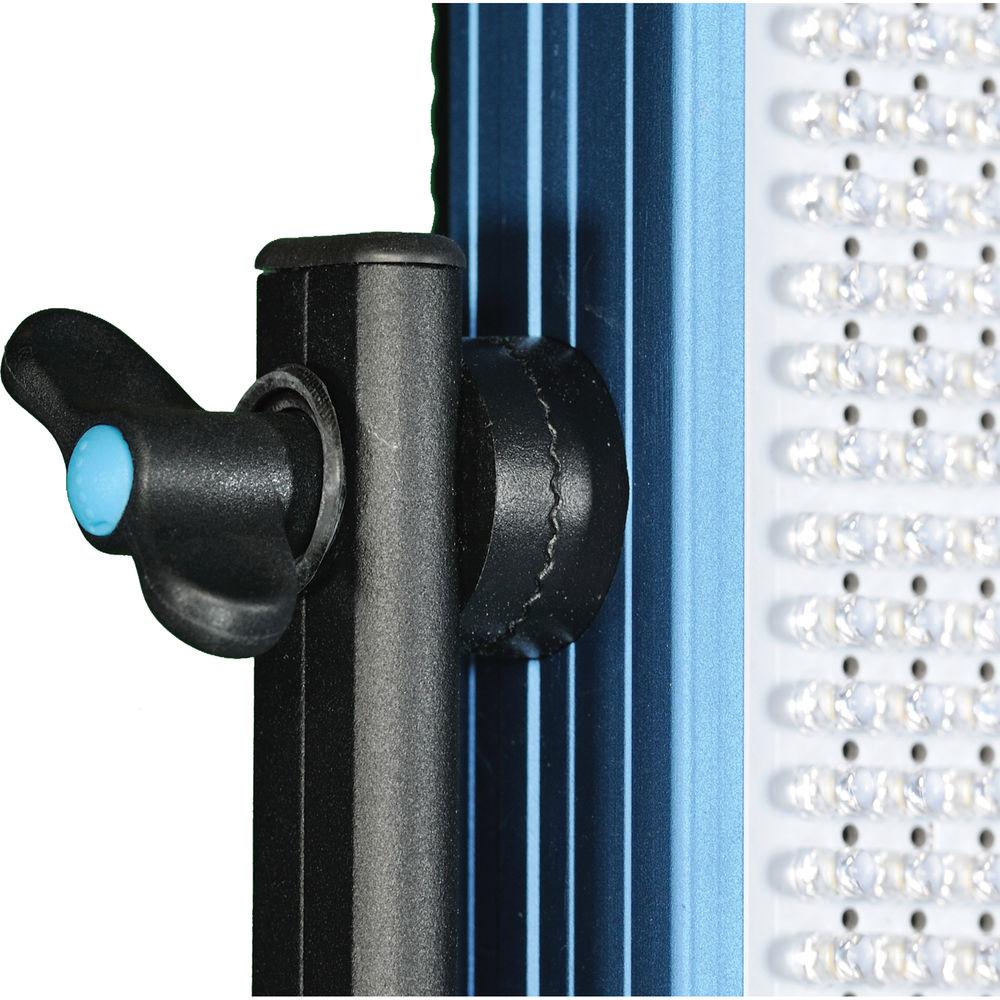

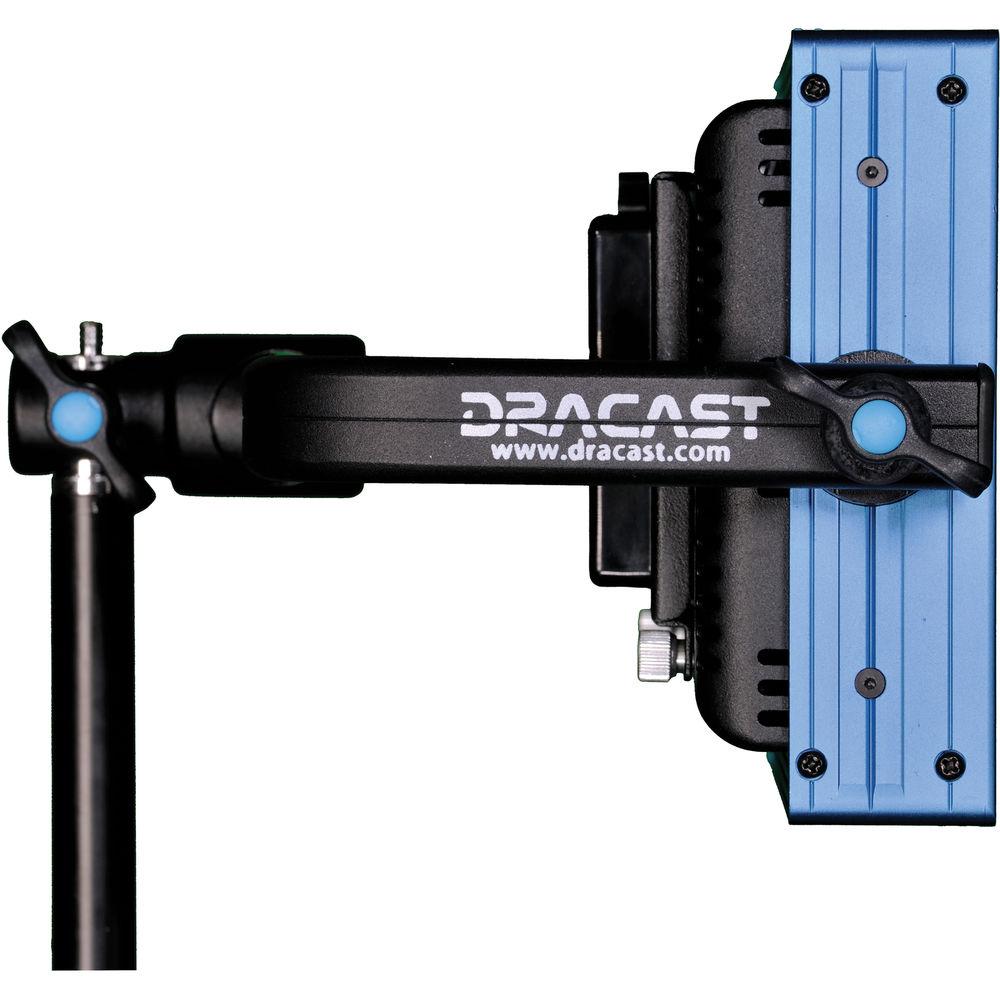

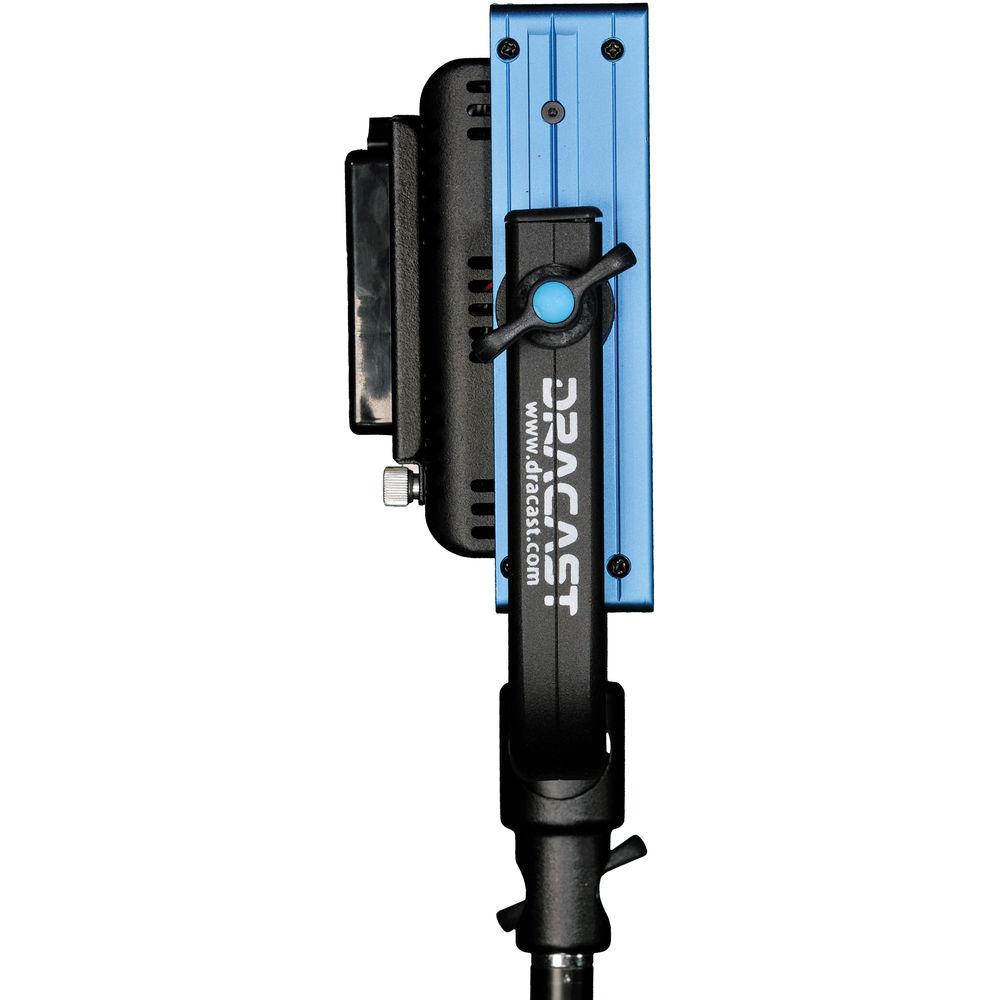

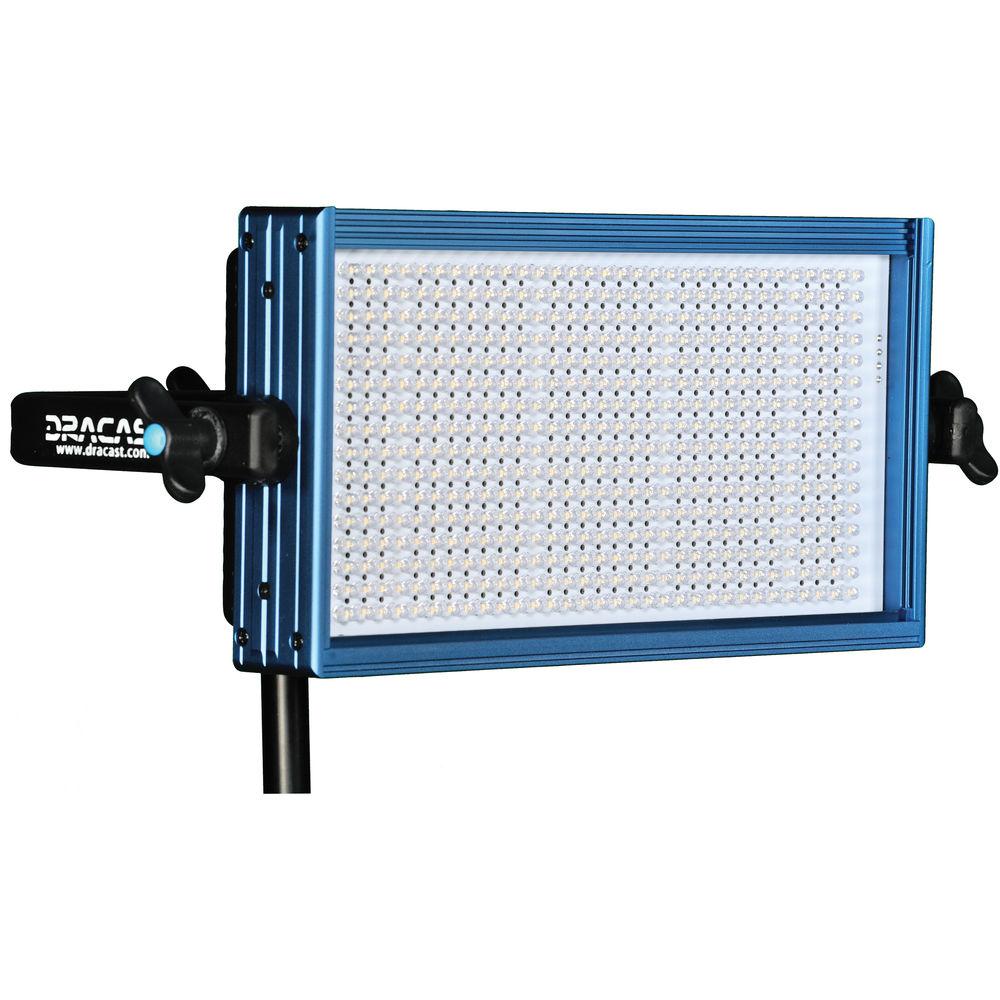

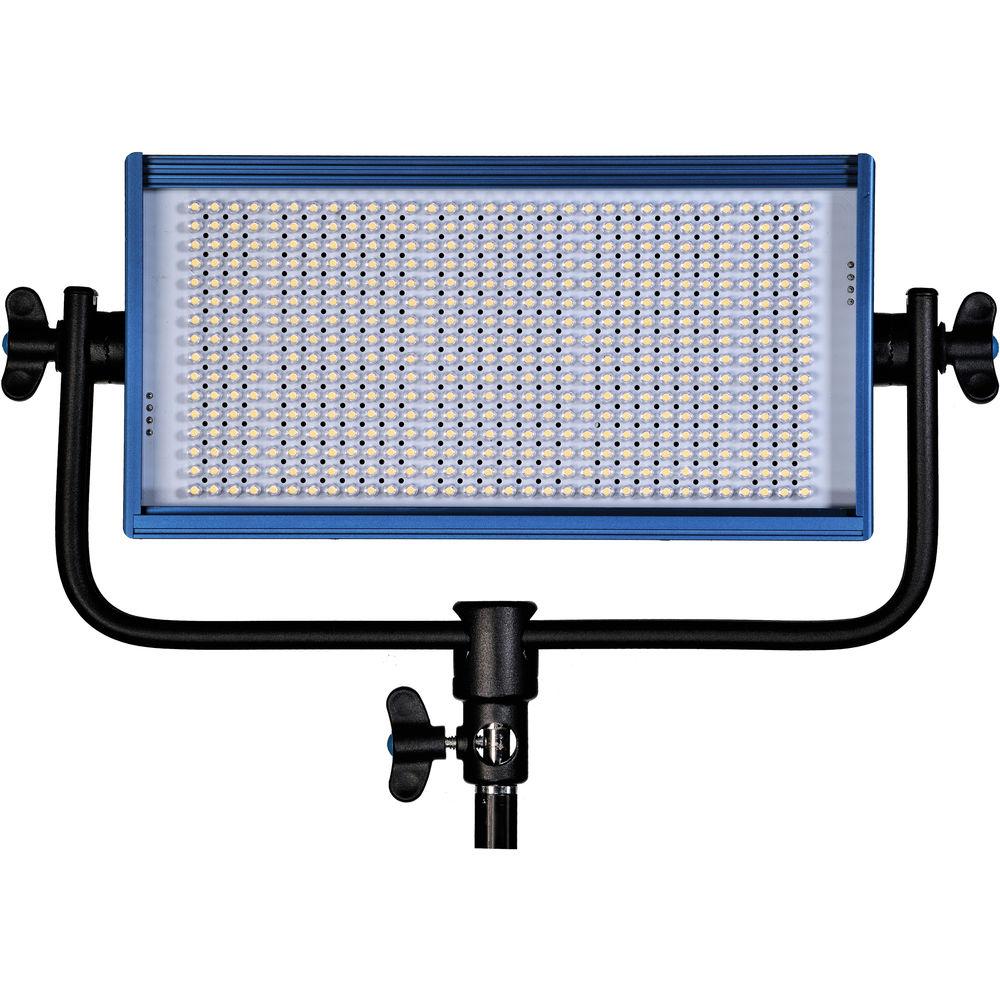

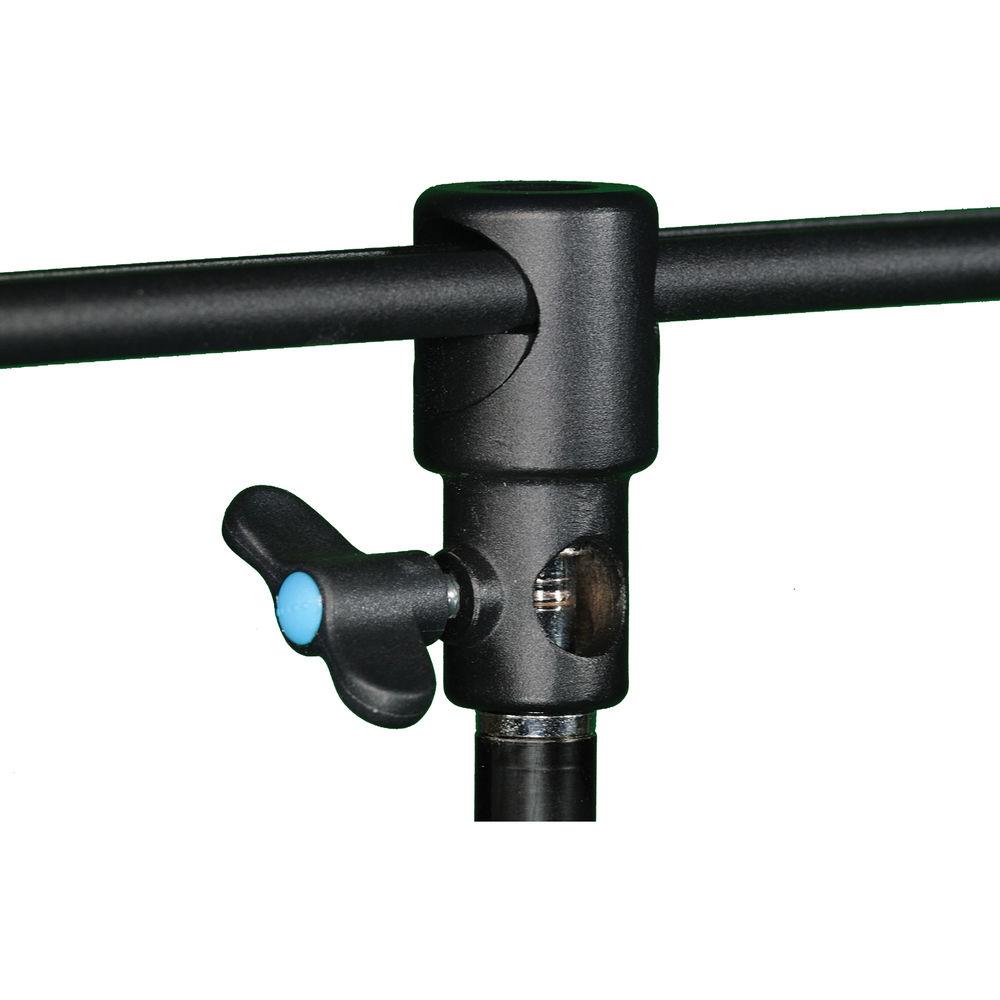

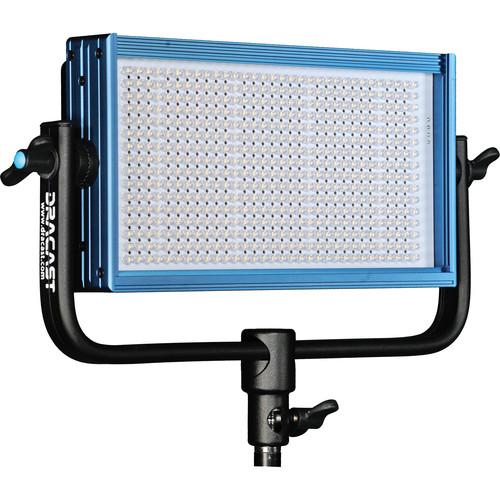

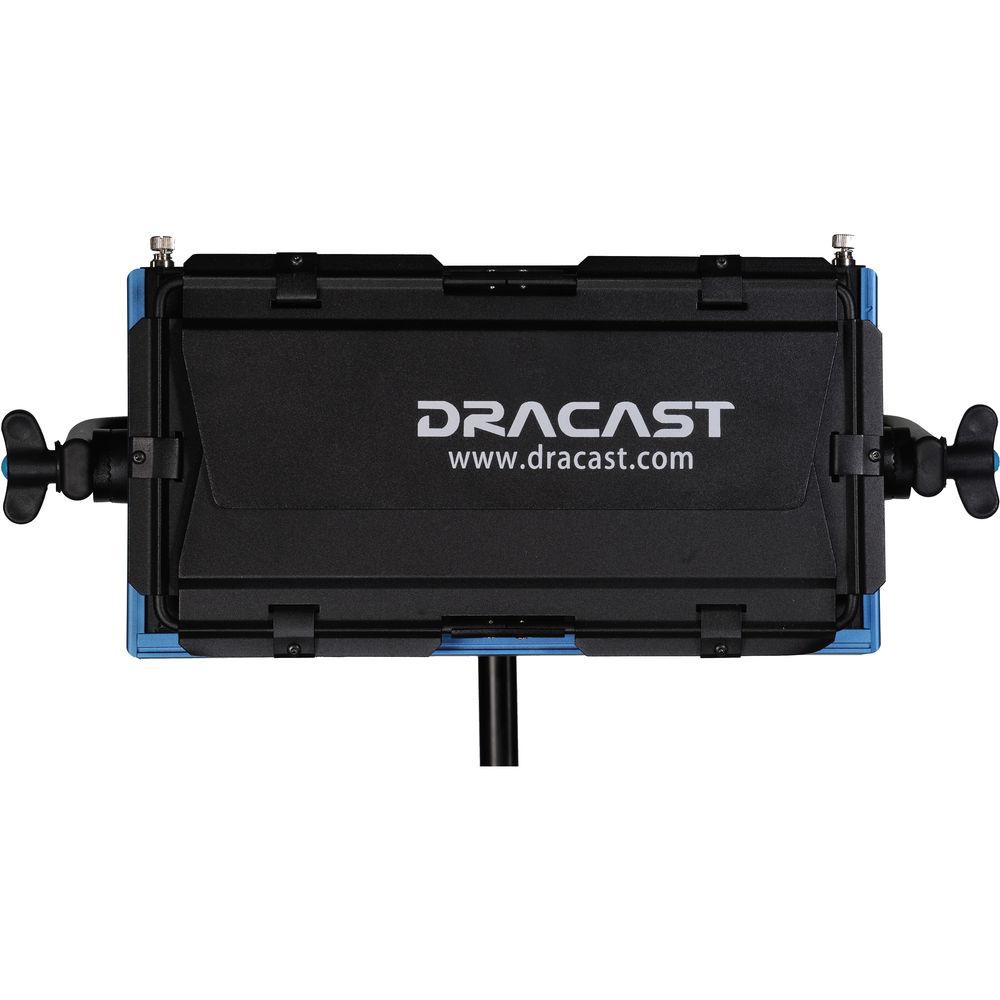

Product description At 4 lb the LED500 Pro Tungsten LED Light with Gold Mount Battery Plate from Dracast is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED500's tungsten balanced output is well suited for color matching tungsten fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift. The low electrical draw of just 30W means a timely return on your investment.The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This LED500 can be used worldwide thanks to its included 100-240 VAC power adapter. You can also use the onboard Gold Mount battery plate with 14.8 VDC batteries when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED500's 45-degree beam angle. A carrying case is included. - Photometrics
- 3800 lux / 353 fc at 3.0' (0.9m)
1150 lux / 107 fc at 6.0' (1.8m)
530 lux / 49 fc at 9.0' (2.7m) UPC: 720189882890 In the Box Dracast LED500 Pro Tungsten LED Light with Gold Mount Battery Plate Carry Case AC Power Adapter for LED500 Light Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED500 Pro Tungsten LED Light with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDracast LED500 Pro Specs | | | Beam Angle | 45° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 12.0 x 6.0 x 2.0" / 305.0 x 152.0 x 51.0 mm | | Fixture Weight | 4 lb / 1.8 kg | | | | Battery Plate | 1 x Gold Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 18.1 x 11.6 x 8.1" |
