User Manual for Dracast LED500 S-Series Bi-Color 3-Light Kit with V-Mount Battery Plates and Soft Case Click to enlarge the picture
Contents of the user manual for the Dracast LED500 S-Series Bi-Color 3-Light Kit
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED500 S-Series Bi-Color 3-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

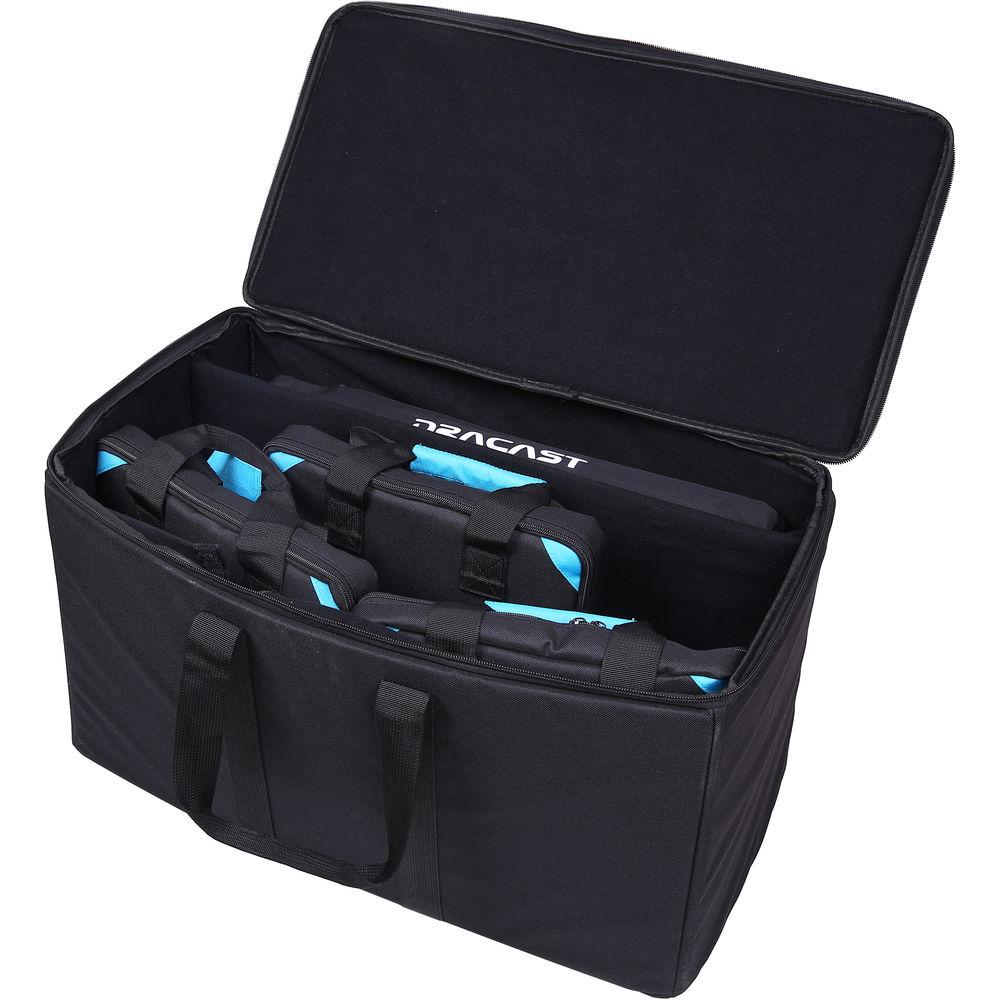

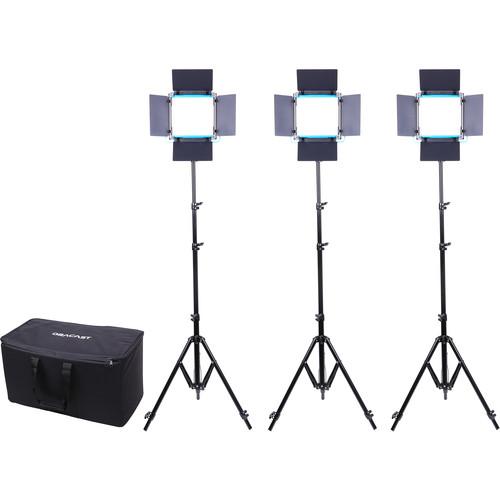

Product description This LED500 S-Series Bi-Color 3-Light Kit with V-Mount Battery Plates from Dracast offers image makers a capable 3-point light solution that can be used in the studio or on the road. The kit features three S-Series Bi-Color LED500 panels equipped with V-mount battery plates, each coming with a diffuser, a power adapter, and an individual soft case for each light. Complementing the panels are three 7.2' stands for support and a padded soft kit case that can safely transport all the included gear. - LED500 Silver Series Bi-Color LED Light with V-Mount Battery Plate
- Dracast Silver Series LED500 Panel
Featuring a slimmer and lighter design at just 2.0 lb, the LED500 Silver Series Bi-Color LED Light from Dracast is an ideal choice for location work, interviews, and small sets where color accuracy, control, and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 30W means a timely return on your investment.The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter in the studio, or by V-Mount batteries in the field. Four-way barndoors for contouring and control of the LED500's 45-degree beam angle are included. For protection during transport and storage, a carry case is included. - Photometrics
- 2700 lux/ 251 fc @ 3' (0.9m) and 3220K
750 lux/ 70 fc @ 6' (1.8m) and 3220K
350 lux/ 33 fc @ 9' (2.7m) and 3220K
200 lux/ 19 fc @ 12' (3.6m) and 3220K
4400 lux/ 409 fc @ 3' (0.9m) and 4400K
1250 lux/ 116 fc @ 6' (1.8m) and 4400K
600 lux/ 56 fc @ 9' (2.7m) and 4400K
350 lux/ 33 fc @ 12' (3.6m) and 4400K
1950 lux/ 181 fc @ 3' (0.9m) and 5600K
530 lux/ 49 fc @ 6' (1.8m) and 5600K
265 lux/ 25 fc @ 9' (2.7m) and 5600K
150 lux/ 14 fc @ 12' (3.6m) and 5600K - Compact Collapsible Light Stand for Silver Series LED Panels This Dracast Compact Collapsible Light Stand is designed to hold the Silver Series LED light panels. UPC: 722589274268

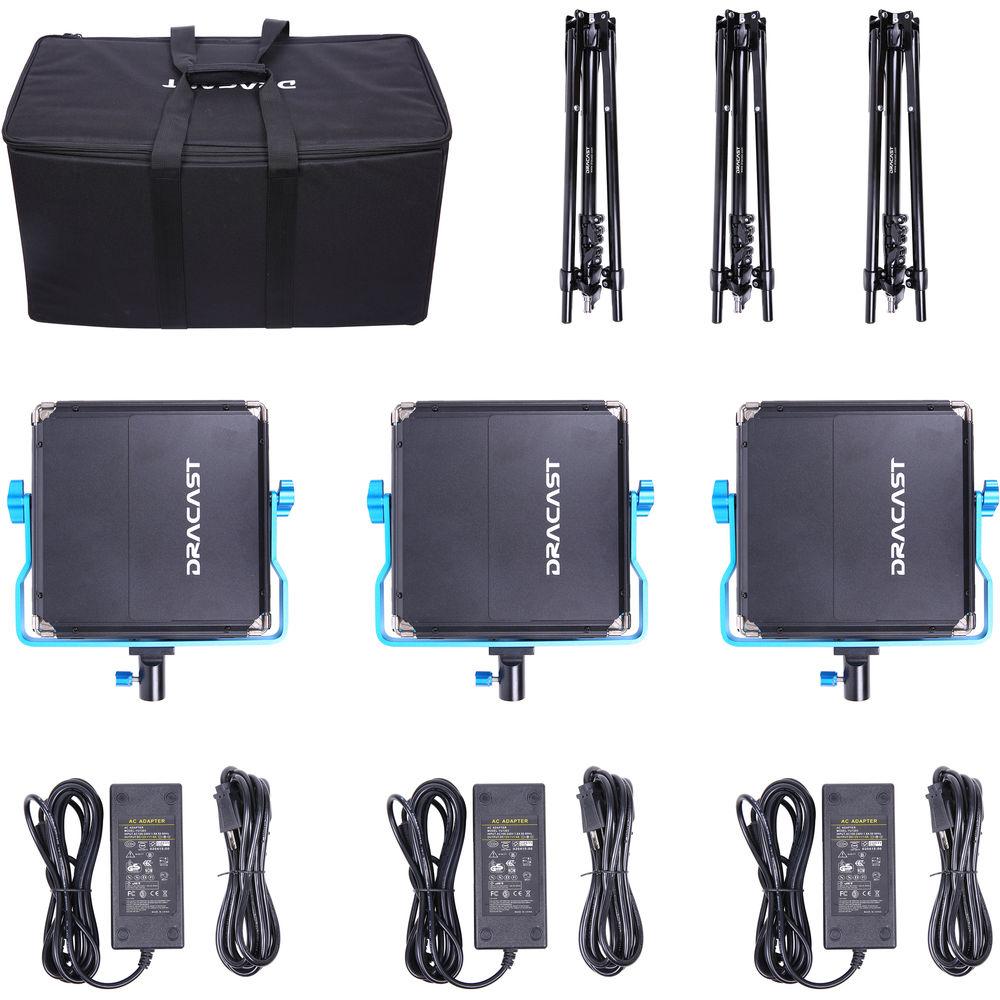

In the Box Bundle Items 3 x LED500 Silver Series Bi-Color LED Light with V-Mount Battery Plate ufurvqyafutqzqccfb - Barndoors for Silver Series LED500
3 x Compact Collapsible Light Stand for Silver Series LED Panels
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED500 S-Series Bi-Color 3-Light Kit with V-Mount Battery Plates and Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED500 Silver Series Bi-Color LED Light with V-Mount Battery Plate
| | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 10.0 x 10.4 x 1.8" / 260.0 x 265.0 x 48.0 mm | | Fixture Weight | 2.0 lb / 0.9 kg | | | | Battery Plate | 1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W | | | | Box Dimensions (LxWxH) | 13.5 x 13.4 x 4.1" | - Compact Collapsible Light Stand for Silver Series LED Panels
| | | Box Dimensions (LxWxH) | 20.2 x 4.6 x 4.3" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
