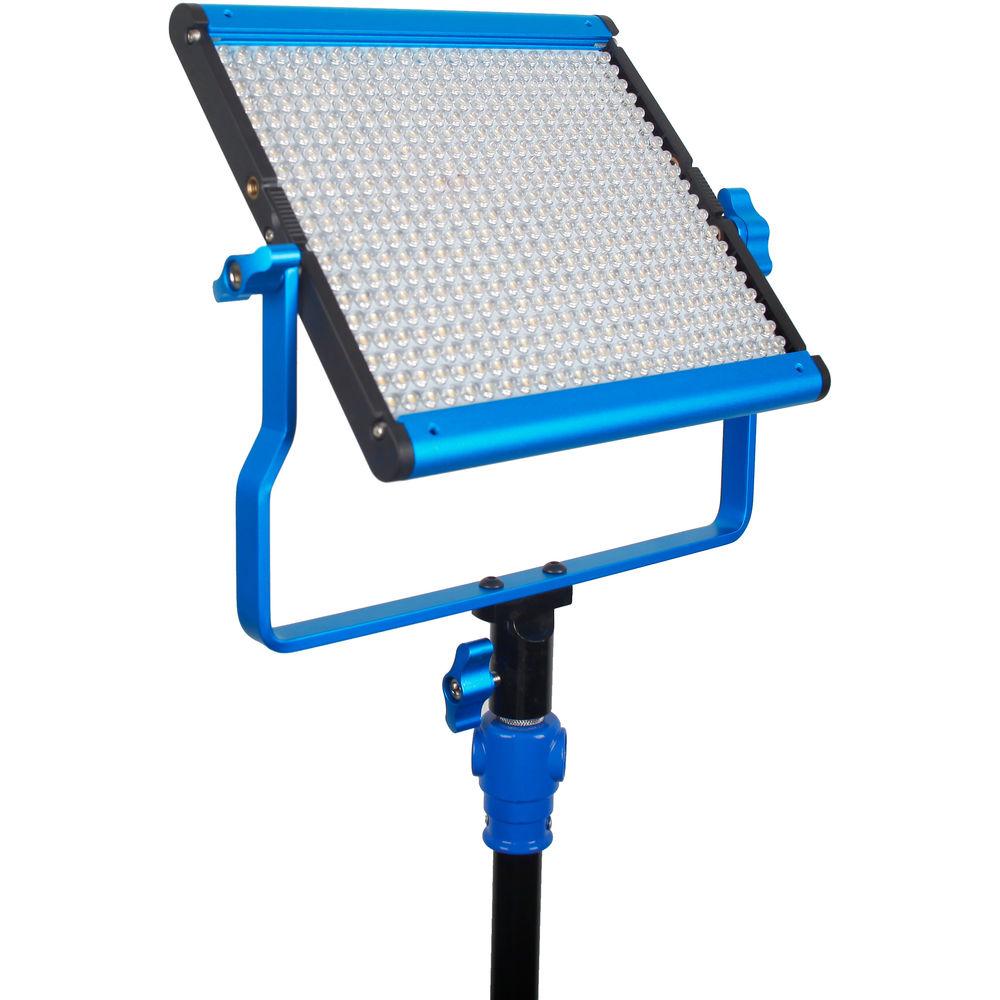

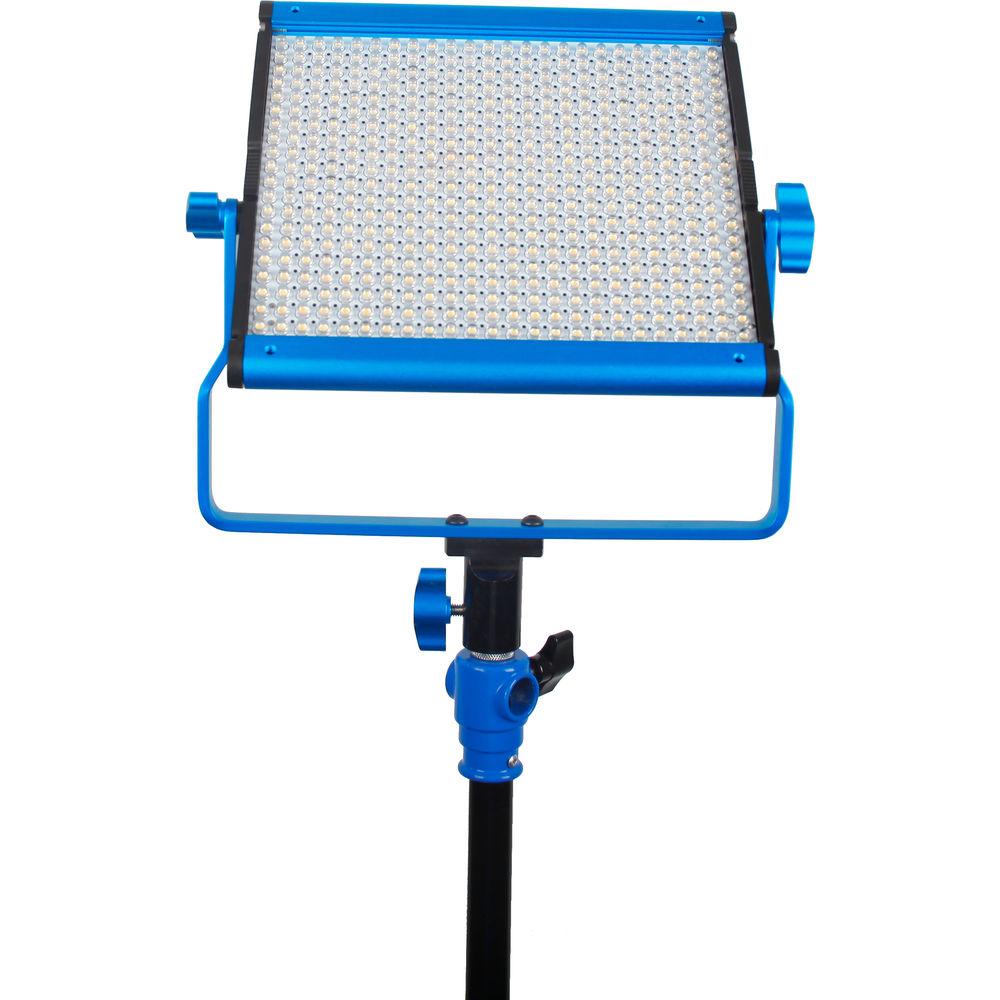

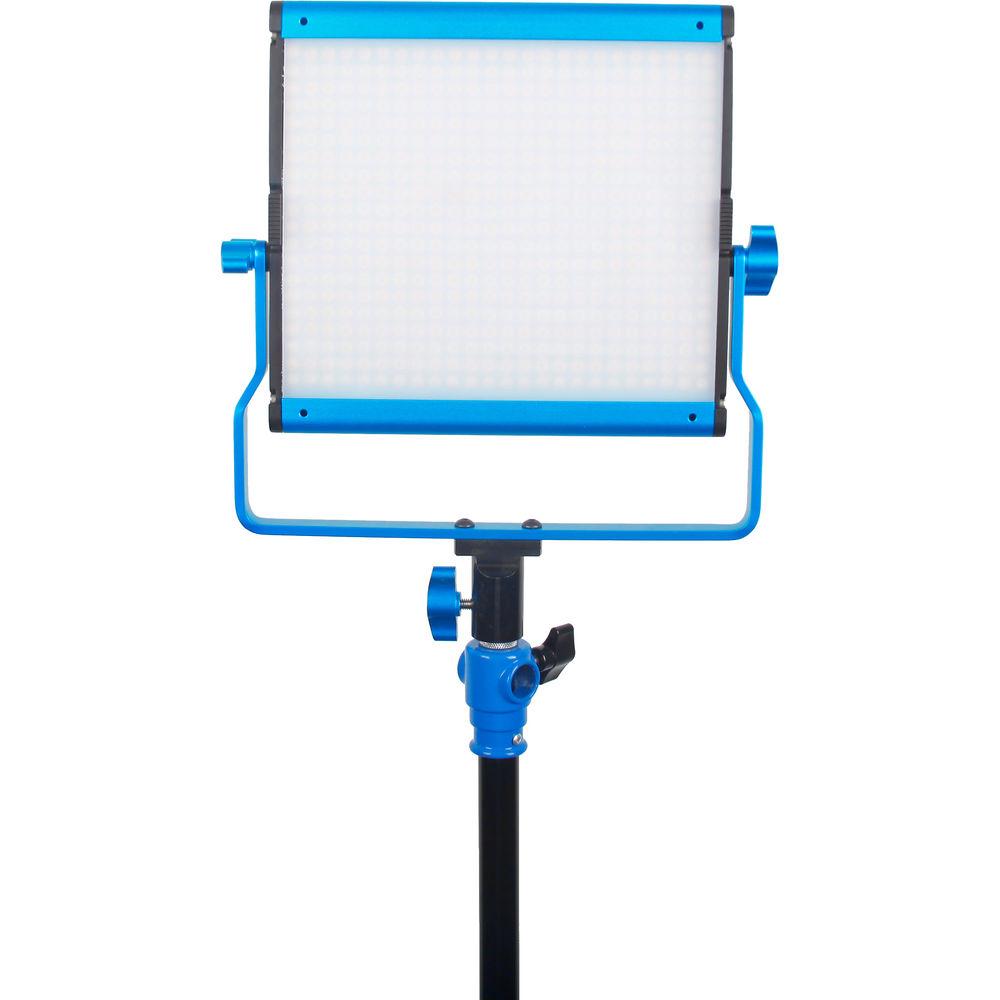

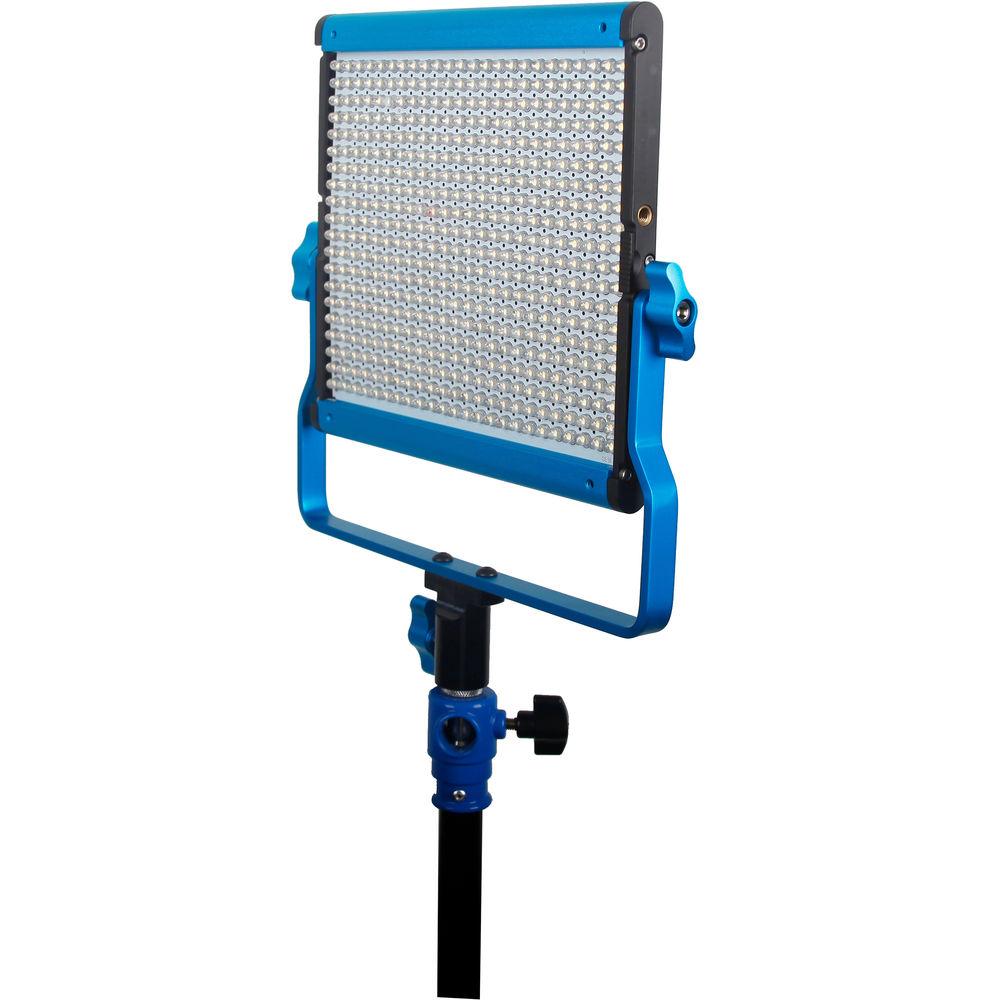

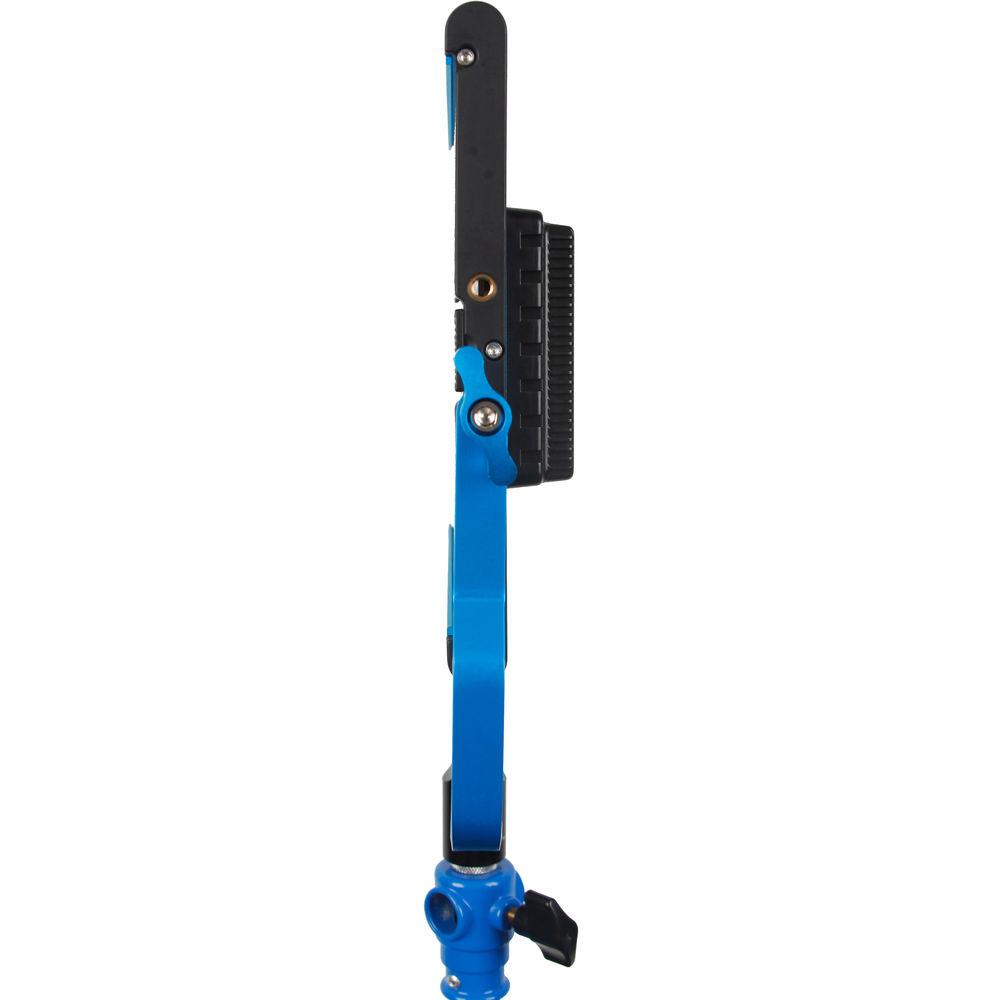

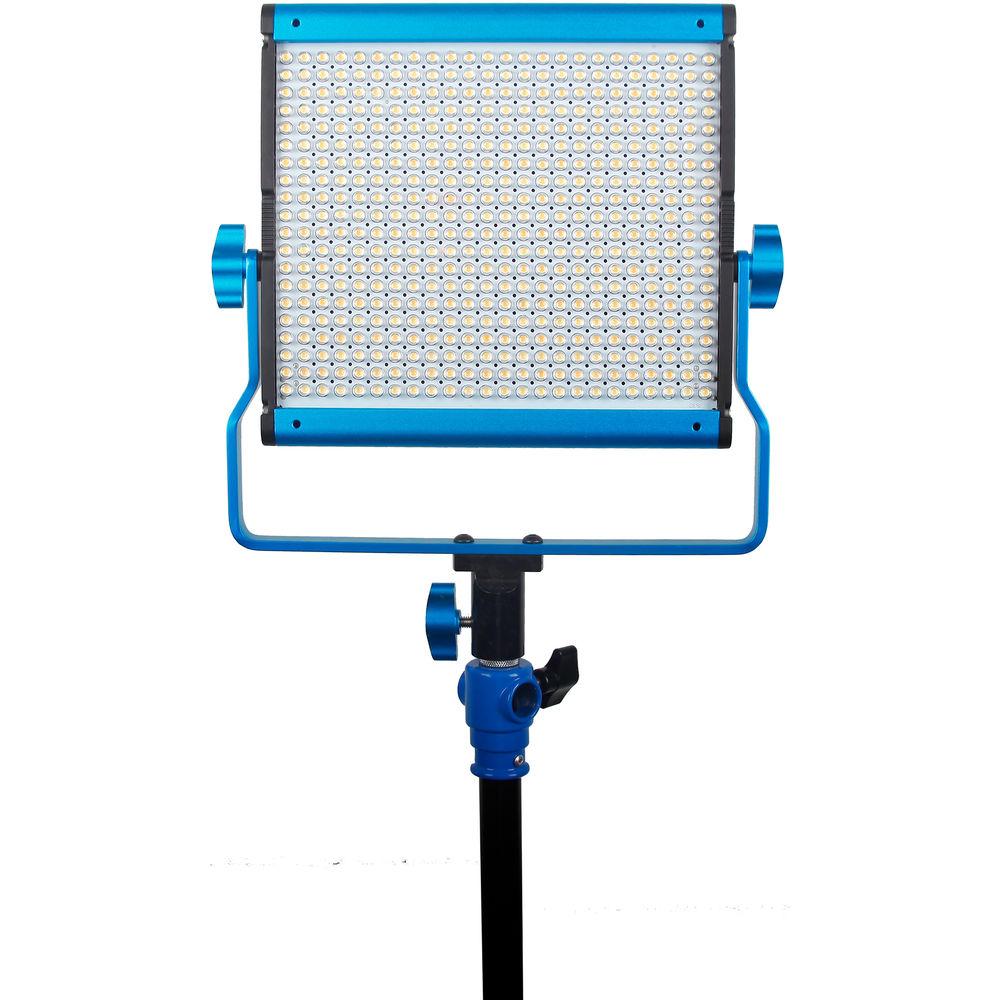

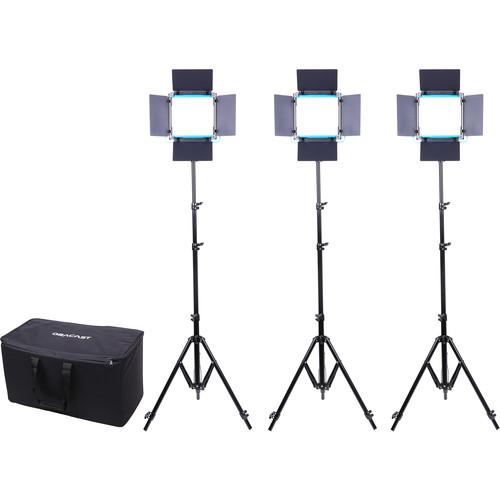

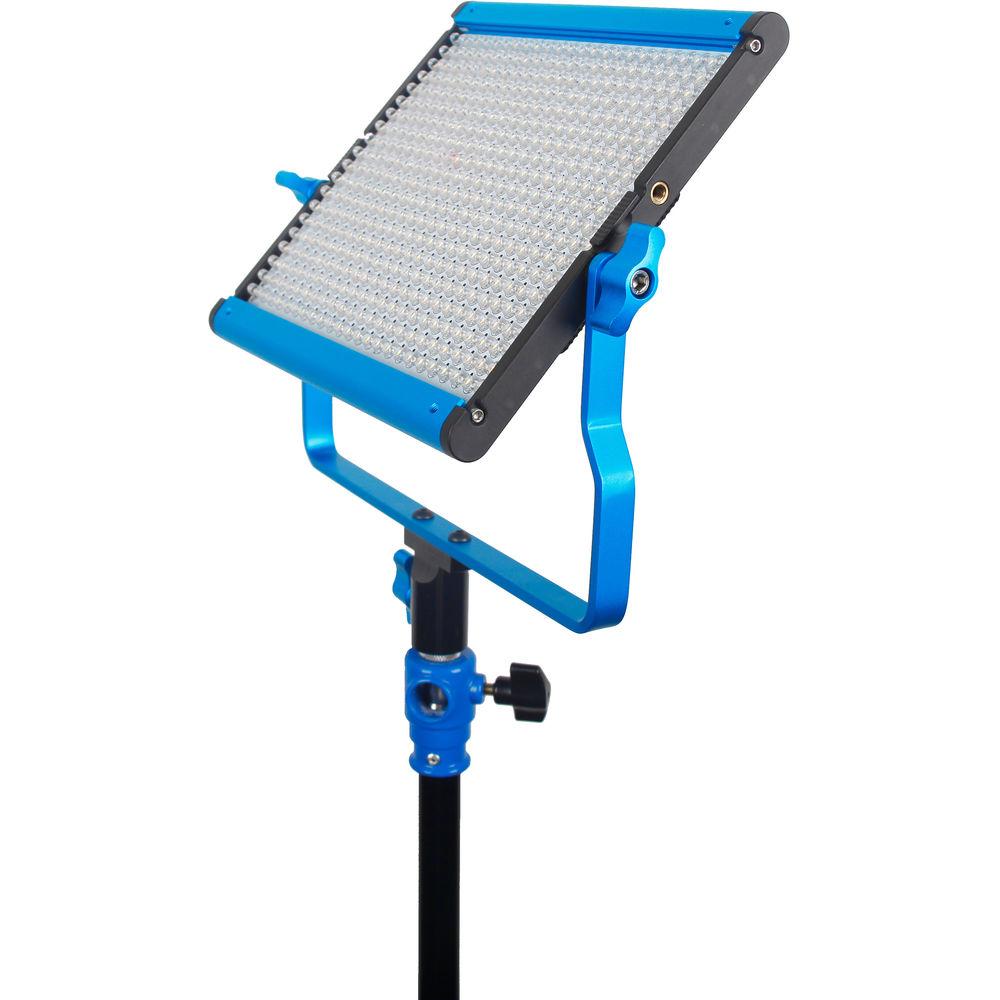

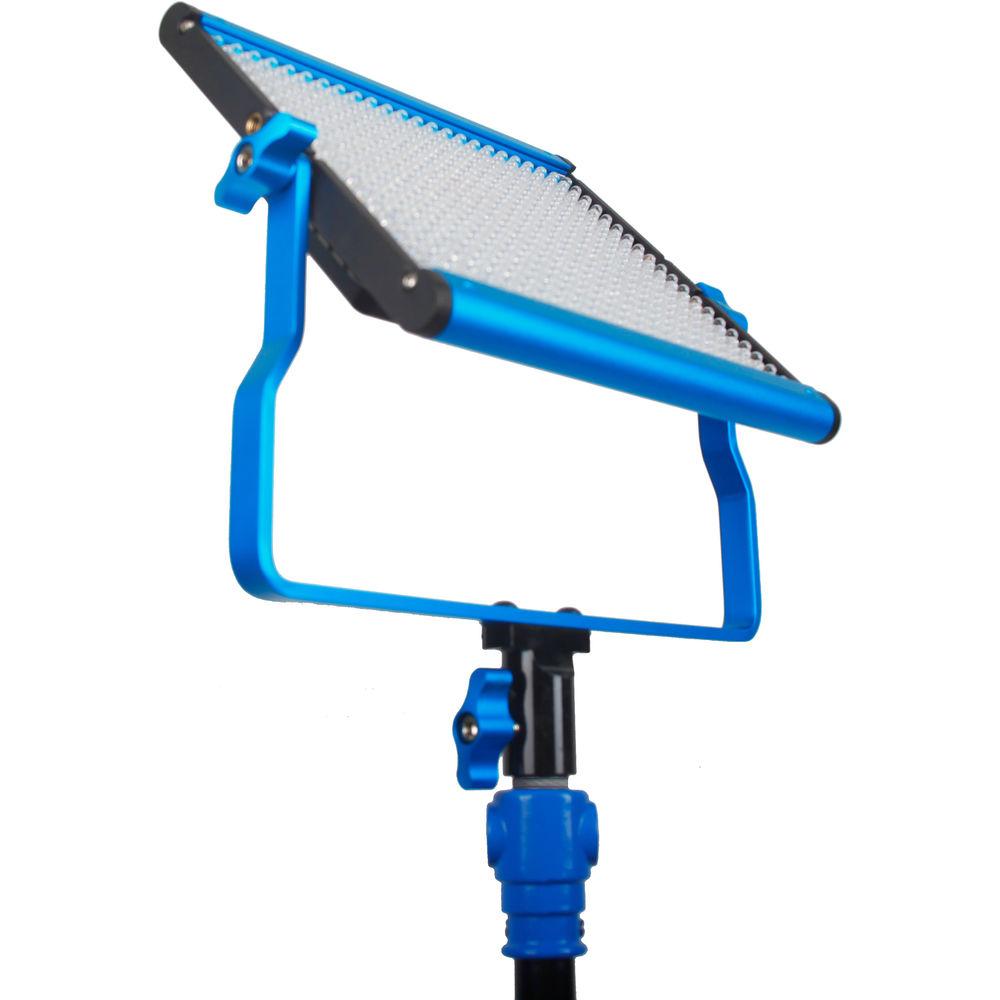

Product description This LED500 S-Series Daylight 3-Light Kit with NP-F Battery Plates from Dracast offers image makers a capable 3-point light solution that can be used in the studio or on the road. The kit features three S-Series Daylight LED500 panels equipped with NP-F battery plates, each coming with a diffuser, a power adapter, and an individual soft case for each light. Complementing the panels are three 7.2' stands for support and a padded soft kit case that can safely transport all the included gear. - LED500 Silver Series Daylight LED Light with 2x L-Series Battery Plates
- Dracast Silver Series LED500 Panel

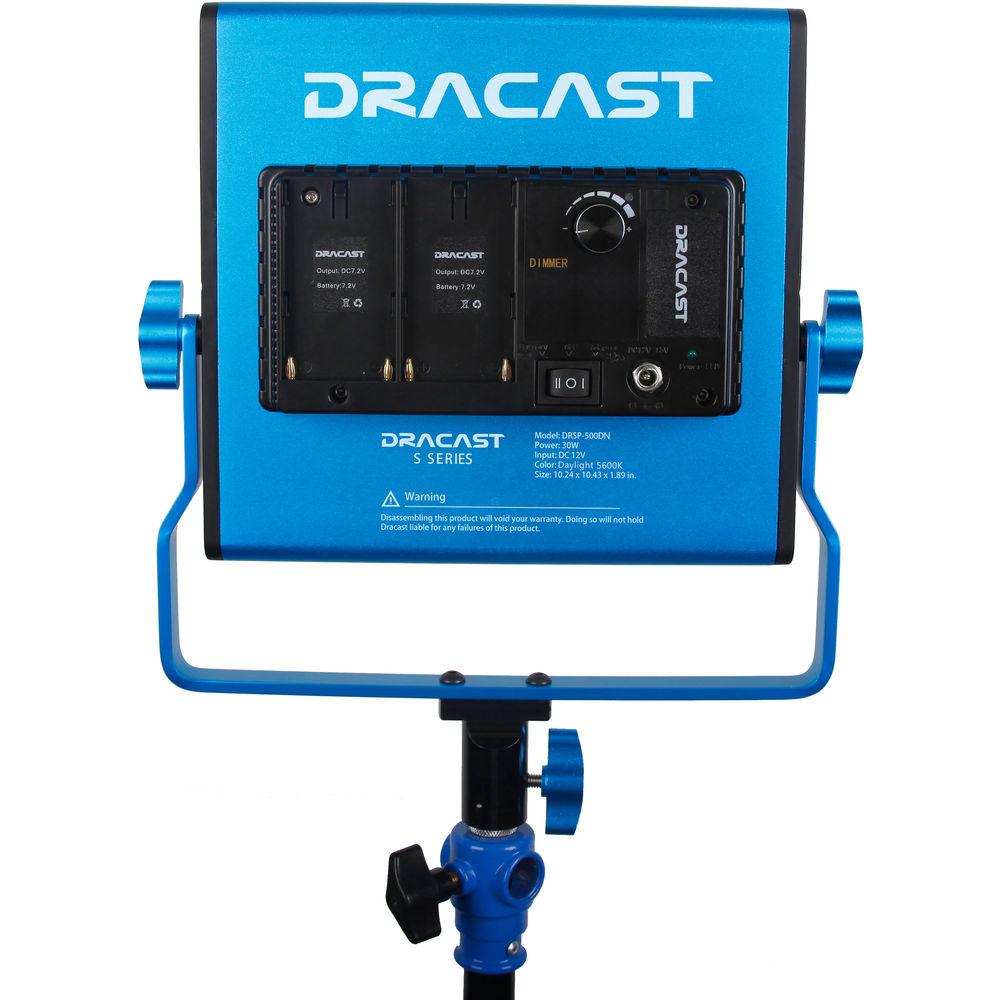

Featuring a slimmer and lighter design, the LED500 Silver Series Daylight LED Light with 2x L-Series Battery Plates from Dracast weighs just 2 lb and is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED500's daylight balanced output is well suited for outdoor work or color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift. The low electrical draw of just 29W means a timely return on your investment.The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This LED500 can be used worldwide thanks to its included 100-240 VAC power adapter. You can also use the onboard dual L-series battery plates with optional 7.2 VDC batteries when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED500's 45-degree beam angle. A carrying case is included. - Photometrics
- 5500 lux / 511 fc at 3.0' (0.9m)
1550 lux / 144 fc at 6.0' (1.8m)
725 lux / 530 fc at 9.0' (2.7m)
430 lux / 40 fc at 12' (3.6m)
600 lux / 56 fc at 12' (3.6m) UPC: 602401681941 - Compact Collapsible Light Stand for Silver Series LED Panels This Dracast Compact Collapsible Light Stand is designed to hold the Silver Series LED light panels. UPC: 722589274268
In the Box Bundle Items 3 x LED500 Silver Series Daylight LED Light with 2x L-Series Battery Plates exqbttfzwausawftbxrxwrervxvztrqb - AC Power Adapter for LED500 Light
3 x Compact Collapsible Light Stand for Silver Series LED Panels
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED500 S-Series Daylight 3-Light Kit with NP-F Battery Plates and Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED500 Silver Series Daylight LED Light with 2x L-Series Battery Plates
| | | Beam Angle | 45° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 16.2 x 7.8 x 1.8" / 412.0 x 200.0 x 48.0 mm | | Fixture Weight | 4 lb / 1.8 kg | | | | Battery Plate | 1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 58 W | | | | Box Dimensions (LxWxH) | 13.7 x 13.6 x 6.4" | - Compact Collapsible Light Stand for Silver Series LED Panels
| | | Box Dimensions (LxWxH) | 20.2 x 4.6 x 4.3" |
