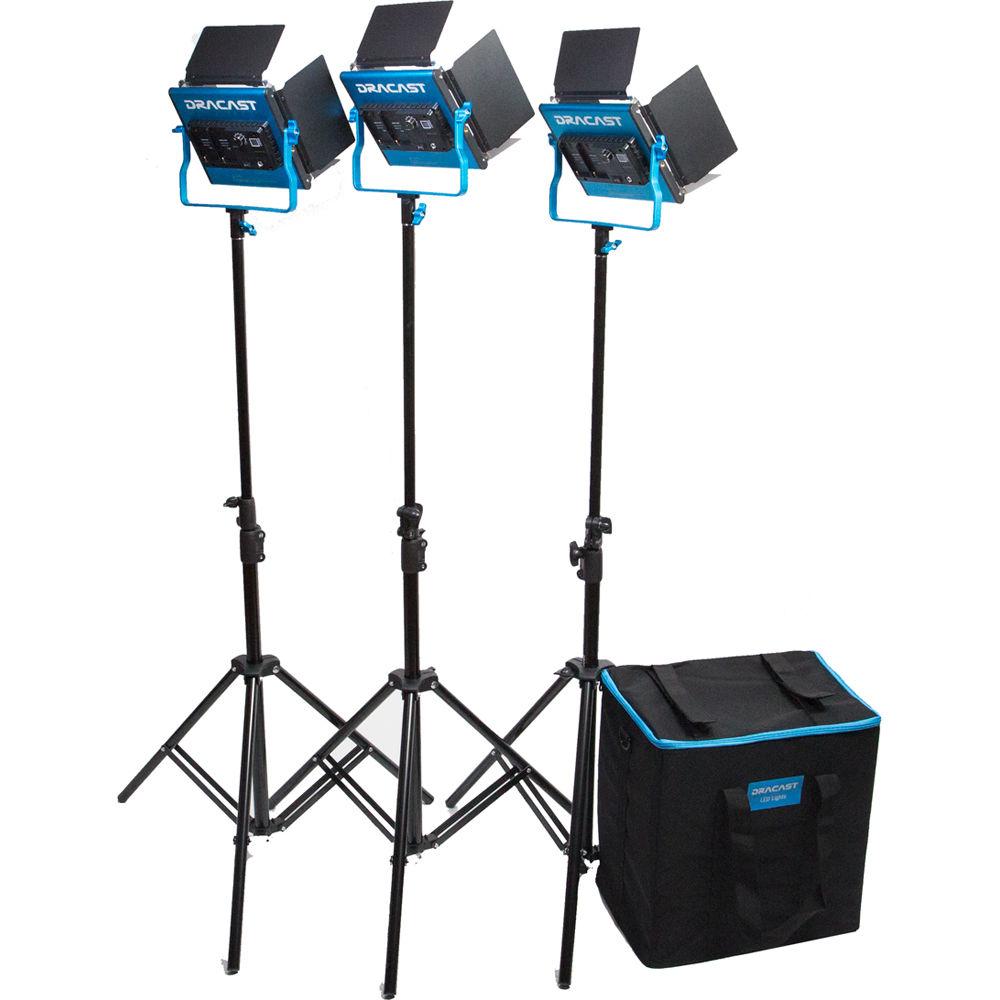

Dracast LED500 S-Series Daylight 3-Light Kit

User Manual for Dracast LED500 S-Series Daylight 3-Light Kit with V-Mount Battery Plates and Soft Case

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

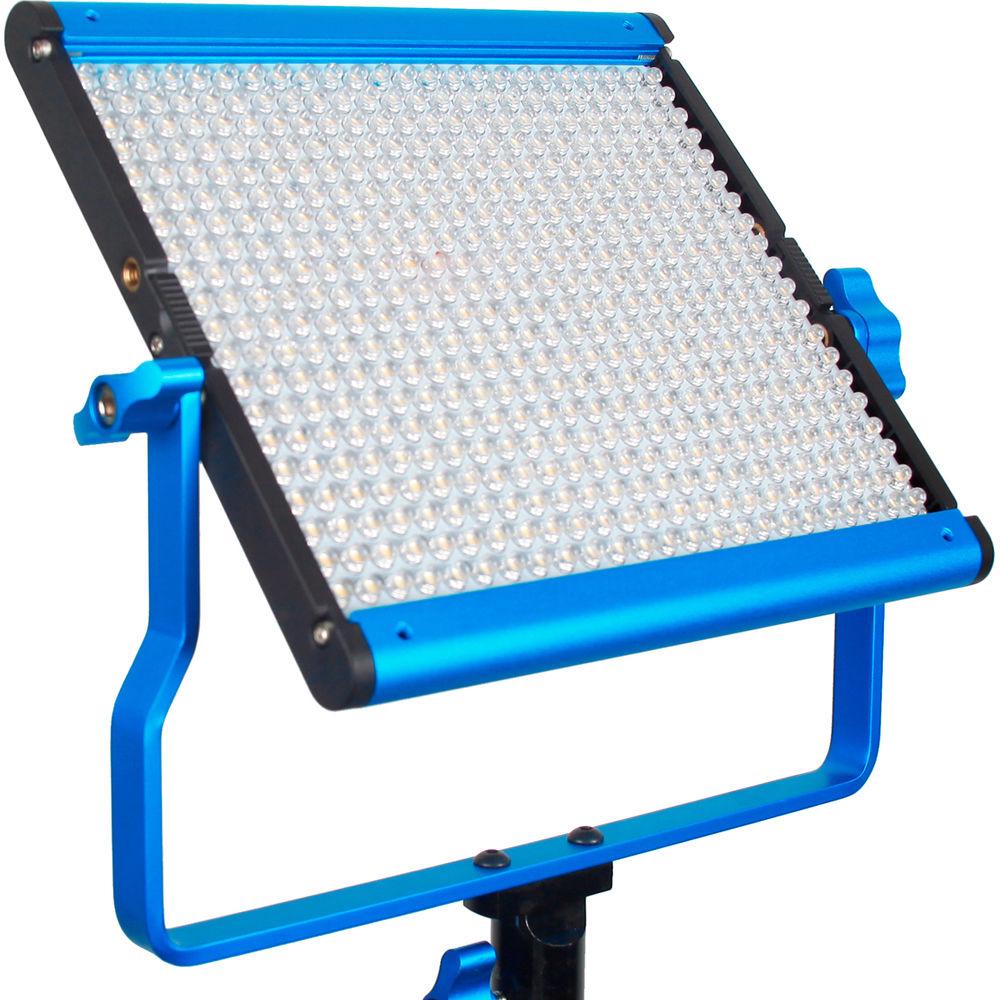

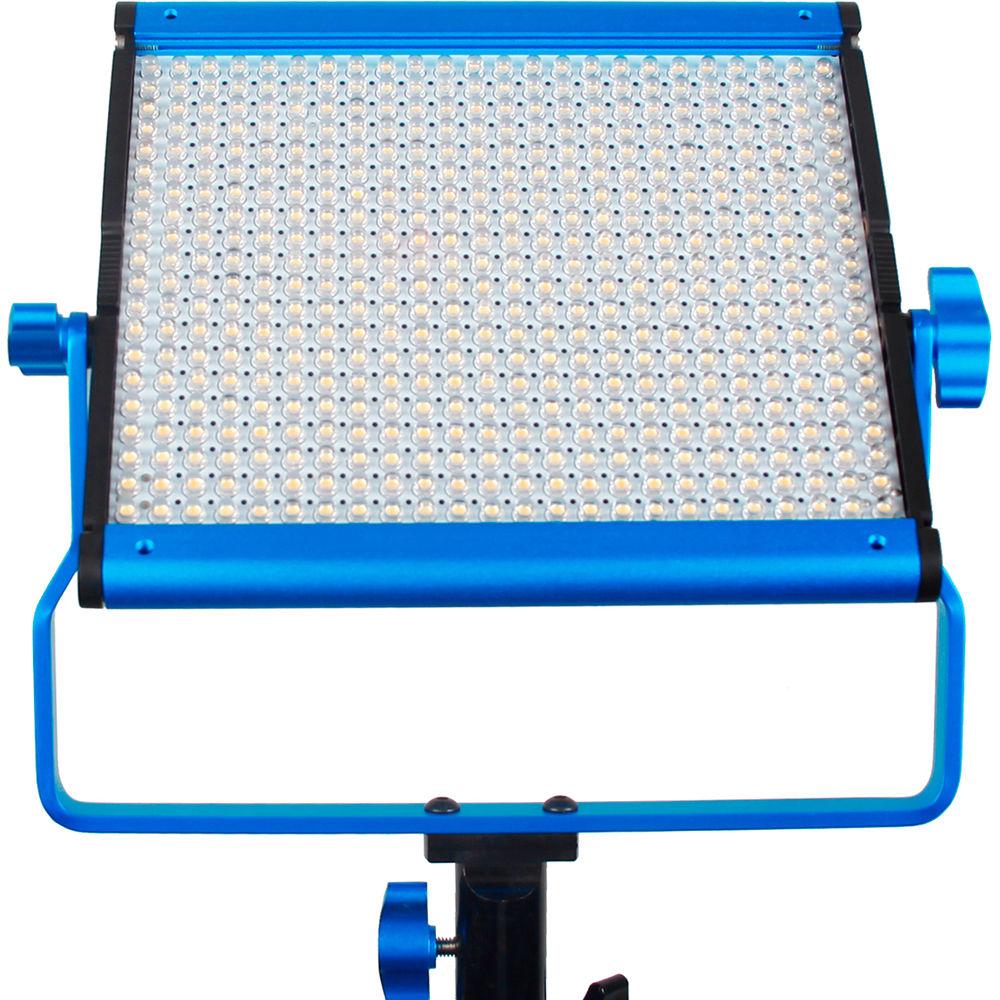

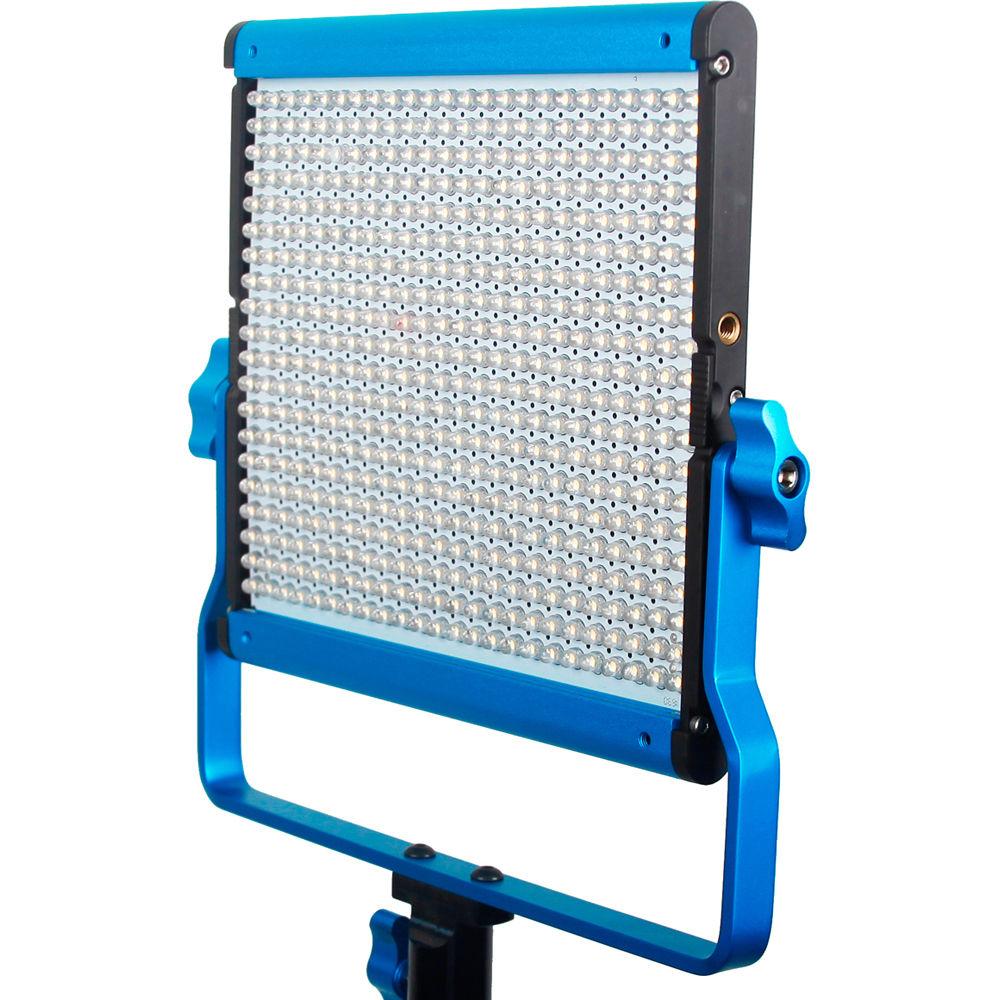

• LED500 Silver Series Daylight LED Light with V-Mount Battery Plate Featuring a slimmer and lighter design, the LED500 Silver Series Daylight LED Light with V-Mount Battery Plate from Dracast weighs just 2 lb and is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED500's daylight balanced output is well suited for outdoor work or color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift. The low electrical draw of just 29W means a timely return on your investment.The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This LED500 can be used worldwide thanks to its included 100-240 VAC power adapter. You can also use the onboard V-mount battery plate with optional 14.8 VDC batteries when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED500's 45-degree beam angle. A carrying case is included.
  Photometrics
  • 5500 lux / 511 fc at 3.0' (0.9m)
    1550 lux / 144 fc at 6.0' (1.8m)
    725 lux / 530 fc at 9.0' (2.7m)
    430 lux / 40 fc at 12' (3.6m)
    600 lux / 56 fc at 12' (3.6m)
• Compact Collapsible Light Stand for Silver Series LED Panels This Dracast Compact Collapsible Light Stand is designed to hold the Silver Series LED light panels. UPC: 722589274268

• Carry Case

• Barn Doors

• AC Power Adapter for LED500 Light

• Limited 1-Year Warranty

• Limited 1-Year Warranty

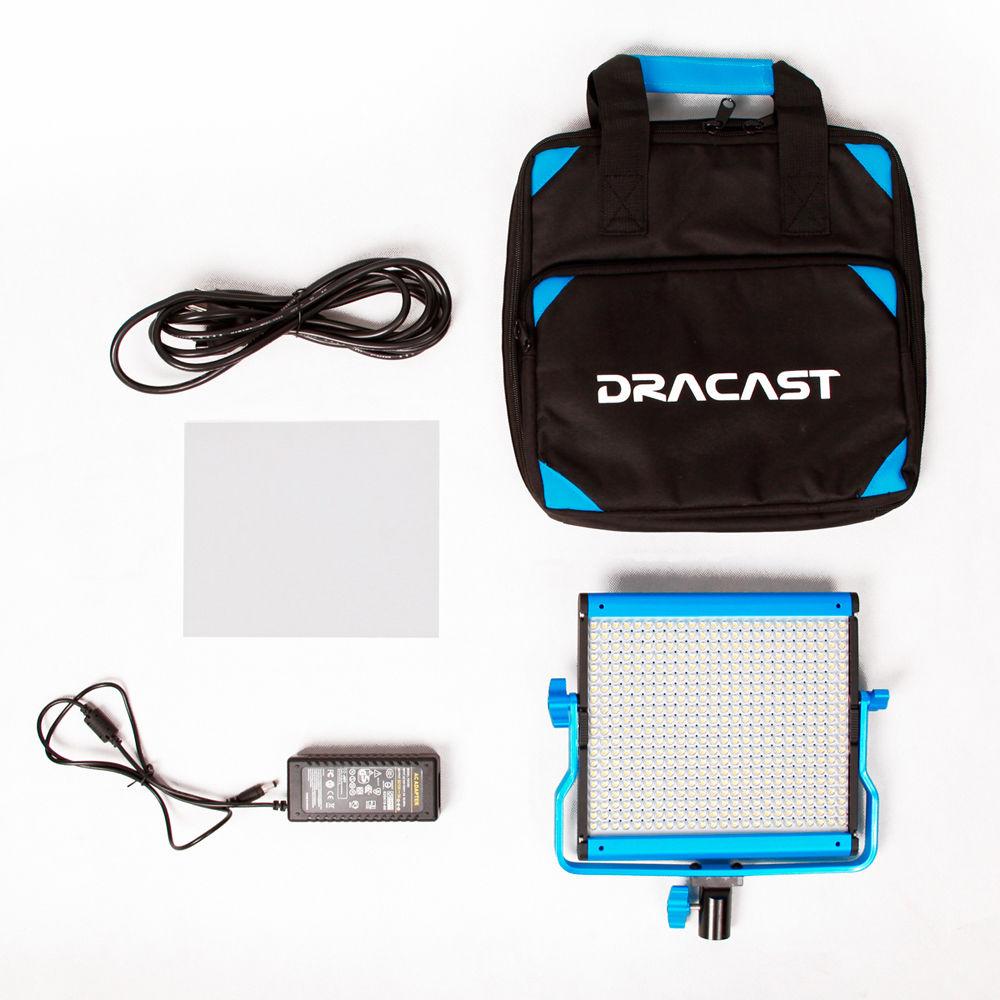

Also Includes

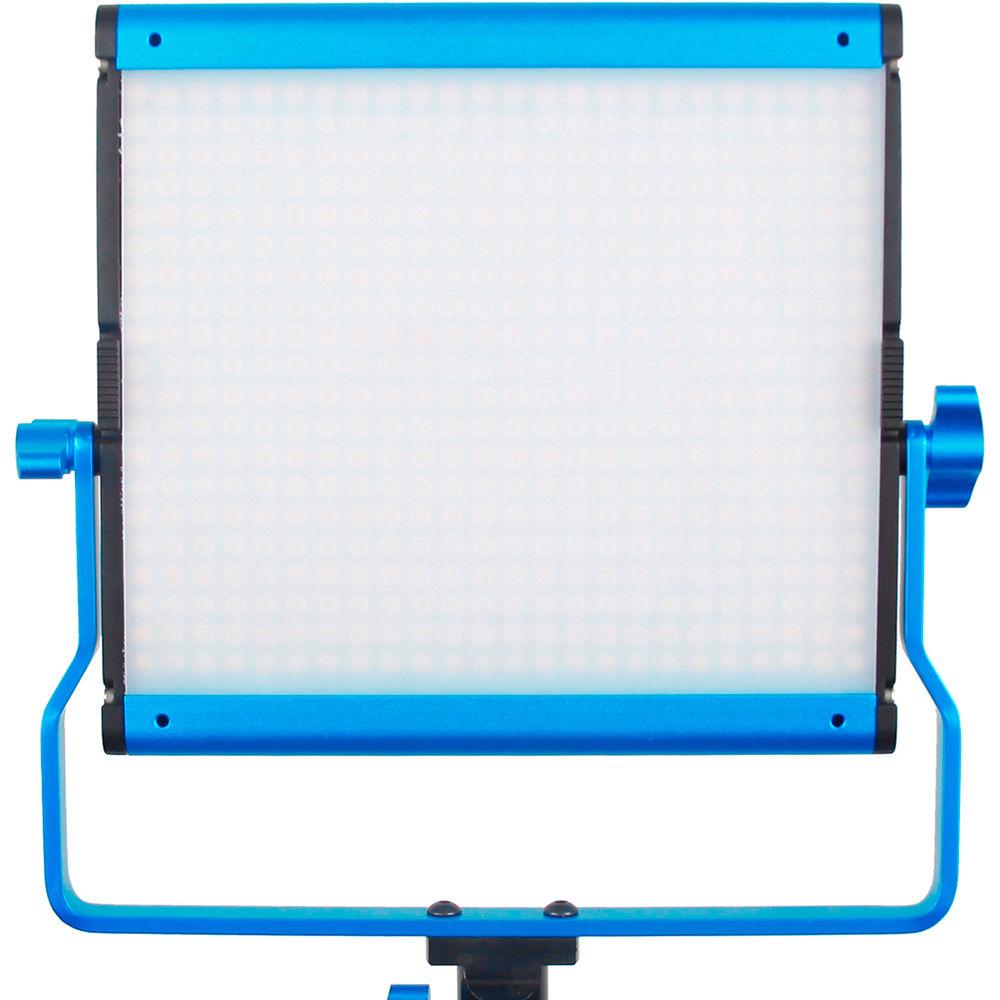

• 3 x Diffusers
• Soft Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED500 Silver Series Daylight LED Light with V-Mount Battery Plate

  Beam Angle	45°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	16.2 x 7.8 x 1.8" / 412.0 x 200.0 x 48.0 mm
  Fixture Weight	4 lb / 1.8 kg

  Battery Plate	1 x V-Mount

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	58 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	13.7 x 13.6 x 6.4"

• Compact Collapsible Light Stand for Silver Series LED Panels

  Box Dimensions (LxWxH)	20.2 x 4.6 x 4.3"
