User Manual for Dracast LED500 Silq Daylight LED Panel Click to enlarge the picture
Contents of the user manual for the Dracast LED500 Silq Daylight LED Panel
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED500 Silq Daylight LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

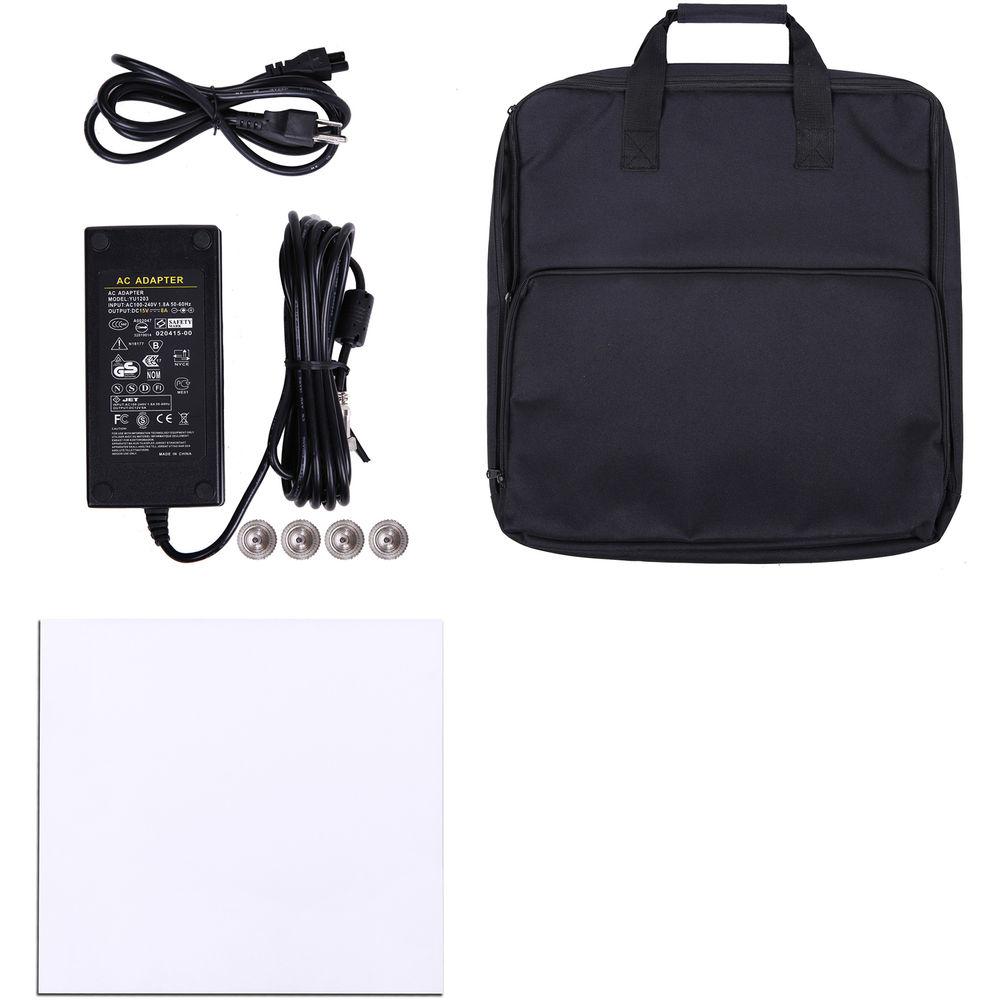

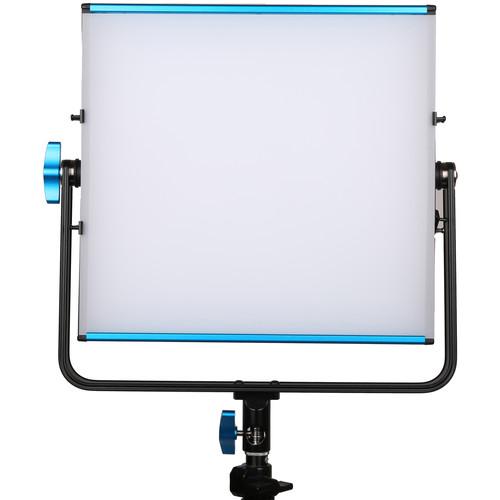

Product description Another addition to Dracast's extensive line of LED panels, the all metal, 16 x 16 x 2" LED500 Silq Daylight LED Panel offers 5600K color temperature with a high CRI of 96, indicative of accurate and faithful color rendering that makes it ideal for shooting outdoors, in spaces with large windows, or to match other daylight-balanced fixtures such as HMIs. Light intensity is variable from 0-100% and dimming can be controlled remotely via onboard DMX or with the added enhancement of wireless IR control that can make adjustments at distances up to 100'. Labeled "IRR", this function not only works with the Silq series but also with Kala series lights or multiple lights that includes both series.Offering wide coverage, the Silq has a beam angle of 120 degrees can be further modified using separately purchased, removable barndoors. The panel is ready for worldwide use thanks to the included multi-voltage power adapter. UPC: 612520464363 In the Box Dracast LED500 Silq Daylight LED Panel AC Adapter Soft Nylon Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED500 Silq Daylight LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

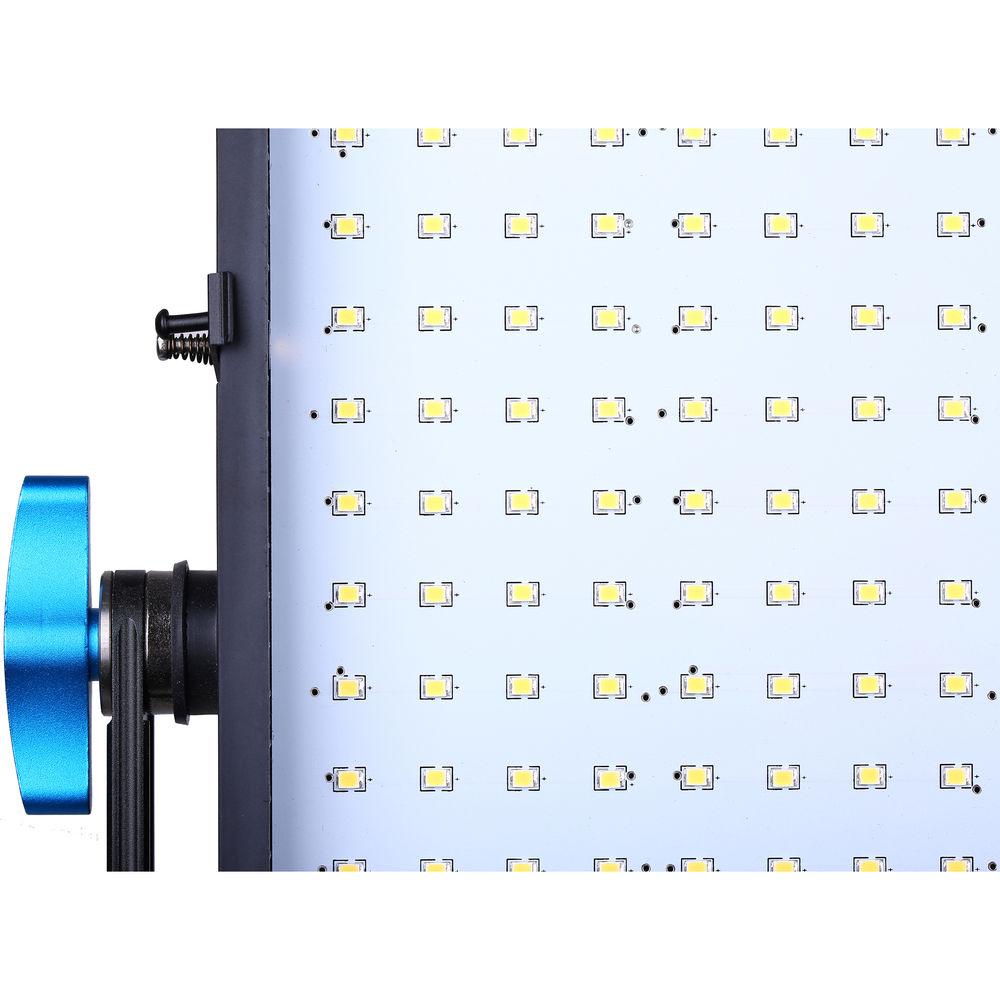

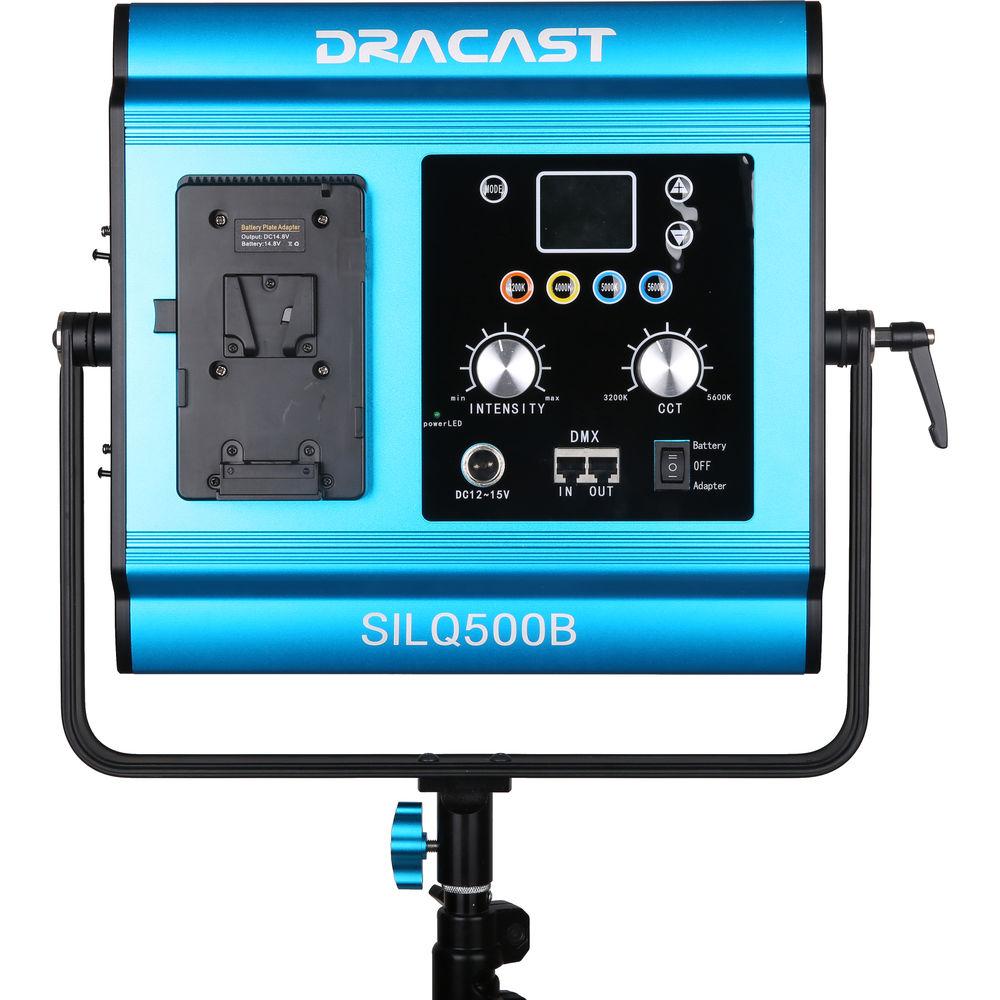

Technical parametersDracast LED500 Specs | Light Source | 360 SMD LEDs | | Beam Angle | 120° | | CRI | 96 | | Color Range | 5600K | | Dimming | 0-100% | | DMX | Yes, In and Out | | Control | Locally on the unit
DMX

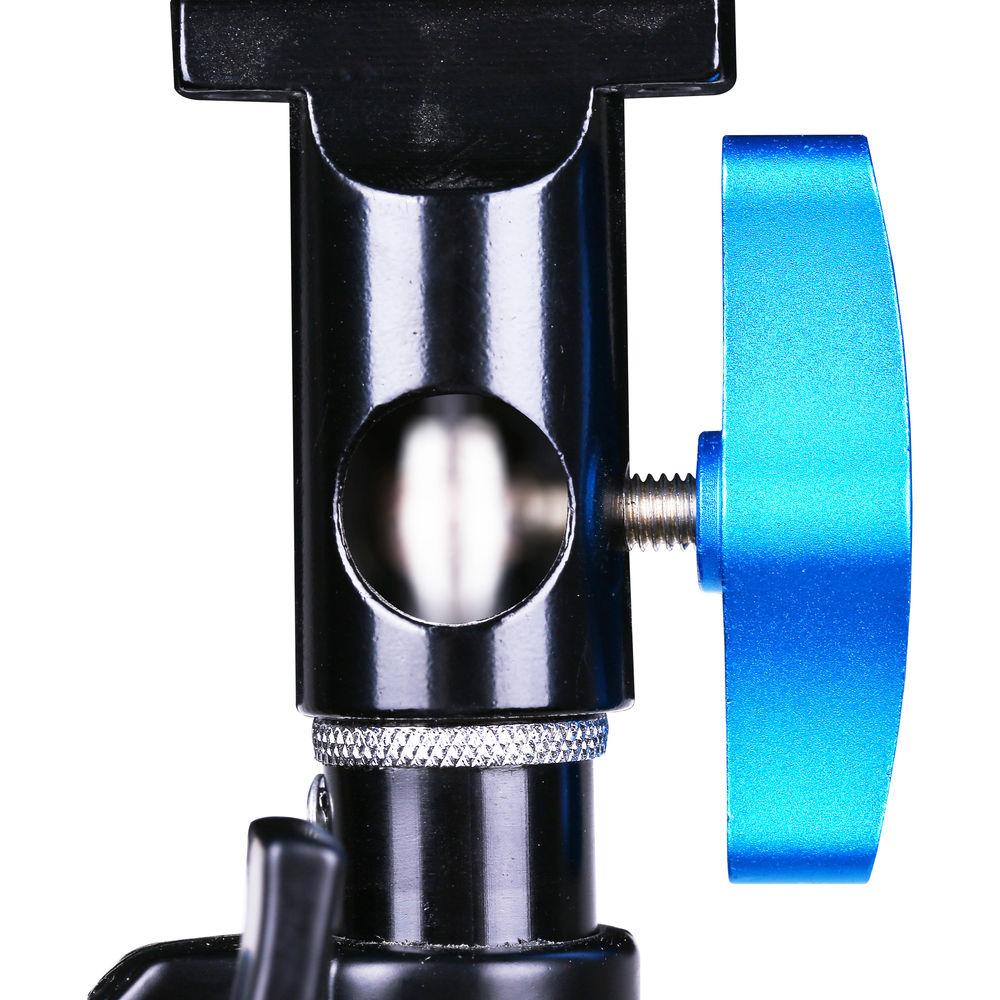

Wireless IRR, 100' (30.5 m) range | | Construction | All metal chassis | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 50 | | Mount | Yoke with 5/8" (16 mm) receiver | | Dimensions | 16 x 16 x 2.0" (40.6 x 40.6 x 5.0 cm) | | Weight | 7.2 lb (3.3 kg) | | | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 18.3 x 17.5 x 7.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
