User Manual for Dracast LED500B Silq Bi-Color LED 2-Light Kit Click to enlarge the picture
Contents of the user manual for the Dracast LED500B Silq Bi-Color LED 2-Light
- Product category: LED Lights Dracast
- Brand: Dracast
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dracast LED Lights
 |
User manual for the Dracast LED500B Silq Bi-Color LED 2-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dracast product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dracast user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dracast product will considerably shorten its lifespan!
|

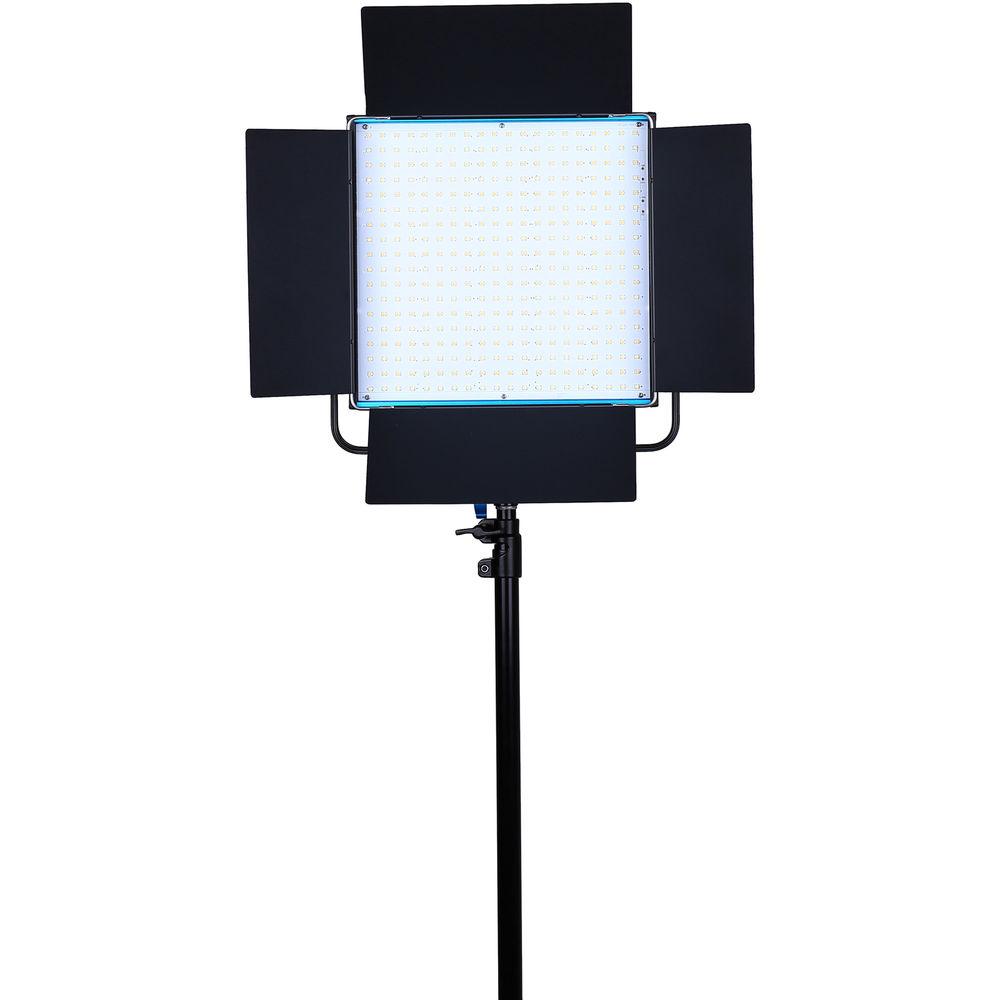

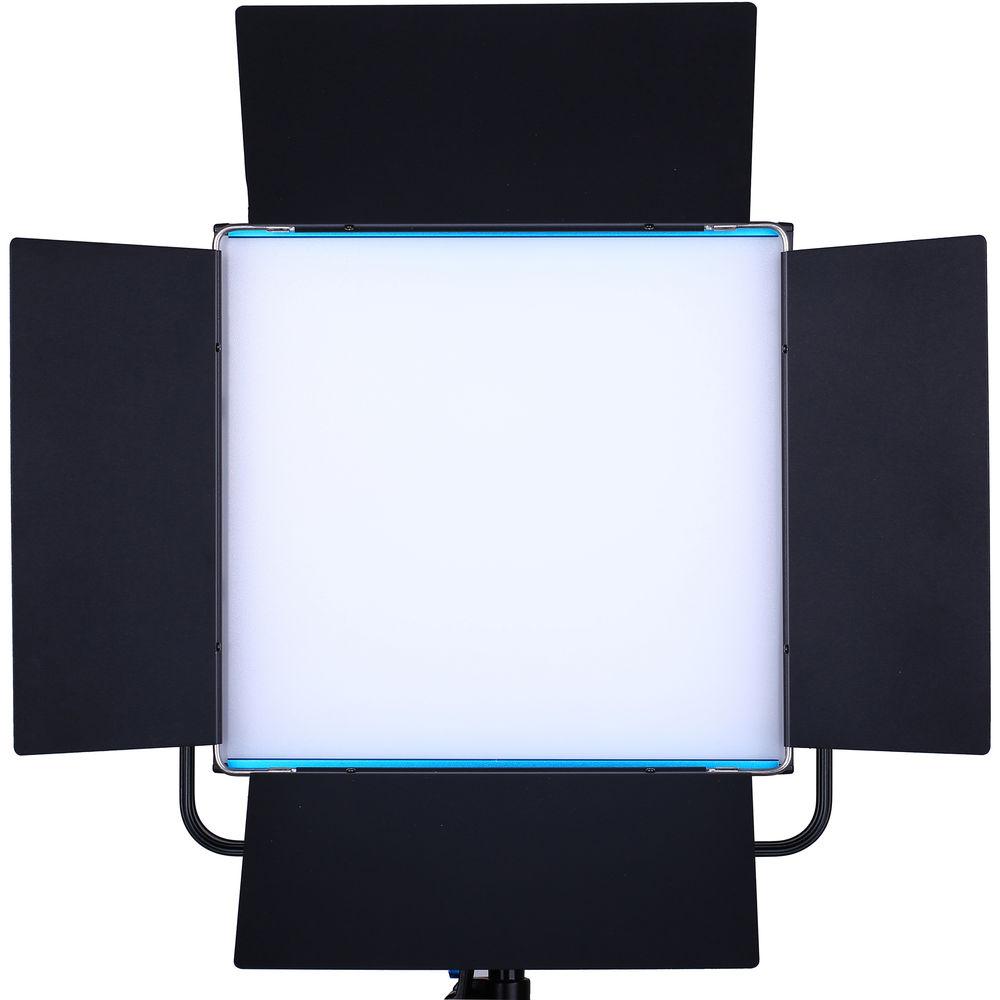

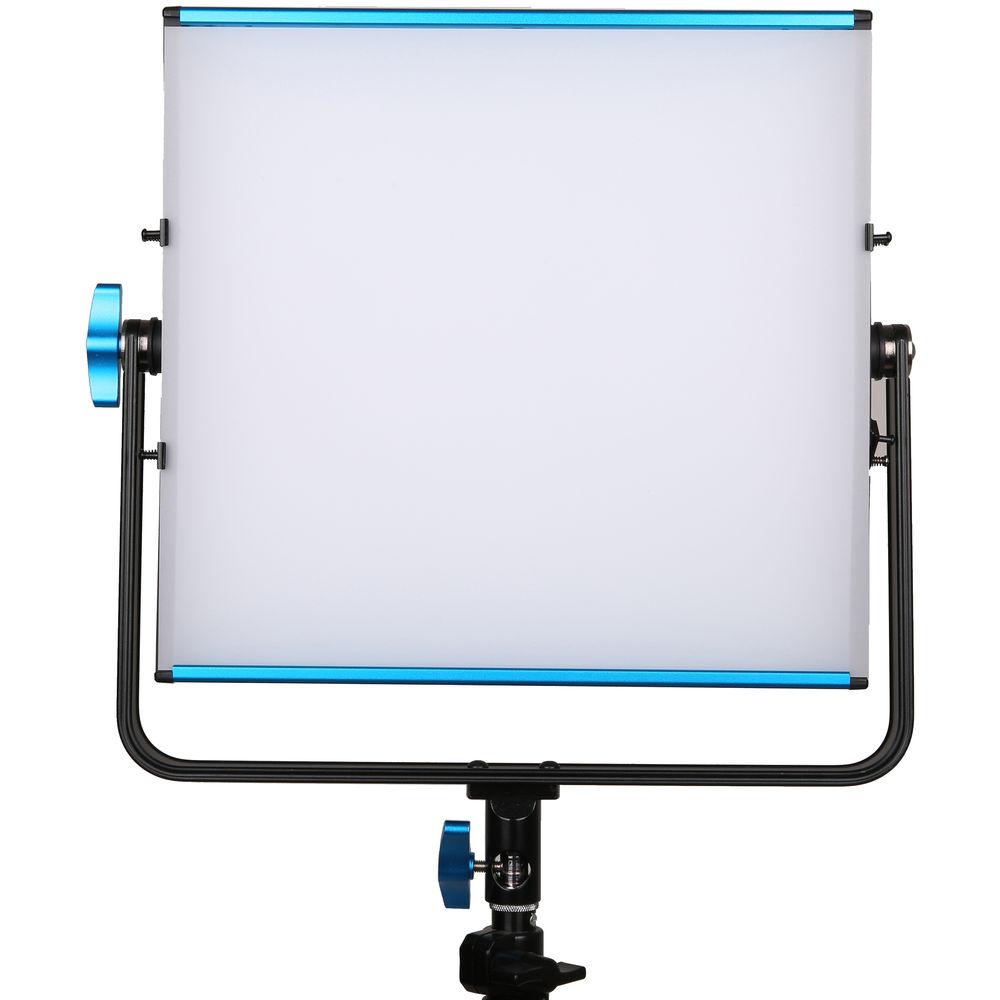

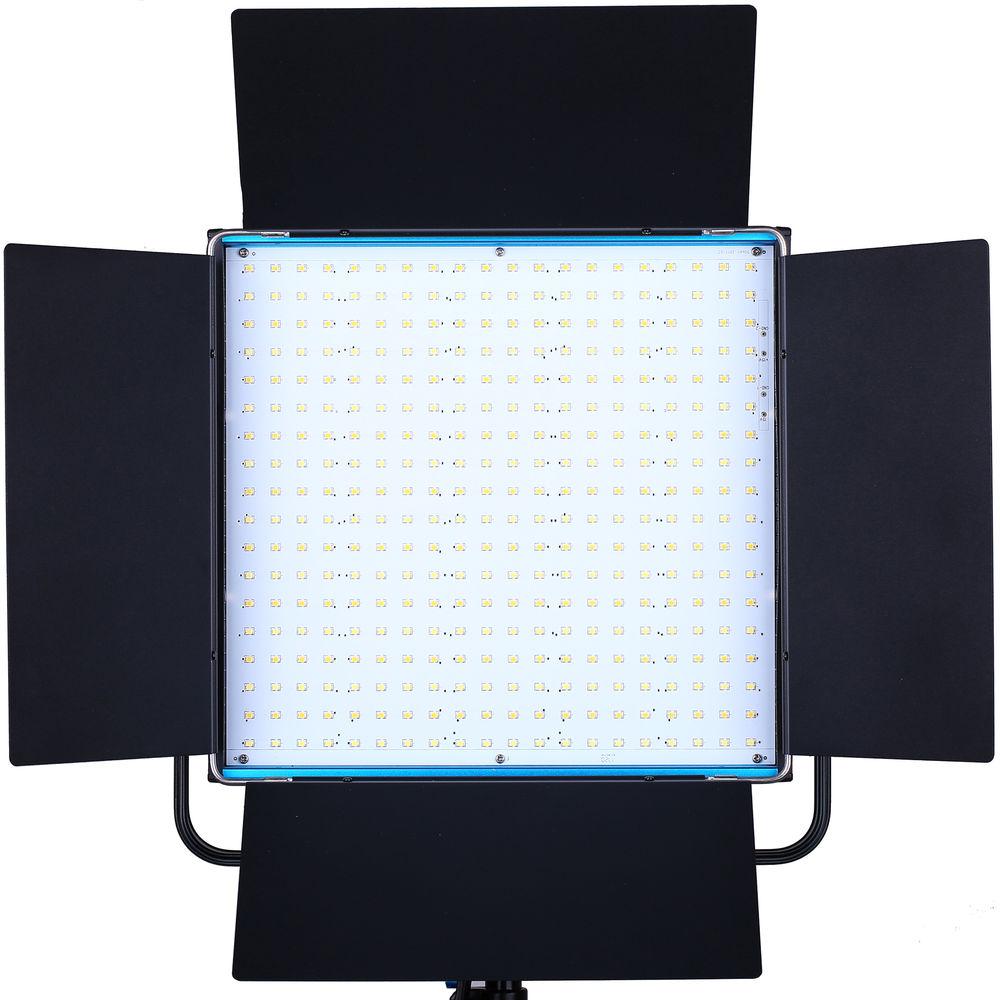

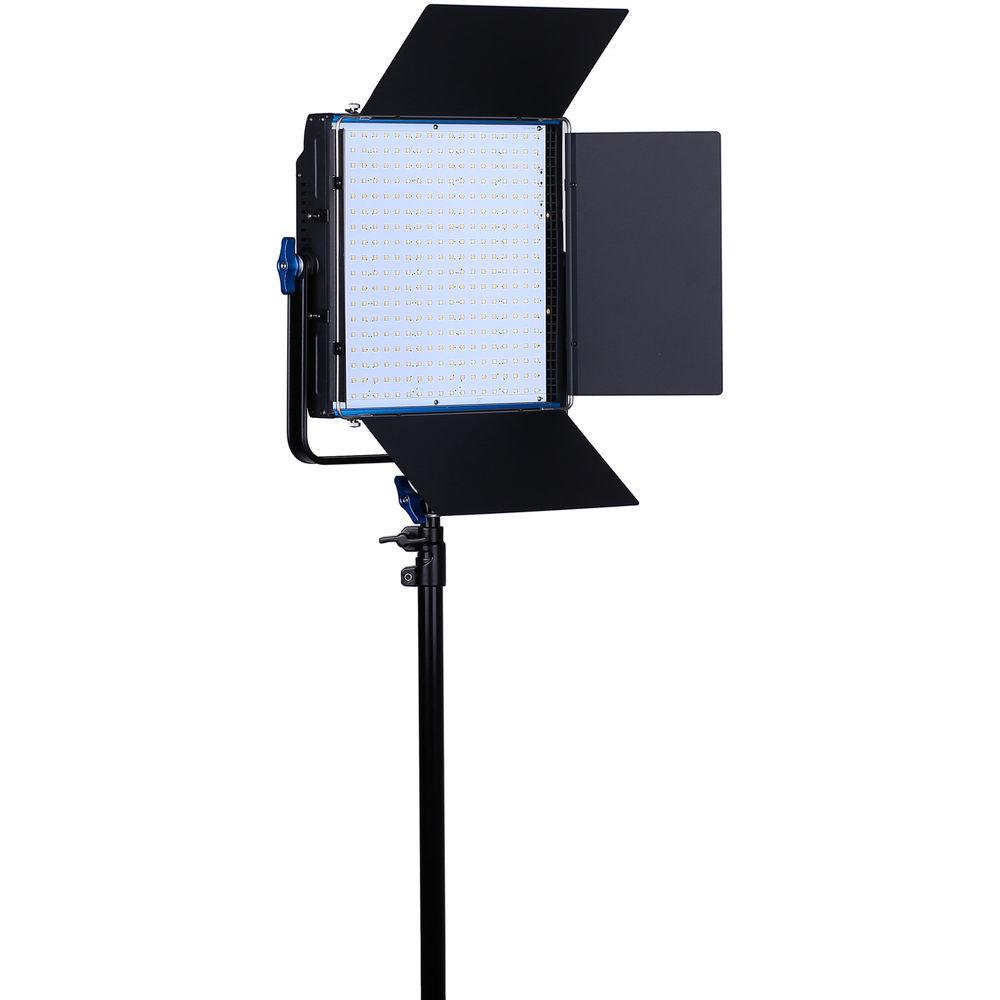

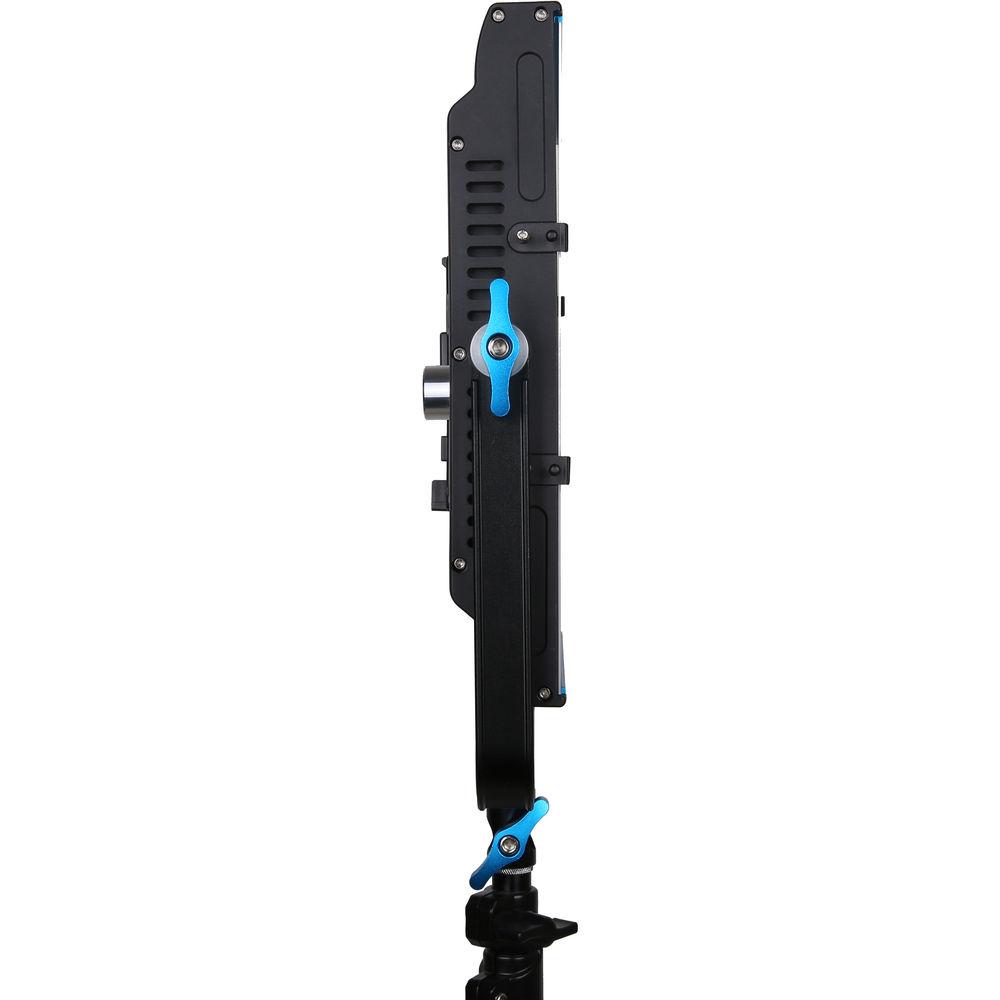

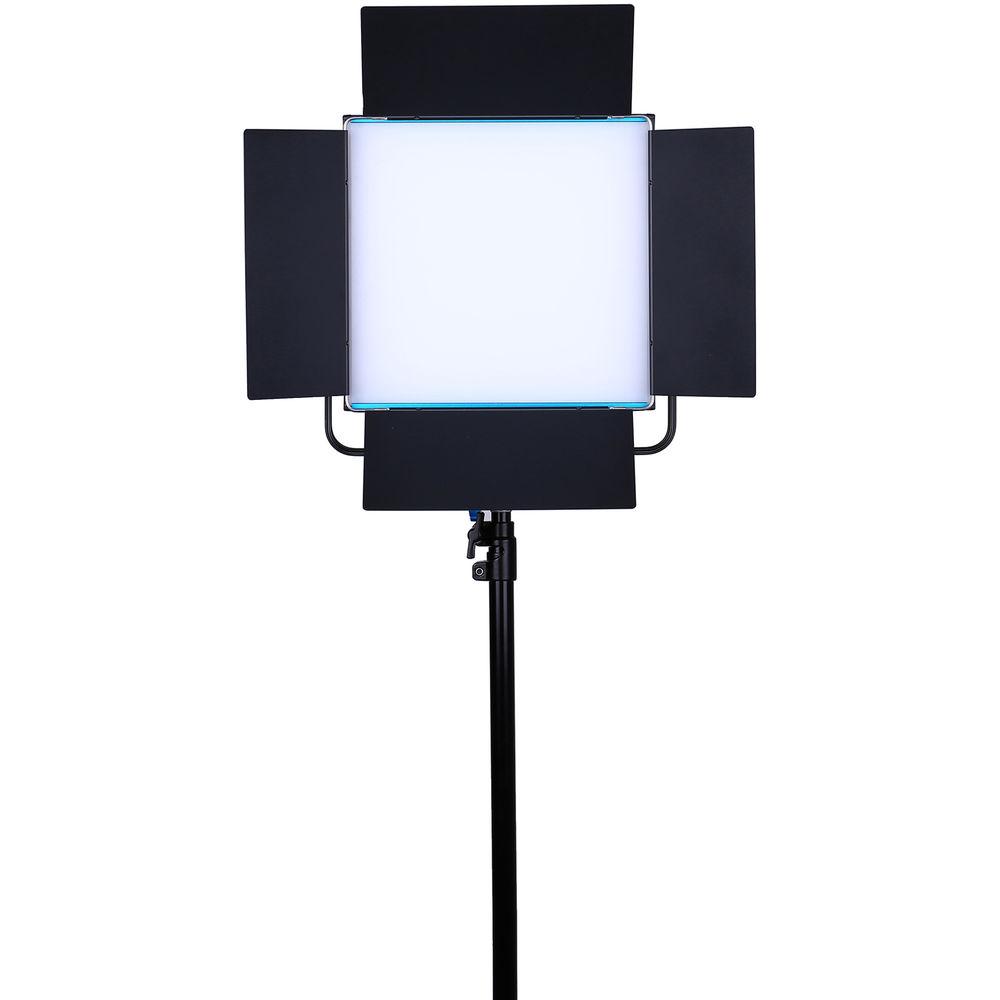

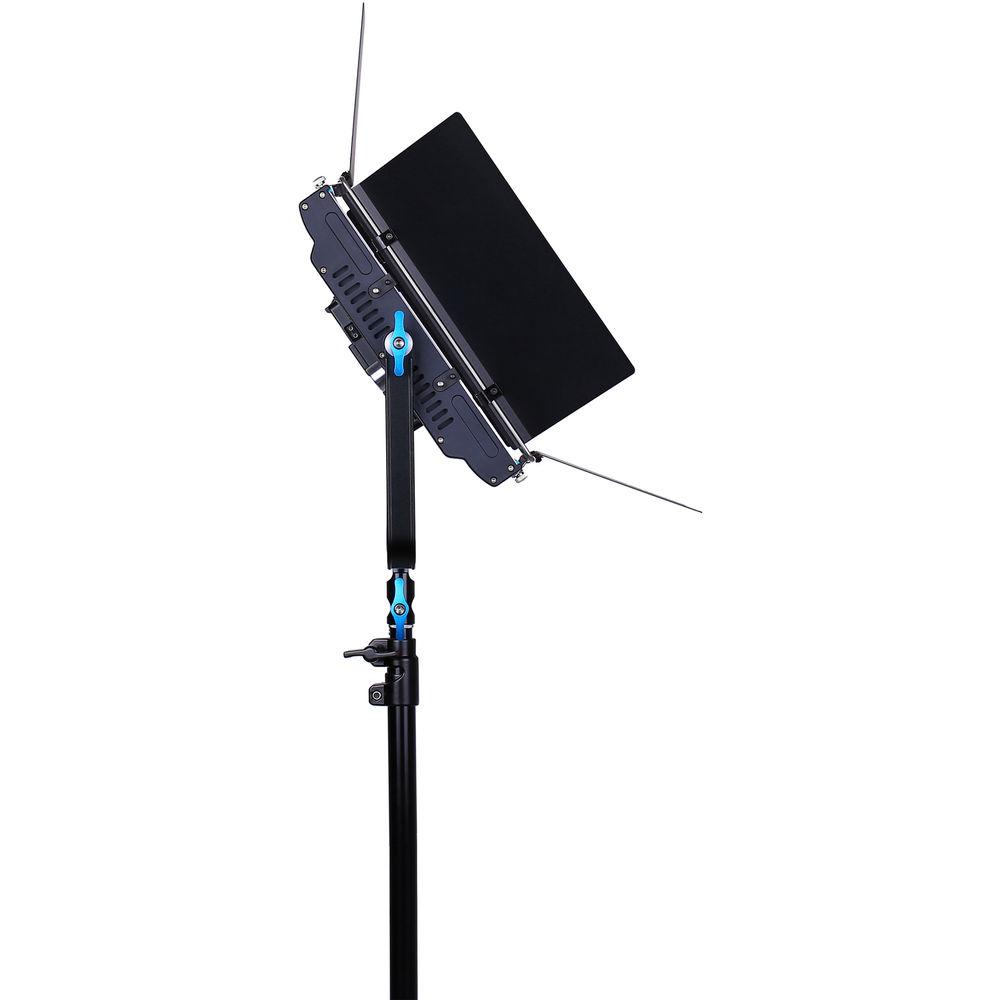

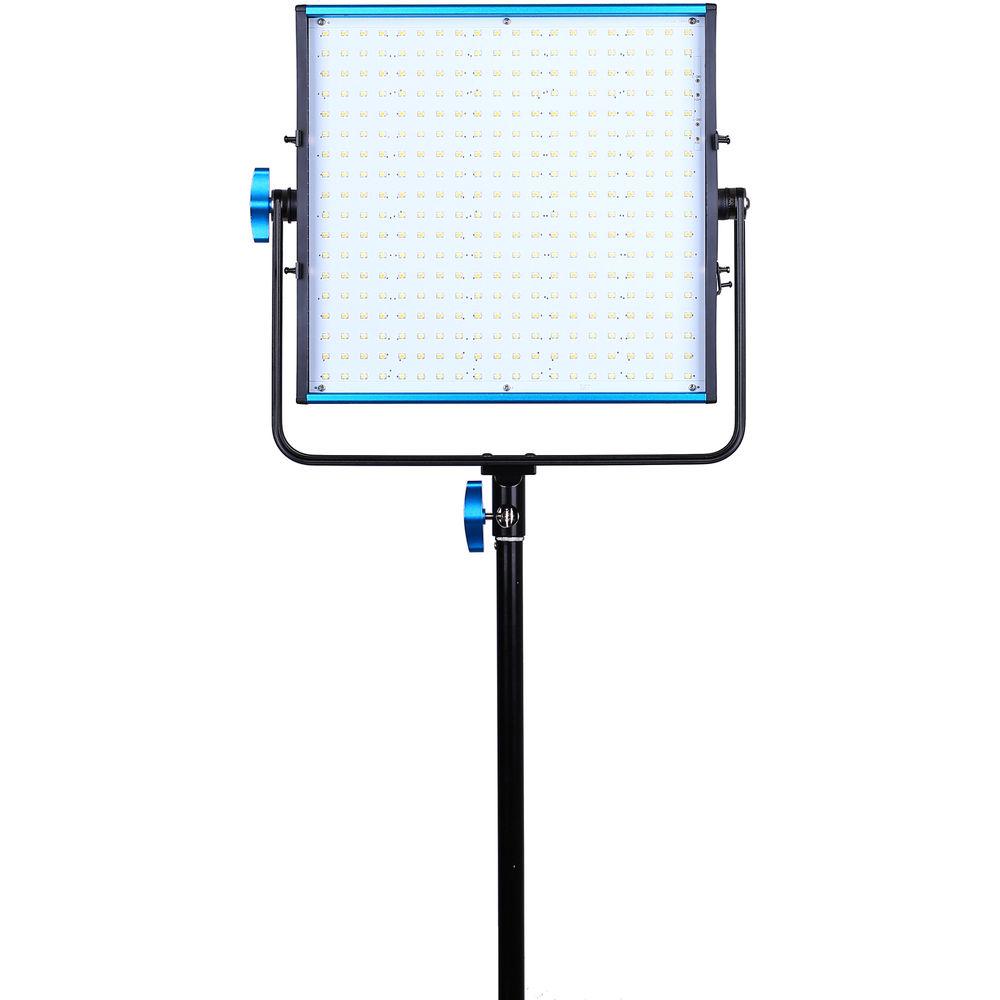

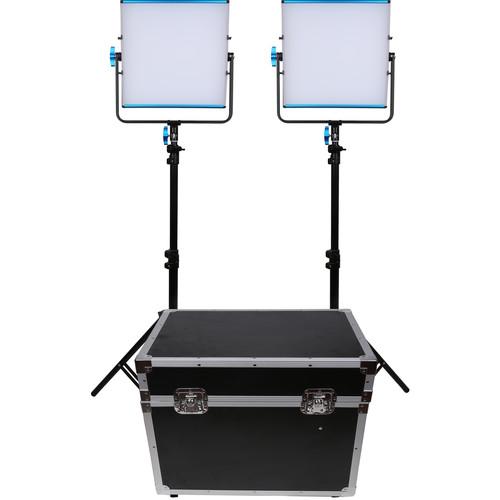

Product description Dracast has put together the LED500B Silq Bi-Color LED 2-Light Kit to give image makers the benefit of superior light quality in the studio or on the road. The kit includes two 15.7 x 15.7 x 3.5" LED500B Bi-Color panels with all metal construction, a 120-degree beam angle, and onboard DMX. Each light comes with a diffusion filter, V-mount battery plate, multi-voltage AC adapter, a soft nylon case, and a light stand. A Travel Case is also included for storage and transport. - LED500 Silq Bi-Color LED Panel Another addition to Dracast's extensive line of LED panels, the all metal, 16 x 16 x 2" LED500 Silq Bi-Color LED Panel offers color temperature with a high CRI of 96 that's variable from 3200-5600K for quickly matching either other fixtures or ambient light conditions without spending time resorting to gels. Light intensity is also variable from 0-100%, and both color and dimming can be controlled remotely via onboard DMX or with the added enhancement of wireless IR control that can make adjustments at distances up to 100'. Labeled "IRR", this function not only works with Silq lights but also with Kala series lights or multiple lights that includes both series.Offering directional control, the Silq has a beam angle of 120 degrees offering wide coverage that can be modified using separately purchased, removable barndoors. The panel is ready for worldwide use thanks to the included multi-voltage power adapter. UPC: 612520464356
- iSeries 2918-14-BE Wheeled Waterproof Case (Black, Empty) The black iSeries 2918-14-BE Wheeled Waterproof Case from SKB is molded from high-strength polypropylene copolymer resin, and features a gasketed, water and dustproof, submersible design (MIL-C-4150J) that is resistant to corrosion and impact damage. Featuring a molded-in hinge, a trigger release latch system, and an automatic ambient pressure equalization valve (MIL-STD-648C), your gear will be safe and secure inside while traveling to and from shoots, sets, and even foreign locations.
Carry your gear in the case by way of the comfortable, snap-down, rubber, overmolded cushion grip handles on each end of the case or the double-wide snap-down handle on the side. A built-in pull handle and four wide set in-line skate-style wheels make transport even easier especially if you're already carrying other equipment. Secure your gear even further by taking advantage of the padlock holes with stainless steel padlock protector clips. TSA accepted key locking latches are also available. - Industrial strength injection-molded pull handle
- 4 wide set in-line skate-style wheels for easy transport
- TSA accepted key locking latches included
- Padlock holes include stainless steel padlock protector clips
- Water and dustproof design (MIL-C-4150J)
- Molded-in hinge for added protection
- Trigger release latch system
- Snap-down, rubber, overmolded, cushion grip handle
- Polypropylene co-polymer used in injection molding
- Ambient pressure equalization valve (MIL-STD-648C)
- Resistant to UV, solvents, corrosion, fungus (MIL-STD-810F)
- Resistant to impact damage (MIL-STD-810F)
UPC: 789270291812 In the Box Bundle Items 2 x LED500 Silq Bi-Color LED Panel zabzrusqzarzbvuwrbxrrazqccesswdcq iSeries 2918-14-BE Wheeled Waterproof Case (Black, Empty) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dracast LED500B Silq Bi-Color LED 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED500 Silq Bi-Color LED Panel
| Light Source | 360 SMD LEDs | | Beam Angle | 120° | | CRI | 96 | | Color Range | 3200-5600K | | Dimming | 0-100% | | DMX | Yes, In and Out | | Control | Locally on the unit
DMX
Wireless IRR, 100' / 30.5 m range | | Construction | All metal chassis | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 50 W | | Mount | Yoke with 5/8" / 16 mm receiver | | Dimensions | 16 x 16 x 2" / 40.6 x 40.6 x 5 cm | | Weight | 7.2 lb /3.3 kg | | | | Box Dimensions (LxWxH) | 19.0 x 17.8 x 7.3" | - iSeries 2918-14-BE Wheeled Waterproof Case (Black, Empty)
| Carry/Transport Options | Side Handle, Telescoping Handle, Top Handle, Wheels | | Closure Type | Latch | | Materials | Polypropylene | | Interior Contents | None | | Exterior Dimensions | 31.6 x 20.5 x 15.8" / 80.3 x 52.1 x 40.1 cm | | Interior Dimensions | 29 x 18 x 14" / 73.7 x 45.7 x 35.6 cm | | Base Depth | 11.5" / 29.21 cm | | Lid Depth | 2.5" / 6.35 cm | | Interior Cubic Volume | 4.23 ft³ / 0.12 m³ | | Watertight | Yes | | Maximum Buoyancy | 265.00 lb / 120.20 kg | | IP Rating | IP67 | | MIL Certification | MIL-STD-4150J, MIL-STD-648C, MIL-STD-810F, per Manufacturer | | Storage Temperature | -69 to 180°F / -56 to 82°C | | Weight | 24 lb / 10.9 kg | | | | Box Dimensions (LxWxH) | 32.5 x 21.0 x 16.3" |
