Dracast Outdoor Daylight Kit with 1

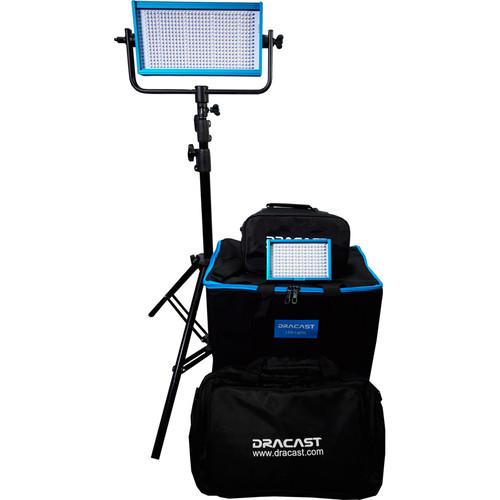

User Manual for Dracast Outdoor Daylight Kit with 1 x LED500B and 1 x LED160AB, Stands, Umbrellas and V-Mount Battery Plate

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

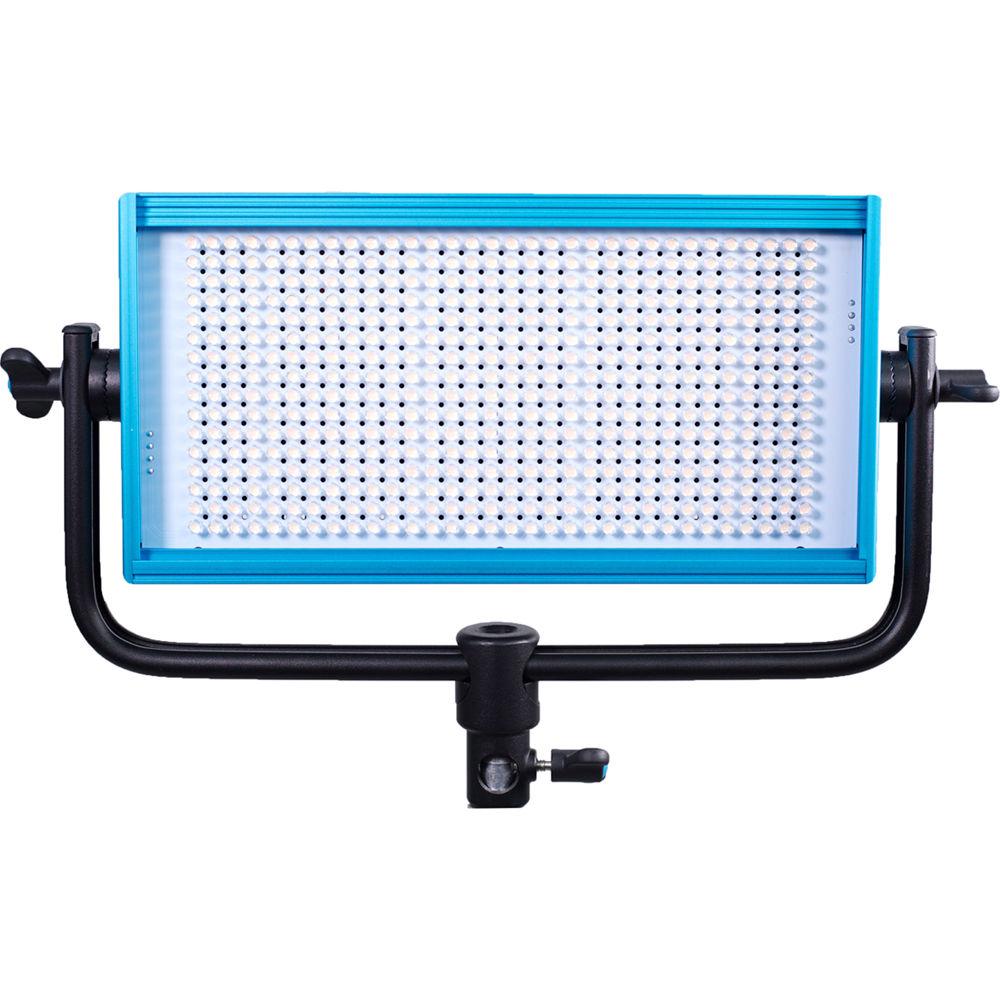

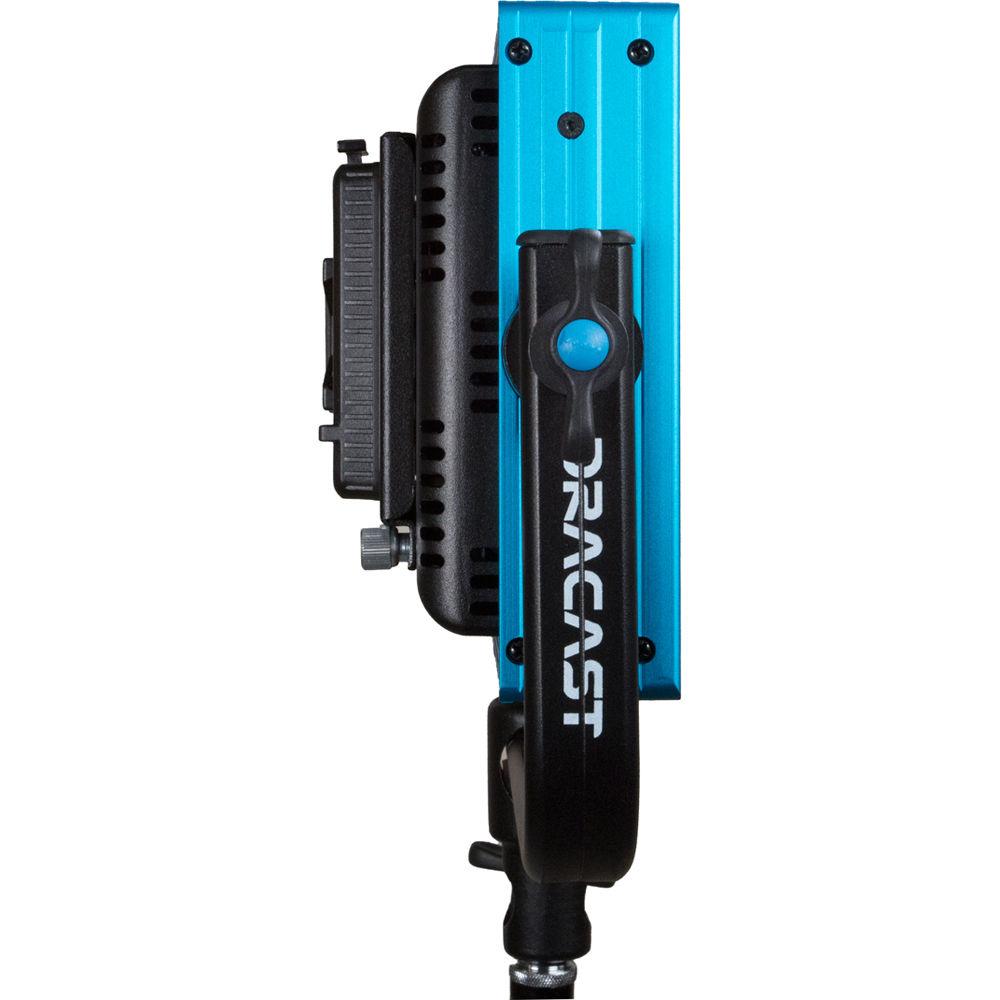

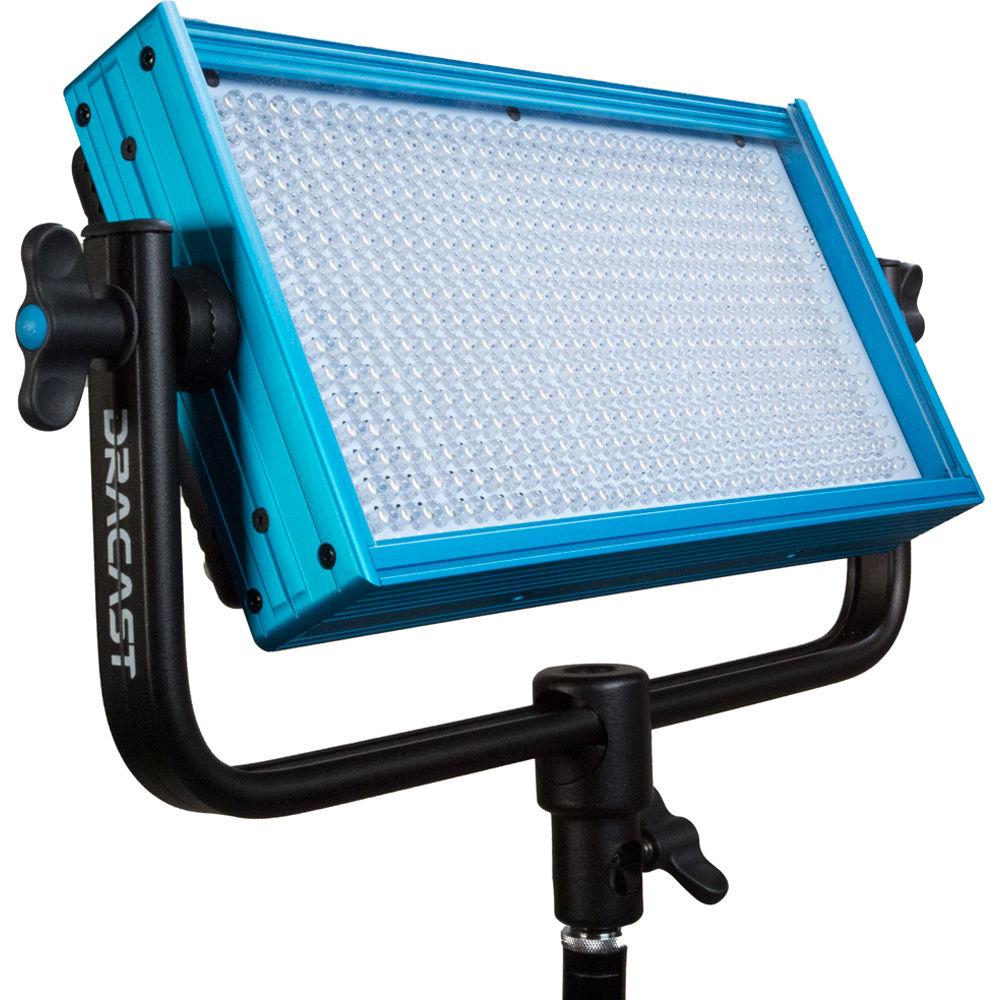

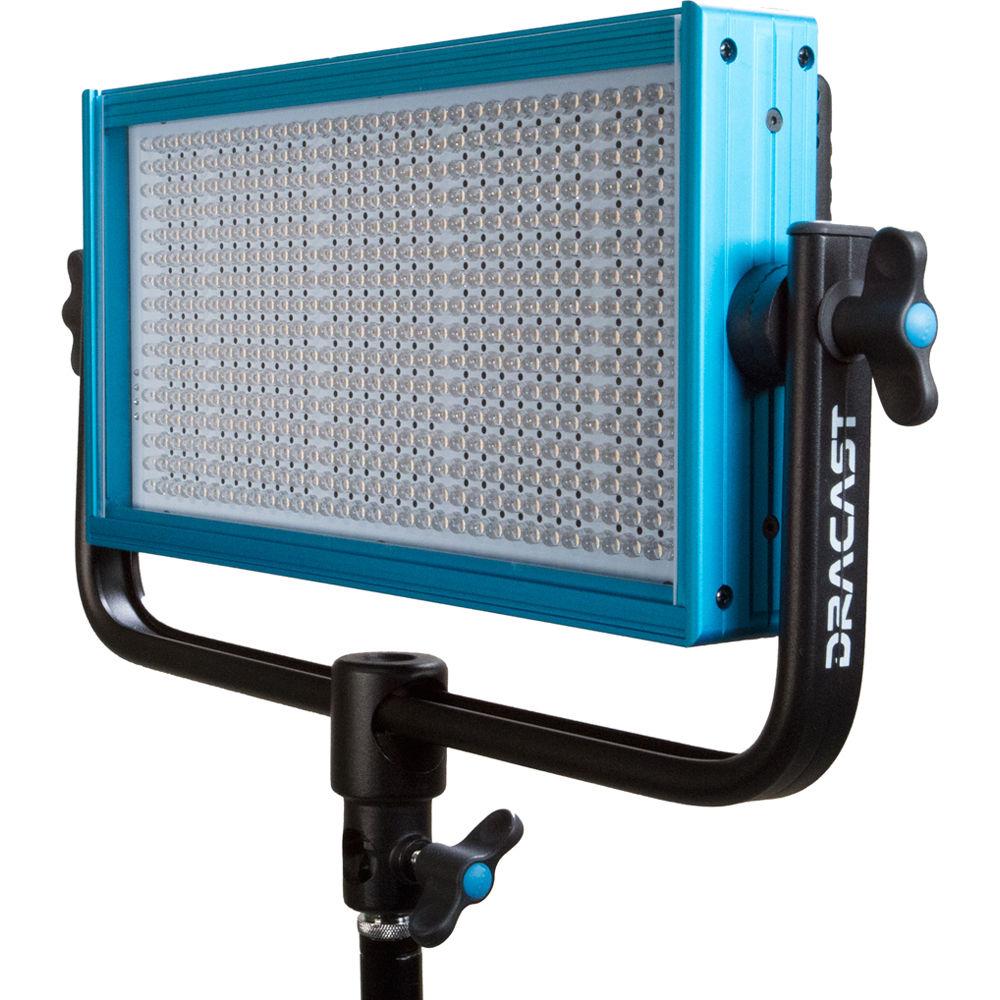

• LED500 Pro Daylight LED Light with V-Mount Battery Plate At 4 lb the LED500 Pro Daylight LED Light with V-Mount Battery Plate from Dracast is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED500's daylight balanced output is well suited for outdoor work or color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift. The low electrical draw of just 30W means a timely return on your investment.The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This LED500 can be used worldwide thanks to its included 100-240 VAC power adapter. You can also use the onboard V-Mount battery plate with 14.8 VDC batteries when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED500's 45-degree beam angle. A carrying case is included.
  Photometrics
  • 5500 lux / 511 fc at 3.0' (0.9m)
    1550 lux / 144 fc at 6.0' (1.8m)
    725 lux / 53 fc at 9.0' (2.7m)
  UPC: 720189882869

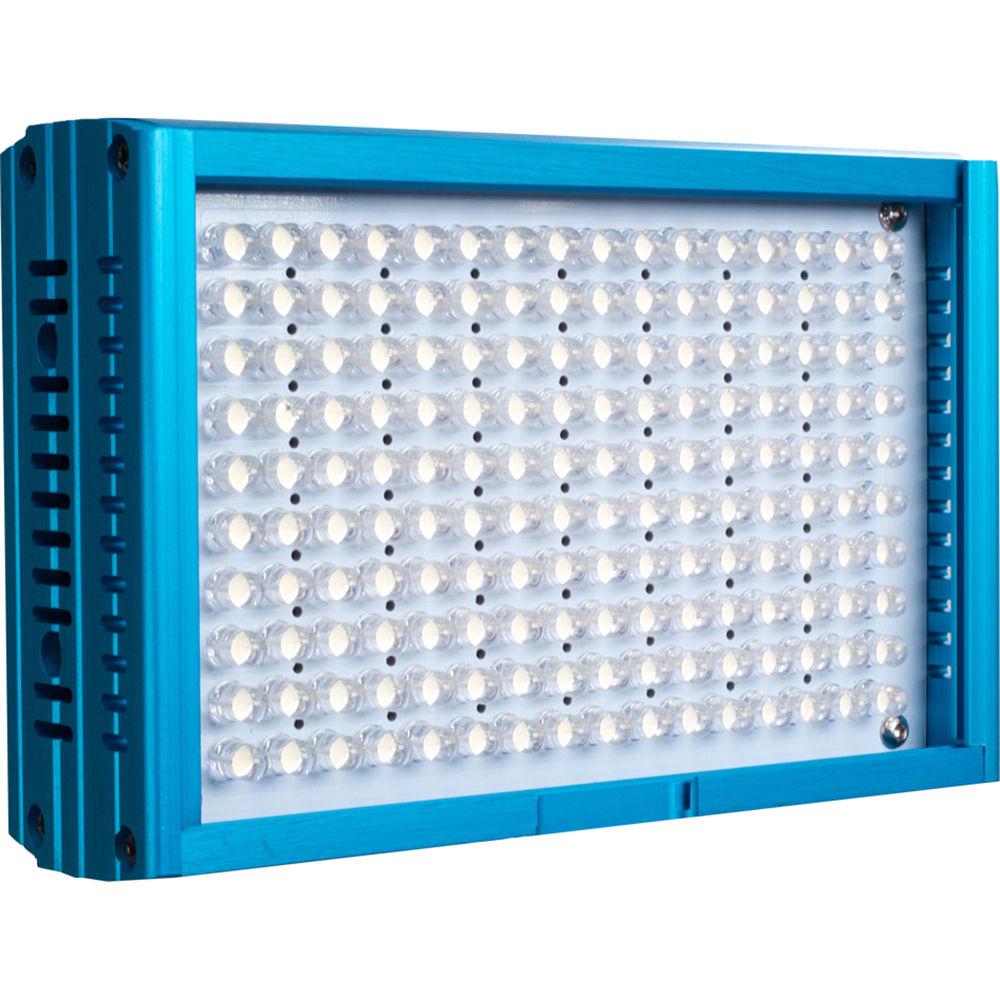

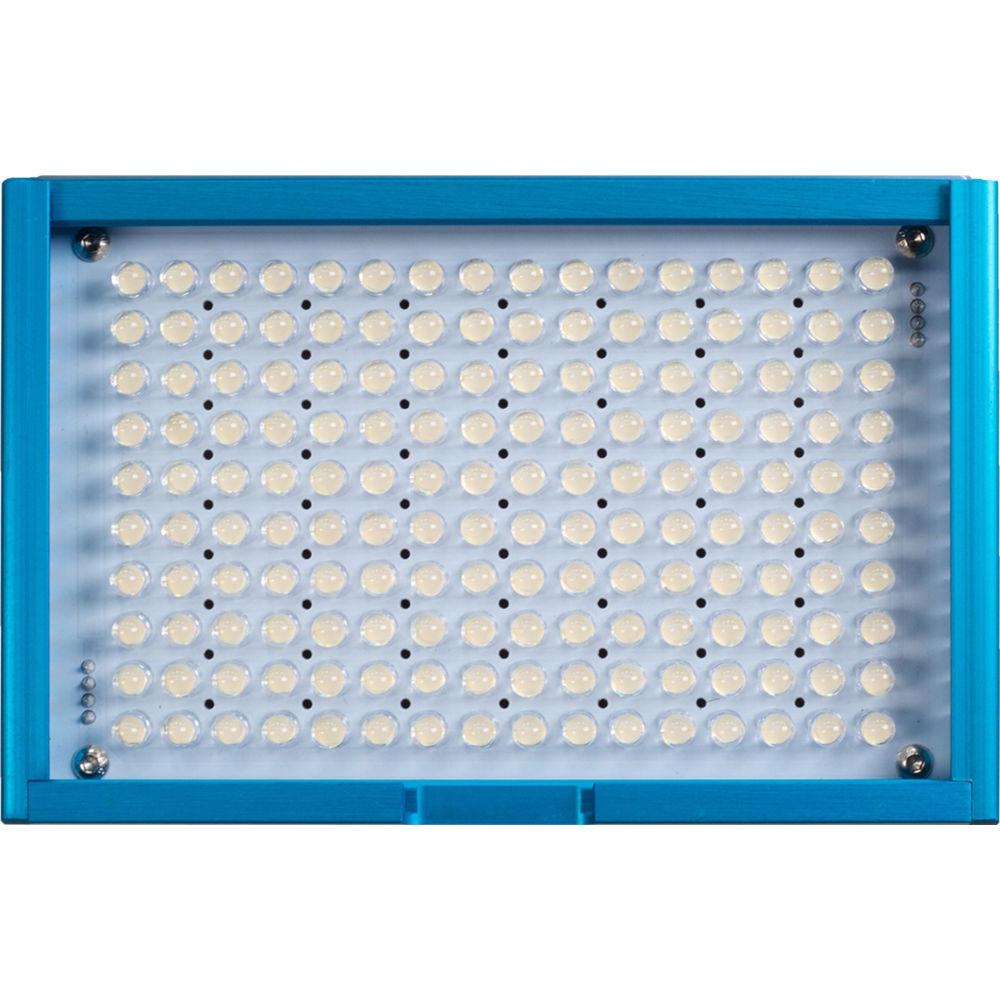

• LED160 3200-5600K Variable Color On-Camera Light (Aluminum, Blue) This is a 3200-5600K variable-color Dracast LED160 On-Camera Light, housed in an aluminum, blue case and measures a compact 6 x 4". It features a high, 160W equivalent light output with a 45° flood beam angle. It'll give you approximately 20 ft effective distance.
  Key Features
  • • 3200-5600K variable-color LED light
    • 160W equivalent light output
    • 45° flood beam angle
    • Approximately 20 ft effective distance
    • >95 CRI
    • Brightness dimmer dial on the rear
    • Integrated L-series battery plate
    • 4-LED indicator on the rear
• Umbrella For Dracast Outdoor Kits (35") This Umbrella For Dracast Outdoor Kits is a 35" open diameter light modifier with a white interior. It measures 23" in length when closed and is included in the LED500/LED160 Outdoor Lighting Kits. UPC: 610708234173
• WB1633 Backpack The WB1633 Backpack for Outdoor Kit from Dracast can hold a camera with multiple lenses and accessories as well as most laptops up to 21". The main compartment features double zipper pulls for easy access to your camera, lenses, flashes, and accessories. A separate padded laptop compartment measures 19 x 10 x 1".

  The backpack also features water-resistant interior pockets, load adjustment straps, all-weather material, thick foam interior dividers, and side straps for holding a light stand, monopod or tripod. Padded inserts can be customized to specifically fit your gear or removed completely. The backpack is included with Dracast's Outdoor Kits, and can be purchased here as a replacement backpack for those kits. UPC: 743724447057
• WFC 573M Carbon Fiber Monopod Weighing just 1 lb, the Dracast WFC 573M Carbon Fiber Monopod can hold up to 17.6 lb, extends to a height of 65.7", and folds down to 18.9". Twist locks hold the five sections to your desired length and a rubber foot provides stability on slippery surfaces. A wrist strap is included for added security and comfort.

• Carry Case

• AC Power Adapter for LED500 Light

• Limited 1-Year Warranty

• Nylon Soft Case

• Shoulder Strap

• Hot-Shoe Mount

• P-Tap to DC Connector Cable

• Power Supply 2-Prong U.S.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Wrist Strap

• Limited 1-Year Warranty

Also Includes

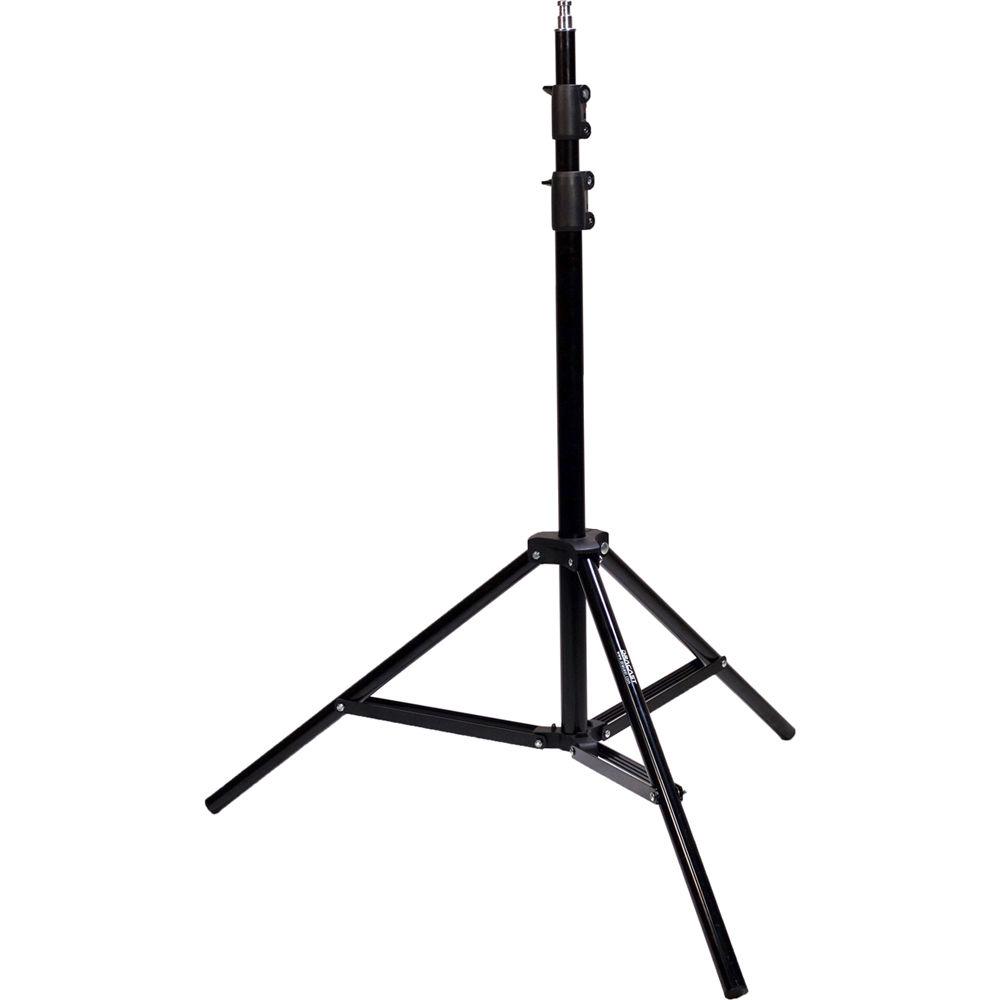

• Kit Light Stand

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LED500 Pro Daylight LED Light with V-Mount Battery Plate

  Beam Angle	45°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Fixture Dimensions	12.0 x 6.0 x 2.0" / 305.0 x 152.0 x 51.0 mm
  Fixture Weight	4 lb / 1.8 kg

  Battery Plate	1 x V-Mount

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	30 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	18.189 x 11.811 x 8.11"

• LED160 3200-5600K Variable Color On-Camera Light (Aluminum, Blue)

  Beam Angle	45°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Expected Lamp Life	50000 Hours
  Number of LEDs	160
  Effective Distance	20.0' / 6.0 m

  Battery Plate	1 x Sony L-Series (NP-F)
  DC Input Power	7.2 to 8.4 VDC
  Max Power Consumption	9.5 W

  Mount Type	1/4"-20 Female Thread
  Dimensions	6 x 4 x 2" / 15 x 10 x 5 cm
  Weight	0.5 lb / 227 g

  Box Dimensions (LxWxH)	12.05 x 9.0 x 3.65"

• Umbrella For Dracast Outdoor Kits (35")

  Size	35.0" / 88.9 cm
  Interior	White
  Folded Size	L: 23.0" / L: 58.4 cm

  Box Dimensions (LxWxH)	23.0 x 2.0 x 0.2"

• WB1633 Backpack

  Features	Laptop Compartment
  Carrying/Transport Options	Backpack Straps, Top Handle
  Camera Support Strap	Tripod

  Laptop Compartment Screen Size	21.0"

  Exterior Dimensions	13.4 x 10.2 x 23.2" / 34 x 26 x 59 cm
  Exterior Material	Nylon
  Type of Closure	Zipper

  Interior Dimensions	12.6 x 7.1 x 20.9" / 32 x 18 x 53 cm
  Weight	5.3 lb / 2.4 kg

  Box Dimensions (LxWxH)	24.2 x 13.4 x 12.1"

• WFC 573M Carbon Fiber Monopod

  Load Capacity	17.6 lb (8 kg)
  Maximum Height	65.7" (167 cm)
  Folded Length	18.9" (48 cm)
  Leg Sections	5
  Upper Leg Diameter	1.14" (29 mm)
  Leg Lock Type	Twist
  Male Thread Size	1/4"-20
  Weight	1 lb (470 g)

  Box Dimensions (LxWxH)	26.3 x 8.5 x 8.25"
