Dracast Outdoor Deluxe Bi-Color AC DC

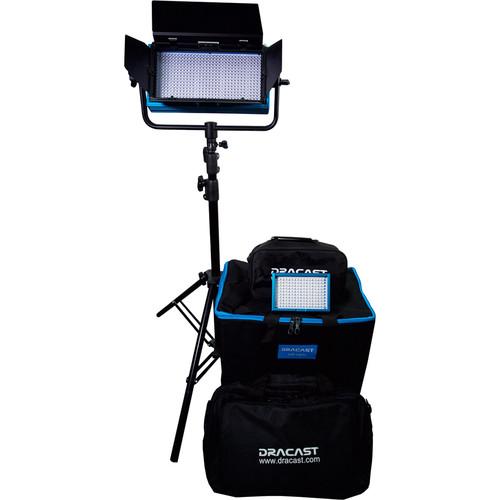

User Manual for Dracast Outdoor Deluxe Bi-Color AC DC Kit with 1 x LED500B 1 x LED160AB, Batteries and V-Mount Battery Plate

• Product category: LED Lights Dracast
• Brand: Dracast
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dracast LED Lights

Product description

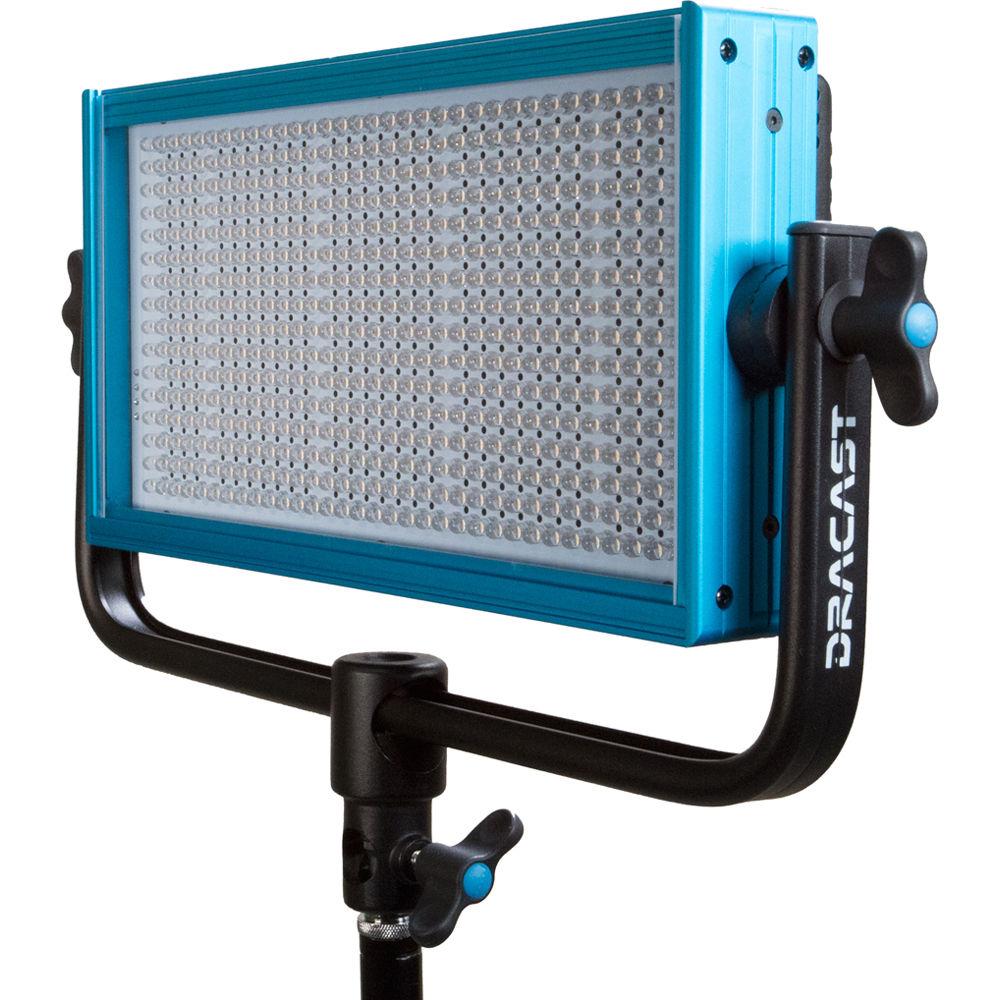

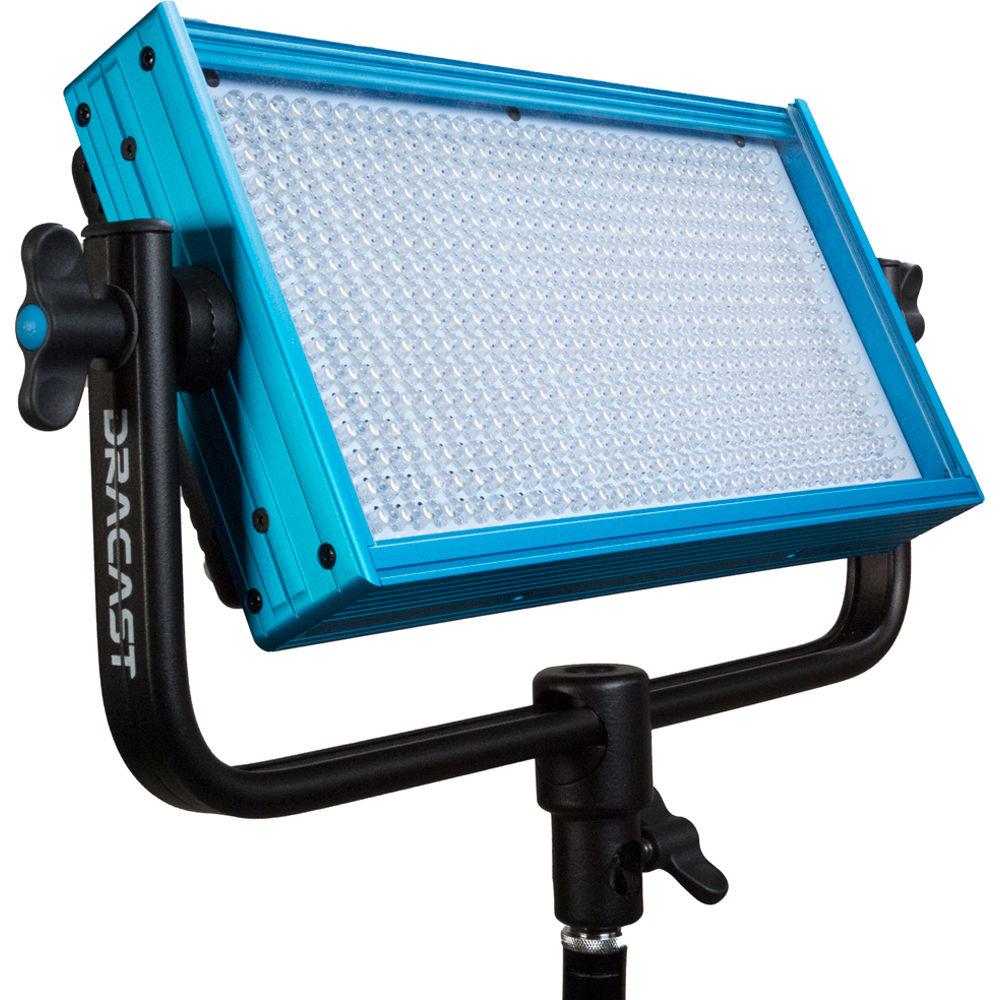

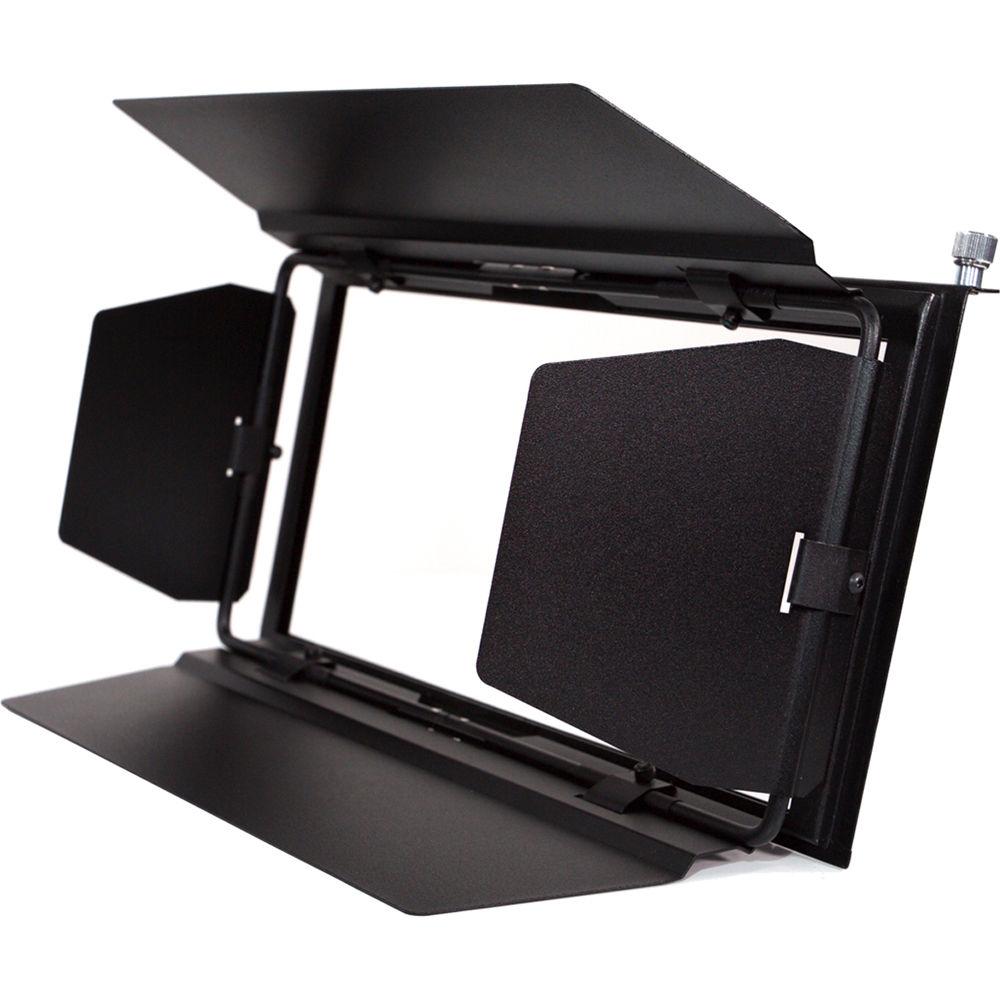

• LED500 Pro Bi-Color LED Light with V-Mount Battery Plate At just 4.0 lb the LED500 Pro Bi-Color LED Light from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 30W means a timely return on your investment. The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter in the studio, or by V-Mount batteries in the field. Four-way barndoors for contouring and control of the LED500's 45-degree beam angle are available separately. For protection during transport and storage, a carry case is included.
  Photometrics
  • 2,700 lux/ 251 fc @ 3.0' (0.9m) and 3220K
    750 lux/ 70 fc @ 6.0' (1.8m) and 3220K
    350 lux/ 33 fc @ 9.0' (2.7m) and 3220K
    200 lux/ 19 fc @ 12' (3.6m) and 3220K

    4,400 lux/ 409 fc @ 3.0' (0.9m) and 4400K
    1250 lux/ 116 fc @ 6.0' (1.8m) and 4400K
    600 lux/ 56 fc @ 9.0' (2.7m) and 4400K
    350 lux/ 33 fc @ 12' (3.6m) and 4400K

    1950 lux/ 181 fc @ 3.0' (0.9m) and 5600K
    530 lux/ 49 fc @ 6.0' (1.8m) and 5600K
    265 lux/ 25 fc @ 9.0' (2.7m) and 5600K
    150 lux/ 14 fc @ 12' (3.6m) and 5600K
  UPC: 720189882920

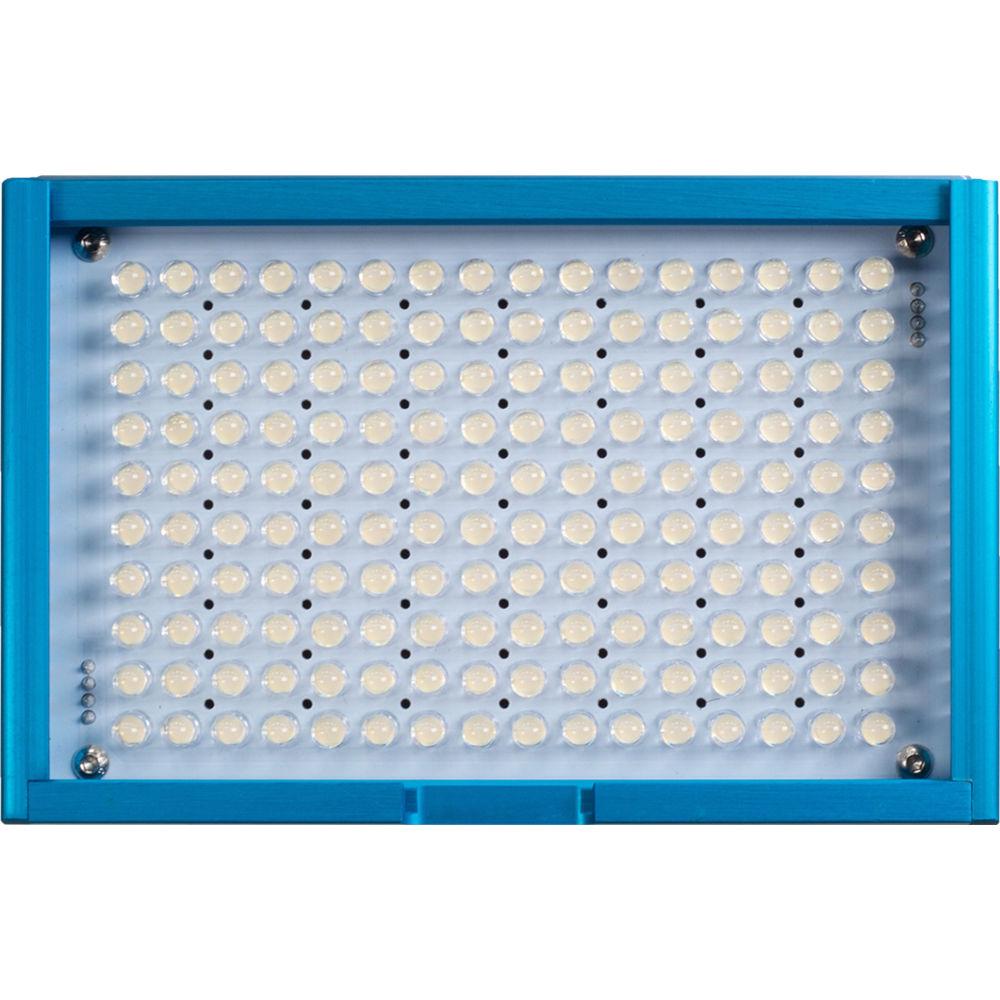

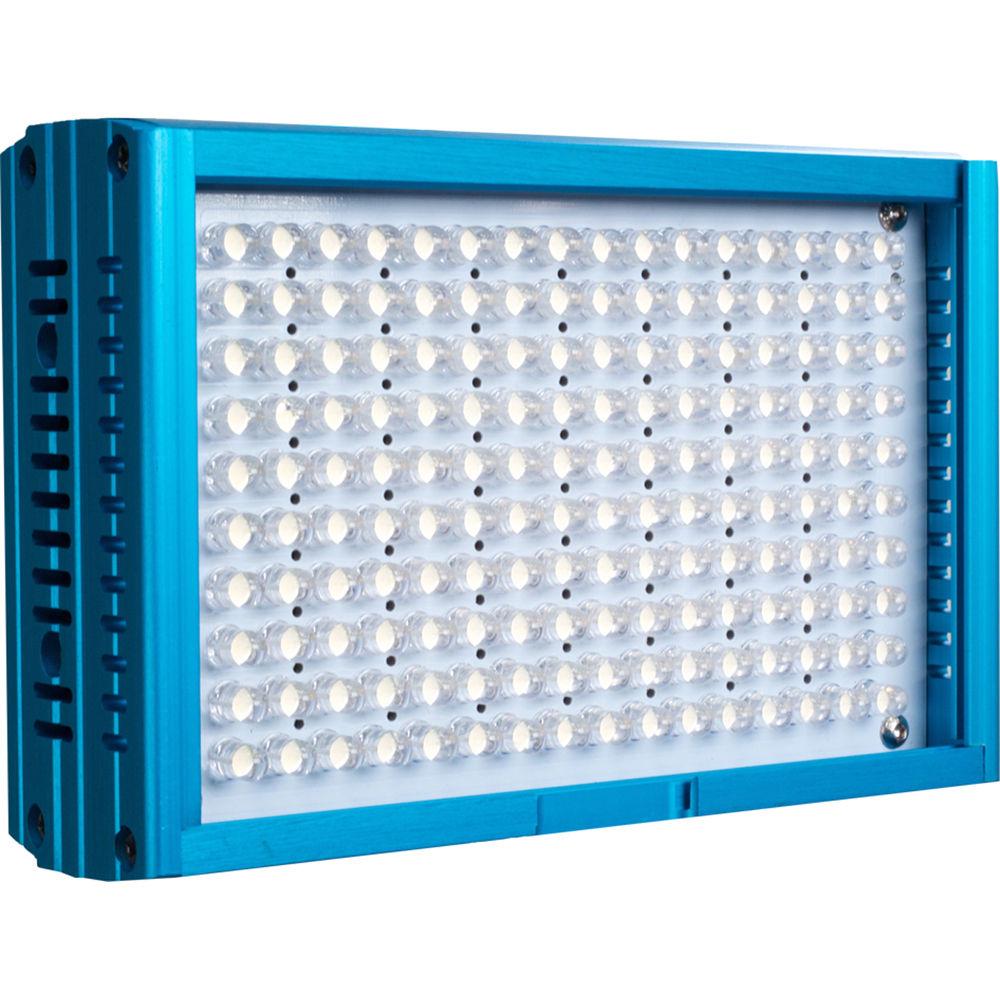

• LED160 3200-5600K Variable Color On-Camera Light (Aluminum, Blue) This is a 3200-5600K variable-color Dracast LED160 On-Camera Light, housed in an aluminum, blue case and measures a compact 6 x 4". It features a high, 160W equivalent light output with a 45° flood beam angle. It'll give you approximately 20 ft effective distance.
  Key Features
  • • 3200-5600K variable-color LED light
    • 160W equivalent light output
    • 45° flood beam angle
    • Approximately 20 ft effective distance
    • >95 CRI
    • Brightness dimmer dial on the rear
    • Integrated L-series battery plate
    • 4-LED indicator on the rear
• Umbrella For Dracast Outdoor Kits (35") This Umbrella For Dracast Outdoor Kits is a 35" open diameter light modifier with a white interior. It measures 23" in length when closed and is included in the LED500/LED160 Outdoor Lighting Kits. UPC: 610708234173
• WB1633 Backpack The WB1633 Backpack for Outdoor Kit from Dracast can hold a camera with multiple lenses and accessories as well as most laptops up to 21". The main compartment features double zipper pulls for easy access to your camera, lenses, flashes, and accessories. A separate padded laptop compartment measures 19 x 10 x 1".

  The backpack also features water-resistant interior pockets, load adjustment straps, all-weather material, thick foam interior dividers, and side straps for holding a light stand, monopod or tripod. Padded inserts can be customized to specifically fit your gear or removed completely. The backpack is included with Dracast's Outdoor Kits, and can be purchased here as a replacement backpack for those kits. UPC: 743724447057
• WFC 573M Carbon Fiber Monopod Weighing just 1 lb, the Dracast WFC 573M Carbon Fiber Monopod can hold up to 17.6 lb, extends to a height of 65.7", and folds down to 18.9". Twist locks hold the five sections to your desired length and a rubber foot provides stability on slippery surfaces. A wrist strap is included for added security and comfort.
• 90Wh 14.8V Li-Ion V-Mount Battery The Dracast 90Wh 14.8V Li-Ion V-Mount Battery is a memory-effect-free battery for professional camera systems. It features built-in electronics to protect the battery during charging and use, charger is not included with the battery. The 5-LED battery system provides an indicator that shows you how much capacity the battery has left before it needs to be charged. It incorporates a D-tap power outlet, so you can power accessories directly, instead of through your camera's electronics. With an operating temperature range of -4 to 122° F, the battery will keep working even in deep cold and extreme heat.
  • 90Wh Li-ion professional mount battery pack does not suffer from memory effect, common to NiCd batteries.
  • Fits camera and lighting units with V-Mount battery bracket.
  • The built-in LED battery gauge provides you with a clear visual confirmation of the battery's capacity.
  • The built-in D-tap connector allows you to power accessories directly from the battery, protecting your camera's electronics from potential damage due to power hungry accessories.
  • The battery incorporates electronic protection from over-charging, over-discharging, over-current-draw, external short-circuits, and non-equilibrium between its power cells.
  • The battery will operate in temperature extremes that are uncomfortable for most people. Please note that as a general rule, battery capacity decreases as the temperature gets colder. Check your owner's manual for instructions on charging cold or hot batteries.
  • An attached rubber cover protects the D-tap connector when not in use.

• Carry Case

• AC Power Adapter for LED500 Light

• Limited 1-Year Warranty

• Nylon Soft Case

• Shoulder Strap

• Hot-Shoe Mount

• P-Tap to DC Connector Cable

• Power Supply 2-Prong U.S.

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Wrist Strap

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Kit Light Stand (5.5')
• NP-F Type Battery
